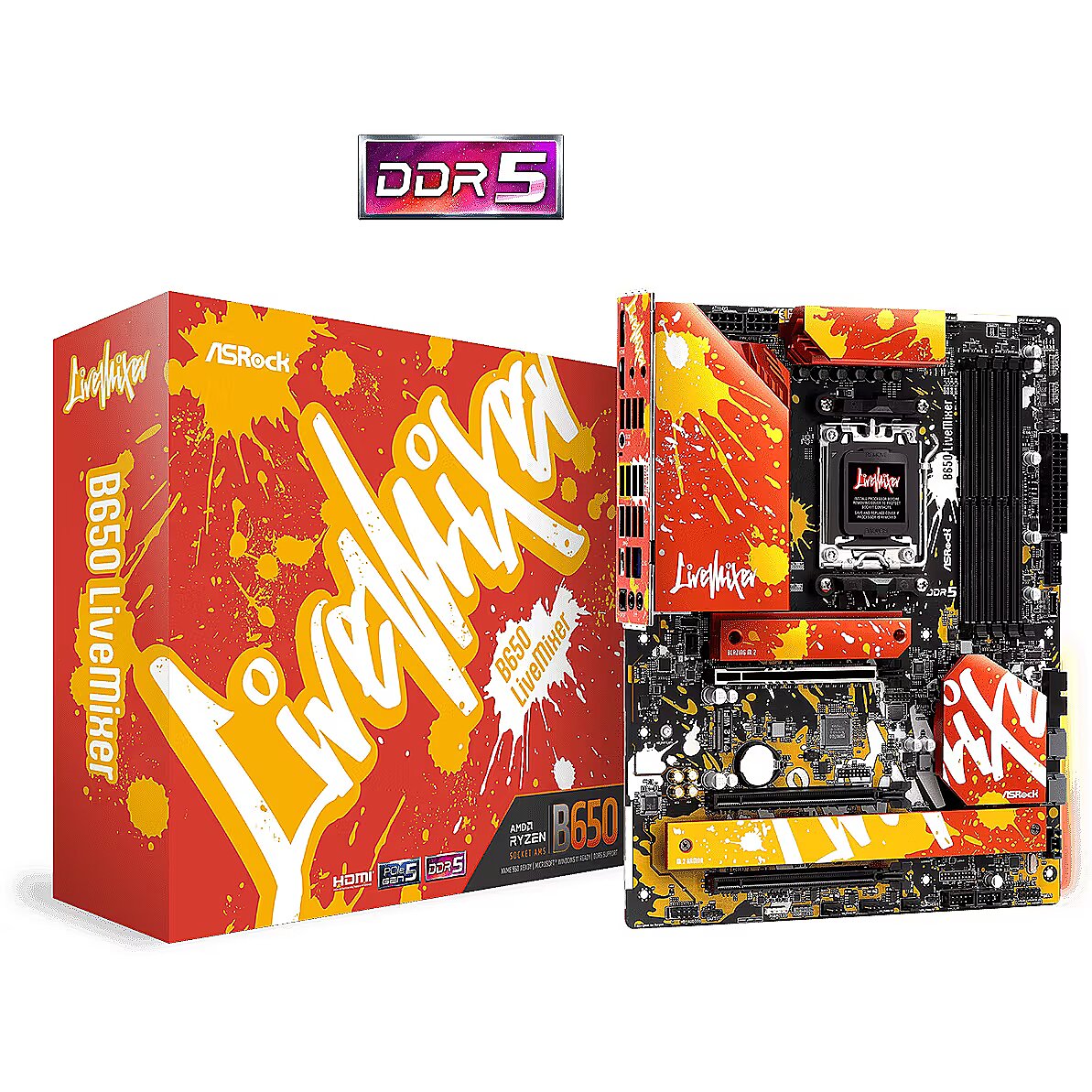

Asrock B650 LiveMixer

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 903891 Product code: B650 LIVEMIXER
Can be ordered 45 units Availability: 14 days after order approval
Warranty: 3 years
181.89 €
Delivery options More about shipping
  • Delivery to Smartpost free of charge: 10.12.2024
  • Delivery to Omniva parcel machine free of charge: 10.12.2024
  • Piegāde uz DPD Pickup Paku Skapi free of charge: 10.12.2024
  • Delivery to Latvian post office, parcel locker or Circle K free of charge: 10.12.2024
  • Delivery to address in Riga 3.99 €: 10.12.2024
  • Delivery to address in Latvia 6.99 €: 10.12.2024
  • Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 05.12.2024 after 15:00
Main product parameters All parameters
  • Series: ASRock LiveMixer
  • Plate size: ATX
  • Chipset: AMD B650
  • Socket: AM5
  • Type: DDR5
  • RAM Slots: 4
  • Built-in Wi-Fi: Nav
  • M.2 ports: 3
Basic information
Series : ASRock LiveMixer
Plate size ATX

The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD B650

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket AM5
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR5
RAM Slots 4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR5 5200MHz (6400MHz OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 0
DisplayPort : 1
DVI : 0
HDMI : 1
Integrated sound card : Realtek ALC897
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Nav
Built-in Wi-Fi : Nav
External ports
External USB 2.0 : Eight Core
External USB Type-C (USB 3.2 Gen2) : 1
External USB Type-C (USB 4.0) : 0
External USB 3.0 (USB 3.2 Gen1) : 4
External USB 3.1 (USB 3.2 Gen2) : 1
Internal ports
Internal A-RGB 5V (3-pin) : 3
Internal RGB 12V (4-pin) : 1
Internal USB 2.0 : 2
Internal USB 3.0 : 2
Internal USB Type-C : 1
M.2 ports : 3
SATA3 ports : 2
Power supply units (PSU)
More detailed specification
Additional information in manufacturers website Asrock B650 LiveMixer
Audio port Input/Output connectors - 2
BIOS - BIOS type - UEFI
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM3+
Chipset - AMD B650
code - 90-MXBJ50-A0UAYZ
Description - B650 LiveMixer - Supports AMD Ryzen™ 8000 and 7000 Series Processors - 14+2+1 Phase Power Design, SPS - 4 x DDR5 DIMMs, supports up to 7200+(OC) - 3 PCIe 4.0 x16, 1 M.2 Key-E for WiFi - Graphics Output Options: 1 HDMI, 1 DisplayPort - 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio - 1 Blazing M.2 (PCIe Gen5x4), - 2 Hyper M.2 (PCIe Gen4x4), - 2 SATA3 - 1 USB 3.2 Gen2x2 Type-C (Front), - 1 USB 3.2 Gen2 Type-C (Rear), - 1 USB 3.2 Gen2 Type-A (Rear), - 8 USB 3.2 Gen1 (4 Rear, 4 Front), - 12 USB 2.0 (8 Rear, 4 Front) - Realtek 2.5G LAN
dimensionalWeight - 2481
DisplayPort Input/Output connectors - 1
ean - 4710483941016
Eans - 4710483941016
EAN_code - 4710483941016
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 3
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - AMD B650
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
Form Factor - ATX
Frequency speed - 7200 MHz
Full Description Line - AMD B650|SAM5|ATX|DDR5|7200 MHz|Memory slots 4|1xPCI-Express 4.0 4x |2xPCI-Express 4.0 16x|4xM.2|1xHDMI|1xDisplayPort|8xUSB 2.0|6xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|2xAudio port|Video Depending on CPU|Audio Realtek ALC897|LAN 2.5 Gigabit|RAID SATA 0, 1; NVMe 0, 1, 10|TPM Header
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC897
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of SATA III connectors - 3
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
M.2 Expansion slots - 4
Manufacturer - Asrock
Manufacturer_code - 90-MXBJ50-A0UAYZ
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory slots - 4
Memory type - DDR5
Model - B650 LIVEMIXER
Name - ASRock B650 LIVEMIXER
name - ASRock B650 Live Mixer, AMD B650 Mainboard - Sockel AM5, DDR5
Name - ASRock B650 LIVE MIXER, motherboard - AM5
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Dragon RTL8125BG
Network - Wi-Fi - No
Optical S/PDIF Input/Output connectors - 1
PCI-Express 4.0 4x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 2
Processor - Compatible processor series - AMD Ryzen 9 7th Gen
Processor - Compatible processor series - AMD Ryzen™ 5
Processor - Compatible processor series - AMD Ryzen™ 7
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Producer - ASRock
producerCode - B650 LIVEMIXER
ProducerCode - B650 LIVEMIXER
productName - Asrock B650 LiveMixer AMD B650 Socket AM5 ATX
productSize - Normal
RAID - SATA 0, 1; NVMe 0, 1, 10

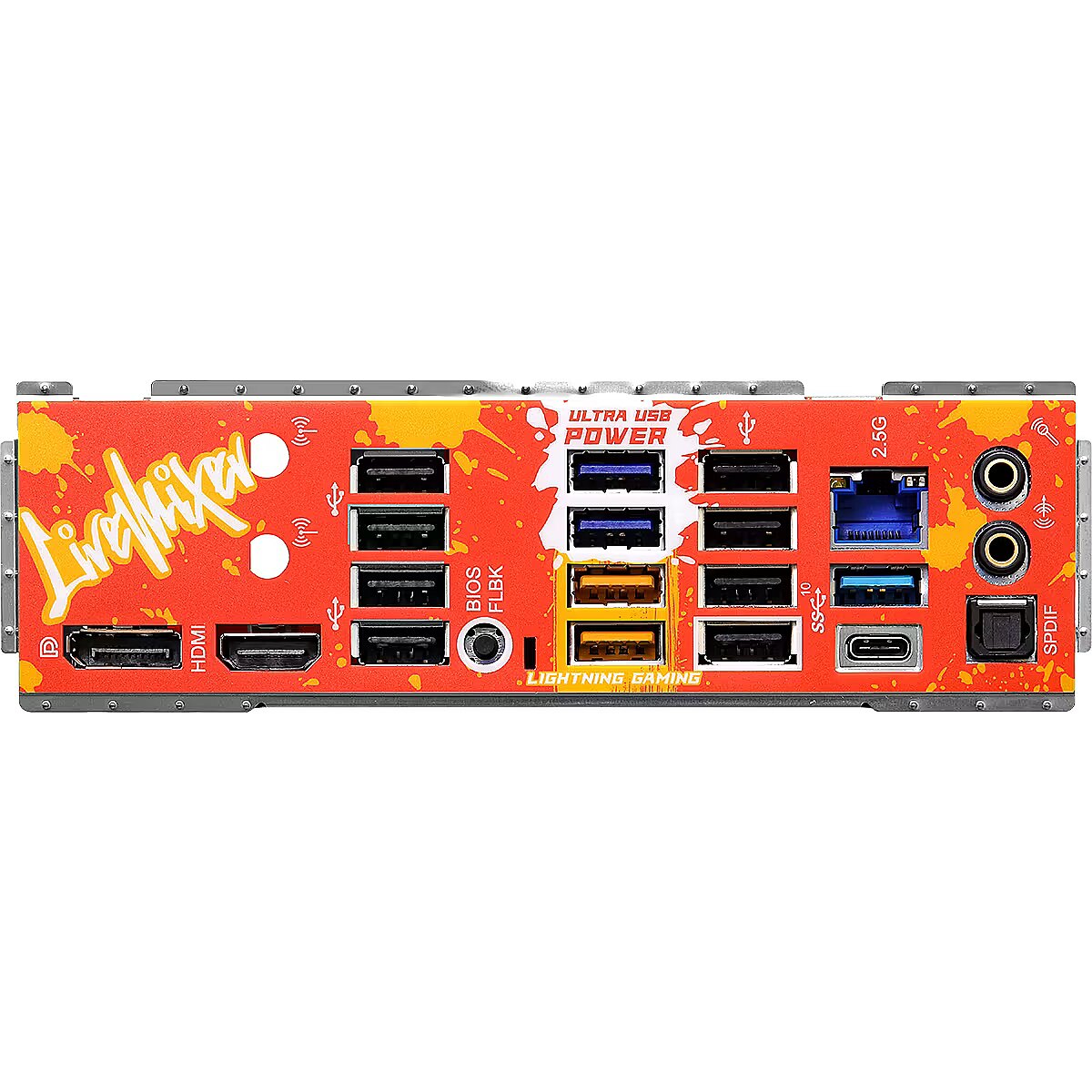

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 8
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
Shipping Box Depth Shipping/Package Box Dimensions - 50 cm
Shipping Box Height Shipping/Package Box Dimensions - 35 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 12.61 kg
Shipping Box Width Shipping/Package Box Dimensions - 40 cm
ShortDescription - Socket AM5 | Chipset B650 | DDR5
sizeX - 388
sizeY - 323
sizeZ - 99
Socket - SAM5
Storage controllers - Number of storage drives supported - 5
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
TPM - Header
Unit Box Height - 0.35
Unit Box Length - 0.5
Unit Box Width - 0.08
Unit Brutto Volume - 0.014 cubm
Unit Gross Weight - 2.52 kg
Unit Net Weight - 0.9 kg
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 8
USB 3.2 Input/Output connectors - 6
Vendor Homepage - www.asrock.com/mb/AMD/B650%20LiveMixer/Specification.asp
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Weight - 2,24
weight - 2248
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
181.89 €
