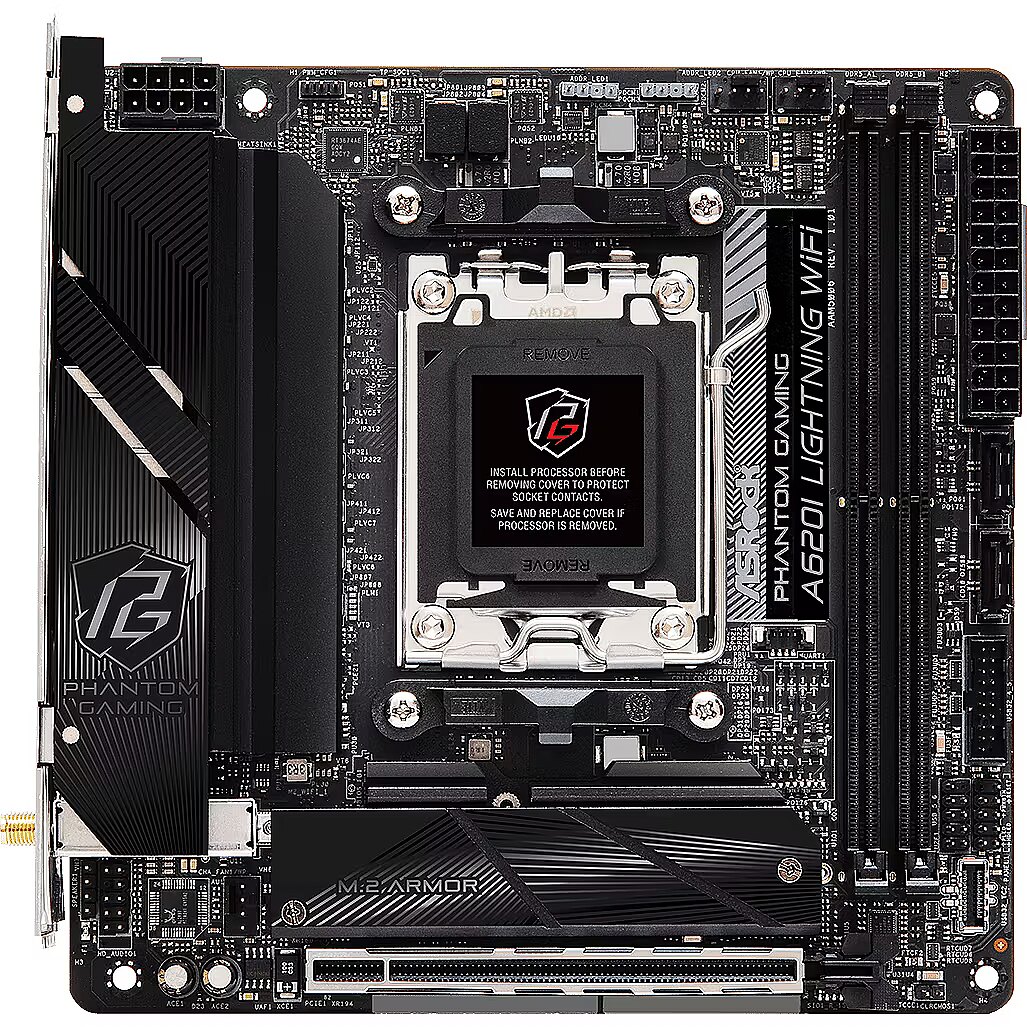

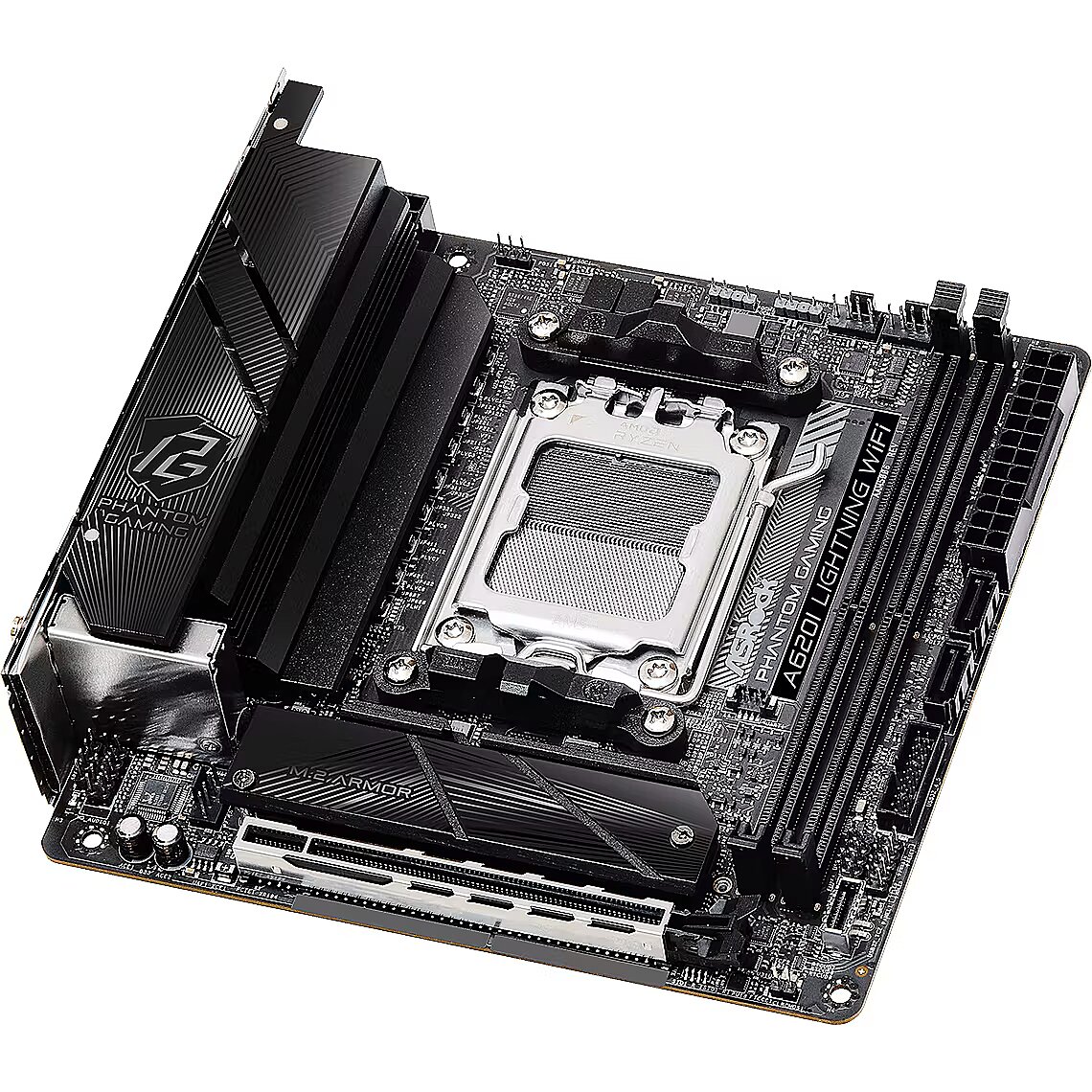

Asrock A620I Lightning WiFi

Name: Asrock A620I Lightning WiFi
Brand: Asrock
SKU: 1007215
Price: 172.54 EUR
Availability: OutOfStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1007215 Product code: A620I LIGHTNING WIFI

Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

Dateks.lv website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years

Compare

Main product parameters All parameters

Series: ASRock Lightning
Plate size: mITX
Chipset: AMD A620
Socket: AM5
Type: DDR5
RAM Slots: 2
Built-in Wi-Fi: Ir
M.2 ports: 2

Similar Products

Basic information
	This product Asrock A620I Lightning WiFi	Asrock X670E Steel Legend	Asus PRIME X870-P WIFI	MSI PRO X870-P WIFI	Asus TUF GAMING B650-PLUS WIFI
Show similar specs. Hide similar specs.	172.54 €	314.78 €	318.45 €	318.45 €	205.28 €
Series	ASRock Lightning	ASRock Steel Legend	ASUS Prime	MSI PRO	ASUS TUF Gaming
Plate size	mITX	ATX	ATX	ATX	ATX
Chipset	AMD A620	AMD X670E	AMD X870	AMD X870	AMD B650
Socket	AM5	AM5	AM5	AM5	AM5
Random-access memory (RAM)
Type	DDR5	DDR5	DDR5	DDR5	DDR5
RAM Slots	2	4	4	4	4
Memory support	DDR5 4800MHz (7200MHz OC)	DDR5 5200MHz (6600MHz OC)	DDR5 5600MT/s (8000MT/s OC)	DDR5 5600MT/s (8200MT/s OC)	DDR5 5200MHz (6400MHz OC)
Graphics card
VGA Port	PCI-EXPRESS	PCI-EXPRESS	PCI-EXPRESS	PCI-EXPRESS	PCI-EXPRESS
Integrated graphics	Only with iGPU-ready APU	Only with iGPU-ready APU	Only with iGPU-ready APU	Only with iGPU-ready APU	Only with iGPU-ready APU
Ports and equipment
D-Sub	0	0	0	0	0
DisplayPort	0	1	0	0	1
DVI	0	0	0	0	0
HDMI	1	1	1	1	1
Integrated sound card	Realtek ALC897	Realtek ALC1220	Realtek 7.1 Audio CODEC	Realtek ALC897	Nav norādīts
PCI Ports	0	0	0	0	0
Wireless connections
Built-in Bluetooth	Ir	Ir	Ir	Ir	Ir
Built-in Wi-Fi	Ir	Ir	Ir	Ir	Ir
External ports
External USB 2.0	2	4	4	4	4
External USB Type-C (USB 3.2 Gen2)	1	1	0	1	2
External USB Type-C (USB 4.0)	0	0	2	1	0
External USB 3.0 (USB 3.2 Gen1)	1	6	3	2	0
External USB 3.1 (USB 3.2 Gen2)	2	1	1	2	2
Internal ports
Internal A-RGB 5V (3-pin)	2	3	3	3	3
Internal RGB 12V (4-pin)	0	1	0	1	1
Internal USB 2.0	1	2	2	2	2
Internal USB 3.0	1	2	1	1	1
Internal USB Type-C	1	1	1	1	1
M.2 ports	2	4	4	3	3
SATA3 ports	2	4	2	4	4

Basic information

Series : ASRock Lightning

Plate size mITX

The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD A620

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.

Socket AM5

The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.

Random-access memory (RAM)

Type : DDR5

RAM Slots 2

The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.

Memory support DDR5 4800MHz (7200MHz OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card

VGA Port PCI-EXPRESS

VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.

Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment

D-Sub : 0

DisplayPort : 0

DVI : 0

HDMI : 1

Integrated sound card : Realtek ALC897

PCI Ports 0

PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.

Wireless connections

Built-in Bluetooth : Ir

Built-in Wi-Fi : Ir

External ports

External USB 2.0 : 2

External USB Type-C (USB 3.2 Gen2) : 1

External USB Type-C (USB 4.0) : 0

External USB 3.0 (USB 3.2 Gen1) : 1

External USB 3.1 (USB 3.2 Gen2) : 2

Internal ports

Internal A-RGB 5V (3-pin) : 2

Internal RGB 12V (4-pin) : 0

Internal USB 2.0 : 1

Internal USB 3.0 : 1

Internal USB Type-C : 1

M.2 ports : 2

SATA3 ports : 2

More detailed specification

BIOS - BIOS type - UEFI AMI
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM5
code - 90-MXBMN0-A0UAYZ
dimensionalWeight - 838
ean - 4710483944246
EAN_code - 4710483944246
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 4.x) slots - 1
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - AMD A620
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - Mini-ITX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of SATA III connectors - 2
Internal I/O - RGB LED pin header - Yes
Internal I/O - USB 2.0 connectors - 1
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB Type-C socket on the front panel - Y
Manufacturer - Asrock
Manufacturer_code - 90-MXBMN0-A0UAYZ
Memory - Maximum internal memory - 96 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Name - ASRock A620I Lightning WiFi - Socket AM5 - motherboard
name - ASRock A620I Lightning WiFi Mainboard - A620-Chipsatz, Sockel AM5, DDR5
Network - Bluetooth - Yes
Network - Bluetooth version - 5.2
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Dragon RTL8125BG
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Processor - Compatible processor series - AMD Ryzen™ 7000 Series
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
producerCode - A620I LIGHTNING WIFI
productName - Asrock A620I LIGHTNING WIFI motherboard
productSize - Normal
Rear panel I/O ports - BIOS switch button - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - Wi-Fi antenna socket - Yes
sizeX - 236
sizeY - 93
sizeZ - 191
Storage controllers - Number of storage drives supported - 4
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
warrantyLength - 24
warrantyType - G
Weight - 1,01
weight - 1018
Weight & dimensions - Depth - 170 mm
Weight & dimensions - Width - 170 mm
