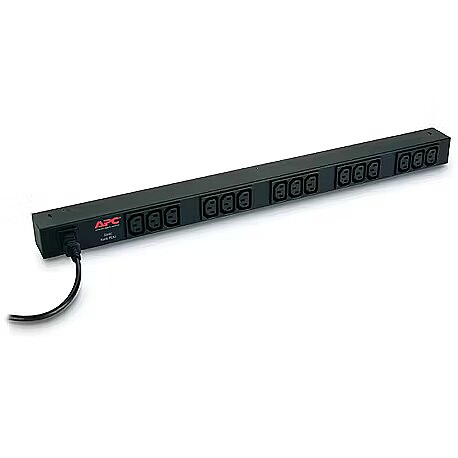

APC Basic Rack PDU Zero U, Power distribution strip, 32A 230V 20C13 + 4C19

ARTIKEL1 - RACK PDU BASIC ZERO U 32A
ARTIKEL2 - 230V (20)C13+( 4) C19
Brand - APC
BrandPartCode - AP7553
Breite - 0.16
Cable length, m - 3.05
Category - Power Distribution Units (PDUs)
Certificates - CE, VDE
Certification - CE, VDE
Color - Black
Depth, mm - 44
Description - APC Basic Rack PDU, Input: 200V, 208V, 230V, Input Connections: IEC 309 32A 2P + E, Cord Length: 10 feet (ft.) (3.05 meters), Output: 230V, Output Connections: IEC 320 C13, IEC 320 C19
Description - APC RACK PDU, BASIC, ZERO U, 32A, 230V, (20)C13 & (4)C19
Design - Mounting - Vertical
Design - PDU types - Basic
Design - Product colour - Black
Design - Rack capacity - 0U
Design - Type - Single-phase
dimension depth - 125 mm
dimension height - 2130 mm
Dimensions - Net weight: 5.57 Kg
The maximum height: 1619.00 mm
The maximum width: 56.00 mm
Maximum depth: 44.00 mm
Package weight: 6.48 KG
Height in transport packaging: 2134.00 mm
Width in the transport packaging: 152.00 mm
Delivery height: 127.00 mm
dimension weight - 8940 g
dimension width - 160 mm
Duration -
ean - 731304225515
EANCode - 0731304225515
Features - Cable length - 3050 m
GRUPPE1 - Power Protection
GRUPPE2 - Power Product Cpnt
GTIN - 731304225515
GTIN - 0731304225515
guarantee - 24
guarantee_type - external
Height - 160.000000
Height, mm - 1619
HERSTELLER - APC
Hoehe - 0.13
HSTNUMMER - AP7553
Included - User manual Clamps for mounting in industrial cabinets Assembly kit without tools
Input current, A - 32
Input frequency, Hz - 47 - 63
Length - 140.000000
LongDesc - Features: Single input power source Toolless Mounting Capabilities Vertical Mounting Capabilities
LongProductName - Rack PDU, Basic, Zero U, 32A, 230V, (20)C13 & (4)C19
LongSummaryDescription - APC RACK PDU. BASIC. ZERO U. 32A. 230V. (20)C13 & (4)C19. PDU types: Basic, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60309. Cable length: 3050 m. Nominal input voltage: 230 V, Nominal output voltage: 230 V, Output voltage: 230 V. Dimensions (WxDxH): 56 x 44 x 1619 mm, Weight: 5.57 kg
Manufacturer - APC
ManufacturerPartNumber - AP7553
name - AP7553 RACK PDU BASIC ZERO U 32A 20xC13/4xC19
Nominal input voltage, V - 200, 208, 230
Nominal output voltage, V - 230
Operating relative humidity range, % - 5 - 95
Operating temperature range (T-T), °C - 0 - 45
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -25 - 65 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - 0 - 45 °C
Output interface - (20) IEC 320 C13,
(4) IEC 320 C19
Output power capacity (VA) - 7360
Packaging data - Package dimensions (WxDxH) - 152 x 127 x 2134 mm
Packaging data - Package weight - 6.48 kg
PeriodofWarranty - 2 Y
Ports & interfaces - AC outlets quantity - 24 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler
Ports & interfaces - I/O ports - (20) IEC 320 C13
(4) IEC 320 C19
IEC 309 32A
Ports & interfaces - Input connection type - IEC 309 32A
Ports & interfaces - Output connections - (20) IEC 320 C13
(4) IEC 320 C19
Ports & interfaces - Power plug - IEC 60309
Power - Load capacity - 7680 VA
Power - Maximum input current per phase - 32 A
Power - Maximum power - 7680 W
Power - Maximum total current draw per phase - 32 A
Power - Nominal input voltage - 230 V
Power - Nominal output voltage - 230 V
Power - Output voltage - 230 V
producer - APC
ProductName - RACK PDU. BASIC. ZERO U. 32A. 230V. (20)C13 & (4)C19
ShortSummaryDescription - APC RACK PDU. BASIC. ZERO U. 32A. 230V. (20)C13 & (4)C19, Basic, 0U, Single-phase, Vertical, Black, 24 AC outlet(s)
Stck_Kart - 1
Stck_Pal - 1
Storage temperature range (T-T), °C - -25 - 65
Storno - Y
Technical specifications - At the exit:
     Output voltage: 230V      Maximum total power consumption: 32A      Output sockets: (20) IEC 320 C13, (4) IEC 320 C19
At the entrance:
     Nominal input voltage: 200V, 208V, 230V      Frequency at input: 47 - 63 Hz      Input jack type: IEC 309 32A 2P + E      Power cord length: 3.05 meters      Number of power cables: 1      Maximum input current: 32A      Loading level: 7360 VA
Environmental parameters:
     Operating environment: 0 - 45 ° C      Relative humidity during operation: 0 - 95%      Height m.p. during work: 0-3000 meters      Temperature (storage): -25 - 65 ° C      Relative humidity (storage): 0 - 95%      Height m.p. (storage): 0-15000 meters
Title - APC RACK PDU. BASIC. ZERO U. 32A. 230V. (20)C13 & (4)C19 power distribution unit (PDU) 24 AC outlet(s) 0U Black
URL - https://www.apc.com/resource/include/techspec_index.cfm?base_sku=AP7553
vendpn - AP7553
WarrantyInfo - 2 years
Weight - 8.720000
Weight & dimensions - Dimensions (WxDxH) - 56 x 44 x 1619 mm
Weight & dimensions - Weight - 5.57 kg
Weight, kg - 5.57
Width - 2120.000000
Width, mm - 56
