ID: 990897
Product code: PS-SPD-0750MNFABE-3
Can be ordered 127 units Availability: 14 days after order approval
Warranty: 3 years

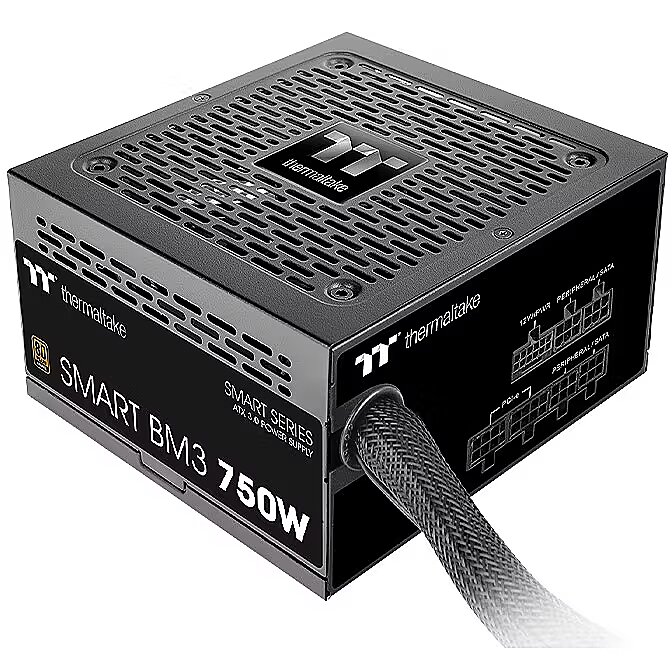

Thermaltake Smart BM3, 750W, 80PLUS Bronze
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 27.11.2024
- Delivery to Omniva parcel machine free of charge: 27.11.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 27.11.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 27.11.2024
- Delivery to address in Riga 3.99 €: 27.11.2024
- Delivery to address in Latvia 6.99 €: 27.11.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 22.11.2024 after 15:00
Main product parameters All parameters
- Producer: Thermaltake
- Power output: 750W
- 80 PLUS certification: 80 PLUS Bronze
- Fan size: 120 mm
- Modular cables: Semi-Modular
- Processor plug-in: 1 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Description
This Thermaltake brand power supply unit has an 80 PLUS Bronze energy efficiency certificate and a power output of 750W.
To ensure a good mid-range gaming experience, 750W of power will be sufficient. With this power supply unit, you will be able to run a computer with a high-end processor, multiple SSD/HDD drives, and a powerful mid-range graphics card (for example, RTX 4070).
The diameter of this power supply unit's fan is 120 mm, which will ensure quiet operation in mid-range computers. For especially quiet power supply unit operation, we recommend selecting a fan with a 135 mm or 140 mm diameter.
80 PLUS Bronze energy efficiency certificate, received by this power supply unit, guarantees at least 85% efficiency at 50% load. In other words, for every 100 W of energy the power supply unit receives from the electrical grid, at least 85 W goes to your computer components, while the remaining 15 W is lost as heat.
1 x 300W 12VHPWR connector, with which this power supply unit is equipped, is intended for use with modern graphics cards such as Nvidia GeForce RTX 4070 and above (RTX 4060 and below use the standard 8-pin connector).
The color of the block is Melna. The block has flat cables, whose color is Melna.
This is a power supply unit compliant with ATX 3.0 requirements. It indicates that it has a 16-pin (12VHPWR) port, which can power the latest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards with up to 600 W of power. Furthermore, ATX 3.0 allows the current to be increased by 200% for a millisecond, ensuring smoother power delivery to the components.
This power supply has semi-modular cables. Some cables are permanently attached, while others can be added or removed as needed. The power supply is suitable for users who want some flexibility but do not want a fully modular system.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
750W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Bronze
Total amperage (+12V)
: 62.5A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Semi-Modular
Ports and equipment
PCI-E 5.0
: 1 x 300W 12VHPWR
Processor plug-in
: 1 x 8-pin(4+4) EPS
Motherboard power
: 24-pin
PCI-E
: 4 X 6+2pin
SATA cconnectors
: 6
4pin Molex
: 7
More detailed specification
8-pin 12V power connectors - 0
Accessories included -
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Bronze
Description - Power supply - Smart BM3 750W Modular 80+ Bronze 14cm DC-DC Gen5
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1444
dimension depth - 130 mm
dimension height - 270 mm
Dimensions - 150 * 86 * 140 mm
dimension weight - 2693 g
dimension width - 220 mm
ean - 4713227539746
EAN - 4713227539746
Eans - 4713227539746
EAN_code - 4713227539746
Fan - 12 cm
Floppy power connectors - 0
guarantee - 60
guarantee_type - statutory
Manufacturer - Thermaltake
Manufacturer_code - PS-SPD-0750MNFABE-3
MB power connector - 24 pin
Modular power supply - Semi
MOLEX power connectors - 7
MPN - PS-SPD-0750MNFABE-3
Name - 750W Thermaltake Smart BM3 | 80+ Bronze
name - Thermaltake Smart BM3 7 50W
Name - Thermaltake Smart BM3 750W
Name - Thermaltake SMART BM3 750W, PC power supply (black, 1x 12VHPWR, 4x PCIe, cable management, 750 watts)
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 1
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Operational conditions - Operating relative humidity (H-H) - 20 - 85%
Operational conditions - Operating temperature (T-T) - 5 - 45 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 55 °C
Other features -
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 3.0
Performance - Certification - CE/UKCA/LVD/UKCA/FCC/ICES/TUV/CB/cTUVus/BSMI/CCC
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - Cabling type - Semi-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (12+4 pin) - 1
Ports & interfaces - PCI Express power connectors (12+4 pin) cable length - 600 mm
Ports & interfaces - Peripheral (Molex) power cable length - 150
Ports & interfaces - Peripheral (Molex) power cable length - 500 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 7
Ports & interfaces - SATA power cable length - 150
Ports & interfaces - SATA power cable length - 500 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 750 W
Power - Combined power (-12V) - 3.6 W
Power - Hold time - 17 ms
Power - Input current - 15 A
Power - Max output current (+3.3V) - 18 A
Power - Max output current (+5V) - 18 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 62.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 750 W
Power supply - 750 W
producer - Thermaltake
Producer - Thermaltake
producerCode - PS-SPD-0750MNFABE-3
ProducerCode - PS-SPD-0750MNFABE-3
productName - Thermaltake PS-SPD-0750MNFABE-3 power supply unit 750 W 24-pin ATX ATX Black
productSize - Normal
SATA power connectors - 6
ShortDescription - 750 | ATX | 140mm | 20+4 | 86mm x 150mm x 140mm | modularny | 80+ Bronze EU | PCIe Gen 5.0
sizeX - 280
sizeY - 215
sizeZ - 120
vendpn - PS-SPD-0750MNFABE-3
warrantyLength - 60
warrantyType - G
Weight - 2,62
Weight - 2.6
weight - 2585
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
Accessories included -
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Bronze
Description - Power supply - Smart BM3 750W Modular 80+ Bronze 14cm DC-DC Gen5
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1444
dimension depth - 130 mm
dimension height - 270 mm
Dimensions - 150 * 86 * 140 mm
dimension weight - 2693 g
dimension width - 220 mm
ean - 4713227539746
EAN - 4713227539746
Eans - 4713227539746
EAN_code - 4713227539746
Fan - 12 cm
Floppy power connectors - 0
guarantee - 60
guarantee_type - statutory
Manufacturer - Thermaltake
Manufacturer_code - PS-SPD-0750MNFABE-3
MB power connector - 24 pin
Modular power supply - Semi
MOLEX power connectors - 7
MPN - PS-SPD-0750MNFABE-3
Name - 750W Thermaltake Smart BM3 | 80+ Bronze
name - Thermaltake Smart BM3 7 50W
Name - Thermaltake Smart BM3 750W
Name - Thermaltake SMART BM3 750W, PC power supply (black, 1x 12VHPWR, 4x PCIe, cable management, 750 watts)
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 1
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Operational conditions - Operating relative humidity (H-H) - 20 - 85%
Operational conditions - Operating temperature (T-T) - 5 - 45 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 55 °C
Other features -
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 3.0
Performance - Certification - CE/UKCA/LVD/UKCA/FCC/ICES/TUV/CB/cTUVus/BSMI/CCC
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - Cabling type - Semi-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (12+4 pin) - 1
Ports & interfaces - PCI Express power connectors (12+4 pin) cable length - 600 mm
Ports & interfaces - Peripheral (Molex) power cable length - 150
Ports & interfaces - Peripheral (Molex) power cable length - 500 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 7
Ports & interfaces - SATA power cable length - 150
Ports & interfaces - SATA power cable length - 500 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 750 W
Power - Combined power (-12V) - 3.6 W
Power - Hold time - 17 ms
Power - Input current - 15 A
Power - Max output current (+3.3V) - 18 A
Power - Max output current (+5V) - 18 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 62.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 750 W
Power supply - 750 W
producer - Thermaltake
Producer - Thermaltake
producerCode - PS-SPD-0750MNFABE-3
ProducerCode - PS-SPD-0750MNFABE-3
productName - Thermaltake PS-SPD-0750MNFABE-3 power supply unit 750 W 24-pin ATX ATX Black
productSize - Normal
SATA power connectors - 6
ShortDescription - 750 | ATX | 140mm | 20+4 | 86mm x 150mm x 140mm | modularny | 80+ Bronze EU | PCIe Gen 5.0
sizeX - 280
sizeY - 215
sizeZ - 120
vendpn - PS-SPD-0750MNFABE-3
warrantyLength - 60
warrantyType - G
Weight - 2,62
Weight - 2.6
weight - 2585
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
