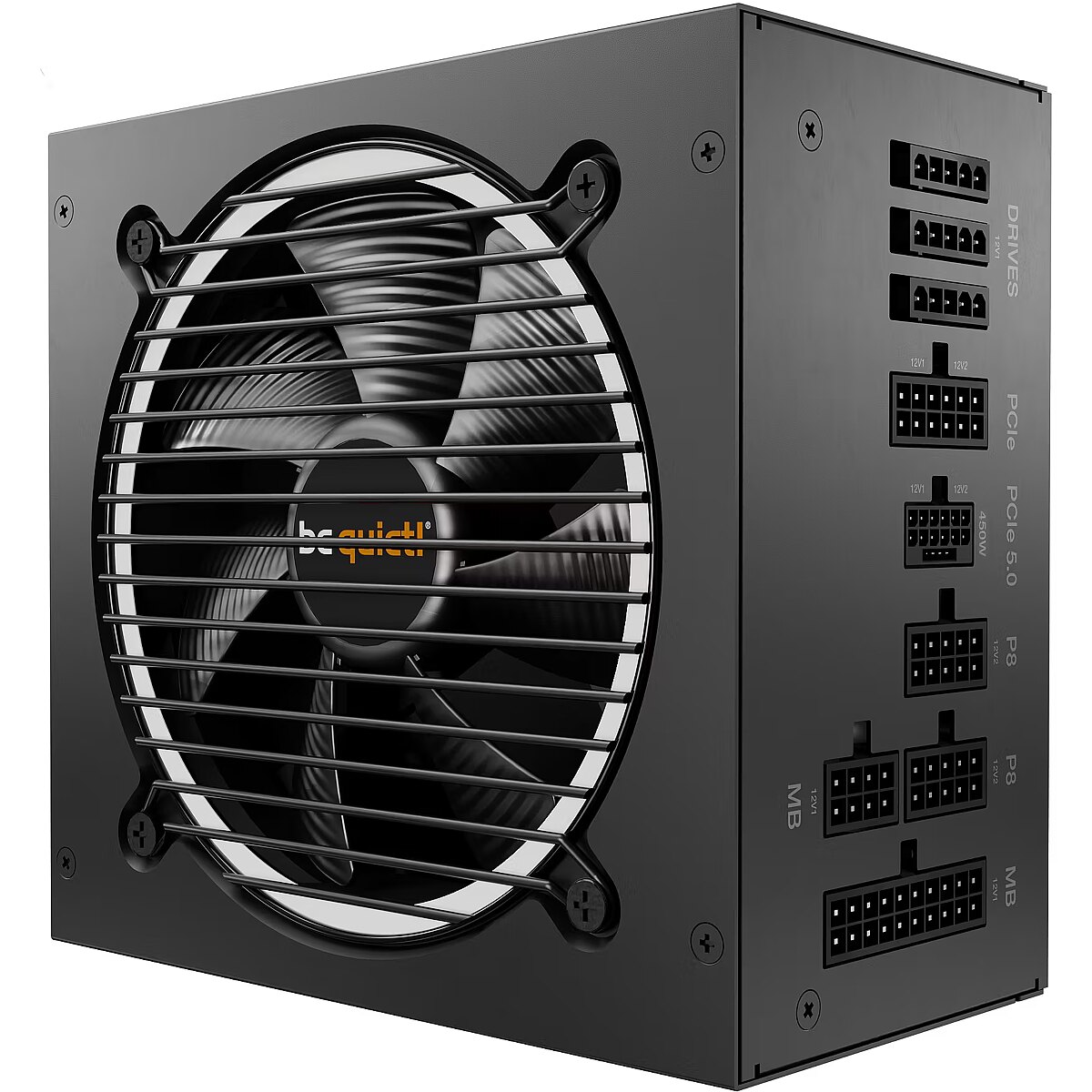

Be Quiet Pure Power 12 M, 650W, ATX 3.0, 80PLUS Gold

8-pin 12V power connectors - 0
Accessories included -
ARTIKEL1 - PURE POWER 12 M 650W
ARTIKEL2 - 80PLUS GOLD POWER SUPPLY
Brand - be quiet!
BrandPartCode - BN342
Breite - 0.23
category - PC Components|Power Supplies|PCIe 5.0
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Gold
code - BN342
Colour - Black
Cooling System - 12cm fan
Description - PURE POWER 12 M 650W Exceptional quiet, superior features Pure Power 12 M 650W is ATX 3.0 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Pure Power 12 M 650W offers the best combination of features with outstanding compatibility. - 80 PLUS® Gold efficiency (up to 92.7%) - ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors - Exceptionally silent 120mm be quiet! fan - Advanced stability and voltage regulation thanks to LLC technology - 2 strong 12V-rails - Modular cables for maximum build flexibility - One PCIe 5.0 12VHPWR 450W and 2 PCIe 6+2 connectors for high-end GPUs
Description - PURE POWER 12 M 650W EXCEPTIONAL SILENCE, BEST-IN-CLASS FEATURES Pure Power 12 M 650W is ATX 3.0 and PCIe 5.0 compliant and offers unparalleled reliability with best-in-class features. It is the best combination of performance with exceptional compatibility. 80 LUS Gold efficiency (up to 92.7%) ATX 3.0 power supply with full support for PCIe 5.0 graphics cards and those with 6+2-pin connectors Extremely silent be quiet! 120 mm fan! Advanced voltage stability and regulation due to LLC technology 2 powerful 12V rails Modular cables for maximum configuration flexibility One PCIe 5.0 12VHPWR 450W and 2 PCIe 6+2 connectors for high-end graphics cards 10-year manufacturer's warranty Extremely high performance Pure Power 12 M 650W is 80 PLUS Gold certified with up to 92.7% efficiency. The most convincing advantage: lower power consumption and thus lower costs, as well as cooler and quieter operation. The Pure Power 12 M 650W is a good choice for demanding current and future high-end configurations. Meets all requirements of the ATX 3.0 specification Pure Power 12 M 650W is an ATX 3.0 power supply with native 12VHPWR connector integration for next-generation PCIe 5.0 graphics cards and PCIe 6+2-pin connectors to support current-generation GPUs. This makes the PSU extremely versatile and an excellent choice for current and future high-end configurations. For massive transient loads Pure Power 12 M offers 650W of continuous power with 2 independent 12V lines. Even if your graphics card requires excessive power for short periods of time: Pure Power 12 M 650W can easily handle power surges of up to twice its rated power. This ensures reliable operation with the next generation of processors and graphics cards. Achieved thanks to the noise-optimised be quiet! The exceptionally quiet be quiet! 120mm fan is temperature-controlled to achieve the best balance between efficient cooling and silence. Airflow-optimised fan blades reduce turbulence for best-in-class quiet operation. Incredible stability Thanks to its LLC topology, Pure Power 12 M 650W guarantees best-in-class performance and voltage regulation. It is ideal for creating or upgrading silent PC configurations, gaming PCs or multimedia editing. Maximum convenience and compatibility Thanks to modularity, you can remove all unnecessary cables from your configuration. The Pure Power 12 M 650W simplifies cable management, cable routing, ensuring a tidy system. Smoother airflow results from an orderly layout, which means lower noise levels and temperatures inside the case.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1323
dimensionalWeight - 1359
dimension depth - 100 mm
dimension height - 223 mm
Dimensions - 160 x 150 x 86 mm
Dimensions - 160 x 150 x 86mm
dimension weight - 2845 g
dimension width - 285 mm
ean - 4260052189474
EAN - 4260052189474
EAN - 4260052189771
EANCode - 4260052189474
Eans - 4260052189474
EAN_code - 4260052189474
Efficiency - 80 PLUS GOLD
Fan - 12 cm
Full Description Line - Pure Power 12 M 650W|ATX 3.0|650 Watts|Cooling System 12cm fan|80 PLUS GOLD|PFC Active|MTBF 100000 hours|Colour Black
Gewicht - 2.83
Gross Weight Kg - 2,79
GRUPPE1 - Computer Systems
GRUPPE2 - Power Supplies
GTIN - 4260052189474
GTIN - 4260052189771
guarantee - 120
guarantee_type - normal
HERSTELLER - BE QUIET
Hoehe - 0.11
HSTNUMMER - BN342
Laenge - 0.29
LongDesc - EXCEPTIONAL QUIET, SUPERIOR FEATURESPure Power 12 M 650W is ATX 3.0 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Pure Power 12 M 650W offers the best combination of features with outstanding compatibility.80 PLUS® GOLD CERTIFIEDVery high operating efficiencyPure Power 12 M 650W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 92.7%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 M 650W is always the correct choice for quiet systems and gaming PCs!FUTURE-PROOF YOUR SYSTEMFulfills all ATX 3.0 specificationsPure Power 12 M 650W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful present systems.THE NEW STANDARD OF POWERFor massive transient loadsPure Power 12 M offers 650W of continuous power with 2 independent 12V rails. Even if the graphics card demands excessive power for a short time: Pure Power 12 M 650W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.UNPRECEDENTED SILENT OPERATIONAchieved with a silence-optimized be quiet! fanThe exceptionally silent 120mm be quiet! fan is temperature-controlled to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-classquiet functionality. HIGH-CLASS TECHNOLOGIESRock-solid stabilityWith its LLC topology Pure Power 12 M 650W provides a best-in-class voltage regulation and efficiency. That makes it perfect for building or upgrading very quiet systems as well as gaming and media creation PCs.MODULAR CABLESUtmost convenience and compatibilityThanks to their modularity, all unnecessary cables in the system are left out. Pure Power 12 M 650W simplifies cable management and routing for a tidy-looking system. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures inside the case.
LongProductName - 650W, ATX 3.0, 100 - 240V, 50 - 60Hz, 160 x 150 x 86mm, Black
LongSummaryDescription - be quiet! Pure Power 12 M. Total power: 650 W, AC input voltage: 100 - 240 V, Peak power: 720 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 500,650,800,950 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: PATA, PCIe, Peripheral (Molex), SATA
Manufacturer - Be quiet
Manufacturer - Be Quiet!
Manufacturer Code - BN342
Manufacturer Name - be quiet
Manufacturer_code - BN342
MB power connector - 20 + 4 pin
Model - BN342
Model name - Pure Power 12 M 650W
Modular power supply - Yes
MOLEX power connectors - 2
MPN - BN342
MTBF - 100000 hours
Name - 650W be quiet! PURE POWER 12 M
Name - be quiet! Pure Power 12 M 650W
Name - be quiet! Pure Power 12M 650W, PC power supply (black, 3x PCIe, cable management, 650 watts)
name - be quiet! Pure Power 12M Netzteil 80 PLUS Gold, ATX 3.0, PCIe 5.0 - 650 Watt
name - Pure Power 12M 650W ATX 3.0 GOLD PSU
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 1
Number of power supply connectors PCI-E 6 +2 pin - 4
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features -
Other features - Cable ties included - Yes
Other features - Noise level (full-load mode, 100%) - 19.9 dB
Other features - Noise level (quiet mode, 50%) - 9.1 dB
Other features - Noise level (silent mode, Other features - Number of screws - 5
Other features - Screws included - Yes

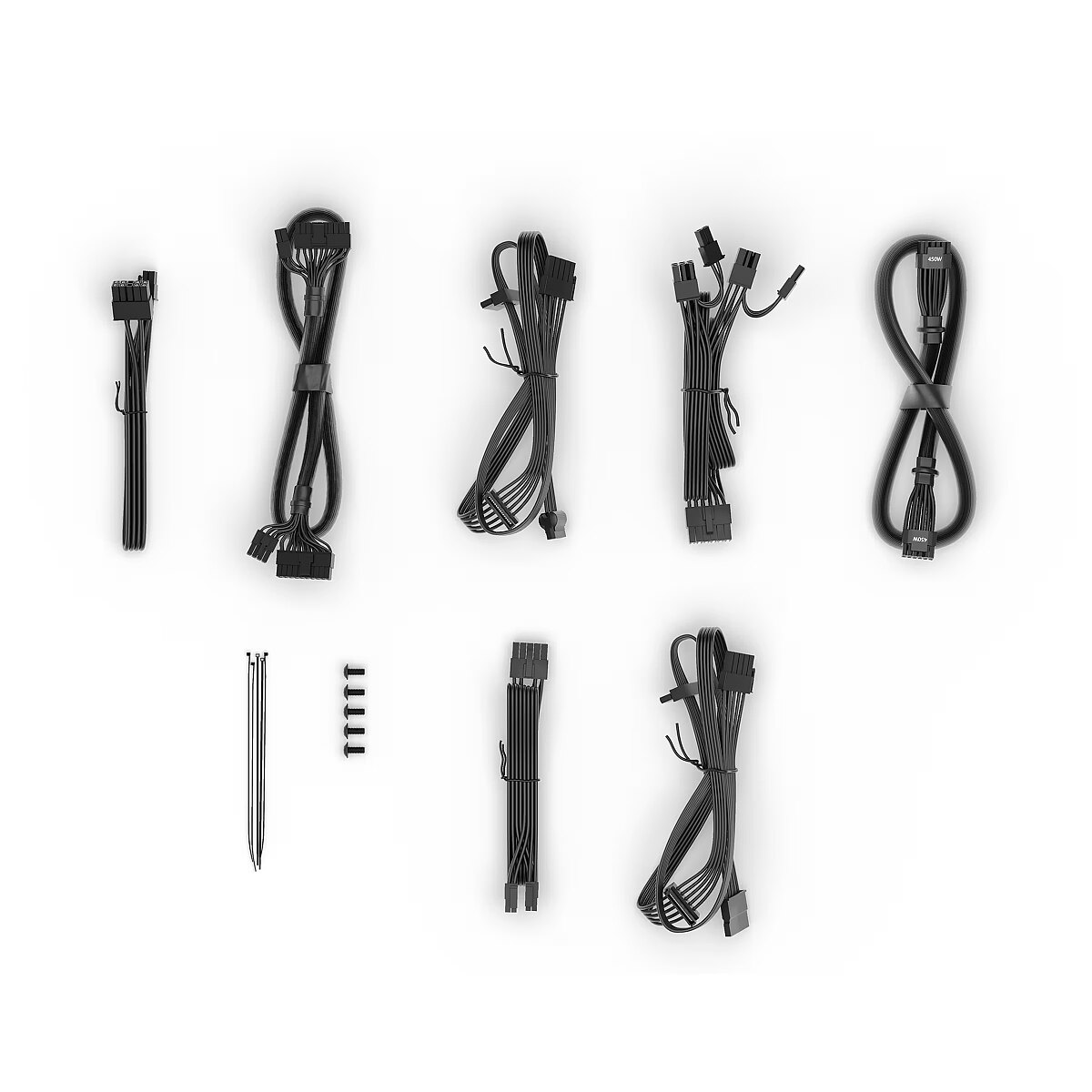

Packaging content - Cables included - PATA, PCIe, Peripheral (Molex), SATA

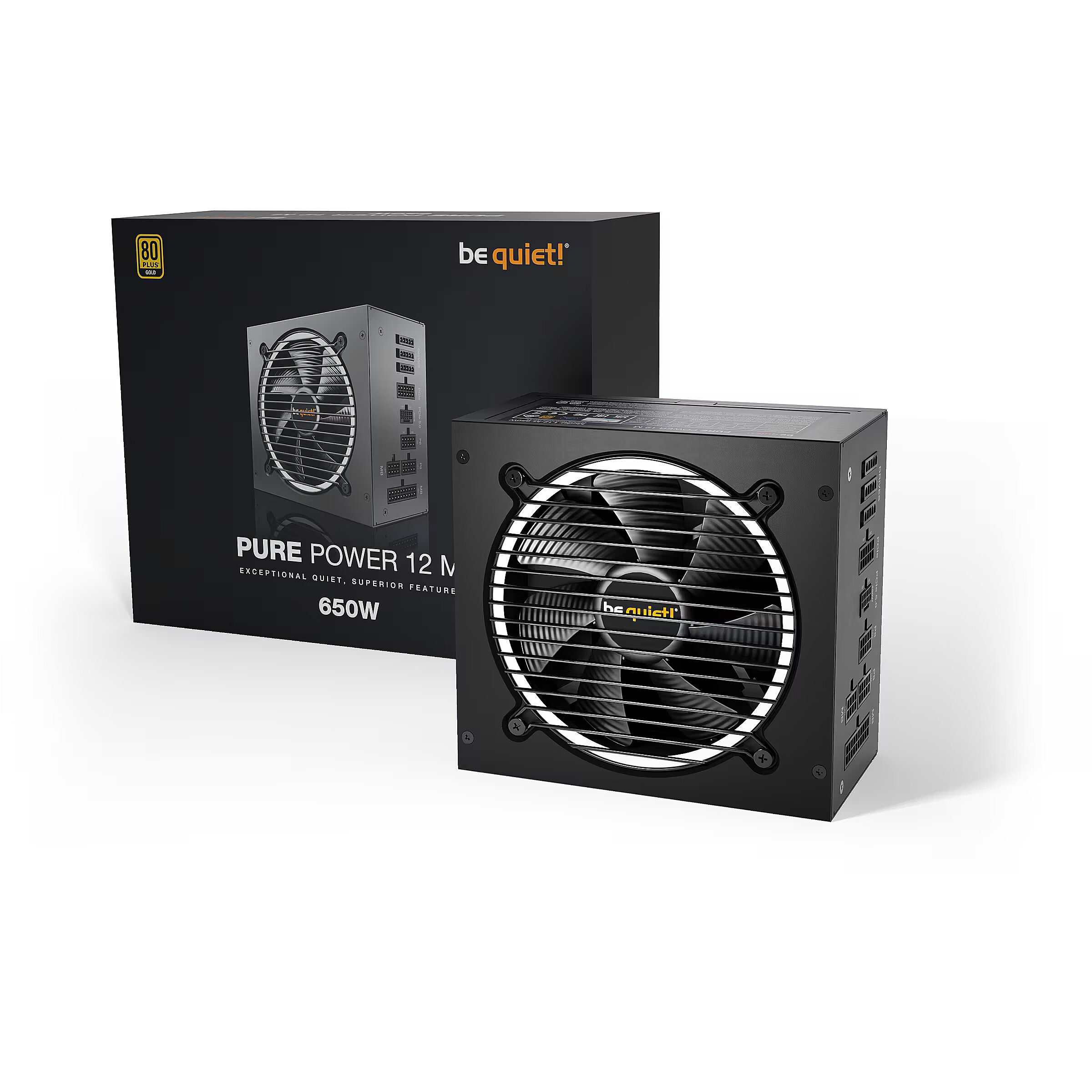

Packaging data - Package type - Box
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.0
Performance - EPS version - 2.92
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Noise level - 19.9 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU P4 connector (4-pin) - 1
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 55 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 2
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power cable length - 550
Ports & interfaces - Peripheral (Molex) power cable length - 550 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 1
Ports & interfaces - SATA power cable length - 500
Ports & interfaces - SATA power cable length - 500,650,800,950 mm
Ports & interfaces - SATA power cable length - 650
Ports & interfaces - SATA power cable length - 800
Ports & interfaces - SATA power cable length - 950 mm
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 650 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 92.7%
Power - Input current - 10/5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V1) - 32 A
Power - Max output current (+12V2) - 28 A
Power - Max output current (-12V) - 0.3 A
Power - Peak power - 720 W
Power - Power factor - 0.98
Power - Power Factor Correction (PFC) type - Active
Power - Power Good signal delay range - 100 - 150 ms
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Total power - 650 W
Power supply - 650 W
producer - Be quiet!
Producer - be quiet!
producerCode - BN342
ProducerCode - BN342
productName - be quiet! Pure Power 12 M power supply unit 650 W 20+4 pin ATX ATX Black
ProductName - Pure Power 12 M
productSize - Normal
PSU - ATX 3.0
PSU Output Power - 650 Watts
PSU Peak Output Power - 720 Watts
SATA power connectors - 5
Shipping Box Depth Shipping/Package Box Dimensions - 59 cm
Shipping Box Height Shipping/Package Box Dimensions - 25 cm
Shipping box quantity - 6
Shipping Box Weight Shipping/Package Box Dimensions - 17.8 kg
Shipping Box Width Shipping/Package Box Dimensions - 32.5 cm
ShortDescription - 650 | ATX | 120 mm | 20 + 4 pin | 160mm x 86mm x 150mm | 80 PLUS Gold
Short description - Netzteil ATX 3.0 be quiet! PURE POWER 12 M 650W Retail
ShortSummaryDescription - be quiet! Pure Power 12 M, 650 W, 100 - 240 V, 720 W, 50 - 60 Hz, 10/5 A, Active
sizeX - 280
sizeX - 291
sizeY - 102
sizeY - 225
sizeZ - 105
sizeZ - 229
Stck_Kart - 6
Stck_Pal - 6
Storno - Y
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - ENERGY STAR
Technical details - Sustainability certificates - ENERGY STAR, ErP
Technical details - Sustainability certificates - ErP
Technical details - Sustainability compliance - Yes
Technical details - Warranty period - 10 year(s)
Title - be quiet! Pure Power 12 M power supply unit 650 W 20+4 pin ATX ATX Black
Unit Box Height - 0.102
Unit Box Length - 0.285
Unit Box Width - 0.225
Unit Brutto Volume - 0.00799 cubm
Unit Gross Weight - 2.97 kg
Unit Net Weight - 2.9 kg
URL - https://www.bequiet.com/en/powersupply/4069
Vendor Homepage - www.bequiet.com/en/powersupply/4074
vendpn - BN342
Warranty - 24 months
WarrantyInfo -
warrantyLength - 120
warrantyType - G
Weight - 2,84
Weight - 2.86
weight - 2822
weight - 2870
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 160 mm
