ID: 919940
Product code: TPS-500S
Can be ordered 26 units Availability: 14 days after order approval
Warranty: 2 years

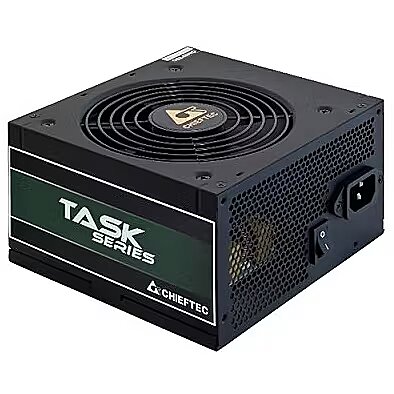

Chieftec Task Series, 500W, 80PLUS Bronze
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 10.12.2024
- Delivery to Omniva parcel machine free of charge: 10.12.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 10.12.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 10.12.2024
- Delivery to address in Riga 3.99 €: 10.12.2024
- Delivery to address in Latvia 6.99 €: 10.12.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 06.12.2024 after 15:00
Main product parameters All parameters
- Producer: Chieftec
- Power output: 500W
- 80 PLUS certification: 80 PLUS Bronze
- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 1 x 8-pin(4+4) EPS
- PCI-E: 1 X 6+2pin
Description
We offer to purchase a Chieftec power supply unit with a power capacity of 500W, which has received the 80 PLUS Bronze energy efficiency certification.

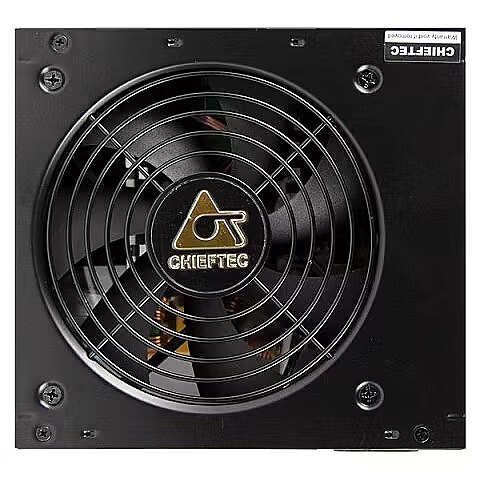

This power supply unit is equipped with a 120 mm fan, which is the industry standard for ensuring quiet operation in average computers. If you want an especially quiet unit, look for one with a fan diameter of 135 mm or 140 mm.
80 PLUS Bronze energy efficiency certificate, received by this power supply unit, guarantees at least 85% efficiency at 50% load. In other words, for every 100 W of energy the power supply unit receives from the electrical grid, at least 85 W goes to your computer components, while the remaining 15 W is lost as heat.
The color of the block is Melna. The block has flat cables, whose color is Raiba.
This power supply unit has been assigned the ATX 2.0 standard. This means that the unit is equipped only with 6-pin and 8-pin connectors, providing 75W and 150W power respectively. It's important to note that this unit will be compatible with RTX 4070 and more powerful cards, but you will need to use the 2x8-pin to 16-pin 12VHPWR adapter included with the graphics card. ATX 2.0 power connectors are not designed to handle the high power fluctuations of modern graphics cards; therefore, if you are building a system with a powerful GPU, such as the RTX 4070, we recommend choosing a power supply unit with the ATX 3.* standard and 12VHPWR (PCIe 5.0) connector.
This power supply unit does not have modular cables – all its cables are attached to the unit and are not detachable. Despite the simple design, it will fulfill its functions just as well as a power supply unit with modular cables.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
500W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Bronze
Total amperage (+12V)
: 38A
Fan size
: 120 mm
Functionality
Cable colour
: Raiba
Lighting
: Nav
Color
: Melna
Modular cables
: Nav
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 1 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 1 X 6+2pin
SATA cconnectors
: 5
4pin Molex
: 3
More detailed specification
Brand - Chieftec
BrandPartCode - TPS-500S
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Side
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
EAN - 0753263076489
Eans - 753263076489
GTIN - 753263076489
GTIN - 0753263076489
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - The CHIEFTEC Task Series PSU’s are true to their name, and take on any task they are required for without any trouble.With certified 80PLUS® Bronze efficiency and all modern protection and safety features, the PSU can be trusted to deliver power efficiently and reliably. With cable lengths extended to 650mm for motherboard and CPU, these power supplies will also serve excellently for builds inside larger cases.
LongProductName - Chieftec Task Series TPS-500S, ATX, 80PLUS Bronze
LongSummaryDescription - Chieftec Task TPS-500S. Total power: 500 W, AC input voltage: 115 - 230 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Manufacturer - Chieftec
MPN - TPS-500S
Name - 500W Chieftec TASK Serie TPS-500S
Name - Chieftec TPS-500S
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 2.3
Performance - Certification - ErP, RoHS, CE, CB, EAC, TÜV
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 115 - 230 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Efficiency - 85%
Power - Max output current (+3.3V) - 18 A
Power - Max output current (+5V) - 17 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V1) - 38 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over power, Over voltage, Overload, Short circuit
Power - Total power - 500 W
Producer - Chieftec
ProducerCode - TPS-500S
ProductName - TPS-500S
ShortDescription - 500 | ATX | 120 mm | 20 + 4 pin | 150mm x 87mm x 140mm |80 Plus Bronze |
ShortSummaryDescription - Chieftec Task TPS-500S, 500 W, 115 - 230 V, 47 - 63 Hz, Active, 110 W, 110 W
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - RoHS
Title - Chieftec Task TPS-500S power supply unit 500 W 24-pin ATX ATX Black
URL - https://www.chieftec.eu/products-detail/180/TASK_SERIES/246/TPS-500S
WarrantyInfo - 24 Months
Weight - 2
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
