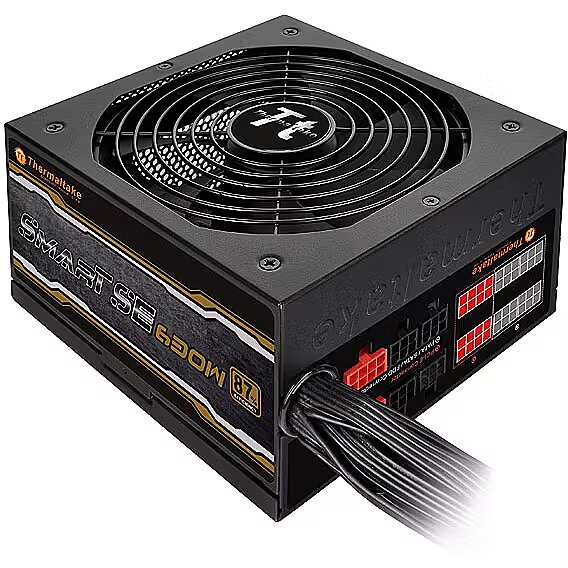

Thermaltake Smart SE, 630W, 80PLUS Bronze

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 78853 Product code: SPS-630MPCBEU
Can be ordered 32 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
82.18 €
Delivery options More about shipping
  • Delivery to Smartpost free of charge: 10.12.2024
  • Delivery to Omniva parcel machine free of charge: 10.12.2024
  • Piegāde uz DPD Pickup Paku Skapi free of charge: 10.12.2024
  • Delivery to Latvian post office, parcel locker or Circle K free of charge: 10.12.2024
  • Delivery to address in Riga 3.99 €: 10.12.2024
  • Delivery to address in Latvia 6.99 €: 10.12.2024
  • Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 06.12.2024 after 15:00
Main product parameters All parameters
  • Producer: Thermaltake
  • Power output: 630W
  • 80 PLUS certification: 80 PLUS Bronze
  • Fan size: 140 mm
  • Modular cables: Semi-Modular
  • Processor plug-in: 1 x 8-pin(4+4) EPS
  • PCI-E: 2 X 6+2pin
Description

We offer to purchase a Thermaltake power supply unit with a power capacity of 630W, which has received the 80 PLUS Bronze energy efficiency certification.

Thanks to the huge 140 mm cooling fan, this power supply unit is much quieter than a standard unit. The fan has a larger wing area, which ensures the necessary airflow at lower fan speeds, thus reducing the overall level of vibration and noise to a minimum.

The power supply has received the 80 PLUS Bronze energy efficiency certificate, which guarantees at least 85% efficiency at 50% load. This means that for every 100W of power the power supply draws from the electrical grid, at least 85W is delivered to your computer components, while the remaining 15W is lost as heat.

The color of this power supply is Melna. The cable color is Raiba and they are flat.

ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.

The power supply unit's cables are partially modular. Some cables can be attached or removed as needed, while others are fixed. This unit is intended for those who want a certain level of flexibility but do not want a fully modular system.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 630W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Bronze
Total amperage (+12V) : 49A
Fan size : 140 mm
Functionality
Cable colour : Raiba
Lighting : Nav
Color : Melna
Modular cables : Semi-Modular
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 1 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 2 X 6+2pin
SATA cconnectors : 6
4pin Molex : 3
Case
More detailed specification
Category - Root/Electronics/PC parts/PC power supply units
Certificates 80+ - Equivalent 80 PLUS Bronze
Description - Thermaltake SPS-630MPCBEU
Smart SE 630W CM 87
630 Watt Bronze Power Supply:
Stabilizing power usage for daily bases
The latest presentation from Thermaltake in the essence of mainstream systems – the SMART SE Series PSU, a performance series of power supply units PSU that incorporated various PSU high-tech components, leading technology and Eco-friendly credentials, ranged between 530 to 730W with semi-modular that will accommodate any mainstream build under any circumstance. It is ideal for users to build a home or office system for 24/7 stable demands.
87% Efficiency
Deliver up to 87% efficiency at 20-100% load under real world load conditions to cut down electric cost and promise lowest power losses. Saving the unnecessary waste of energy and environmental protection.
Flat & Low Profile Cable
All low-profile flat modular cables that not only increased the airflow and made chassis thermal performance improved, but also allow for effortless cable routing. cable routing.
Modular cable
Customizing concept of Smart SE 530/630/730W enables user to maximize available power and make set-up easy. It is a semi-modular power supply that offered cable selection for users while powering system at a healthy voltage.
Top Quality made Capacitor
High quality main capacitor produces supreme performance with low impedance characteristics. The stable operation works for longer time with excellent reliability to enhance the power supply performance.
Smart Fan Control
Large 140mm cooling fan, built-in with intelligent temperature control device can automatically detect the power load for fan speed adjustment and maintain optimal mute performance.
dimension depth - 70 mm
dimension height - 380 mm
Dimensions - 150 x 86 x 160 mm
dimension weight - 2358 g
dimension width - 460 mm
ean - 4713157529909
Eans - 4713157529909
Fan - 14 cm
guarantee - 36
guarantee_type - statutory
MB power connector - 20 + 4 pin
Modular power supply - Yes
MOLEX power connectors - 3
name - Smart SE 630W Modular (up to 87%, 2xPEG, 140mm, Single Rail)
Name - Thermaltake Smart SE 630W Modular
Number of power supply connectors PCI-E 6 +2 pin - 2
Other features - 1 x 4+4 Pin CPU
1 x 4 Pin FDD
PFC - Active
Power supply - 630 W
producer - Thermaltake
Producer - Thermaltake
ProducerCode - SPS-630MPCBEU
SATA power connectors - 6
ShortDescription - 630 | ATX | 140mm | 20+4 | 160mm x 86mm x 150mm | modularny
vendpn - SPS-630MPCBEU
