ID: 696646
Product code: AEROLUX-850-80BRONZE
Can be ordered 20 units Availability: 14 days after order approval
Warranty: 2 years
Aerocool LUX, 850W, 80PLUS Bronze
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 10.12.2024
- Delivery to Omniva parcel machine free of charge: 10.12.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 10.12.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 10.12.2024
- Delivery to address in Riga 3.99 €: 10.12.2024
- Delivery to address in Latvia 6.99 €: 10.12.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 05.12.2024 after 15:00
Main product parameters All parameters
- Producer: Aerocool
- Power output: 850W
- 80 PLUS certification: 80 PLUS Bronze
- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 1 x 8-pin(4+4) EPS
- PCI-E: 2 X 6+2pin
Description
This Aerocool brand power supply unit has an 80 PLUS Bronze energy efficiency certificate and a power output of 850W.
850W power supply unit designed for a high-performance gaming computer or workstation. It will be able to power a top-tier processor (possibly overclocked), a high-end graphics card (for example, RTX 4070 Ti SUPER), multiple hard drives (SSD/HDD), and water cooling.
This power supply unit is equipped with a 120 mm fan, which is the industry standard for ensuring quiet operation in average computers. If you want an especially quiet unit, look for one with a fan diameter of 135 mm or 140 mm.
80 PLUS Bronze energy efficiency certificate, received by this power supply unit, guarantees at least 85% efficiency at 50% load. In other words, for every 100 W of energy the power supply unit receives from the electrical grid, at least 85 W goes to your computer components, while the remaining 15 W is lost as heat.
The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.
This power supply unit has been assigned the ATX 2.0 standard. This means that the unit is equipped only with 6-pin and 8-pin connectors, providing 75W and 150W power respectively. It's important to note that this unit will be compatible with RTX 4070 and more powerful cards, but you will need to use the 2x8-pin to 16-pin 12VHPWR adapter included with the graphics card. ATX 2.0 power connectors are not designed to handle the high power fluctuations of modern graphics cards; therefore, if you are building a system with a powerful GPU, such as the RTX 4070, we recommend choosing a power supply unit with the ATX 3.* standard and 12VHPWR (PCIe 5.0) connector.
The power supply unit does not have modular cables; all cables are attached to the power supply unit and are not removable. Despite this, it will work just as well as a power supply unit with modular cables.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
850W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Bronze
Total amperage (+12V)
: 70A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Nav
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 1 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 2 X 6+2pin
SATA cconnectors
: 5
4pin Molex
: 3
More detailed specification
8-pin 12V power connectors - 0
Accessories included -
Category - Root/Electronics/PC parts/PC power supply units
Certificates 80+ - 80 PLUS Bronze
Description - Zasilacz LUX 850W 80+ Bronze ATX Charakteryzujący się stylowym i eleganckim wyglądem zasilacz LUX zapewnia idealną równowagę między mocą a luksusem. Ten wysokiej jakości zasilacz wydajnie zasila Twój system, jednocześnie poprawiając wygląd i działanie Twojej konfiguracji.
80Plus 230V EU Bronze Certified, LUX zapewnia wydajność do 88%+ dla najwyższej wydajności. 30% Zwiększona powierzchnia wentylacyjna w korpusie zasilacza pozwala na zwiększenie przepływu i cyrkulacji powietrza Brązowy certyfikat 80Plus 230 V UE zapewniający wydajność do 88%+ Wbudowane współczynniki APFC (korekcja aktywnego współczynnika mocy) > 0,9 Zabezpieczenie elektryczne OPP/OVP/UVP/SCP w zestawie 30% Zwiększona powierzchnia wentylacyjna w korpusie zasilacza pozwala na większy przepływ powietrza Cichy, czarny wentylator 12 cm ze zoptymalizowaną termiczną kontrolą prędkości wentylatora Kompatybilny ze wszystkimi formatami Intel aż do ATX12V Ver.2.4 Miękkie, czarne, płaskie kable pozwalają na wygodniejsze zarządzanie kablami
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 893
dimension depth - 95 mm
dimension height - 235 mm
Dimensions - 85 x 150 x 140 mm
dimension weight - 1965 g
dimension width - 200 mm
ean - 4710562759396
Eans - 4710562759396
Fan - 12 cm
Floppy power connectors - 0
guarantee - 24
guarantee_type - normal
MB power connector - 20 + 4 pin
Modular power supply - No
MOLEX power connectors - 3
Name - AEROCOOL PGS LUX 850W 80+ Bronze-PSU
name - Power supply LUX 850W 80+ Bronze ATX
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 2
Other features -
Packaging data - Package depth - 230 mm
Packaging data - Package height - 95 mm
Packaging data - Package type - Box
Packaging data - Package width - 195 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - Purpose - PC
PFC - Active
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 3
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2

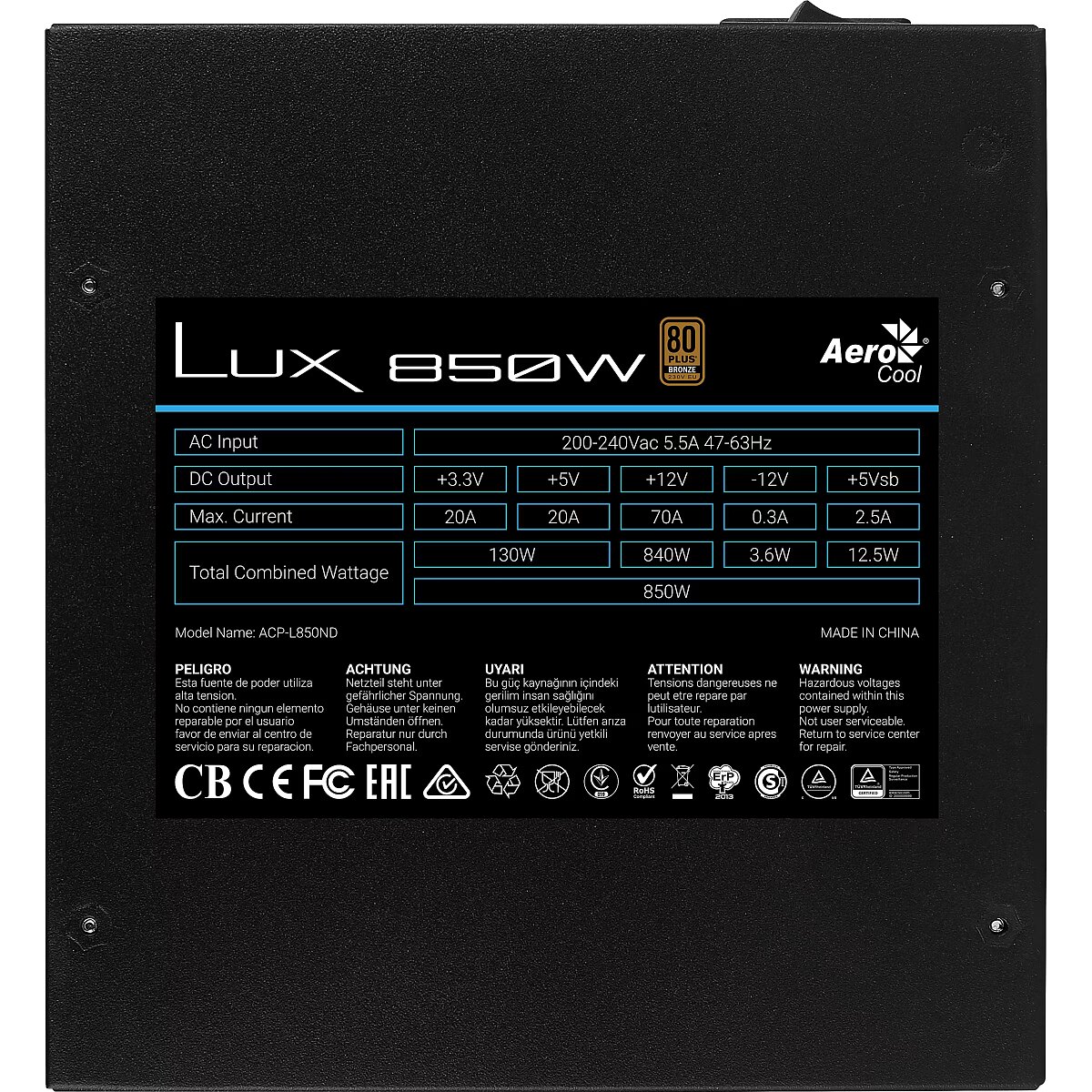

Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 200 - 240 V
Power - Combined power (+3.3V) - 130 W
Power - Combined power (+5V) - 130 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 840 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 88%
Power - Input current - 5.5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 70 A
Power - Max output current (-12V) - 0.3 A
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 850 W
Power supply - 850 W
producer - AeroCool
Producer - AeroCool
producerCode - AEROLUX-850-80BRONZE
ProducerCode - AEROLUX-850-80BRONZE
productName - Aerocool LUX850 PC Power Supply 850W 80 Plus Bronze 230V 88% Efficiency Black
productSize - Normal
SATA power connectors - 5
ShortDescription - 850 | ATX | 120 mm | 20 + 4 pin | 140 x 150 x 86 mm | 80 Plus Bronze|
sizeX - 235
sizeY - 200
sizeZ - 95
vendpn - AEROLUX-850-80BRONZE
warrantyLength - 24
warrantyType - G
weight - 1950
