ID: 600526
Product code: AEROLUX-750-80BRONZE
Can be ordered 21 units Availability: 14 days after order approval
Warranty: 2 years

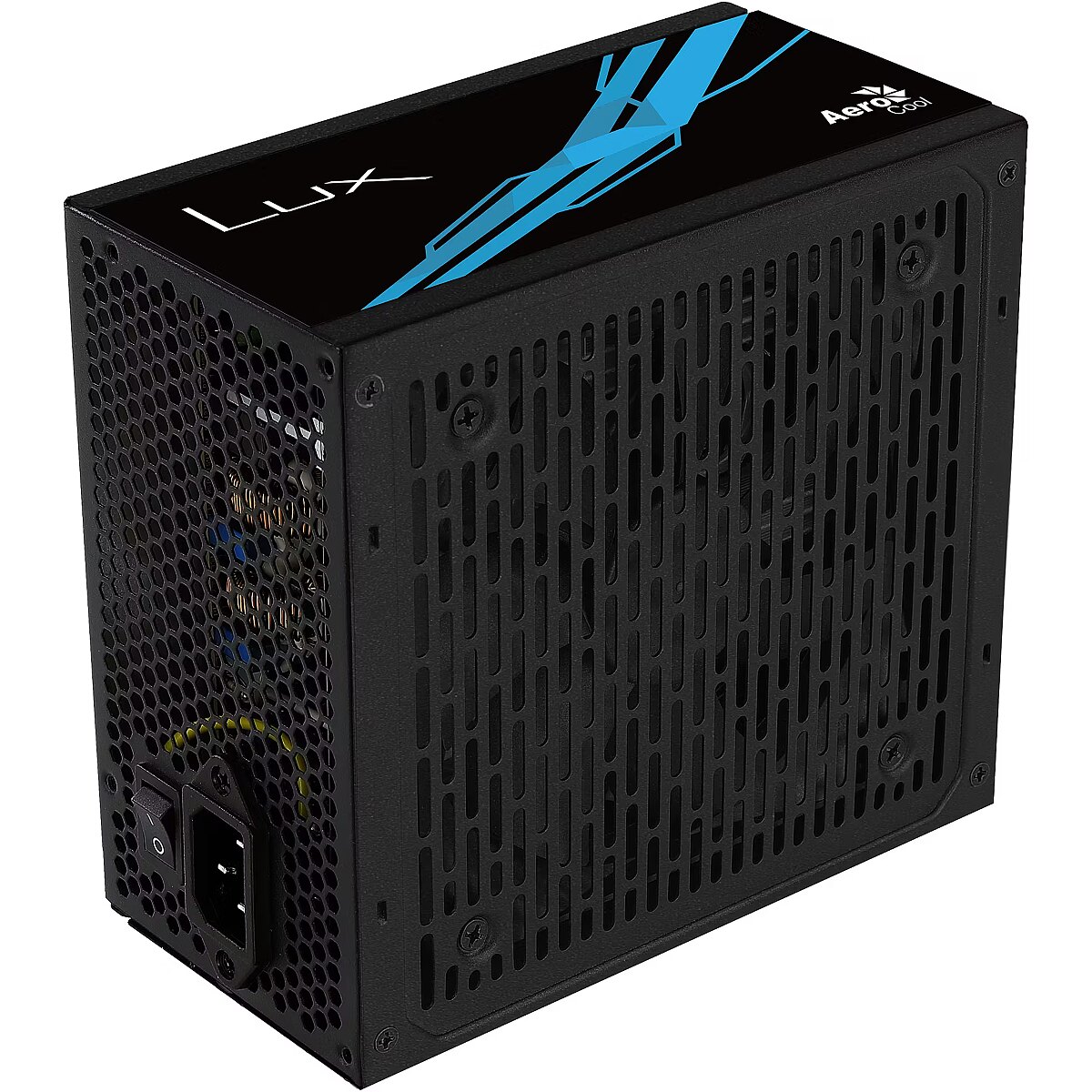

Aerocool LUX, 750W, 80PLUS Bronze
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 10.12.2024
- Delivery to Omniva parcel machine free of charge: 10.12.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 10.12.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 10.12.2024
- Delivery to address in Riga 3.99 €: 10.12.2024
- Delivery to address in Latvia 6.99 €: 10.12.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 05.12.2024 after 15:00
Main product parameters All parameters
- Producer: Aerocool
- Power output: 750W
- 80 PLUS certification: 80 PLUS Bronze
- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 1 x 8-pin(4+4) EPS
- PCI-E: 2 X 6+2pin
Description
This Aerocool brand power supply unit has an 80 PLUS Bronze energy efficiency certificate and a power output of 750W.
For polite mid-range computer game playing, a power supply with a 750W capacity will be suitable. This unit can power a computer with a powerful mid-range graphics card (for example, RTX 4070), multiple SSDs and hard drives, and a high-end processor.
The diameter of this power supply unit's fan is 120 mm, which will ensure quiet operation in mid-range computers. For especially quiet power supply unit operation, we recommend selecting a fan with a 135 mm or 140 mm diameter.
80 PLUS Bronze energy efficiency certificate, received by this power supply unit, guarantees at least 85% efficiency at 50% load. In other words, for every 100 W of energy the power supply unit receives from the electrical grid, at least 85 W goes to your computer components, while the remaining 15 W is lost as heat.
The color of the block is Melna. The block has flat cables, whose color is Melna.
ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.
This power supply has no removable cables and all cables are attached to the power supply. It has a simple design, but it works just as well as a power supply with modular cables.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
750W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Bronze
Total amperage (+12V)
: 58A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Nav
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 1 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 2 X 6+2pin
SATA cconnectors
: 5
4pin Molex
: 3
More detailed specification
8-pin 12V power connectors - 0
Accessories included -
Category - Root/Electronics/PC parts/PC power supply units
category_en - Computers & Components > Computer components > Universal power supplies PSU
category_lv - Datortehnika > Datoru komponentes > Barošanas bloki PSU
category_ru - Datortehnika > Datoru komponentes > Barošanas bloki PSU
Certificates 80+ - 80 PLUS Bronze
Description - Power supply LUX 750W 80+ Bronze ATX 80Plus 230V EU Bronze Certified for up to 88%+ efficiency Built-in APFC (Active Power Factor Correction) rates > 0.9 OPP/OVP/UVP/SCP electrical protection included 30% Increased ventilation area in the body of the PSU allows for increased air flow Silent 12cm black fan with optimized thermal fan speed control Compatible with all Intel form factors up to ATX12V Ver.2.4 Soft, black, flat cables allow for more convenient cable management
description_en - 80Plus 230V EU Bronze Certified, the LUX delivers up to 88%+ efficiency for top-notch performance. 30% Increased ventilation area in the body of the PSU allows for increased air flow and circulation
- 80Plus 230V EU Bronze Certified for up to 88%+ efficiency
- Built-in APFC (Active Power Factor Correction) rates > 0.9
- OPP/OVP/UVP/SCP electrical protection included
- 30% Increased ventilation area in the body of the PSU allows for increased air flow
- Silent 12cm black fan with optimized thermal fan speed control
- Compatible with all Intel form factors up to ATX12V Ver.2.4
- Soft, black, flat cables allow for more convenient cable management Technical specification:
Dimensions: 150x140x85mm
Weight: 1860g
Wire type: Fixed
Fan: 120mm
Color: Black
Power: 750W
Input voltage: 200-240V 50/60Hz
Form Factor: ATX
Protections: OPP/OVP/UVP/SCP/SIP

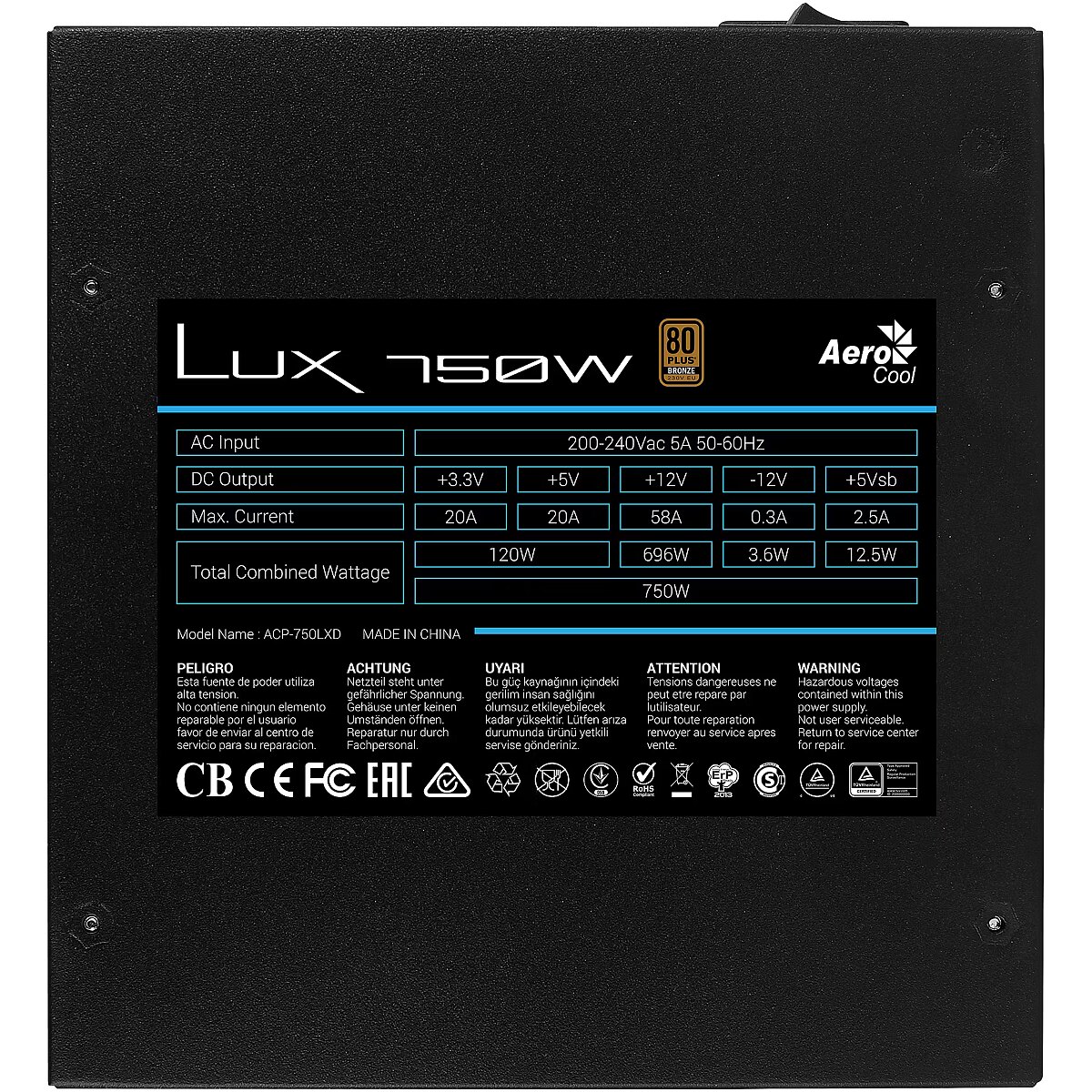

Voltage: +3.3V - 20A / +5V - 20A / +12V - 58A / -12V - 0.3A / +5VSB - 2.5A
Connectors:
1x ATX MB 20+4 PIN
1x EPS +12V 4+4 PIN
2x PCIE 6+2 Pin 5x SATA
3x Molex 4 PIN
description_lv - Ar 80Plus 230V ES bronzas sertifikātu LUX nodrošina līdz pat 88%+ efektivitāti, nodrošinot visaugstāko veiktspēju. 30% Palielināts ventilācijas laukums PSU korpusā ļauj palielināt gaisa plūsmu un cirkulāciju
- 80Plus 230V ES bronzas sertifikāts līdz pat 88%+ efektivitātei
- Iebūvētā APFC (aktīvā jaudas koeficienta korekcija) rādītāji > 0,9
- iekļauta OPP/OVP/UVP/SCP elektriskā aizsardzība
- Par 30% palielināts ventilācijas laukums PSU korpusā ļauj palielināt gaisa plūsmu
- Kluss 12 cm melns ventilators ar optimizētu termiskā ventilatora ātruma kontroli
- Savietojams ar visiem Intel formas faktoriem līdz pat ATX12V Ver.2.4
- Mīkstie, melni, plakanie kabeļi ļauj ērtāk pārvaldīt kabeļus Tehniskā specifikācija:
Izmēri: 150x140x85mm
Svars: 1860g
Vada veids: fiksēts
Ventilators: 120 mm
Krāsa: melna
Jauda: 750W
Ieejas spriegums: 200-240V 50/60Hz
Formas faktors: ATX
Aizsardzība: OPP/OVP/UVP/SCP/SIP
Spriegums: +3,3V - 20A / +5V - 20A / +12V - 58A / -12V - 0,3A / +5VSB - 2,5A
Savienotāji:
1x ATX MB 20+4 PIN
1x EPS +12V 4+4 PIN
2x PCIE 6+2 Pin
5x SATA
3x Molex 4 PIN
description_ru - Сертифицированный 80Plus 230V EU Bronze, LUX обеспечивает эффективность до 88%+ для первоклассной производительности. На 30 % Увеличенная площадь вентиляции в корпусе блока питания позволяет увеличить приток и циркуляцию воздуха.
- 80Plus 230V Бронзовый сертификат ЕС для эффективности до 88%+
- Встроенная коррекция коэффициента мощности (APFC) > 0,9.
- В комплект входит электрическая защита OPP/OVP/UVP/SCP
- 30% Увеличенная площадь вентиляции в корпусе блока питания позволяет увеличить приток воздуха
- Бесшумный 12-сантиметровый черный вентилятор с оптимизированной регулировкой скорости вращения вентилятора.
- Совместим со всеми форм-факторами Intel до ATX12V версии 2.4.
- Мягкие черные плоские кабели обеспечивают более удобное управление кабелями. Техническая спецификация:
Размеры: 150x140x85 мм.
Вес: 1860 г
Тип провода: фиксированный
Вентилятор: 120 мм
Черный цвет
Мощность: 750 Вт
Входное напряжение: 200-240 В, 50/60 Гц
Форм-фактор: ATX
Защиты: ОПП/ОВП/УВП/SCP/SIP
Напряжение: +3,3 В - 20 А / + 5 В - 20 А / + 12 В - 58 А / -12 В - 0,3 А / + 5 ВSB - 2,5 А
Разъемы:
1x ATX МБ 20+4 PIN
1x EPS +12 В 4+4 PIN
2x PCIE 6+2 контакта
5x SATA
3x Molex 4-контактный разъем
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 806
dimension depth - 95 mm
dimension height - 200 mm
Dimensions -
dimension weight - 1870 g
dimension width - 235 mm
ean - 4718009156258
EAN - 4718009156258
Eans - 4718009156258
Fan - 12 cm
Floppy power connectors - 0
gross_weight - 1.6 kg
guarantee - 24
guarantee_type - normal
Logistics data - Master (outer) case height - 215 mm
Logistics data - Master (outer) case length - 495 mm
Logistics data - Master (outer) case width - 250 mm
MB power connector - 20 + 4 pin
Model - AEROCOOL LUX750
Modular power supply - No
MOLEX power connectors - 3
Name - AEROCOOL PGS LUX 750W 80+ Bronze PSU
name - Power supply LUX 750W 80+ Bronze ATX
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 2
Other features -
Other features - Manual - Yes
Packaging data - Cables included - AC
Packaging data - Package depth - 195 mm
Packaging data - Package height - 95 mm
Packaging data - Package type - Box
Packaging data - Package width - 230 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 2.4
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - CPU power cable length - 55 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 50 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 3
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 45 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 1
Ports & interfaces - SATA power cable length - 550
Ports & interfaces - SATA power cable length - 700 mm
Ports & interfaces - SATA power cable length - 850 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 220 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 696 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 88%
Power - Input current - 5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+12V) - 58 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Total power - 750 W
Power supply - 750 W
producer - AeroCool
Producer - AEROCOOL
Producer - AeroCool
producerCode - AEROLUX-750-80BRONZE
ProducerCode - AEROLUX-750-80BRONZE
productName - Aerocool LUX750 power supply unit 750 W 20+4 pin ATX ATX Black
productSize - Normal
SATA power connectors - 5
ShortDescription - AEROCOOL PGS LUX 750W 80+ Bronze PSU
sizeX - 240
sizeY - 60
sizeZ - 280
title_en - Aerocool LUX750 Power supply ATX 750W / 80+ Bronze 88%
title_lv - Aerocool LUX750 Barošanas bloks ATX 750W / 80+ Bronze 88%
title_ru - Aerocool LUX750 Блок питания ATX 750W / 80+ Bronze 88%
vendpn - AEROLUX-750-80BRONZE
warrantyLength - 24
warrantyType - G
weight - 1.5 kg
weight - 1860
Accessories included -
Category - Root/Electronics/PC parts/PC power supply units
category_en - Computers & Components > Computer components > Universal power supplies PSU
category_lv - Datortehnika > Datoru komponentes > Barošanas bloki PSU
category_ru - Datortehnika > Datoru komponentes > Barošanas bloki PSU
Certificates 80+ - 80 PLUS Bronze
Description - Power supply LUX 750W 80+ Bronze ATX 80Plus 230V EU Bronze Certified for up to 88%+ efficiency Built-in APFC (Active Power Factor Correction) rates > 0.9 OPP/OVP/UVP/SCP electrical protection included 30% Increased ventilation area in the body of the PSU allows for increased air flow Silent 12cm black fan with optimized thermal fan speed control Compatible with all Intel form factors up to ATX12V Ver.2.4 Soft, black, flat cables allow for more convenient cable management
description_en - 80Plus 230V EU Bronze Certified, the LUX delivers up to 88%+ efficiency for top-notch performance. 30% Increased ventilation area in the body of the PSU allows for increased air flow and circulation
- 80Plus 230V EU Bronze Certified for up to 88%+ efficiency
- Built-in APFC (Active Power Factor Correction) rates > 0.9
- OPP/OVP/UVP/SCP electrical protection included
- 30% Increased ventilation area in the body of the PSU allows for increased air flow
- Silent 12cm black fan with optimized thermal fan speed control
- Compatible with all Intel form factors up to ATX12V Ver.2.4
- Soft, black, flat cables allow for more convenient cable management Technical specification:
Dimensions: 150x140x85mm
Weight: 1860g
Wire type: Fixed
Fan: 120mm
Color: Black
Power: 750W
Input voltage: 200-240V 50/60Hz
Form Factor: ATX
Protections: OPP/OVP/UVP/SCP/SIP
Voltage: +3.3V - 20A / +5V - 20A / +12V - 58A / -12V - 0.3A / +5VSB - 2.5A
Connectors:
1x ATX MB 20+4 PIN
1x EPS +12V 4+4 PIN
2x PCIE 6+2 Pin 5x SATA
3x Molex 4 PIN
description_lv - Ar 80Plus 230V ES bronzas sertifikātu LUX nodrošina līdz pat 88%+ efektivitāti, nodrošinot visaugstāko veiktspēju. 30% Palielināts ventilācijas laukums PSU korpusā ļauj palielināt gaisa plūsmu un cirkulāciju
- 80Plus 230V ES bronzas sertifikāts līdz pat 88%+ efektivitātei
- Iebūvētā APFC (aktīvā jaudas koeficienta korekcija) rādītāji > 0,9
- iekļauta OPP/OVP/UVP/SCP elektriskā aizsardzība
- Par 30% palielināts ventilācijas laukums PSU korpusā ļauj palielināt gaisa plūsmu
- Kluss 12 cm melns ventilators ar optimizētu termiskā ventilatora ātruma kontroli
- Savietojams ar visiem Intel formas faktoriem līdz pat ATX12V Ver.2.4
- Mīkstie, melni, plakanie kabeļi ļauj ērtāk pārvaldīt kabeļus Tehniskā specifikācija:
Izmēri: 150x140x85mm
Svars: 1860g
Vada veids: fiksēts
Ventilators: 120 mm
Krāsa: melna
Jauda: 750W
Ieejas spriegums: 200-240V 50/60Hz
Formas faktors: ATX
Aizsardzība: OPP/OVP/UVP/SCP/SIP
Spriegums: +3,3V - 20A / +5V - 20A / +12V - 58A / -12V - 0,3A / +5VSB - 2,5A
Savienotāji:
1x ATX MB 20+4 PIN
1x EPS +12V 4+4 PIN
2x PCIE 6+2 Pin
5x SATA
3x Molex 4 PIN
description_ru - Сертифицированный 80Plus 230V EU Bronze, LUX обеспечивает эффективность до 88%+ для первоклассной производительности. На 30 % Увеличенная площадь вентиляции в корпусе блока питания позволяет увеличить приток и циркуляцию воздуха.
- 80Plus 230V Бронзовый сертификат ЕС для эффективности до 88%+
- Встроенная коррекция коэффициента мощности (APFC) > 0,9.
- В комплект входит электрическая защита OPP/OVP/UVP/SCP
- 30% Увеличенная площадь вентиляции в корпусе блока питания позволяет увеличить приток воздуха
- Бесшумный 12-сантиметровый черный вентилятор с оптимизированной регулировкой скорости вращения вентилятора.
- Совместим со всеми форм-факторами Intel до ATX12V версии 2.4.
- Мягкие черные плоские кабели обеспечивают более удобное управление кабелями. Техническая спецификация:
Размеры: 150x140x85 мм.
Вес: 1860 г
Тип провода: фиксированный
Вентилятор: 120 мм
Черный цвет
Мощность: 750 Вт
Входное напряжение: 200-240 В, 50/60 Гц
Форм-фактор: ATX
Защиты: ОПП/ОВП/УВП/SCP/SIP
Напряжение: +3,3 В - 20 А / + 5 В - 20 А / + 12 В - 58 А / -12 В - 0,3 А / + 5 ВSB - 2,5 А
Разъемы:
1x ATX МБ 20+4 PIN
1x EPS +12 В 4+4 PIN
2x PCIE 6+2 контакта
5x SATA
3x Molex 4-контактный разъем
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 806
dimension depth - 95 mm
dimension height - 200 mm
Dimensions -
dimension weight - 1870 g
dimension width - 235 mm
ean - 4718009156258
EAN - 4718009156258
Eans - 4718009156258
Fan - 12 cm
Floppy power connectors - 0
gross_weight - 1.6 kg
guarantee - 24
guarantee_type - normal
Logistics data - Master (outer) case height - 215 mm
Logistics data - Master (outer) case length - 495 mm
Logistics data - Master (outer) case width - 250 mm
MB power connector - 20 + 4 pin
Model - AEROCOOL LUX750
Modular power supply - No
MOLEX power connectors - 3
Name - AEROCOOL PGS LUX 750W 80+ Bronze PSU
name - Power supply LUX 750W 80+ Bronze ATX
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 2
Other features -
Other features - Manual - Yes
Packaging data - Cables included - AC
Packaging data - Package depth - 195 mm
Packaging data - Package height - 95 mm
Packaging data - Package type - Box
Packaging data - Package width - 230 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 2.4
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - CPU power cable length - 55 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 50 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 3
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 45 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 1
Ports & interfaces - SATA power cable length - 550
Ports & interfaces - SATA power cable length - 700 mm
Ports & interfaces - SATA power cable length - 850 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 220 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 696 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 88%
Power - Input current - 5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+12V) - 58 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Total power - 750 W
Power supply - 750 W
producer - AeroCool
Producer - AEROCOOL
Producer - AeroCool
producerCode - AEROLUX-750-80BRONZE
ProducerCode - AEROLUX-750-80BRONZE
productName - Aerocool LUX750 power supply unit 750 W 20+4 pin ATX ATX Black
productSize - Normal
SATA power connectors - 5
ShortDescription - AEROCOOL PGS LUX 750W 80+ Bronze PSU
sizeX - 240
sizeY - 60
sizeZ - 280
title_en - Aerocool LUX750 Power supply ATX 750W / 80+ Bronze 88%
title_lv - Aerocool LUX750 Barošanas bloks ATX 750W / 80+ Bronze 88%
title_ru - Aerocool LUX750 Блок питания ATX 750W / 80+ Bronze 88%
vendpn - AEROLUX-750-80BRONZE
warrantyLength - 24
warrantyType - G
weight - 1.5 kg
weight - 1860
