ID: 533067
Product code: GPF-300P
Can be ordered 31 units Availability: 14 days after order approval
Warranty: 2 years

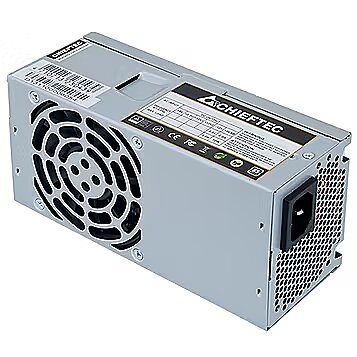

Chieftec Smart Series TFX, 300W
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 10.12.2024
- Delivery to Omniva parcel machine free of charge: 10.12.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 10.12.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 10.12.2024
- Delivery to address in Riga 3.99 €: 10.12.2024
- Delivery to address in Latvia 6.99 €: 10.12.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 06.12.2024 after 15:00
Main product parameters All parameters
- Producer: Chieftec
- Power output: 300W
- 80 PLUS certification: 80 PLUS Bronze
- Fan size:
- Modular cables: Nav
- Processor plug-in: 1 x 8-pin(4+4) EPS
- PCI-E: Nav
Description
We offer to purchase a Chieftec power supply unit with a power capacity of 300W, which has received the 80 PLUS Bronze energy efficiency certification.
The power supply has received the 80 PLUS Bronze energy efficiency certificate, which guarantees at least 85% efficiency at 50% load. This means that for every 100W of power the power supply draws from the electrical grid, at least 85W is delivered to your computer components, while the remaining 15W is lost as heat.
The color of the block is Sudraba. The block has flat cables, whose color is Raiba.
ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.
This power supply unit does not have modular cables – all its cables are attached to the unit and are not detachable. Despite the simple design, it will fulfill its functions just as well as a power supply unit with modular cables.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: TFX
Power output
300W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Bronze
Total amperage (+12V)
: 14A
Fan size
:
Functionality
Cable colour
: Raiba
Lighting
: Nav
Color
: Silver
Modular cables
: Nav
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 1 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: Nav
SATA cconnectors
: 4
4pin Molex
: 2
More detailed specification
Brand - Chieftec
BrandPartCode - GPF-300P
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category_1 - Power
Category_2 - Computer Power Supplies
Design - Cooling type - Active
Design - Fan diameter - 8 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Grey
Eans - 4710713234666
EAN_code - 4710713234666
GTIN - 4710713234666
GTIN - 5715063383896
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - The latest generation of TFX power supplies comes with a new model: GPF-300P (12V version 2.3). Equipped with both a state-of-the-art interior and 80PLUS® Bronze efficiency, this power supply is ideal for home entertainment systems or small size systems. Compatible with both Intel/AMD processors, featuring with active PFC and a smooth running, temperature-controlled fan, the CHIEFTEC GPF-300P provides reliable performance for enthusiast seeking for efficiency.
LongProductName - TFX, 300W, 115-230V, 6.3A, 80PLUS Bronze, ATX 12V 2.3
LongSummaryDescription - Chieftec Smart 300W. Total power: 300 W, AC input voltage: 115 - 230 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 30 cm, SATA power cable length: 150,350 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: TFX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Grey, Cooling type: Active, Fan diameter: 8 cm. Width: 85 mm, Depth: 175 mm, Height: 65 mm
Manufacturer - Chieftec
Manufacturer_code - GPF-300P
Name - Chieftec GPF-300P, PC power supply (grey)
Name - Chieftec GPF-300P 300W
Packaging data - Package weight - 1.13 kg
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 2.3
Performance - Power supply unit (PSU) form factor - TFX
Performance - Purpose - PC/Server
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power cable length - 35 cm
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive cable length - 15 cm
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power cable length - 30 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 4
Ports & interfaces - Peripheral (Molex) power cable length - 150,350 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Ports & interfaces - SATA power cable length - 150,350 mm
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 115 - 230 V
Power - Combined power (+3.3V) - 95 W
Power - Combined power (+5V) - 95 W
Power - Combined power (+5Vsb) - 10 W
Power - Combined power (-12V) - 3.6 W
Power - Input current - 6.3 A
Power - Max output current (+3.3V) - 16 A
Power - Max output current (+5V) - 15 A
Power - Max output current (+5Vsb) - 2 A
Power - Max output current (+12V1) - 14 A
Power - Max output current (+12V2) - 15 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over voltage, Overheating, Overload, Short circuit, Under voltage
Power - Total power - 300 W
Producer - Chieftec
ProducerCode - GPF-300P
ProductName - Smart 300W
ShortDescription - 300 | TFX | 80 mm | 20-pin + 4-pin | 175 x 86 x 65 | 80 PLUS| standard |
ShortSummaryDescription - Chieftec Smart 300W, 300 W, 115 - 230 V, 47 - 63 Hz, 6.3 A, Active, 95 W
Technical details - Compliance certificates - RoHS
Title - Chieftec Smart 300W power supply unit 20+4 pin ATX TFX Grey
URL - https://www.chieftec.eu/en/psus/tfx/smart-series/gpf-300p.html
WarrantyInfo - 24 Months
Weight - 1,00
Weight & dimensions - Depth - 175 mm
Weight & dimensions - Height - 65 mm
Weight & dimensions - Weight - 1.07 kg
Weight & dimensions - Width - 85 mm
