ID: 296574
Product code: CTG-650C-RGB
Can be ordered 12 units Availability: 14 days after order approval
Warranty: 2 years

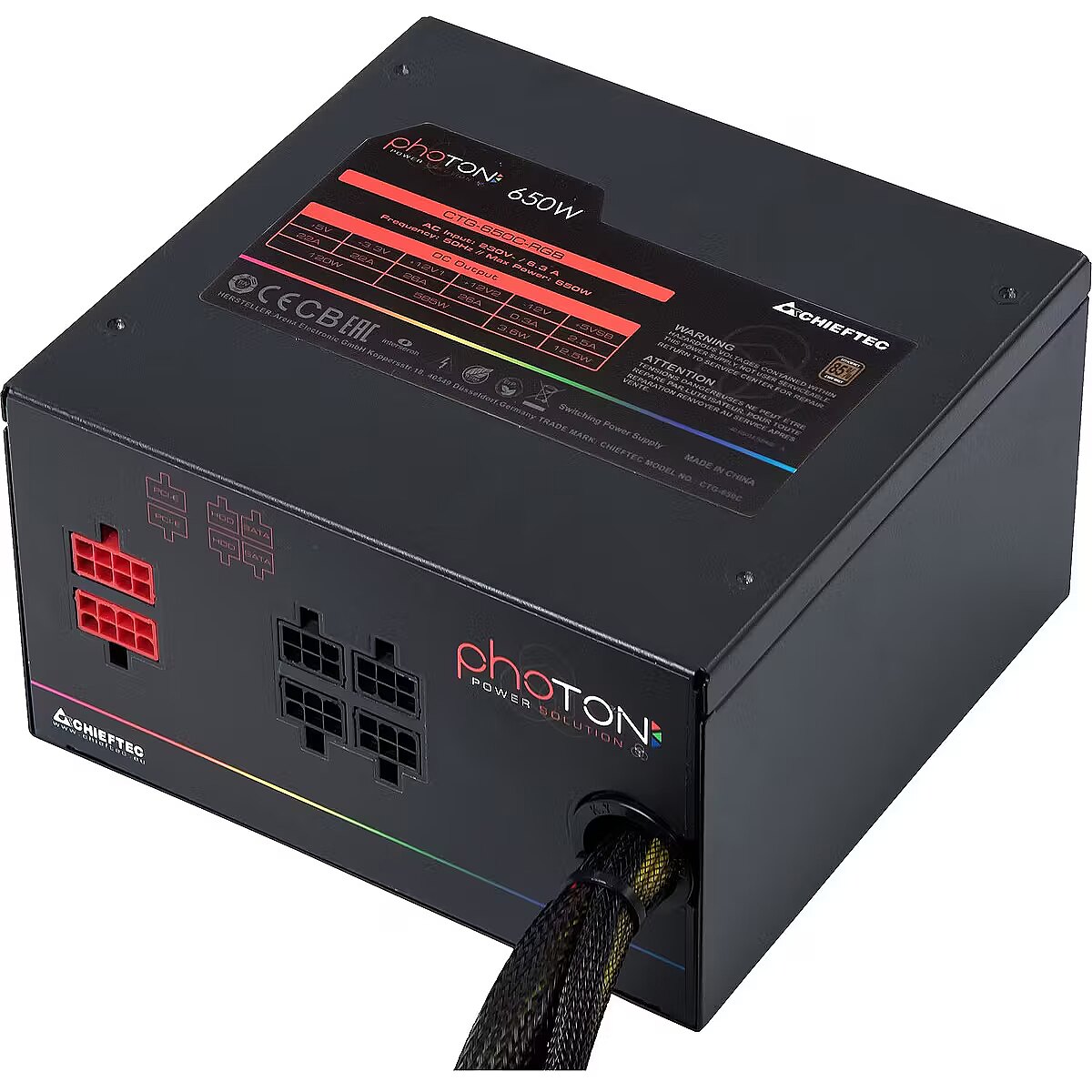

Chieftec Photon Series RGB, 650W
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 10.12.2024
- Delivery to Omniva parcel machine free of charge: 10.12.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 10.12.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 10.12.2024
- Delivery to address in Riga 3.99 €: 10.12.2024
- Delivery to address in Latvia 6.99 €: 10.12.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 06.12.2024 after 15:00
Main product parameters All parameters
- Producer: Chieftec
- Power output: 650W
- 80 PLUS certification: Nav
- Fan size: 120 mm
- Modular cables: Semi-Modular
- Processor plug-in: 1 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Description
650W power is sufficient to run Microsoft Office, surf the web, and play budget computer games. With this power supply, you can run a computer with a mid-range processor, a mid-range graphics card (such as the GTX 1650), and one or two hard drives. If you plan to seriously play games, get a power supply with higher wattage.

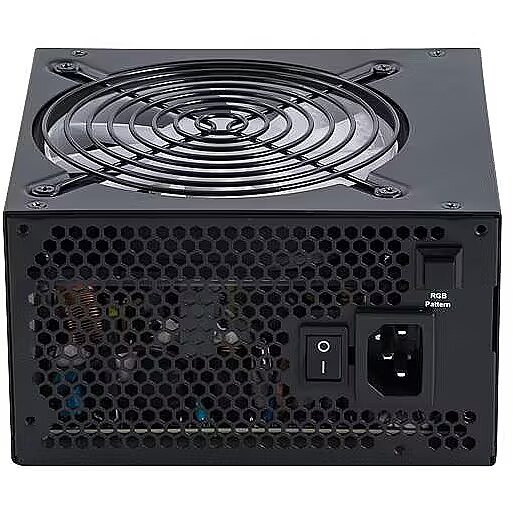

120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.
The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.
This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.

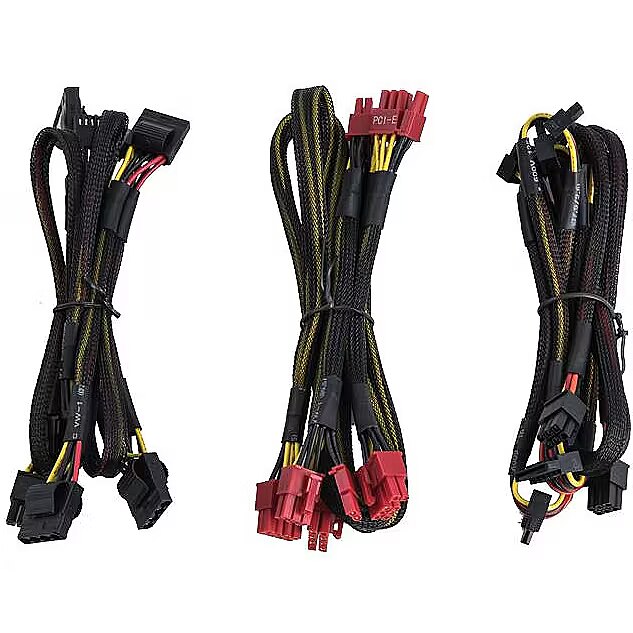

This power supply has semi-modular cables. Some cables are permanently attached, while others can be added or removed as needed. The power supply is suitable for users who want some flexibility but do not want a fully modular system.

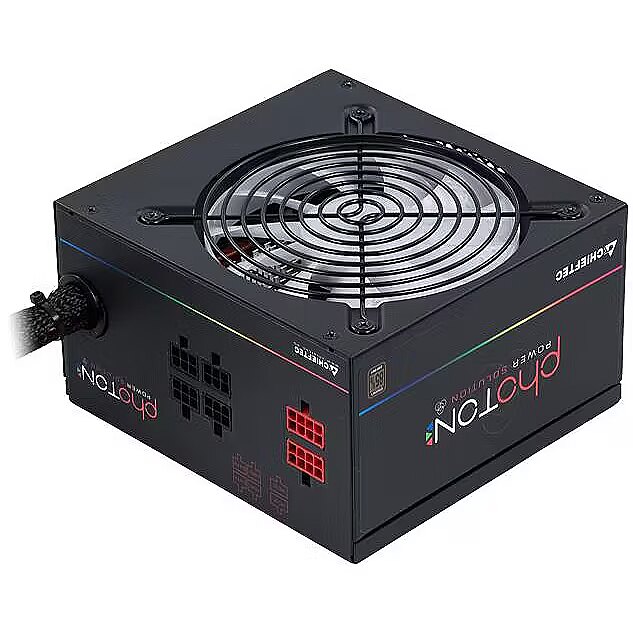

The power supply is equipped with RGB lighting.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
650W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: Nav
Total amperage (+12V)
: 52A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: RGB
Color
: Melna
Modular cables
: Semi-Modular
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 1 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 4 X 6+2pin
SATA cconnectors
: 6
4pin Molex
: 4
More detailed specification
Brand - Chieftec
BrandPartCode - CTG-650C-RGB
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category_1 - Power
Category_2 - Computer Power Supplies
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Illumination - Yes
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 1126
Eans - 753263075918
EAN_code - 0753263075918
GTIN - 753263075918
GTIN - 0753263075918
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - The highly innovative Photon series are aimed at gamers and enthusiasts, looking for the ultimate in power, longevity, performance and of course, RGB lightning effects and all this at a highly affordable price. The +5V addressable LED connector of the PSU offers an extreme wide range of lightening modes and effects, supports all renowned RGB lightening synchronization systems such as ASUS AURA SYNC, MSI MYSTIC LIGHT SYNC, ASROCK POLYCHROME SYNC and GIGABYTE RGB FUSION.Photon series in addition provide a vast number of predefined and MB-independent lightening modes and effects, which are set via a button on the rear of the power supply while a minute toggle switch, equally located on the rear of the PSU allows the choice between the M/B RGB control (if available) or the integrated modes and effects. With its modular cables and related vast amount of connectors, an efficiency of 85% @230V, coupled with its highly competitive price positioning, the models of the Photon series stand out as perfect RGB Gaming solutions.
LongProductName - 650W, 230V, 6.3A, 50 Hz, ATX, PS II, 24-pin, 4+4-pin, 4x 6+2-pin, 6x SATA, 4x Molex, 2x Floppy, RGB
LongSummaryDescription - Chieftec Photon. Total power: 650 W, AC input voltage: 230 V, AC input frequency: 50 Hz. Motherboard power connector: 24-pin ATX, SATA power cable length: 150,450 mm, Peripheral (Molex) power cable length: 150,450 mm. Purpose: PC, Power supply unit (PSU) form factor: PS/2, Supported motherboard form factors: ATX. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 87 mm
Manufacturer - Chieftec
Manufacturer_code - CTG-650C-RGB
Name - Chieftec CTG-650C-RGB
Name - Chieftec Photon CTG-650C-RGB 650W ATX23 - Photon bronze
Other features - Illumination colour - Blue
Other features - Illumination colour - Blue, Green, Red
Other features - Illumination colour - Green
Other features - Illumination colour - Red
Performance - Power supply unit (PSU) form factor - PS/2
Performance - Purpose - PC
Performance - Supported motherboard form factors - ATX
Ports & interfaces - Cabling type - Semi-Modular
Ports & interfaces - CPU power cable length - 60 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Floppy drive power connector - 2
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power cable length - 55 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - Peripheral (Molex) power cable length - 150
Ports & interfaces - Peripheral (Molex) power cable length - 150,450 mm
Ports & interfaces - Peripheral (Molex) power cable length - 450
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Ports & interfaces - SATA power cable length - 150
Ports & interfaces - SATA power cable length - 150,450 mm
Ports & interfaces - SATA power cable length - 450 mm
Power - AC input frequency - 50 Hz
Power - AC input voltage - 230 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Efficiency - 85%
Power - Input current - 6.3 A
Power - Max output current (+3.3V) - 22 A
Power - Max output current (+5V) - 22 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V1) - 26 A
Power - Max output current (+12V2) - 26 A
Power - Max output current (-12V) - 0.3 A
Power - Power protection features - Overload
Power - Power protection features - Over voltage
Power - Power protection features - Over voltage, Overload, Short circuit, Under voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 650 W
Producer - Chieftec
producerCode - CTG-650C-RGB
ProducerCode - CTG-650C-RGB
productName - Chieftec Photon power supply unit 650 W 24-pin ATX PS/2 Black
ProductName - Photon
productSize - Normal
ShortDescription - 650 | ATX | 120 mmRGB| 20 + 4 pin | 150mm x 87mm x 140mm | 80| standard |
ShortSummaryDescription - Chieftec Photon, 650 W, 230 V, 50 Hz, 6.3 A, 120 W, 120 W
sizeX - 107
sizeY - 204
sizeZ - 258
Title - Chieftec Photon power supply unit 650 W 24-pin ATX PS/2 Black
URL - https://www.chieftec.eu/en/psus/ps-2/photon-series/ctg-650c-rgb.html
WarrantyInfo - 24 Months
warrantyLength - 24
warrantyType - G
Weight - 2,54
weight - 2448
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 87 mm
Weight & dimensions - Weight - 2.14 kg
Weight & dimensions - Width - 150 mm
