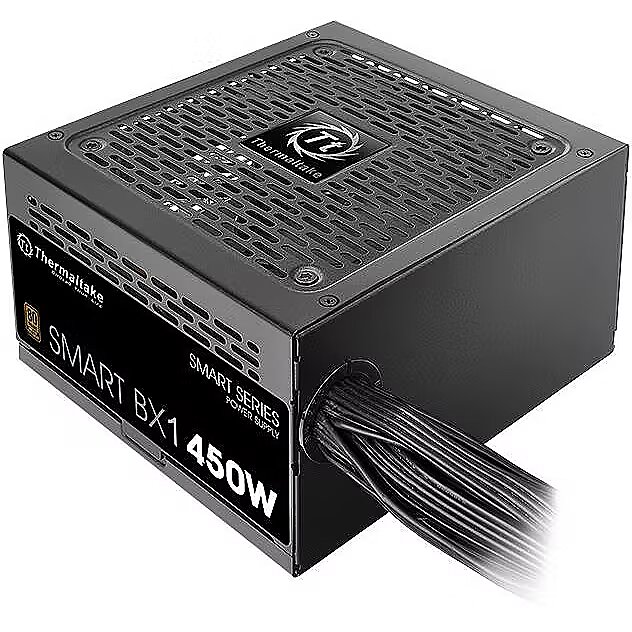

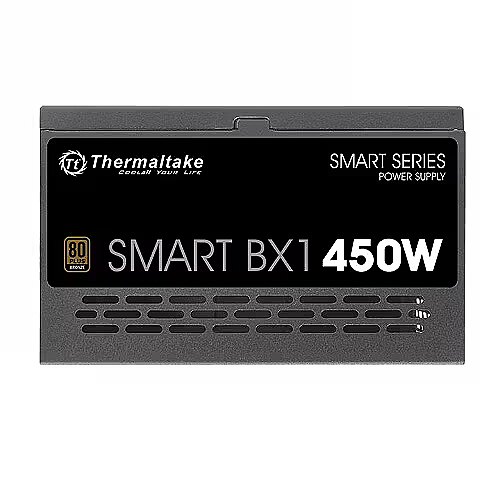

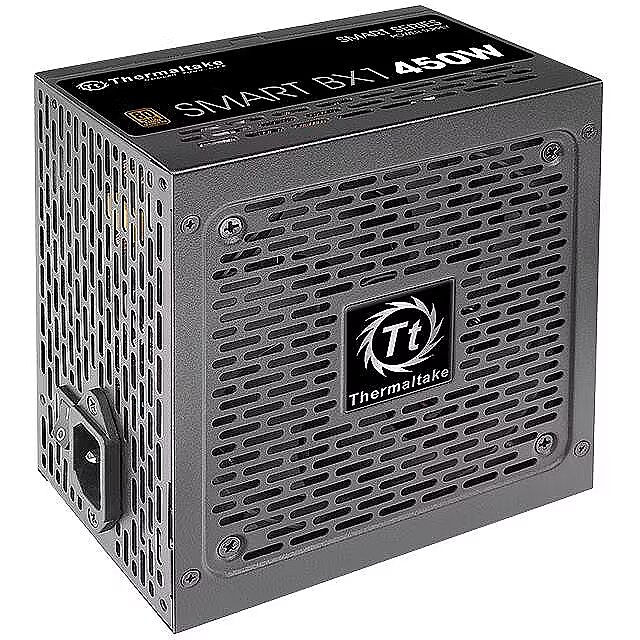

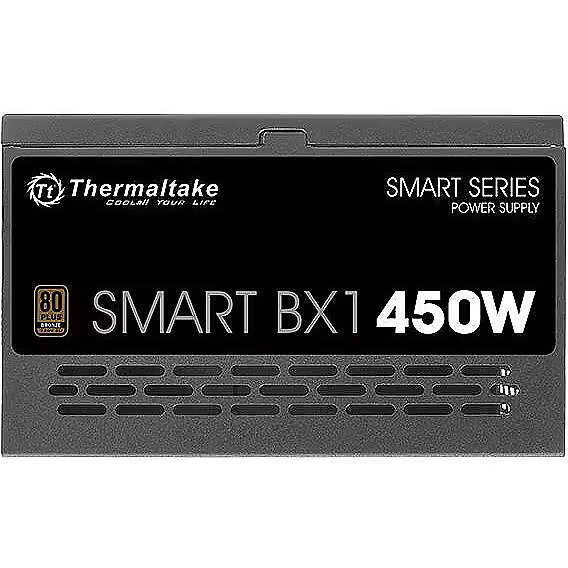

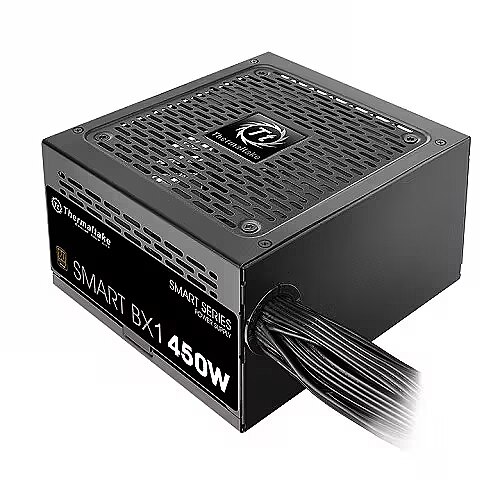

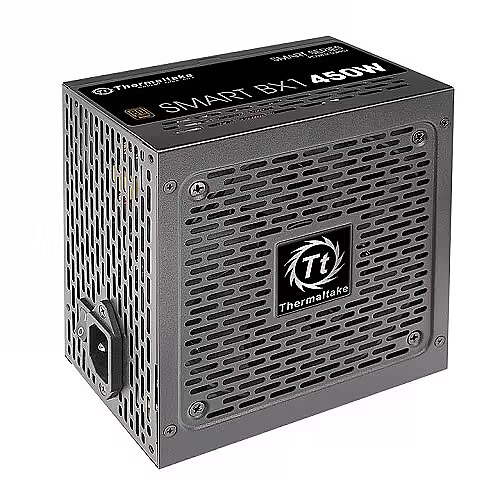

Thermaltake Smart BX1, 450W, 80PLUS Bronze

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 255402 Product code: PS-SPD-0450NNSABE-1
Can be ordered 1 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
63.32 €
Delivery options More about shipping
  • Delivery to Smartpost free of charge: 10.12.2024
  • Delivery to Omniva parcel machine free of charge: 10.12.2024
  • Piegāde uz DPD Pickup Paku Skapi free of charge: 10.12.2024
  • Delivery to Latvian post office, parcel locker or Circle K free of charge: 10.12.2024
  • Delivery to address in Riga 3.99 €: 10.12.2024
  • Delivery to address in Latvia 6.99 €: 10.12.2024
  • Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 06.12.2024 after 15:00
Main product parameters All parameters
  • Producer: Thermaltake
  • Power output: 450W
  • 80 PLUS certification: 80 PLUS Bronze
  • Fan size: 120 mm
  • Modular cables: Nav
  • Processor plug-in: 1 x 8-pin(4+4) EPS
  • PCI-E: 2 X 6+2pin
Description

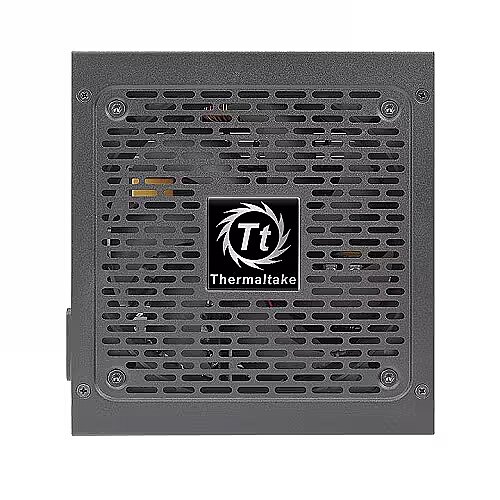

120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.

The power supply has been awarded the 80 PLUS Bronze energy efficiency certificate, which ensures at least 85% efficiency at 50% load. This indicates that at least 85 W out of 100 W of power received by the power supply from the electrical grid is delivered to the computer components, with the remaining 15 W being lost as heat.

The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.

This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.

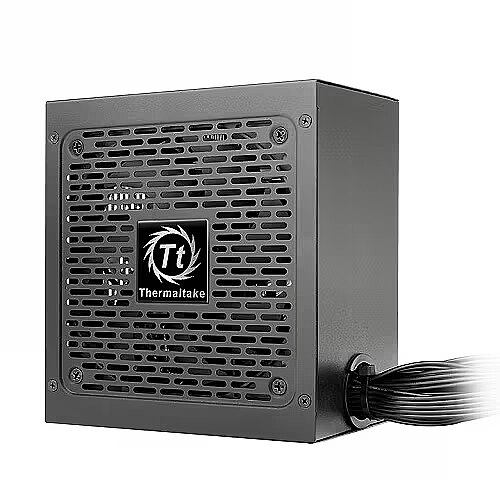

The power supply unit does not have modular cables; all cables are attached to the power supply unit and are not removable. Despite this, it will work just as well as a power supply unit with modular cables.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 450W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Bronze
Total amperage (+12V) : 33A
Fan size : 120 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Nav
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 1 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 2 X 6+2pin
SATA cconnectors : 4
4pin Molex : 3
Case
More detailed specification
Accessories included -
Certificates 80+ - 80 PLUS Bronze
Description -
dimension depth - 100 mm
dimension height - 255 mm
Dimensions - 150 x 86 x 140 mm
dimension weight - 1870 g
dimension width - 205 mm
ean - 841163006184
Fan - 12 cm
Floppy power connectors - 1
guarantee - 36
guarantee_type - statutory
MB power connector - 24 pin
Modular power supply - No
MOLEX power connectors - 3
name - Power Supply Smart BX1 450W
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connectors PCI-E 6 +2 pin - 2
Other features -
PFC - Active
Power supply - 450 W
producer - Thermaltake
SATA power connectors - 4
vendpn - PS-SPD-0450NNSABE-1
