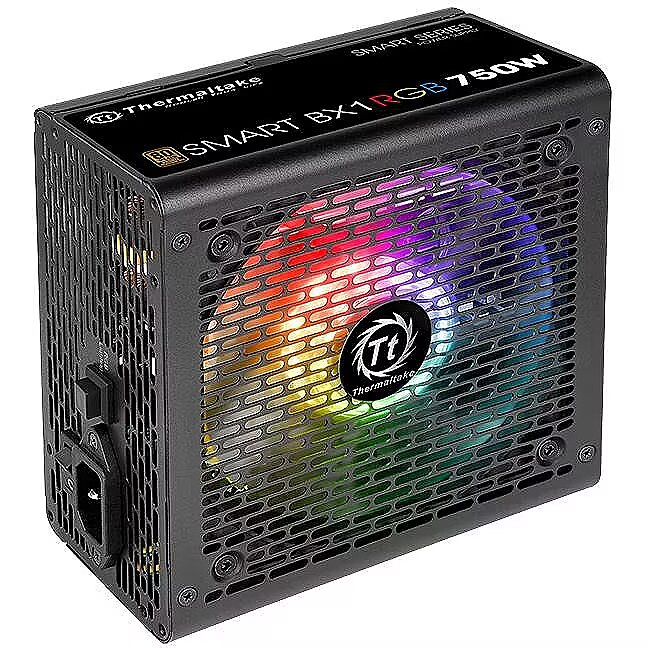

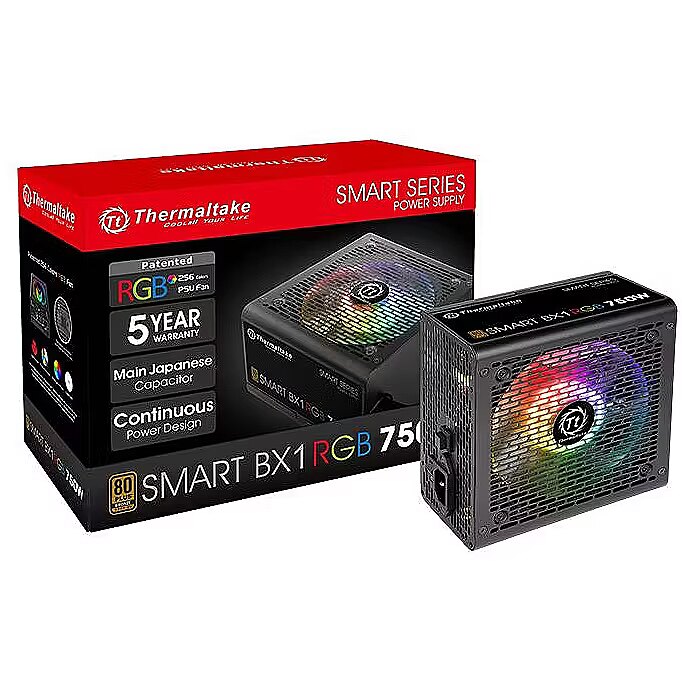

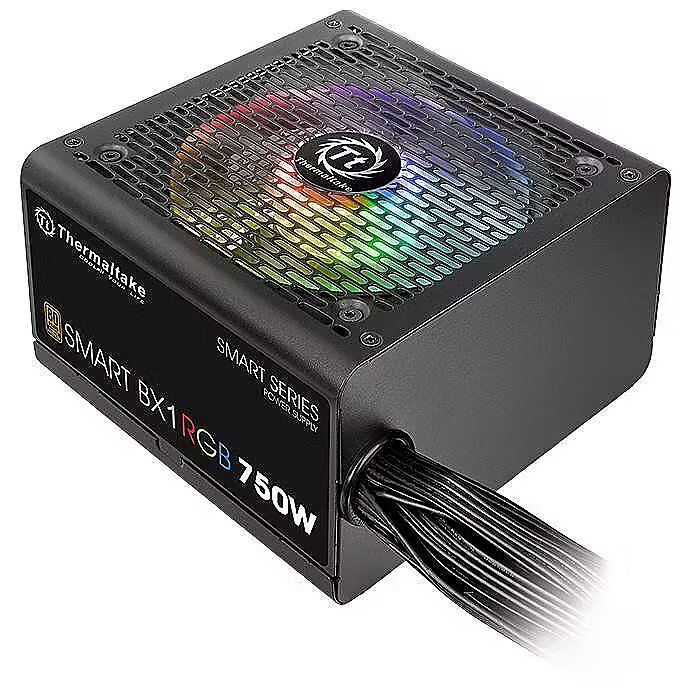

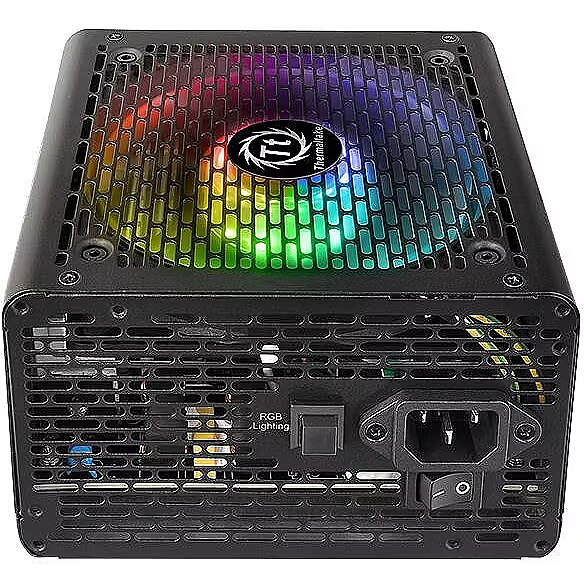

Thermaltake Smart BX1 RGB, 750W, 80PLUS Bronze

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 254062 Product code: PS-SPR-0750NHSABE-1
Can be ordered 10 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
97.89 €
Delivery options More about shipping
  • Delivery to Smartpost free of charge: 08.01.2025
  • Delivery to Omniva parcel machine free of charge: 08.01.2025
  • Piegāde uz DPD Pickup Paku Skapi free of charge: 08.01.2025
  • Delivery to Latvian post office, parcel locker or Circle K free of charge: 08.01.2025
  • Delivery to address in Riga 3.99 €: 08.01.2025
  • Delivery to address in Latvia 6.99 €: 08.01.2025
  • Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 06.01.2025 after 15:00
Main product parameters All parameters
  • Producer: Thermaltake
  • Power output: 750W
  • 80 PLUS certification: 80 PLUS Bronze
  • Fan size: 120 mm
  • Modular cables: Nav
  • Processor plug-in: 1 x 8-pin(4+4) EPS
  • PCI-E: 4 X 6+2pin
Description

Available for purchase is a power supply produced by Thermaltake with a power output of 750W. The product has been awarded an 80 PLUS Bronze energy efficiency certificate.

For polite mid-range computer game playing, a power supply with a 750W capacity will be suitable. This unit can power a computer with a powerful mid-range graphics card (for example, RTX 4070), multiple SSDs and hard drives, and a high-end processor.

This power supply unit is equipped with a 120 mm fan, which is the industry standard for ensuring quiet operation in average computers. If you want an especially quiet unit, look for one with a fan diameter of 135 mm or 140 mm.

The power supply has received the 80 PLUS Bronze energy efficiency certificate, which guarantees at least 85% efficiency at 50% load. This means that for every 100W of power the power supply draws from the electrical grid, at least 85W is delivered to your computer components, while the remaining 15W is lost as heat.

The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.

This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.

This power supply unit does not have modular cables – all its cables are attached to the unit and are not detachable. Despite the simple design, it will fulfill its functions just as well as a power supply unit with modular cables.

The power supply is equipped with RGB lighting.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 750W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Bronze
Total amperage (+12V) : 56A
Fan size : 120 mm
Functionality
Cable colour : Melna
Lighting : RGB
Color : Melna
Modular cables : Nav
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 1 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 4 X 6+2pin
SATA cconnectors : Eight Core
4pin Molex : 4
Case
More detailed specification
8-pin 12V power connectors - 0
Accessories included -
Category - Root/Electronics/PC parts/PC power supply units
Certificates 80+ - 80 PLUS Bronze
Description -
dimension depth - 100 mm
dimension height - 235 mm
Dimensions -
dimension weight - 202 g
dimension width - 185 mm
ean - 4711246873964
Eans - 4711246873964
Fan - 12 cm
Floppy power connectors - 1
guarantee - 36
guarantee_type - statutory
MB power connector - 24 pin
Modular power supply - No
MOLEX power connectors - 4
name - Power Supply Smart BX1 RGB 750W (80+ Bronze 230V EU, 4xPEG, 120mm, Single Rail)
Name - Thermaltake Smart BX1 RGB 750W
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Other features -
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
PFC - Active
Power supply - 750 W
producer - Thermaltake
Producer - Thermaltake
ProducerCode - PS-SPR-0750NHSABE-1
SATA power connectors - 8
ShortDescription - 750 | ATX | 120mm | RGB | 20+4 | 86mm x 150mm x 140mm | 80+ Bronze EU
vendpn - PS-SPR-0750NHSABE-1
