ID: 248824
Product code: PS-LTP-0350NPCNEU-2
Can be ordered 15 units Availability: 14 days after order approval
Warranty: 2 years

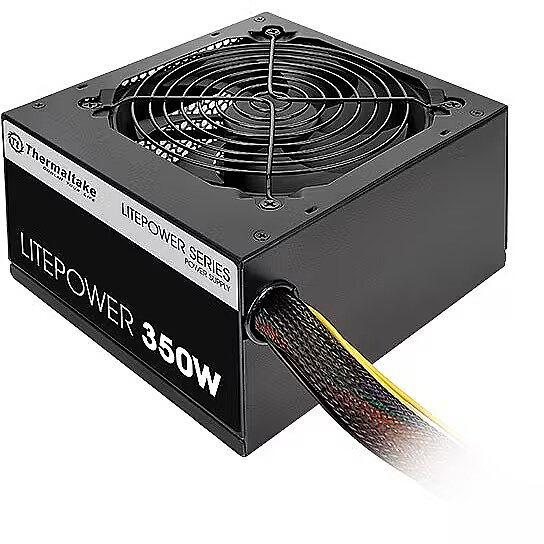

Thermaltake Litepower II, 350W
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 11.12.2024
- Delivery to Omniva parcel machine free of charge: 11.12.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 11.12.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 11.12.2024
- Delivery to address in Riga 3.99 €: 11.12.2024
- Delivery to address in Latvia 6.99 €: 11.12.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 09.12.2024 after 15:00
Main product parameters All parameters
- Producer: Thermaltake
- Power output: 350W
- 80 PLUS certification: Nav
- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 1 x 8-pin(4+4) EPS
- PCI-E: Nav
Description
This power supply unit is equipped with a 120 mm fan, which is the industry standard for ensuring quiet operation in average computers. If you want an especially quiet unit, look for one with a fan diameter of 135 mm or 140 mm.
The color of the block is Melna. The block has flat cables, whose color is Raiba.
ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.
This power supply unit does not have modular cables – all its cables are attached to the unit and are not detachable. Despite the simple design, it will fulfill its functions just as well as a power supply unit with modular cables.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
350W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: Nav
Total amperage (+12V)
: 26A
Fan size
: 120 mm
Functionality
Cable colour
: Raiba
Lighting
: Nav
Color
: Melna
Modular cables
: Nav
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 1 x 8-pin(4+4) EPS
Motherboard power
: 24-pin
PCI-E
: Nav
SATA cconnectors
: 3
4pin Molex
: 3
More detailed specification
8-pin 12V power connectors - 0
Accessories included -
Category - Root/Electronics/PC parts/PC power supply units
Certificates 80+ - None
Description -
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Illumination - No
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 846
dimension depth - 100 mm
dimension height - 180 mm
Dimensions -
dimension weight - 1410 g
dimension width - 230 mm
ean - 4717964404190
Eans - 4717964404190
Fan - 12 cm
Floppy power connectors - 1
guarantee - 24
guarantee_type - statutory
MB power connector - 24 pin
Modular power supply - No
MOLEX power connectors - 3
name - Litepower II Black 350W (Active PFC, 120mm)
Name - Thermaltake Litepower II Black 350W
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 0
Operational conditions - Operating relative humidity (H-H) - 20 - 85%
Operational conditions - Operating temperature (T-T) - 5 - 35 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 55 °C
Other features -
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - ATX version - 2.3
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance - Supported motherboard form factors - ATX
PFC - Active
Ports & interfaces - ATX Power connector (24-pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power cable length - 450
Ports & interfaces - SATA power cable length - 450 mm

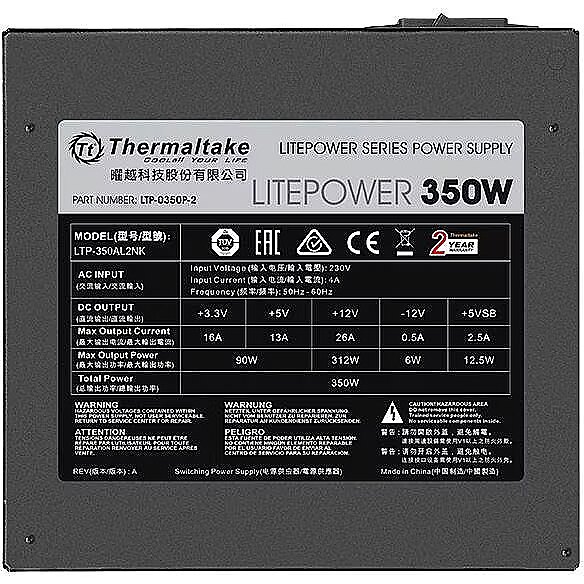

Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 230 V
Power - Combined power (+3.3V) - 90 W
Power - Combined power (+5V) - 90 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 312 W
Power - Combined power (-12V) - 6 W
Power - Hold time - 16 ms
Power - Input current - 4 A
Power - Max output current (+3.3V) - 16 A
Power - Max output current (+5V) - 13 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 26 A
Power - Max output current (-12V) - 0.5 A
Power - Power Factor Correction (PFC) type - Active
Power - Total power - 350 W
Power supply - 350 W
producer - Thermaltake
Producer - Thermaltake
producerCode - PS-LTP-0350NPCNEU-2
ProducerCode - PS-LTP-0350NPCNEU-2
productName - Thermaltake Litepower II power supply unit 350 W 24-pin ATX ATX Black
productSize - Normal
SATA power connectors - 3
ShortDescription - 350 | ATX | 120mm | 20+4 | 150mm x 86mm x 140mm
sizeX - 235
sizeY - 180
sizeZ - 100
vendpn - PS-LTP-0350NPCNEU-2
warrantyLength - 24
warrantyType - G
weight - 1445
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
