ID: 247189
Product code: PS-LTP-0450NPCNEU-2
Can be ordered 25 units Availability: 14 days after order approval
Warranty: 2 years

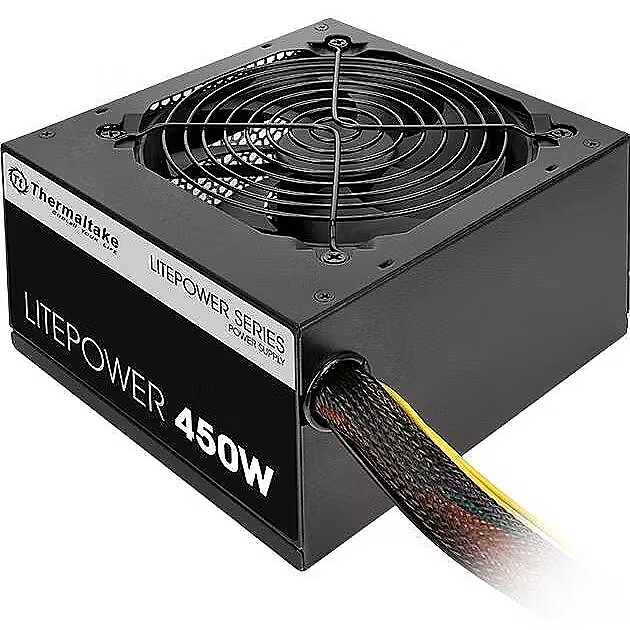

Thermaltake Litepower II, 450W
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 08.01.2025
- Delivery to Omniva parcel machine free of charge: 08.01.2025
- Piegāde uz DPD Pickup Paku Skapi free of charge: 08.01.2025
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 08.01.2025
- Delivery to address in Riga 3.99 €: 08.01.2025
- Delivery to address in Latvia 6.99 €: 08.01.2025
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 06.01.2025 after 15:00
Main product parameters All parameters
- Producer: Thermaltake
- Power output: 450W
- 80 PLUS certification: Nav
- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 1 x 8-pin(4+4) EPS
- PCI-E: 2 X 6+2pin
Description
120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.
The color of the power supply is Melna. It is equipped with flat cables, whose color is Raiba.
This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.
This power supply has no removable cables and all cables are attached to the power supply. It has a simple design, but it works just as well as a power supply with modular cables.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
450W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: Nav
Total amperage (+12V)
: 33A
Fan size
: 120 mm
Functionality
Cable colour
: Raiba
Lighting
: Nav
Color
: Melna
Modular cables
: Nav
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 1 x 8-pin(4+4) EPS
Motherboard power
: 24-pin
PCI-E
: 2 X 6+2pin
SATA cconnectors
: 4
4pin Molex
: 4
More detailed specification
8-pin 12V power connectors - 0
Accessories included -
Certificates 80+ - None
Description -
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Fan speed - 1800
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 869
dimension depth - 100 mm
dimension height - 180 mm
Dimensions - 150 x 86 x 140 mm
dimension weight - 1645 g
dimension width - 230 mm
ean - 4717964404213
Fan - 12 cm
Fan speed (max) - 1800 rpm
Floppy power connectors - 1
guarantee - 24
guarantee_type - normal
MB power connector - 24 pin
Modular power supply - No
MOLEX power connectors - 4
name - Litepower II Black 450W (Active PFC, 2xPEG, 120mm)
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 2
Operational conditions - Operating relative humidity (H-H) - 20 - 80%
Operational conditions - Operating temperature (T-T) - 5 - 35 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 55 °C
Other features -
Packaging data - Package type - Box
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - ATX version - 2.3
Performance - Certification - CE, TUV SUD, CB, EAC, RCM
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - ATX Power connector (24-pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive cable length - 15 cm
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - PCI Express power cable length - 45 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power cable length - 450 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4

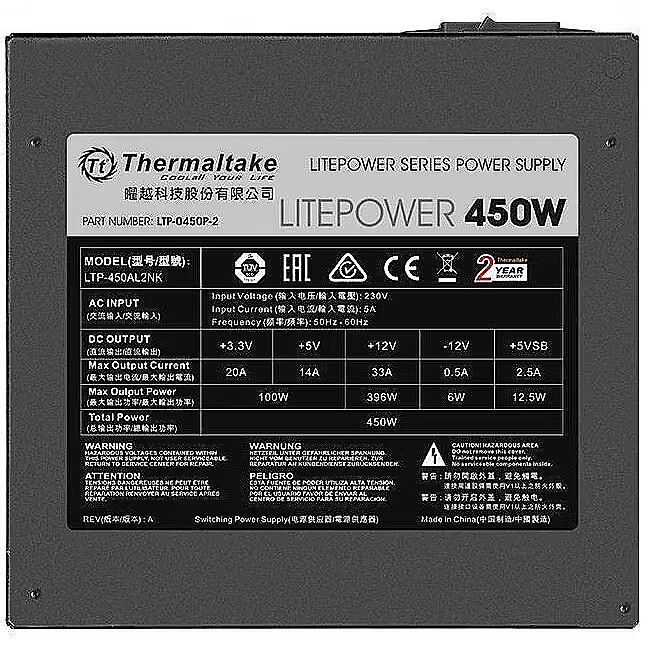

Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 230 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 396 W
Power - Combined power (-12V) - 6 W
Power - Hold time - 16 ms
Power - Input current - 5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 14 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 33 A
Power - Max output current (-12V) - 0.5 A
Power - Power Factor Correction (PFC) type - Active
Power - Total power - 450 W
Power supply - 450 W
producer - Thermaltake
producerCode - PS-LTP-0450NPCNEU-2
productName - Thermaltake Litepower G2 power supply unit 450 W ATX Black
productSize - Normal
SATA power connectors - 4
sizeX - 235
sizeY - 185
sizeZ - 100
vendpn - PS-LTP-0450NPCNEU-2
warrantyLength - 24
warrantyType - G
weight - 1660
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
Accessories included -
Certificates 80+ - None
Description -
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Fan speed - 1800
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 869
dimension depth - 100 mm
dimension height - 180 mm
Dimensions - 150 x 86 x 140 mm
dimension weight - 1645 g
dimension width - 230 mm
ean - 4717964404213
Fan - 12 cm
Fan speed (max) - 1800 rpm
Floppy power connectors - 1
guarantee - 24
guarantee_type - normal
MB power connector - 24 pin
Modular power supply - No
MOLEX power connectors - 4
name - Litepower II Black 450W (Active PFC, 2xPEG, 120mm)
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 2
Operational conditions - Operating relative humidity (H-H) - 20 - 80%
Operational conditions - Operating temperature (T-T) - 5 - 35 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 55 °C
Other features -
Packaging data - Package type - Box
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - ATX version - 2.3
Performance - Certification - CE, TUV SUD, CB, EAC, RCM
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - ATX Power connector (24-pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive cable length - 15 cm
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - PCI Express power cable length - 45 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power cable length - 450 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 230 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 396 W
Power - Combined power (-12V) - 6 W
Power - Hold time - 16 ms
Power - Input current - 5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 14 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 33 A
Power - Max output current (-12V) - 0.5 A
Power - Power Factor Correction (PFC) type - Active
Power - Total power - 450 W
Power supply - 450 W
producer - Thermaltake
producerCode - PS-LTP-0450NPCNEU-2
productName - Thermaltake Litepower G2 power supply unit 450 W ATX Black
productSize - Normal
SATA power connectors - 4
sizeX - 235
sizeY - 185
sizeZ - 100
vendpn - PS-LTP-0450NPCNEU-2
warrantyLength - 24
warrantyType - G
weight - 1660
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
