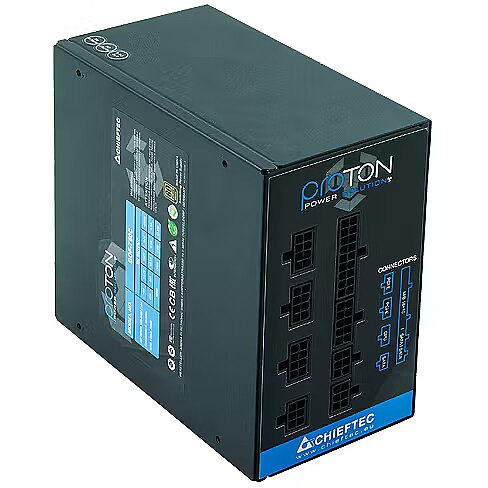

Chieftec PROTON Series, 1000W, 80PLUS Bronze
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 08.01.2025
- Delivery to Omniva parcel machine free of charge: 08.01.2025
- Piegāde uz DPD Pickup Paku Skapi free of charge: 08.01.2025
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 08.01.2025
- Delivery to address in Riga 3.99 €: 08.01.2025
- Delivery to address in Latvia 6.99 €: 08.01.2025
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 06.01.2025 after 15:00
Main product parameters All parameters
- Producer: Chieftec
- Power output: 1000W
- 80 PLUS certification: 80 PLUS Bronze
- Fan size: 140 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 6 x 6+2pin
Description
Available for purchase is a power supply produced by Chieftec with a power output of 1000W. The product has been awarded an 80 PLUS Bronze energy efficiency certificate.
This 1000W power supply unit will be able to run the best gaming computer. It has enough power to run multiple high-end graphics cards, a large water cooling system, an overclocked high-end processor, and several hard drives.
Thanks to the huge 140 mm cooling fan, this power supply unit is much quieter than a standard unit. The fan has a larger wing area, which ensures the necessary airflow at lower fan speeds, thus reducing the overall level of vibration and noise to a minimum.
The power supply has been awarded the 80 PLUS Bronze energy efficiency certificate, which ensures at least 85% efficiency at 50% load. This indicates that at least 85 W out of 100 W of power received by the power supply from the electrical grid is delivered to the computer components, with the remaining 15 W being lost as heat.
The color of this power supply is Melna. The cable color is Melna and they are flat.
This power supply unit has been assigned the ATX 2.0 standard. This means that the unit is equipped only with 6-pin and 8-pin connectors, providing 75W and 150W power respectively. It's important to note that this unit will be compatible with RTX 4070 and more powerful cards, but you will need to use the 2x8-pin to 16-pin 12VHPWR adapter included with the graphics card. ATX 2.0 power connectors are not designed to handle the high power fluctuations of modern graphics cards; therefore, if you are building a system with a powerful GPU, such as the RTX 4070, we recommend choosing a power supply unit with the ATX 3.* standard and 12VHPWR (PCIe 5.0) connector.

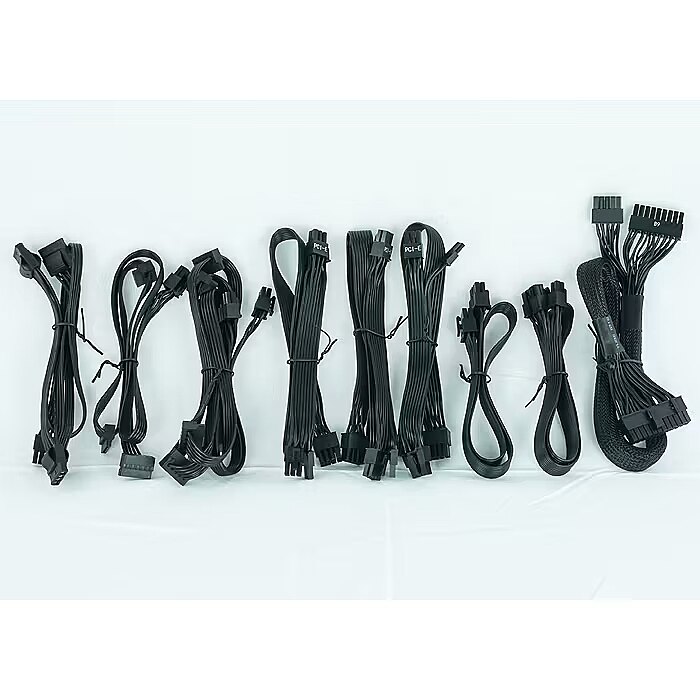

This power supply has modular cables, which provide the possibility to add video card cables, hard disk cables, etc. as needed from the supplied range. This way, the wire clutter in the computer is reduced, improving ventilation and the aesthetic factor (particularly important for those who purchase a partially transparent case).
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
1000W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Bronze
Total amperage (+12V)
: 83A
Fan size
: 140 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Fully-Modular
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 6 x 6+2pin
SATA cconnectors
: 9
4pin Molex
: 3
More detailed specification
Brand - Chieftec
BrandPartCode - BDF-1000C
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category_1 - Power
Category_2 - Computer Power Supplies
Design - Cooling type - Active
Design - Fan diameter - 14 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Eans - 4710713231313
EAN_code - 4710713231313
GTIN - 4710713231313
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - With the PROTON Series, CHIEFTEC advances into the new-age DC to DC power supply technology. The series allows for energy conservation, as well as a much higher efficiency and power stability, which in turn ensures a higher longevity of installed components. The efficiency of the PROTON Series is certified at 80 PLUS BRONZE thereby fulfilling all ENERGY STAR 5,0 and higher requirements as stipulated by the EU.
LongProductName - BDF-1000C - 1000W, 115-230V, 50-60Hz, ATX 12V 2.3, PS II
LongSummaryDescription - Chieftec BDF-1000C. Total power: 1000 W, AC input voltage: 115 - 230 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 14 cm. Width: 150 mm, Depth: 140 mm, Height: 87 mm
Manufacturer - Chieftec
Manufacturer_code - BDF-1000C
Name - Chieftec BDF-1000C
Name - Chieftec BDF-1000C, PC power supply unit (black, 6x PCIe, cable management)
Other features - Warranty card - Yes
Packaging data - Manual - Yes
Packaging data - Package type - Box
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 2.3
Performance - Power supply unit (PSU) form factor - PS/2
Performance - Purpose - PC
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 9
Ports & interfaces - PCI Express power connectors (6+2 pin) - 6
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 115 - 230 V
Power - Combined power (+3.3V) - 140 W
Power - Combined power (+5V) - 140 W
Power - Efficiency - 85%
Power - Max output current (+3.3V) - 23 A
Power - Max output current (+5V) - 23 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 54.2 A
Power - Max output current (-12V) - 0.5 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage
Power - Total power - 1000 W
Producer - Chieftec
ProducerCode - BDF-1000C
ProductName - BDF-1000C
ShortDescription - 1000 | ATX | 140 mm | 20 + 4 pin | 150mm x 87mm x 160mm | 80PLUS BRONZE
ShortSummaryDescription - Chieftec BDF-1000C, 1000 W, 115 - 230 V, 50 - 60 Hz, Active, 140 W, 140 W
Title - Chieftec BDF-1000C power supply unit 1000 W 20+4 pin ATX PS/2 Black
URL - https://www.chieftec.eu/en/psus/ps-2/proton-series/bdf-1000c.html
WarrantyInfo - 24 Month
Weight - 3,08
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 87 mm
Weight & dimensions - Width - 150 mm
