ID: 151140
Product code: AK-B1-600
Can be ordered 27 units Availability: 14 days after order approval
Warranty: 2 years

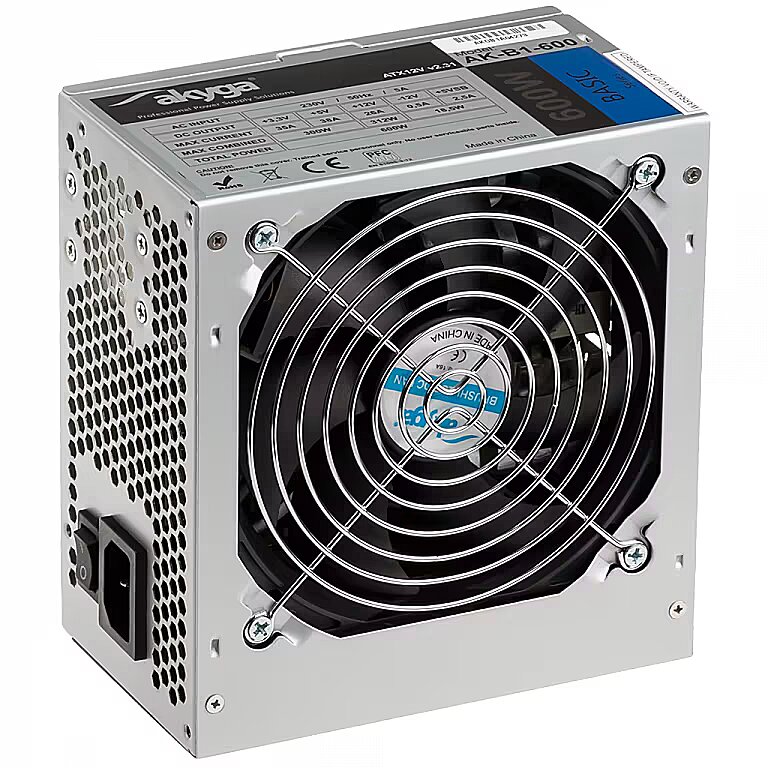

Akyga AK-B1-600, 600W
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 27.11.2024
- Delivery to Omniva parcel machine free of charge: 27.11.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 27.11.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 27.11.2024
- Delivery to address in Riga 3.99 €: 27.11.2024
- Delivery to address in Latvia 6.99 €: 27.11.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 25.11.2024 after 15:00
Main product parameters All parameters
- Producer: Akyga
- Power output: 600W
- 80 PLUS certification: Nav
- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 1 x 4-pin EPS
- PCI-E: 1 X 6+2pin
Description
600W power is sufficient for web browsing, Microsoft Office, and playing simple computer games. The power supply can run a computer with one or two hard drives, a mid-range graphics card (such as the GTX 1650), and a mid-range processor. If you are a serious computer games enthusiast, buy a more powerful power supply.
120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.
The color of this power supply is Sudraba. The cable color is Raiba and they are flat.
This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.
The power supply unit does not have modular cables; all cables are attached to the power supply unit and are not removable. Despite this, it will work just as well as a power supply unit with modular cables.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
600W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: Nav
Total amperage (+12V)
: 26A
Fan size
: 120 mm
Functionality
Cable colour
: Raiba
Lighting
: Nav
Color
: Silver
Modular cables
: Nav
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 1 x 4-pin EPS
Motherboard power
: 20+4pin
PCI-E
: 1 X 6+2pin
SATA cconnectors
: 4
4pin Molex
: 2
More detailed specification
Category - Root/Electronics/PC parts/PC power supply units
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Grey
dimensionalWeight - 774
Eans - 5901720130358
Name - Akyga Basic AK-B1-600
Operational conditions - Operating temperature (T-T) - 5 - 50 °C
Packaging data - Package depth - 220 mm
Packaging data - Package height - 95 mm
Packaging data - Package type - Box
Packaging data - Package weight - 1.19 kg
Packaging data - Package width - 160 mm
Performance - ATX version - 2.31
Performance - Certification - REACH, CE, RoHS
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - EPS power connector (8-pin) - No
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 4
Ports & interfaces - PCI Express power connectors (6+2 pin) - 1
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Power - AC input frequency - 50 Hz
Power - AC input voltage - 230 V
Power - Combined power (+3.3V) - 300 W
Power - Combined power (+5V) - 300 W
Power - Combined power (+5Vsb) - 18.5 W
Power - Combined power (+12V) - 312 W
Power - Combined power (-12V) - 18.5 W
Power - Efficiency - 70%
Power - Input current - 5 A
Power - Max output current (+3.3V) - 35 A
Power - Max output current (+5V) - 38 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 36 A
Power - Max output current (-12V) - 0.5 A
Power - Power Factor Correction (PFC) type - Passive
Power - Power protection features - Over current
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 600 W
Producer - Akyga
producerCode - AK-B1-600
ProducerCode - AK-B1-600
productName - Akyga AK-B1-600 power supply unit 600 W 20+4 pin ATX ATX Grey
productSize - Normal
ShortDescription - 600 | ATX | 120 mm | 20 + 4 pin | 150mm x 86mm x 140mm | ROHS, CE, CE | standard |
sizeX - 220
sizeY - 160
sizeZ - 110
Technical details - Sustainability certificates - RoHS
warrantyLength - 24
warrantyType - G
weight - 1323
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 87 mm
Weight & dimensions - Weight - 1.12 kg
Weight & dimensions - Width - 150 mm
