ID: 151139
Product code: AK-B1-550
Can be ordered 11 units Availability: 14 days after order approval
Warranty: 2 years

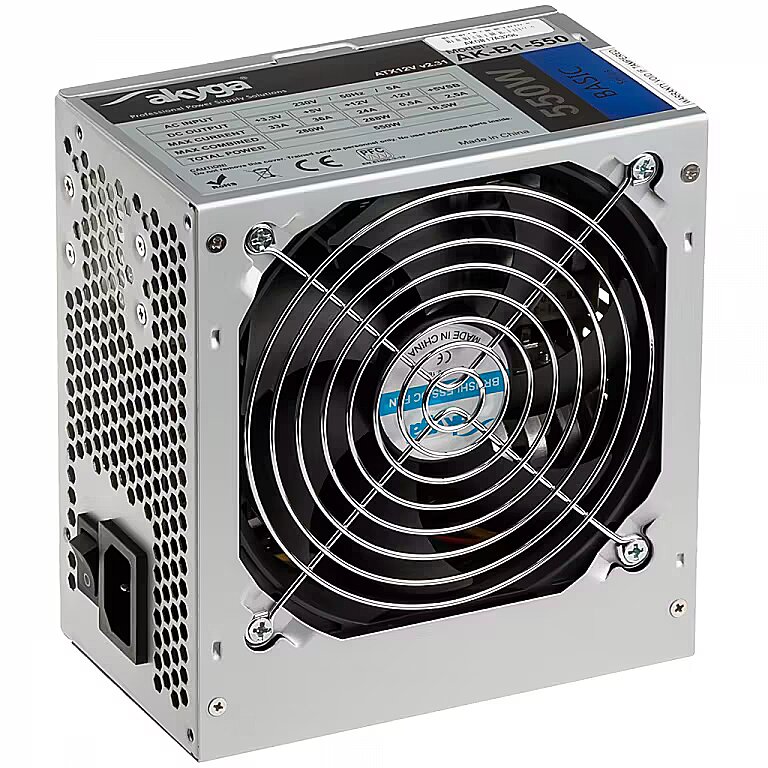

Akyga AK-B1-550, 550W
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 10.12.2024
- Delivery to Omniva parcel machine free of charge: 10.12.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 10.12.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 10.12.2024
- Delivery to address in Riga 3.99 €: 10.12.2024
- Delivery to address in Latvia 6.99 €: 10.12.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 05.12.2024 after 15:00
Main product parameters All parameters
- Producer: Akyga
- Power output: 550W
- 80 PLUS certification: Nav
- Fan size: 130 mm
- Modular cables: Nav
- Processor plug-in: 1 x 4-pin EPS
- PCI-E: 1 X 6pin
Description
The power of 550W is sufficient for basic computer gaming, web browsing, and Office applications use. The unit is designed for a computer with a budget processor, integrated graphics card, small SSD or hard drive. If you decide to upgrade your computer in the future, you should definitely consider purchasing a more powerful power supply.
The color of this power supply is Sudraba. The cable color is Raiba and they are flat.
ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.
The power supply unit does not have modular cables; all cables are attached to the power supply unit and are not removable. Despite this, it will work just as well as a power supply unit with modular cables.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
550W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: Nav
Total amperage (+12V)
: 24A
Fan size
: 130 mm
Functionality
Cable colour
: Raiba
Lighting
: Nav
Color
: Silver
Modular cables
: Nav
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 1 x 4-pin EPS
Motherboard power
: 20+4pin
PCI-E
: 1 X 6pin
SATA cconnectors
: 3
4pin Molex
: 2
More detailed specification
Category - Root/Electronics/PC parts/PC power supply units
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Grey
dimensionalWeight - 668
Eans - 5901720130341
Name - Akyga Basic AK-B1-550
Operational conditions - Operating temperature (T-T) - 5 - 50 °C
Other features - Warranty card - Yes
Packaging data - Manual - Yes
Packaging data - Package depth - 220 mm
Packaging data - Package height - 95 mm
Packaging data - Package type - Box
Packaging data - Package weight - 1.12 kg
Packaging data - Package width - 160 mm
Performance - ATX version - 2.31
Performance - Certification - CE, REACH
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance - Supported motherboard form factors - ATX
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU P4 connector (4-pin) - 1
Ports & interfaces - CPU power cable length - 45 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 3
Ports & interfaces - PCI Express power connectors (6-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 300 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Ports & interfaces - SATA power cable length - 300 mm
Power - AC input voltage - 230 V
Power - Combined power (+3.3V) - 280 W
Power - Combined power (+5V) - 280 W
Power - Combined power (+5Vsb) - 18.5 W
Power - Combined power (+12V) - 288 W
Power - Combined power (-12V) - 18.5 W
Power - Efficiency - 70%
Power - Input current - 5 A
Power - Max output current (+3.3V) - 33 A
Power - Max output current (+5V) - 36 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 24 A
Power - Max output current (-12V) - 0.5 A
Power - Peak power - 550 W
Power - Power protection features - Over current
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Total power - 550 W
Producer - Akyga
producerCode - AK-B1-550
ProducerCode - AK-B1-550
productName - Akyga AK-B1-550 power supply unit 550 W 20+4 pin ATX ATX Grey
productSize - Normal
ShortDescription - 550 | ATX | 120 mm | 20 + 4 pin | 150mm x 86mm x 140mm | ROHS, CE, CE | standard |
sizeX - 220
sizeY - 160
sizeZ - 95
Technical details - Sustainability certificates - RoHS
warrantyLength - 24
warrantyType - G
weight - 1215
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 85 mm
Weight & dimensions - Weight - 1.04 kg
Weight & dimensions - Width - 150 mm
