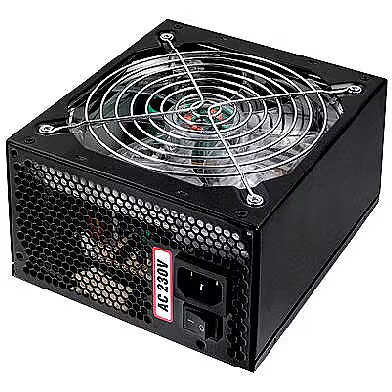

iBOX 600W, CUBE II Black Edition
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 10.12.2024
- Delivery to Omniva parcel machine free of charge: 10.12.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 10.12.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 10.12.2024
- Delivery to address in Riga 3.99 €: 10.12.2024
- Delivery to address in Latvia 6.99 €: 10.12.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 05.12.2024 after 15:00
Main product parameters All parameters
- Producer: iBOX
- Power output: 600W
- 80 PLUS certification: Nav
- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 1 x 8-pin(4+4) EPS
- PCI-E: 1 X 6+2pin
Description
600W power is sufficient for web browsing, Microsoft Office, and playing simple computer games. The power supply can run a computer with one or two hard drives, a mid-range graphics card (such as the GTX 1650), and a mid-range processor. If you are a serious computer games enthusiast, buy a more powerful power supply.
This power supply unit is equipped with a 120 mm fan, which is the industry standard for ensuring quiet operation in average computers. If you want an especially quiet unit, look for one with a fan diameter of 135 mm or 140 mm.
The color of the power supply is Melna. It is equipped with flat cables, whose color is Raiba.
ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.
This power supply has no removable cables and all cables are attached to the power supply. It has a simple design, but it works just as well as a power supply with modular cables.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
600W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: Nav
Total amperage (+12V)
: 44A
Fan size
: 120 mm
Functionality
Cable colour
: Raiba
Lighting
: Nav
Color
: Melna
Modular cables
: Nav
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 1 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 1 X 6+2pin
SATA cconnectors
: 6
4pin Molex
: 6
More detailed specification
8-pin 12V power connectors - 0
Accessories included -
Category - Root/Electronics/PC parts/PC power supply units
Certificates 80+ - None
Description - Power supply 600 W CUBE II APFC 12 CM BLACK
ATX 2.2 power supply 600W and active PFC (power factor improvement). A large number of protections, including: UVP (undervoltage) / OVP (overvoltage) / SCP (short-circuit) / OPP (overload) / OCP (overcurrent) / OTP (thermal) and AFC (automatic fan speed control). It has a detachable power plug (20 + 4) enabling connection to the main boards with 20-pin and 24-pin power supply. It also has EPS and PCI-E 8pin (4 + 4) and 8pin (6 + 2) plugs.
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 594
dimension depth - 150 mm
dimension height - 210 mm
Dimensions - 150 x 140 x 85 mm
dimension weight - 1355 g
dimension width - 58 mm
ean - 5901443051985
Eans - 5901443051985
Fan - 12 cm
Floppy power connectors - 0
guarantee - 24
guarantee_type - external
MB power connector - 20 + 4 pin
Modular power supply - No
MOLEX power connectors - 6
Name - iBox Cube 2 600W
name - Power Supply 600 W CUBE II APFC 12 CM BLACK
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 1
Number of power supply connectors PCI-E 6 +2 pin - 1
Other features -
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - ATX version - 2.2
Performance - Certification - CE, RoHS, APFC
Performance - Noise level - 20 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance - RoHS compliance - Y
Performance - Supported motherboard form factors - ATX
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 6
Power - AC input voltage - 12 V
Power - Total power - 600 W
Power supply - 600 W
producer - iBOX
Producer - iBOX
producerCode - ZIC2600W12CMFA
ProducerCode - ZIC2600W12CMFA
productName - iBox CUBE II power supply unit 600 W ATX Black
productSize - Normal
SATA power connectors - 6
ShortDescription - 600 | ATX | 120mm | 20 + 4 pin | 150mm x 80mm x 140mm | standard |
sizeX - 150
sizeY - 90
sizeZ - 220
vendpn - ZIC2600W12CMFA
warrantyLength - 24
warrantyType - G
weight - 1360
Weight & dimensions - Depth - 85 mm
Weight & dimensions - Height - 150 mm
Weight & dimensions - Width - 140 mm
