ID: 134827
Product code: GPB-450S
In stock 7 units
Warranty: 2 years

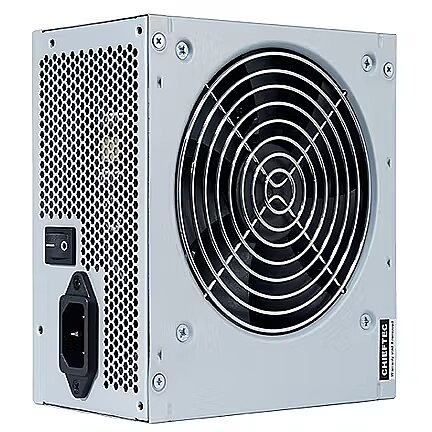

Chieftec iArena GPB Series, 450W
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 29.11.2024
- Delivery to Omniva parcel machine free of charge: 29.11.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 29.11.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 29.11.2024
- Delivery to address in Riga 3.99 €: 29.11.2024
- Delivery to address in Latvia 6.99 €: 29.11.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Wednesday, 27.11.2024 after 15:00
Main product parameters All parameters
- Producer: Chieftec
- Power output: 450W
- 80 PLUS certification: Nav
- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 1 x 8-pin(4+4) EPS
- PCI-E: 1 X 6+2pin
Description
This power supply unit is equipped with a 120 mm fan, which is the industry standard for ensuring quiet operation in average computers. If you want an especially quiet unit, look for one with a fan diameter of 135 mm or 140 mm.
The color of the block is Sudraba. The block has flat cables, whose color is Raiba.
This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.
This power supply unit does not have modular cables – all its cables are attached to the unit and are not detachable. Despite the simple design, it will fulfill its functions just as well as a power supply unit with modular cables.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
450W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: Nav
Total amperage (+12V)
: 34A
Fan size
: 120 mm
Functionality
Cable colour
: Raiba
Lighting
: Nav
Color
: Silver
Modular cables
: Nav
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 1 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 1 X 6+2pin
SATA cconnectors
: 5
4pin Molex
: 3
More detailed specification
Brand - Chieftec
BrandPartCode - GPB-450S
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category_1 - Power
Category_2 - Computer Power Supplies
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Silver
Eans - 4710713233638
EAN_code - 4710713233638
GTIN - 4710713233638
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - High efficiency and a highly competitive pricing coupled with the latest “state-of-the-art” PCB design and components distinguish the 6 new power supplies of the iARENA series. Fully aware of environmental requirements, CHIEFTEC offers European PC manufacturers a solution, fixed @230V and with reduced procurement costs thanks to the resource-friendly bulk packaging.
LongProductName - 450W, 200-240V, 47-63Hz, ATX 12V 2.3, PS II, 120mm, Active PFC
LongSummaryDescription - Chieftec GPB-450S. Total power: 450 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Width: 140 mm, Depth: 150 mm, Height: 87 mm
Manufacturer - Chieftec
Manufacturer_code - GPB-450S
Name - Chieftec GPB-450S
Name - Chieftec GPB-450S 450W ATX2.3
Other features - Warranty card - Yes
Packaging data - Manual - Yes
Packaging data - Package type - Box
Performance - ATX version - 2.3
Performance - Power supply unit (PSU) form factor - PS/2
Performance - Purpose - PC
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express power connectors (6+2 pin) - 1
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 200 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 408 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 85%
Power - Input current - 3.5 A
Power - Max output current (+3.3V) - 17 A
Power - Max output current (+5V) - 16 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V1) - 34 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over voltage, Overload, Short circuit, Under voltage
Power - Total power - 450 W
Producer - Chieftec
ProducerCode - GPB-450S
ProductName - GPB-450S
ShortDescription - 450 | ATX | 120 mm | 20 + 4 pin | 150mm x 85mm x 140mm | 80 PLUS | standard | bulk |
ShortSummaryDescription - Chieftec GPB-450S, 450 W, 200 - 240 V, 47 - 63 Hz, 3.5 A, Active, 100 W
Technical details - Compliance certificates - RoHS
Title - Chieftec GPB-450S power supply unit 450 W 20+4 pin ATX PS/2 Silver
URL - https://www.chieftec.eu/en/psus/iarena-series/gpb-450s.html
WarrantyInfo - 24 Months
Weight - 1,22
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 87 mm
Weight & dimensions - Width - 140 mm
