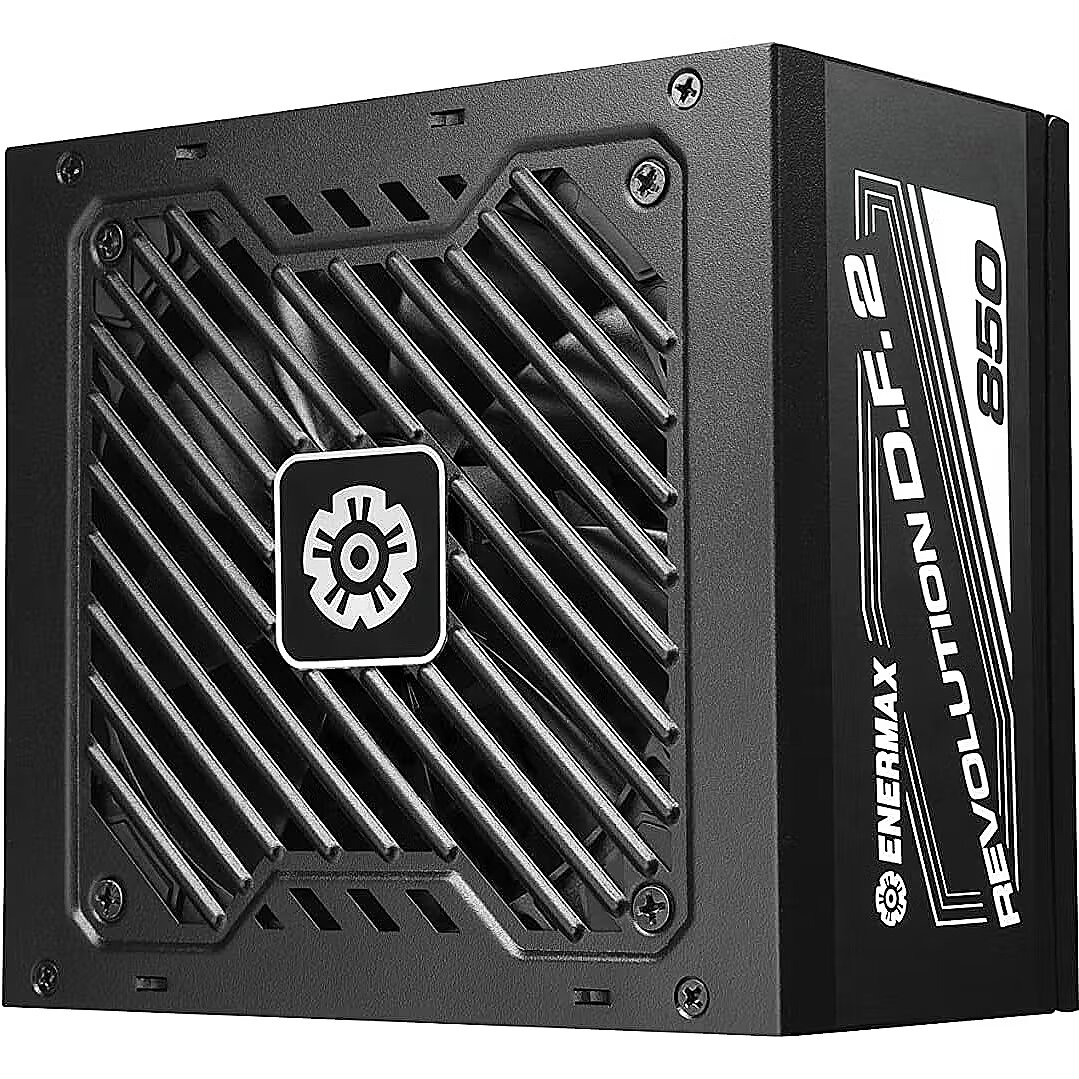

Enermax REVOLUTION D.F.2, 850W, 80PLUS Gold, ATX 3.0

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
News
ID: 1170575 Product code: ERS850EWT
Can be ordered 139 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
139.75 €
Delivery options More about shipping
  • Delivery to Smartpost free of charge: 08.01.2025
  • Delivery to Omniva parcel machine free of charge: 08.01.2025
  • Piegāde uz DPD Pickup Paku Skapi free of charge: 08.01.2025
  • Delivery to Latvian post office, parcel locker or Circle K free of charge: 08.01.2025
  • Delivery to address in Riga 3.99 €: 08.01.2025
  • Delivery to address in Latvia 6.99 €: 08.01.2025
  • Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 06.01.2025 after 15:00
Main product parameters All parameters
  • Producer: Enermax
  • Power output: 850W
  • 80 PLUS certification: 80 PLUS Gold
  • Fan size: 120 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 6 x 6+2pin
Description

We offer to purchase a Enermax power supply unit with a power capacity of 850W, which has received the 80 PLUS Gold energy efficiency certification.

850W power supply will be suitable for a powerful workstation or gaming computer. It will provide power for a high-end video card (for example, RTX 4070 Ti SUPER), multiple hard drives (SSD/HDD), water cooling, and a top-tier processor (possibly overclocked).

The diameter of this power supply unit's fan is 120 mm, which will ensure quiet operation in mid-range computers. For especially quiet power supply unit operation, we recommend selecting a fan with a 135 mm or 140 mm diameter.

The power supply has been awarded the 80 PLUS Gold energy efficiency certificate, which provides at least 90% efficiency at 50% load. This indicates that at least 90 W out of 100 W of power drawn from the electrical grid by the power supply is delivered to the computer components, with the remaining 10 W lost as heat.

The color of the block is Melna. The block has flat cables, whose color is Melna.

This power supply unit has been assigned the ATX 2.0 standard. This means that the unit is equipped only with 6-pin and 8-pin connectors, providing 75W and 150W power respectively. It's important to note that this unit will be compatible with RTX 4070 and more powerful cards, but you will need to use the 2x8-pin to 16-pin 12VHPWR adapter included with the graphics card. ATX 2.0 power connectors are not designed to handle the high power fluctuations of modern graphics cards; therefore, if you are building a system with a powerful GPU, such as the RTX 4070, we recommend choosing a power supply unit with the ATX 3.* standard and 12VHPWR (PCIe 5.0) connector.

Thanks to the fact that this power supply has modular cables, you can add hard drives, video cards, and other components as needed, using the various cables included in the package. This way, there are fewer wires in the computer, which improves ventilation and appearance (especially useful for those who choose a partially transparent case).

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 850W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Gold
Total amperage (+12V) : 70.5A
Fan size : 120 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Fully-Modular
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 6 x 6+2pin
SATA cconnectors : 6
4pin Molex : 4
Case
More detailed specification
Category_1 - Power
Category_2 - Computer Power Supplies
EAN_code - 4713157727305
Manufacturer - Enermax
Manufacturer_code - ERS850EWT
Name - Enermax REVOLUTION D.F.2 850W - ERS850EWT
Weight - 2,40
