Asrock Steel Legend, 1000W, ATX 3.1, 80PLUS Gold, PCIe 5.1, White Edition

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1170340 Product code: 90-UXS100-GFEABA
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

Dateks.lv website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years (Warranty for business entities 1 year)
Main product parameters All parameters
  • Producer: Asrock
  • Power output: 1000W
  • 80 PLUS certification: 80 PLUS Gold
  • Fan size: 135 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 3 x 6+2pin
Similar ProductsFull list
This product Asrock Steel Legend, 1000W, ATX 3.1, 80PLUS Gold, PCIe 5.1, White Edition
Recommended Thermaltake GT Series, 850W, ATX 3.1, 80PLUS Gold, PCIe 5.1, Snow Edition
Recommended Seasonic Vertex GX, 1000W, 80PLUS Gold, ATX 3.0, PCIe 5.0
Recommended Super Flower Leadex VII XG, 1000W, 80PLUS Gold, ATX 3.0, PCIe 5.0
Recommended Gigabyte UD1000GM PG5, 1000W, 80PLUS Gold, PCIe 5.0
Show similar specs. Hide similar specs.
218.50 €
120.59 €
226.12 €
192.83 €
139.15 €
Basic information
Cybenetics Efficiency certification Cybenetics Platinum Nav Nav Cybenetics Platinum Cybenetics Platinum
Cybenetics Noise level certification Cybenetics A Nav Nav Cybenetics Standard ++ Cybenetics Standard +
Power supply type ATX ATX ATX ATX ATX
Power output 1000W 850W 1000W 1000W 1000W
80 PLUS certification 80 PLUS Gold 80 PLUS Gold 80 PLUS Gold 80 PLUS Gold 80 PLUS Gold
Total amperage (+12V) 83.4A 70.8A 83A 83.3A 83.3A
Fan size 135 mm 120 mm 135 mm 140 mm 120 mm
Functionality
Cable colour White White Melna Melna Melna
Lighting Nav Nav Nav Nav Nav
Color White White Melna Melna Melna
Modular cables Fully-Modular Fully-Modular Fully-Modular Fully-Modular Fully-Modular
Ports and equipment
PCI-E 5.0 1 x 600W 12V-2X6 1 x 600W 12V-2X6 1 x 600W 12VHPWR 1 x 600W 12VHPWR 1 x 600W 12VHPWR
Processor plug-in 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS
Motherboard power 24-pin 24-pin 24-pin 20+4pin 20+4pin
PCI-E 3 x 6+2pin 4 X 6+2pin 3 x 6+2pin 4 X 6+2pin 4 X 6+2pin
SATA cconnectors 9 6 18 12 Eight Core
4pin Molex 3 4 3 4 3
Description

We offer to purchase a Asrock power supply unit with a power capacity of 1000W, which has received the 80 PLUS Gold energy efficiency certification.

Even the best gaming computer will be able to operate safely with this 1000W power supply unit. The power will be sufficient for both a substantial water cooling system and multiple high-end graphics cards, an overclocked high-end processor, and several hard drives.

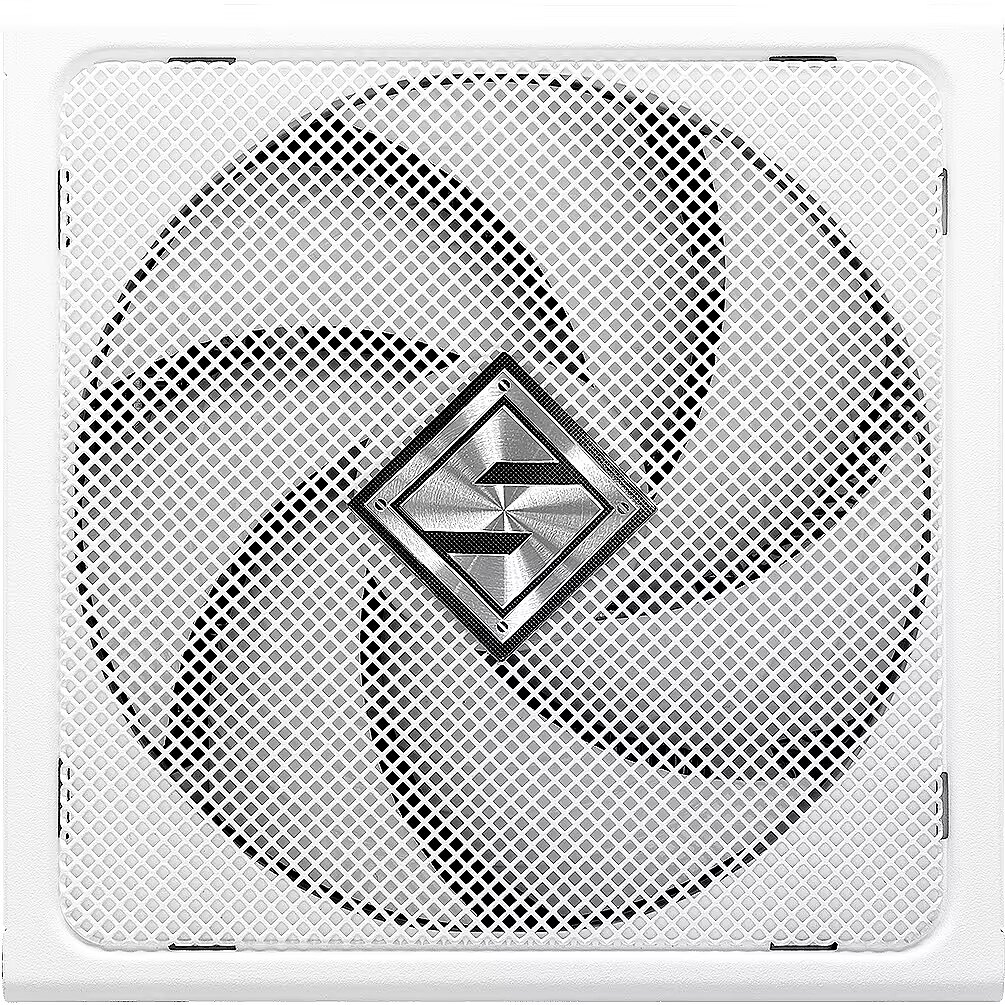

Thanks to the large 135 mm cooling fan diameter, this power supply is much quieter than average. The fan has a larger blade area, which provides the necessary airflow at lower fan speeds, thereby reducing the overall noise and vibration levels to a minimum.

The power supply has been awarded the 80 PLUS Gold energy efficiency certificate, which provides at least 90% efficiency at 50% load. This indicates that at least 90 W out of 100 W of power drawn from the electrical grid by the power supply is delivered to the computer components, with the remaining 10 W lost as heat.

The color of the block is Balta. The block has flat cables, whose color is Balta.

The power supply has a Cybenetics A noise level certificate, which means that its noise level is 20-25 dB.

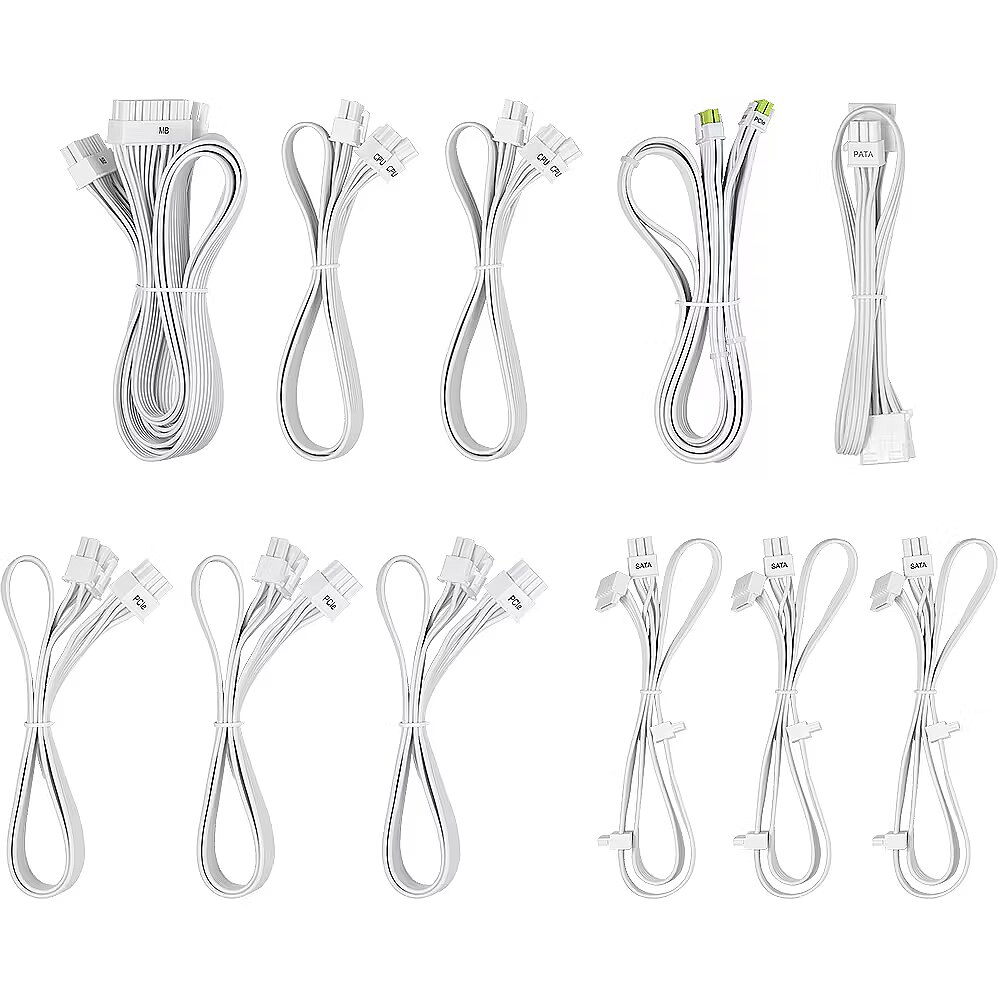

This power supply has modular cables, which provide the possibility to add video card cables, hard disk cables, etc. as needed from the supplied range. This way, the wire clutter in the computer is reduced, improving ventilation and the aesthetic factor (particularly important for those who purchase a partially transparent case).

Basic information
Cybenetics Efficiency certification : Cybenetics Platinum
Cybenetics Noise level certification : Cybenetics A
Power supply type : ATX
Power output 1000W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Gold
Total amperage (+12V) : 83.4A
Fan size : 135 mm
Functionality
Cable colour : White
Lighting : Nav
Color : White
Modular cables : Fully-Modular
Ports and equipment
PCI-E 5.0 : 1 x 600W 12V-2X6
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 24-pin
PCI-E : 3 x 6+2pin
SATA cconnectors : 9
4pin Molex : 3
More detailed specification
dimensionalWeight - 1433
producerCode - 90-UXS100-GFEABA
productName - Zasilacz ASRock STEEL LEGEND 1000W White 80 Plus Gold
productSize - Normal
Safety warning - Hazard pictogram(s) - GHS02: Flammable
Safety warning - Hazard pictogram(s) - GHS07: Harmful
Safety warning - Hazard pictogram(s) - GHS09: Environmental hazard
sizeX - 302
sizeY - 184
sizeZ - 129
warrantyLength - 120
warrantyType - G
weight - 3165
