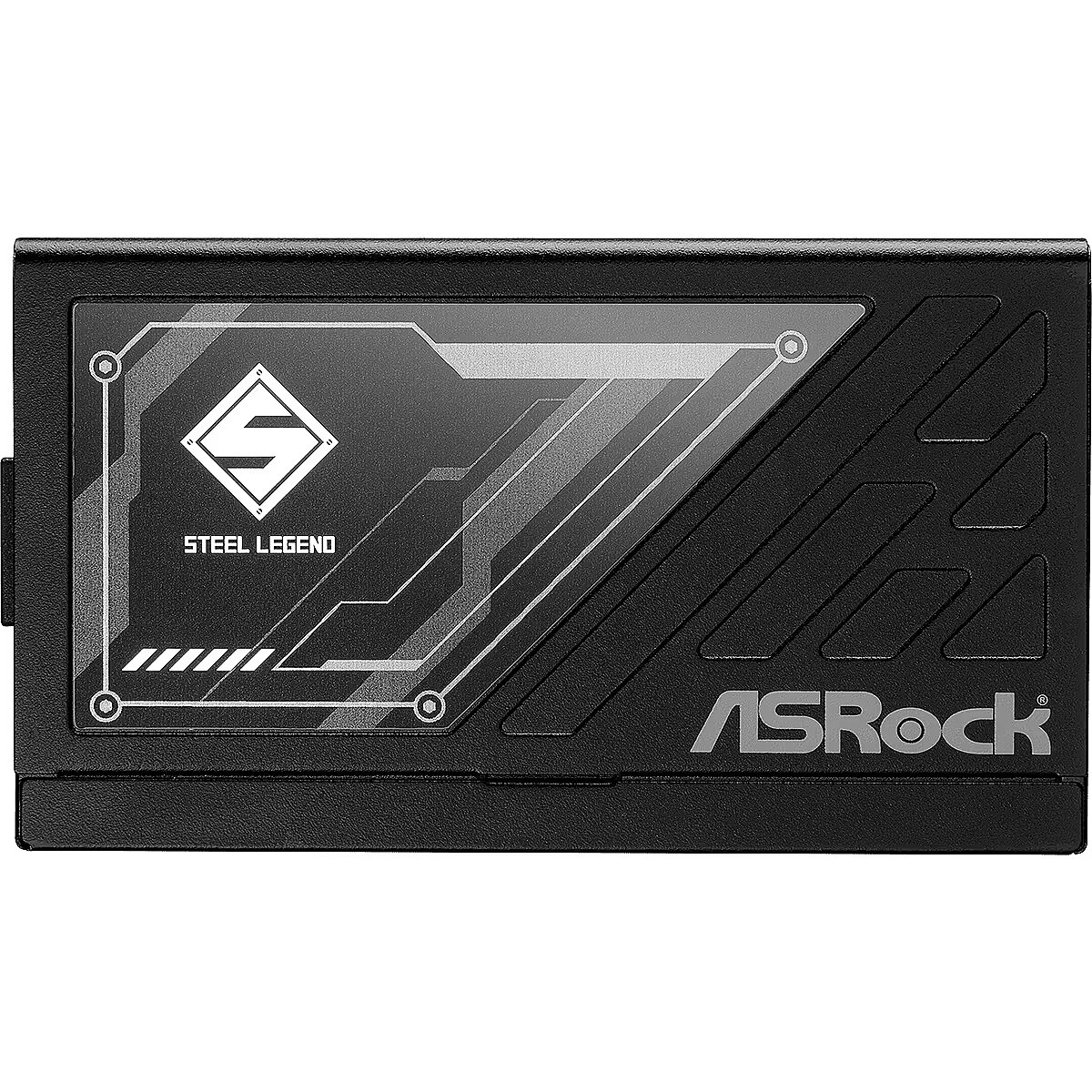

Asrock Steel Legend, 750W, ATX 3.1, 80PLUS Gold, PCIe 5.1

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
News
ID: 1170338 Product code: 90-UXS075-GFEAAA
Can be ordered 3 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
129.42 €
Delivery options More about shipping
  • Delivery to Smartpost free of charge: 08.01.2025
  • Delivery to Omniva parcel machine free of charge: 08.01.2025
  • Piegāde uz DPD Pickup Paku Skapi free of charge: 08.01.2025
  • Delivery to Latvian post office, parcel locker or Circle K free of charge: 08.01.2025
  • Delivery to address in Riga 3.99 €: 08.01.2025
  • Delivery to address in Latvia 6.99 €: 08.01.2025
  • Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 06.01.2025 after 15:00
Main product parameters All parameters
  • Producer: Asrock
  • Power output: 750W
  • 80 PLUS certification: 80 PLUS Gold
  • Fan size: 135 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 3 x 6+2pin
Description

This Asrock brand power supply unit has an 80 PLUS Gold energy efficiency certificate and a power output of 750W.

To ensure a good mid-range gaming experience, 750W of power will be sufficient. With this power supply unit, you will be able to run a computer with a high-end processor, multiple SSD/HDD drives, and a powerful mid-range graphics card (for example, RTX 4070).

The large 135 mm cooling fan diameter makes this power supply significantly quieter than average. Since the fan blade area is larger, the fan provides the necessary airflow at lower fan speeds, overall reducing the noise and vibration levels.

80 PLUS Gold energy efficiency certificate received by this power supply guarantees at least 90% efficiency at 50% load. In other words, for every 100 W of energy the power supply receives from the power grid, at least 90 W goes to your computer components, and the remaining 10 W is lost as heat.

The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.

The power supply unit has received a Cybenetics A - noise level certificate – the noise generated by the unit will be 25-30 decibels.

This power supply unit has fully-modular cables (Fully-modular) – you can connect and disconnect all the included cables as needed, reducing clutter and improving ventilation. This will be useful for those with a partially transparent computer case and for whom the aesthetic factor is particularly important.

Basic information
Cybenetics Efficiency certification : Cybenetics Gold
Cybenetics Noise level certification : Cybenetics A -
Power supply type : ATX
Power output 750W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Gold
Total amperage (+12V) : 62.5A
Fan size : 135 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Fully-Modular
Ports and equipment
PCI-E 5.0 : 1 x 450W 12V-2X6
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 24-pin
PCI-E : 3 x 6+2pin
SATA cconnectors : 9
4pin Molex : 3
Case
More detailed specification
dimensionalWeight - 1433
producerCode - 90-UXS075-GFEAAA
productName - Zasilacz ASRock STEEL LEGEND 750W 80 Plus Gold
productSize - Normal
Safety warning - Hazard pictogram(s) - GHS02: Flammable
Safety warning - Hazard pictogram(s) - GHS07: Harmful
Safety warning - Hazard pictogram(s) - GHS09: Environmental hazard
sizeX - 302
sizeY - 184
sizeZ - 129
warrantyLength - 120
warrantyType - G
weight - 2800
