Main product parameters All parameters
  • Producer: Asrock
  • Power output: 1600W
  • 80 PLUS certification: 80 PLUS Gold
  • Fan size: 135 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 8 x 6+2pin
Description

Available for purchase is a power supply produced by Asrock with a power output of 1600W. The product has been awarded an 80 PLUS Gold energy efficiency certificate.

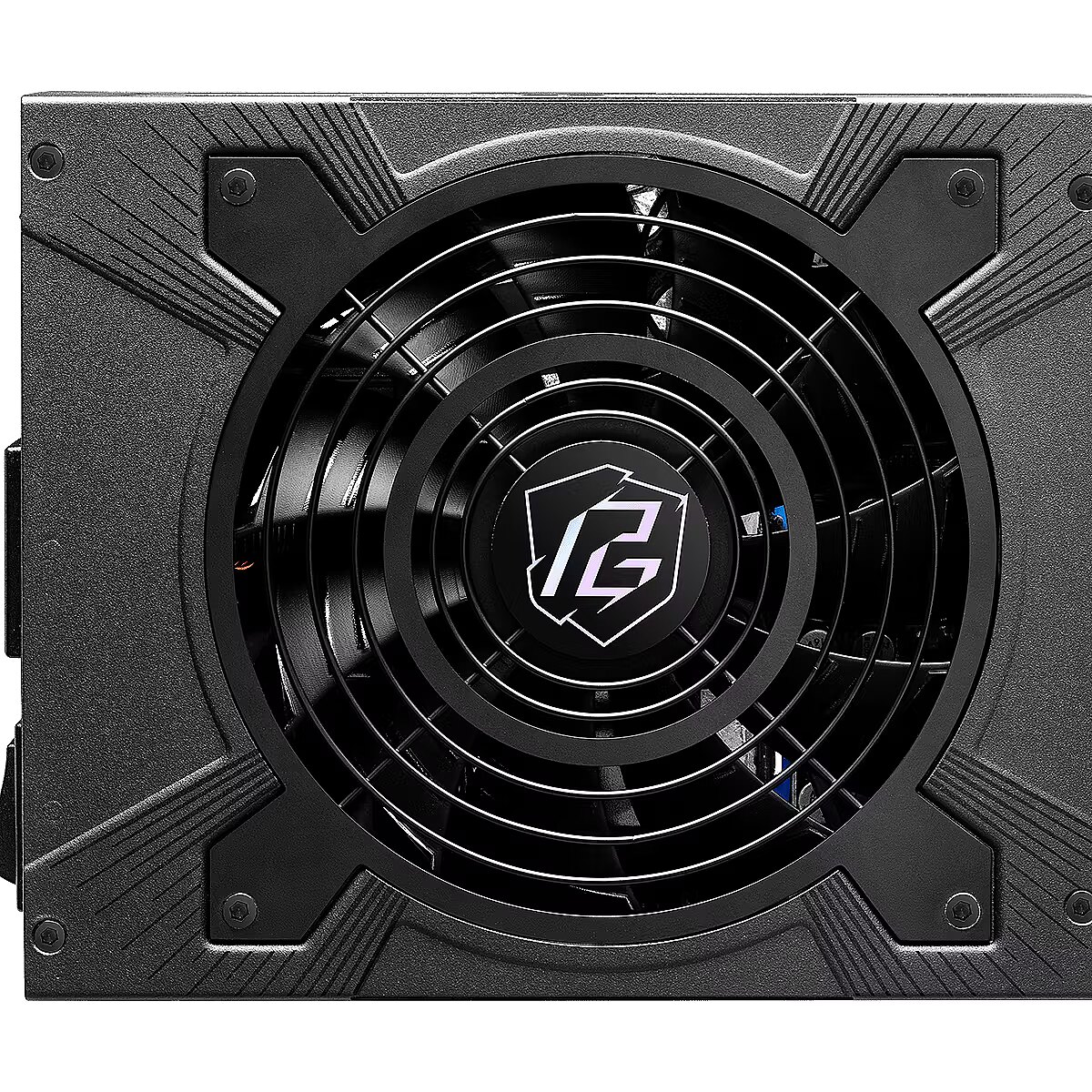

This power supply is equipped with an exceptionally large 135 mm fan. Thanks to the larger blade size, it provides better airflow at lower speeds and quieter operation compared to standard 120 mm fans.

The power supply has received the 80 PLUS Gold energy efficiency certificate, which guarantees at least 90% efficiency at 50% load. This means that for every 100W of power received from the electrical grid, at least 90W is delivered to your computer components, and the remaining 10W is lost as heat.

The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.

The noise level of this power supply is 20-25 dB and it has a Cybenetics A noise level certificate.

This power supply unit has fully-modular cables (Fully-modular) – you can connect and disconnect all the included cables as needed, reducing clutter and improving ventilation. This will be useful for those with a partially transparent computer case and for whom the aesthetic factor is particularly important.

Basic information
Cybenetics Efficiency certification : Cybenetics Platinum
Cybenetics Noise level certification : Cybenetics A
Power supply type : ATX
Power output 1600W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Gold
Total amperage (+12V) : 133.3A
Fan size : 135 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Fully-Modular

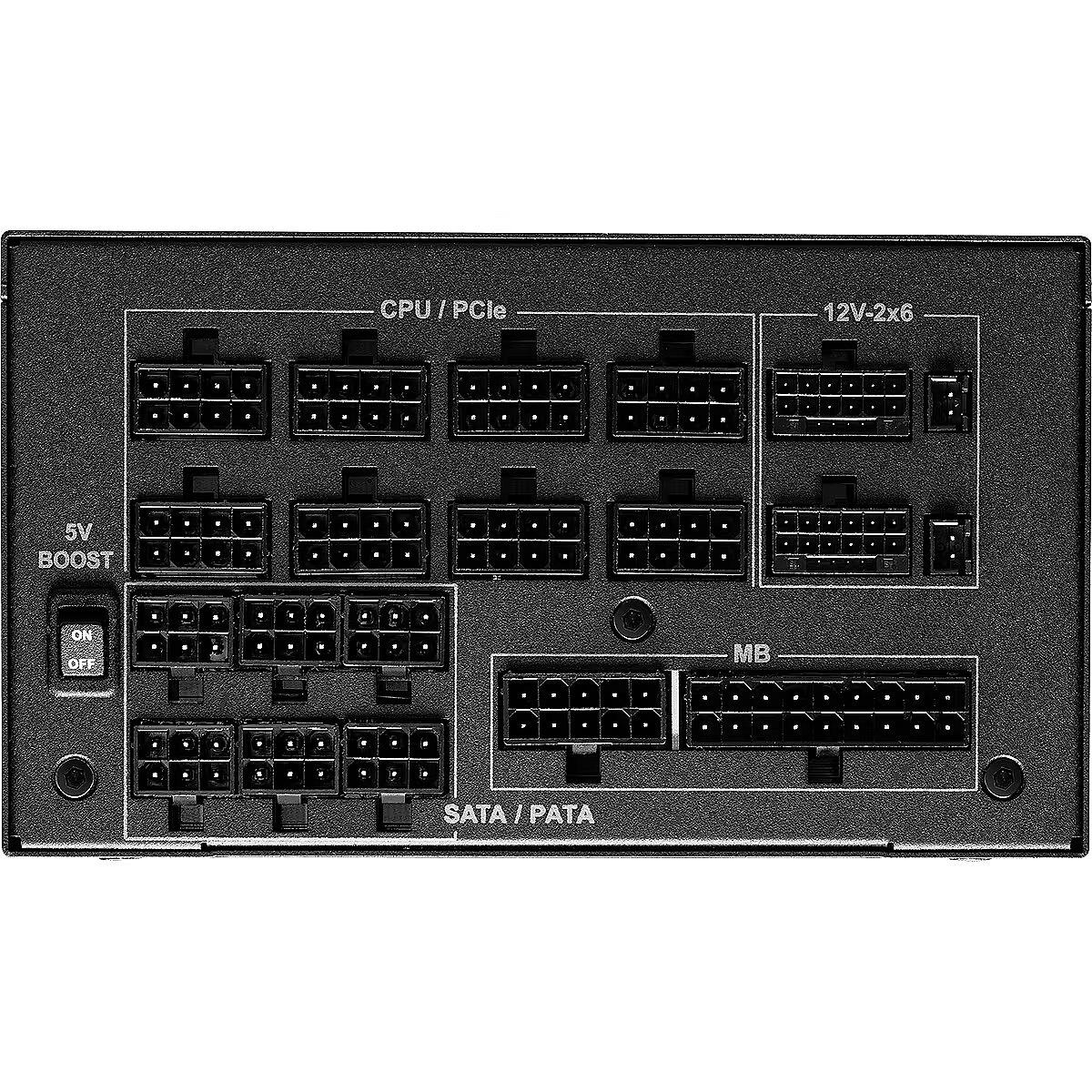

Ports and equipment
PCI-E 5.0 : 2 x 600W 12V-2X6
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 24-pin
PCI-E : 8 x 6+2pin
SATA cconnectors : 12
4pin Molex : 6
Case
More detailed specification
dimensionalWeight - 1847
producerCode - 90-UXP160-GFEAAB
productName - Zasilacz ASRock PHANTOM GAMING 1600W 80 Plus Gold
productSize - Normal
Safety warning - Hazard pictogram(s) - GHS02: Flammable
Safety warning - Hazard pictogram(s) - GHS07: Harmful
Safety warning - Hazard pictogram(s) - GHS09: Environmental hazard
sizeX - 312
sizeY - 235
sizeZ - 126
warrantyLength - 120
warrantyType - G
weight - 4720
