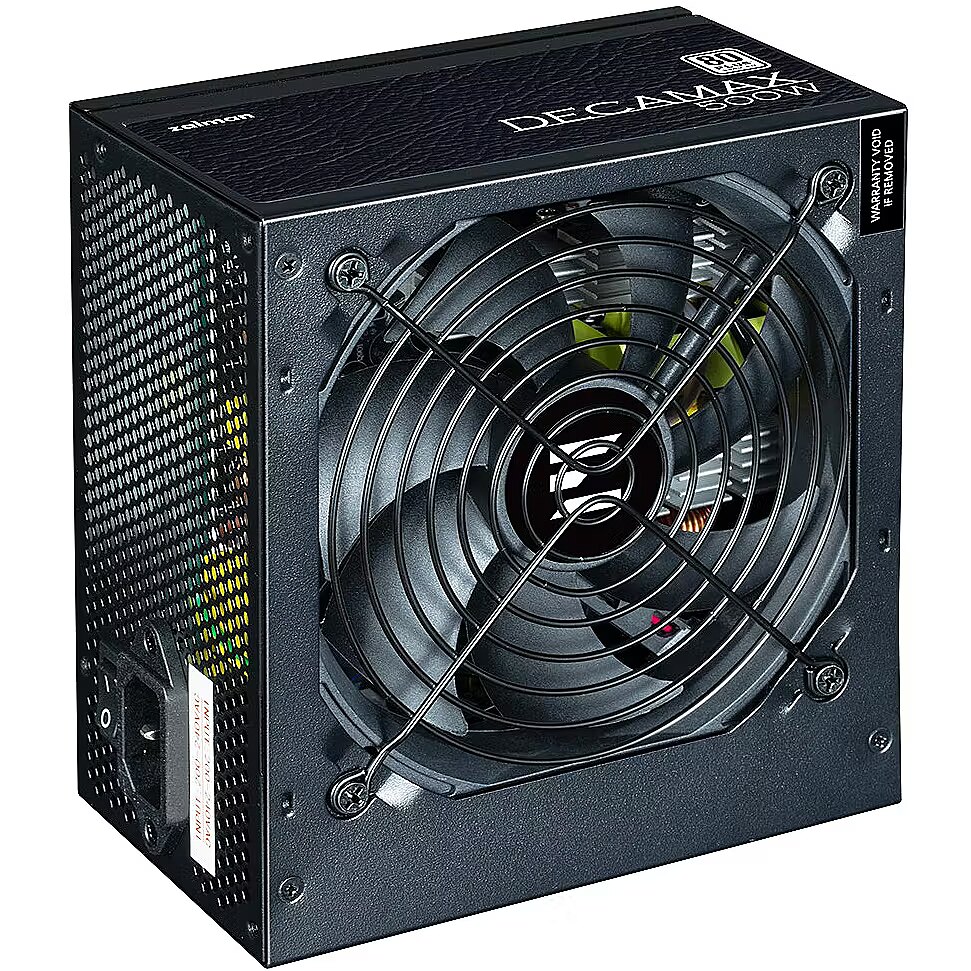

Zalman DecaMax, 500W, 80PLUS

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
News
ID: 1162671 Product code: ZM500-LX3
Can be ordered 24 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
54.88 €
Delivery options More about shipping
  • Delivery to Smartpost free of charge: 10.12.2024
  • Delivery to Omniva parcel machine free of charge: 10.12.2024
  • Piegāde uz DPD Pickup Paku Skapi free of charge: 10.12.2024
  • Delivery to Latvian post office, parcel locker or Circle K free of charge: 10.12.2024
  • Delivery to address in Riga 3.99 €: 10.12.2024
  • Delivery to address in Latvia 6.99 €: 10.12.2024
  • Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 06.12.2024 after 15:00
Main product parameters All parameters
  • Producer: Zalman
  • Power output: 500W
  • 80 PLUS certification: 80 PLUS (White)
  • Fan size: 120 mm
  • Modular cables: Nav
  • Processor plug-in: 1 x 8-pin(4+4) EPS
  • PCI-E: 2 X 6+2pin
Description

We offer to purchase a Zalman power supply unit with a power capacity of 500W, which has received the 80 PLUS (White) energy efficiency certification.

120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.

80 PLUS (White) energy efficiency certificate, which this power supply unit has received, guarantees at least 80% efficiency. In other words, for every 100 W of energy the power supply unit gets from the electrical grid, at least 80 W goes to your computer components, while the remaining 20 W is lost as heat.

The color of the block is Melna. The block has flat cables, whose color is Melna.

This power supply unit has been assigned the ATX 2.0 standard. This means that the unit is equipped only with 6-pin and 8-pin connectors, providing 75W and 150W power respectively. It's important to note that this unit will be compatible with RTX 4070 and more powerful cards, but you will need to use the 2x8-pin to 16-pin 12VHPWR adapter included with the graphics card. ATX 2.0 power connectors are not designed to handle the high power fluctuations of modern graphics cards; therefore, if you are building a system with a powerful GPU, such as the RTX 4070, we recommend choosing a power supply unit with the ATX 3.* standard and 12VHPWR (PCIe 5.0) connector.

This power supply has no removable cables and all cables are attached to the power supply. It has a simple design, but it works just as well as a power supply with modular cables.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 500W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS (White)
Total amperage (+12V) : 38A
Fan size : 120 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Nav
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 1 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 2 X 6+2pin
SATA cconnectors : 4
4pin Molex : 3
Case
More detailed specification
8-pin 12V power connectors - 0
Accessories included -
Certificates 80+ - 80 PLUS
Description -
dimension depth - 180 mm
dimension height - 100 mm
Dimensions - 86 x 150 x 140 mm
dimension weight - 1700 g
dimension width - 270 mm
ean - 823884203820
Fan - 12 cm
Floppy power connectors - 0
guarantee - 24
guarantee_type - normal
MB power connector - 20 + 4 pin
Modular power supply - No
MOLEX power connectors - 3
name - Power supply ZM500-LX3 Decamax 500W
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 0
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 2
Other features -
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
PFC - Active
Power supply - 500 W
producer - Zalman
SATA power connectors - 4
vendpn - ZM500-LX3
