ID: 1079599
Product code: 90YE00N0-B0NA00
Can be ordered 19 units Availability: 14 days after order approval
Warranty: 3 years

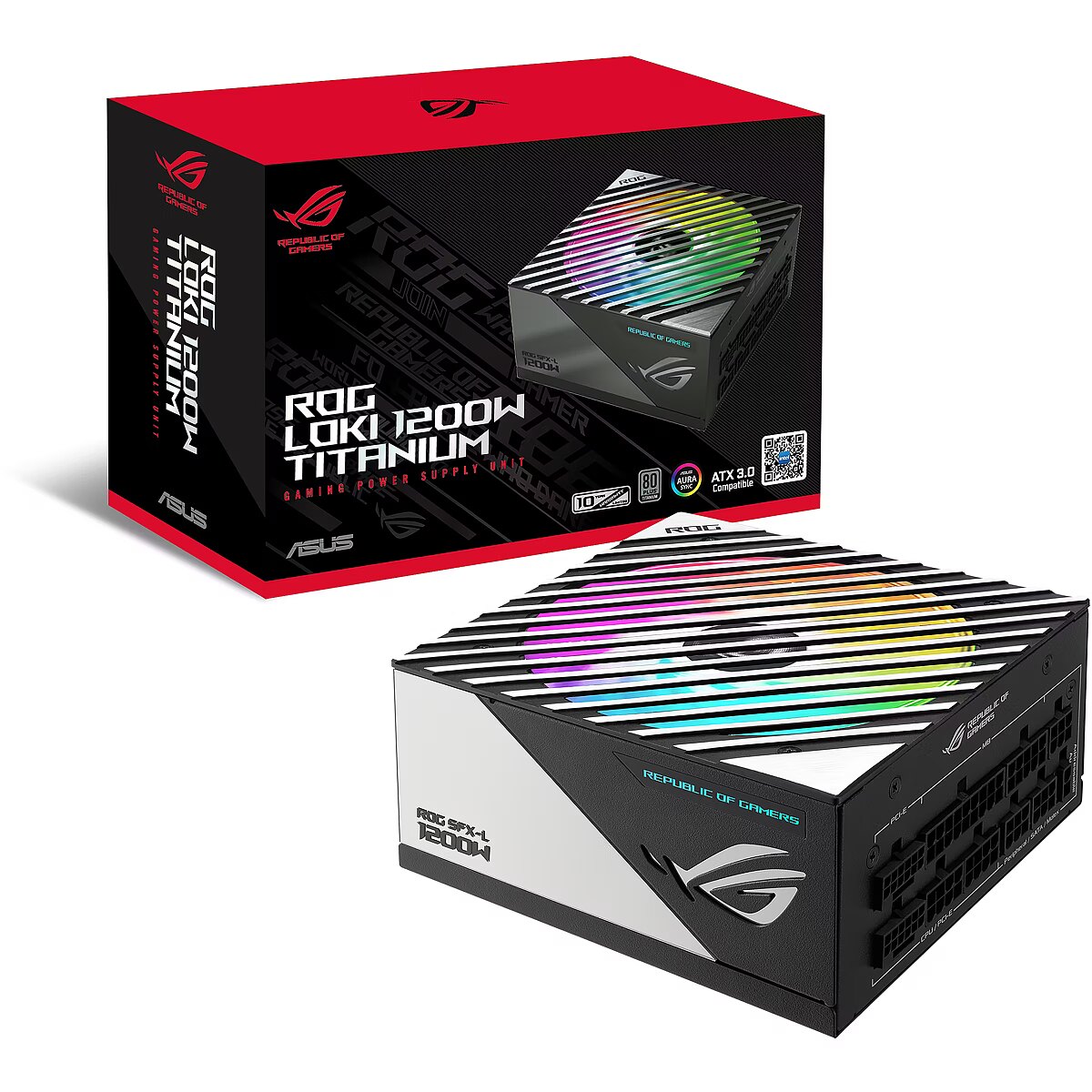

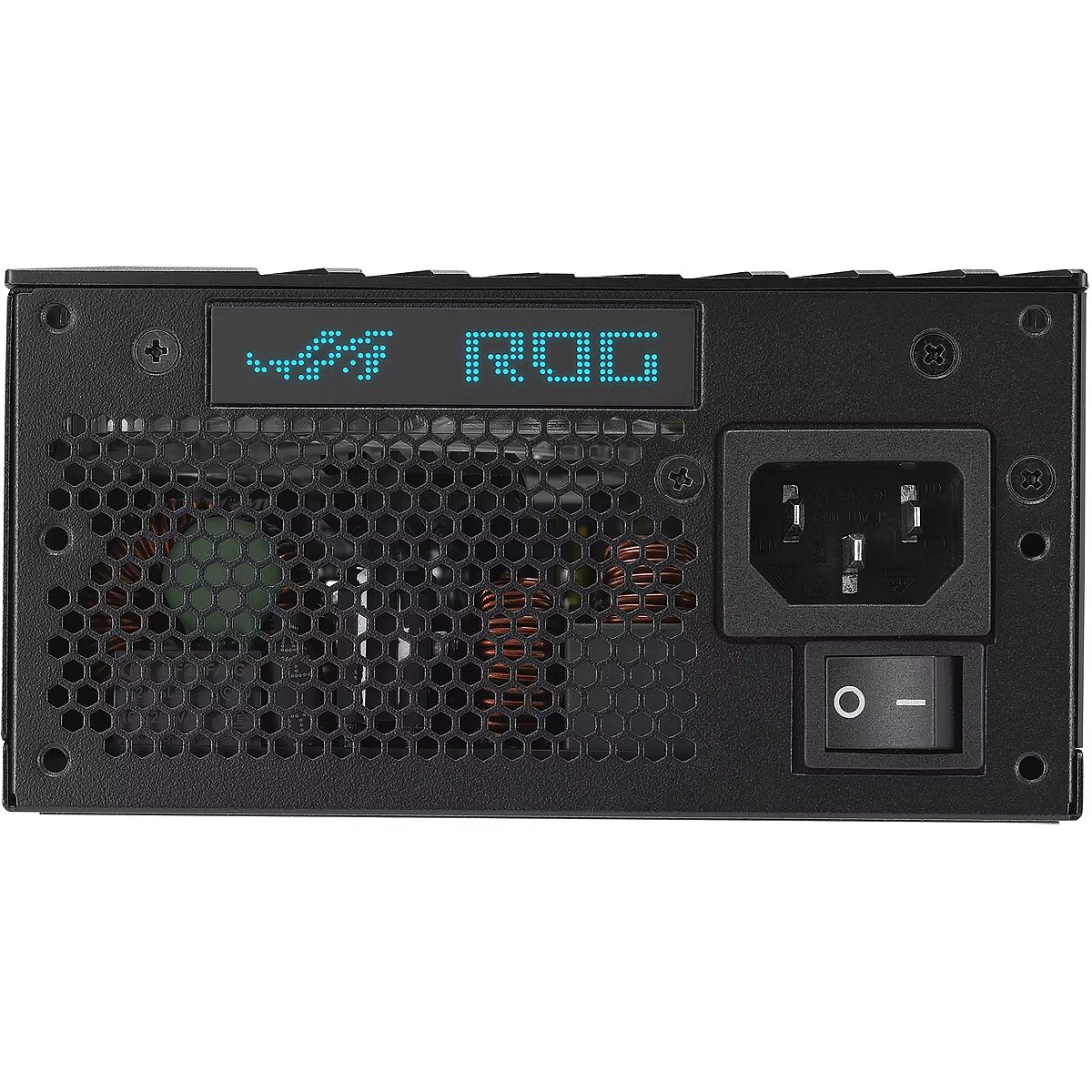

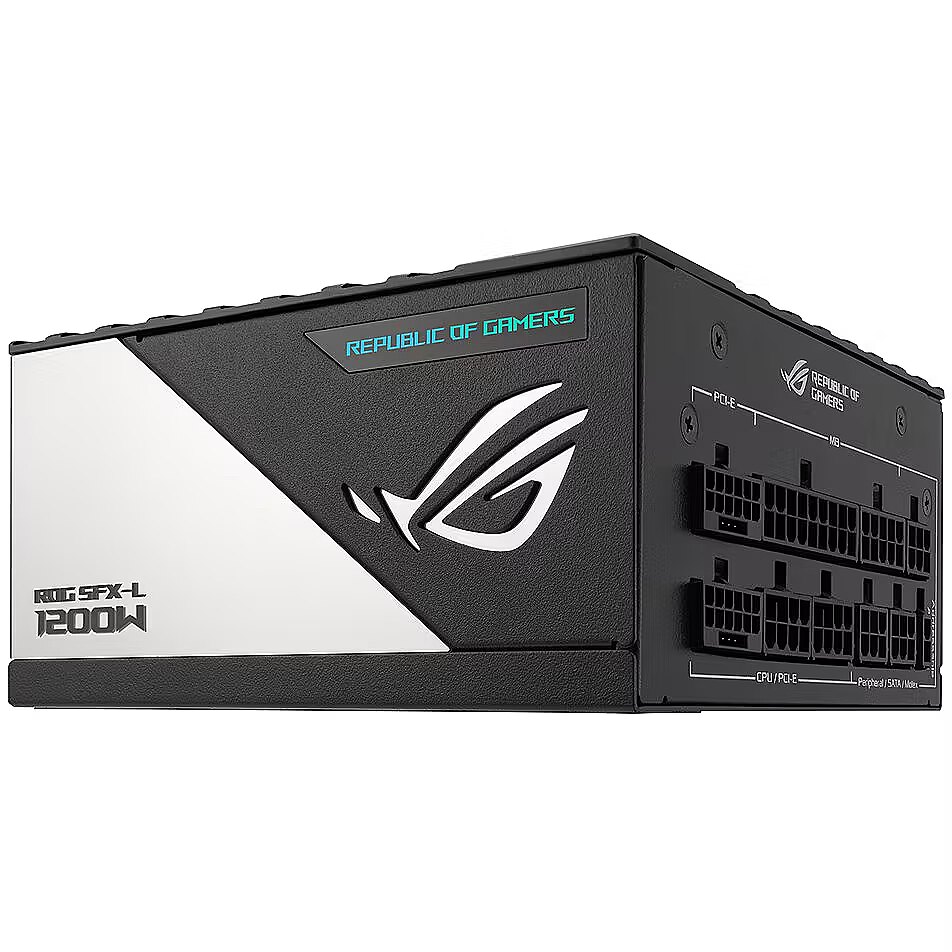

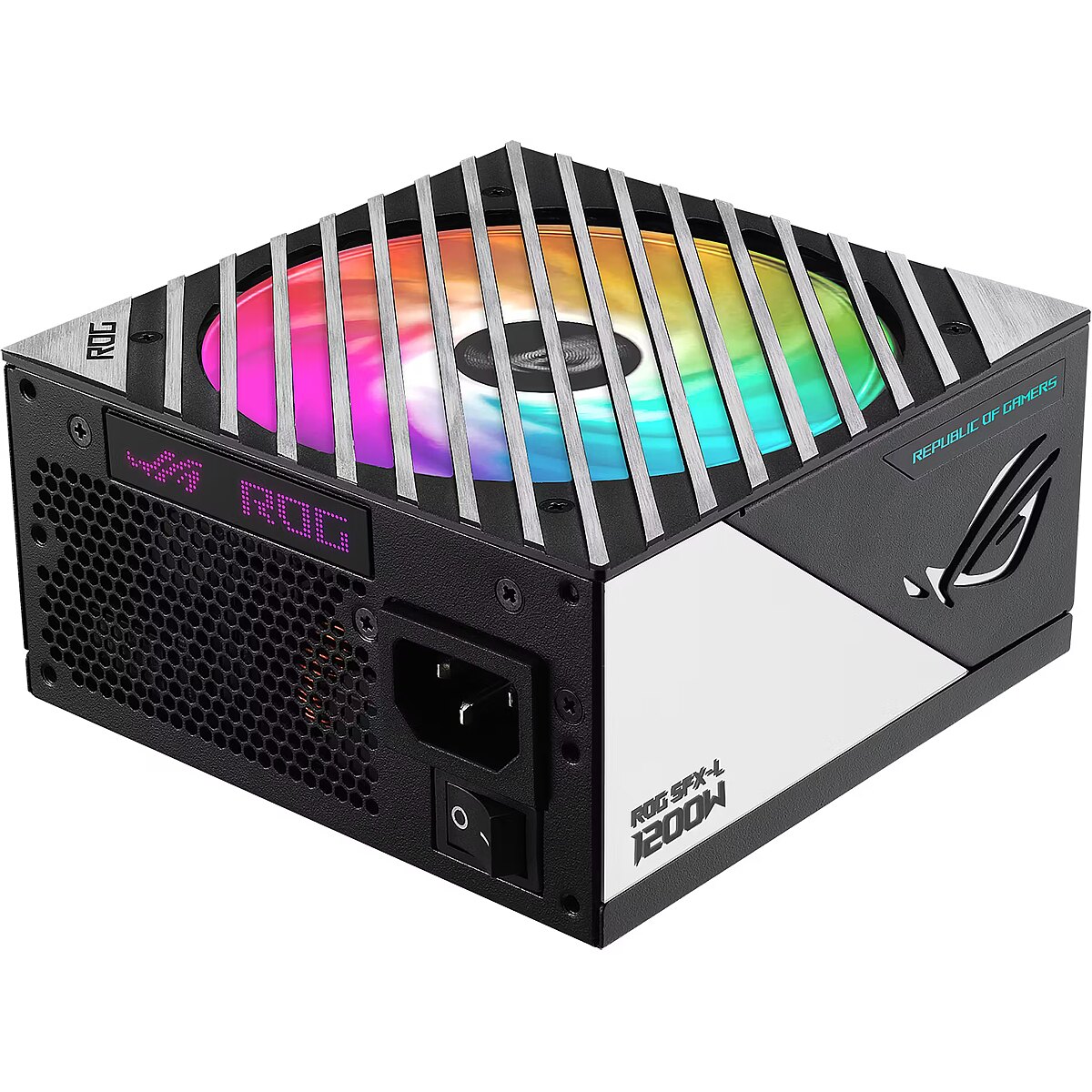

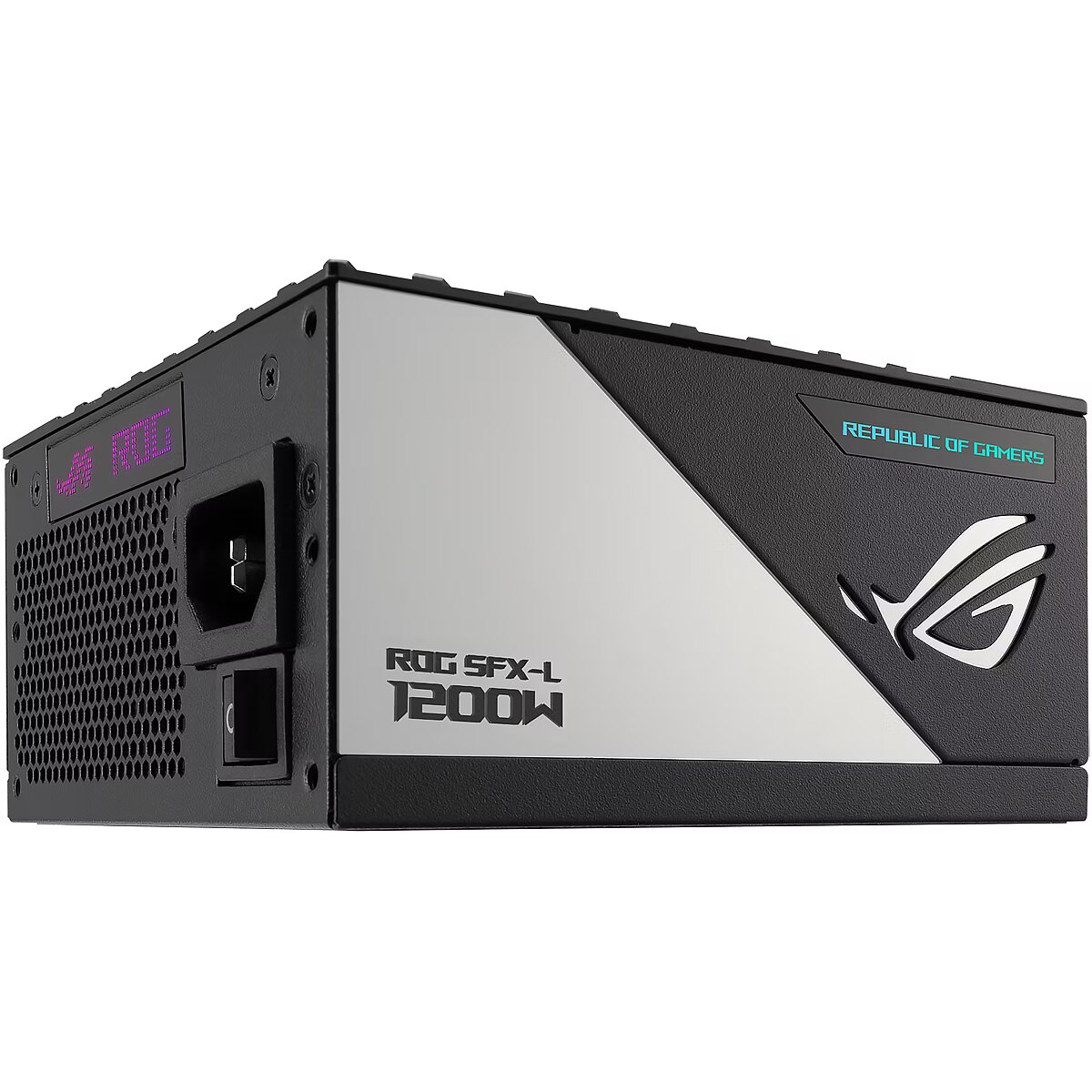

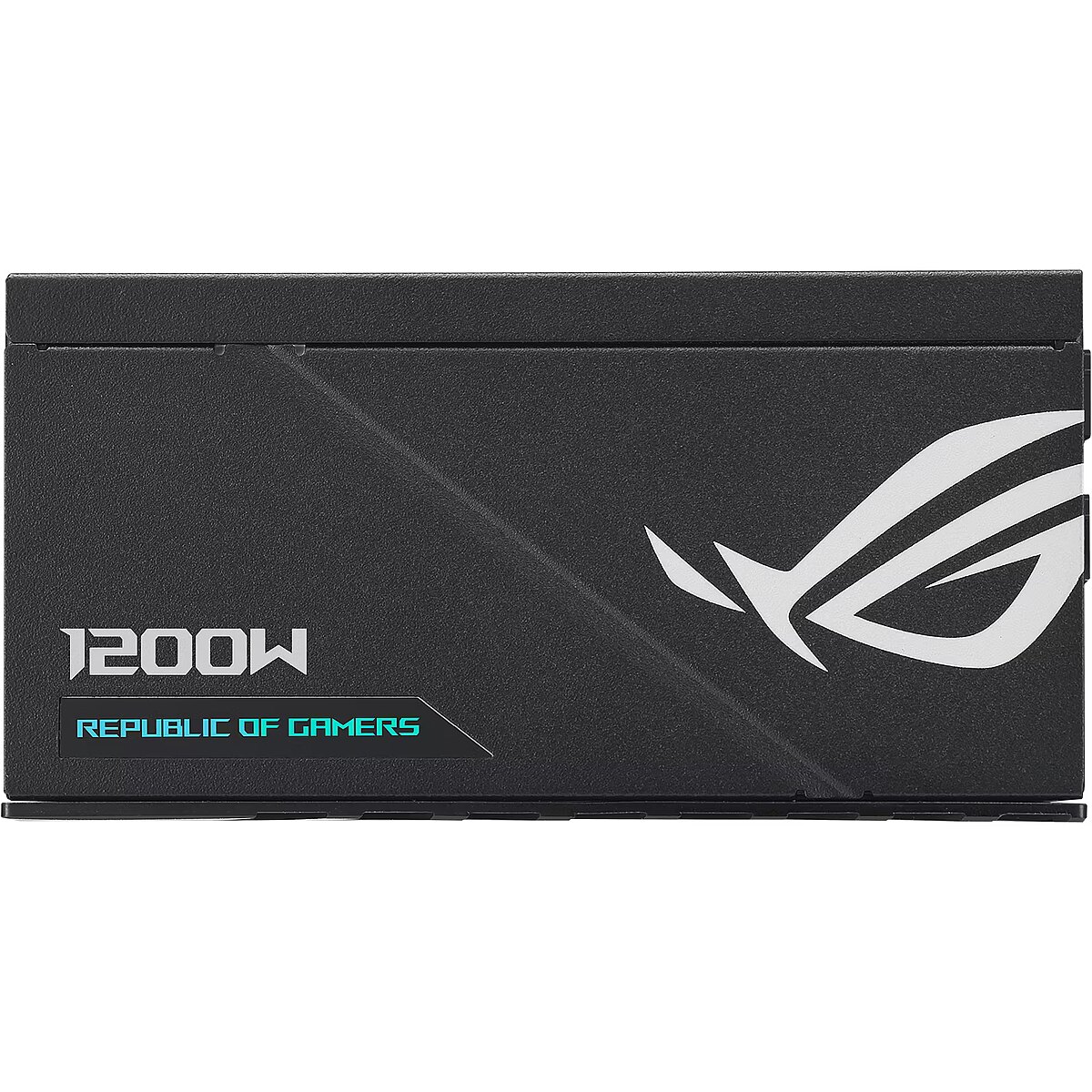

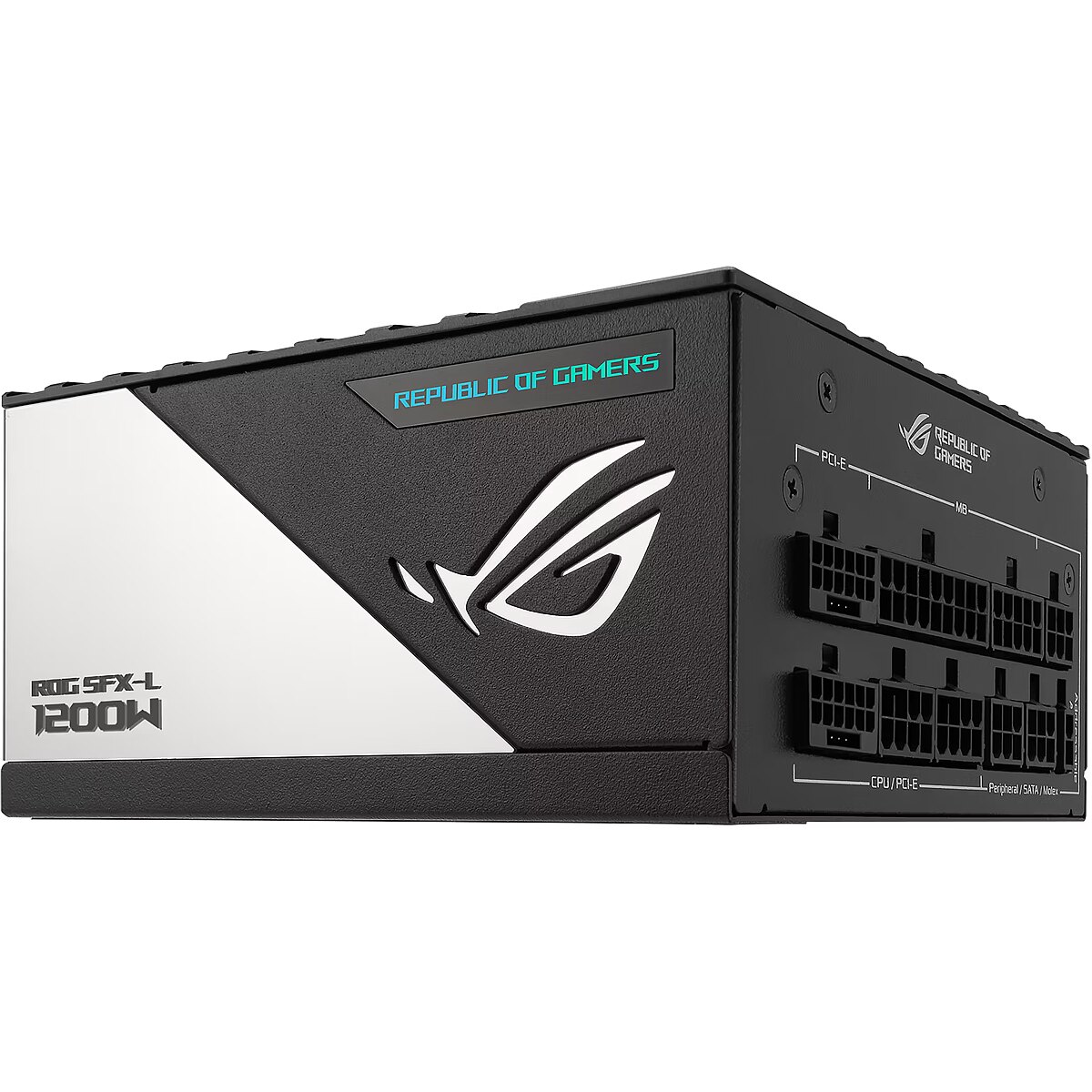

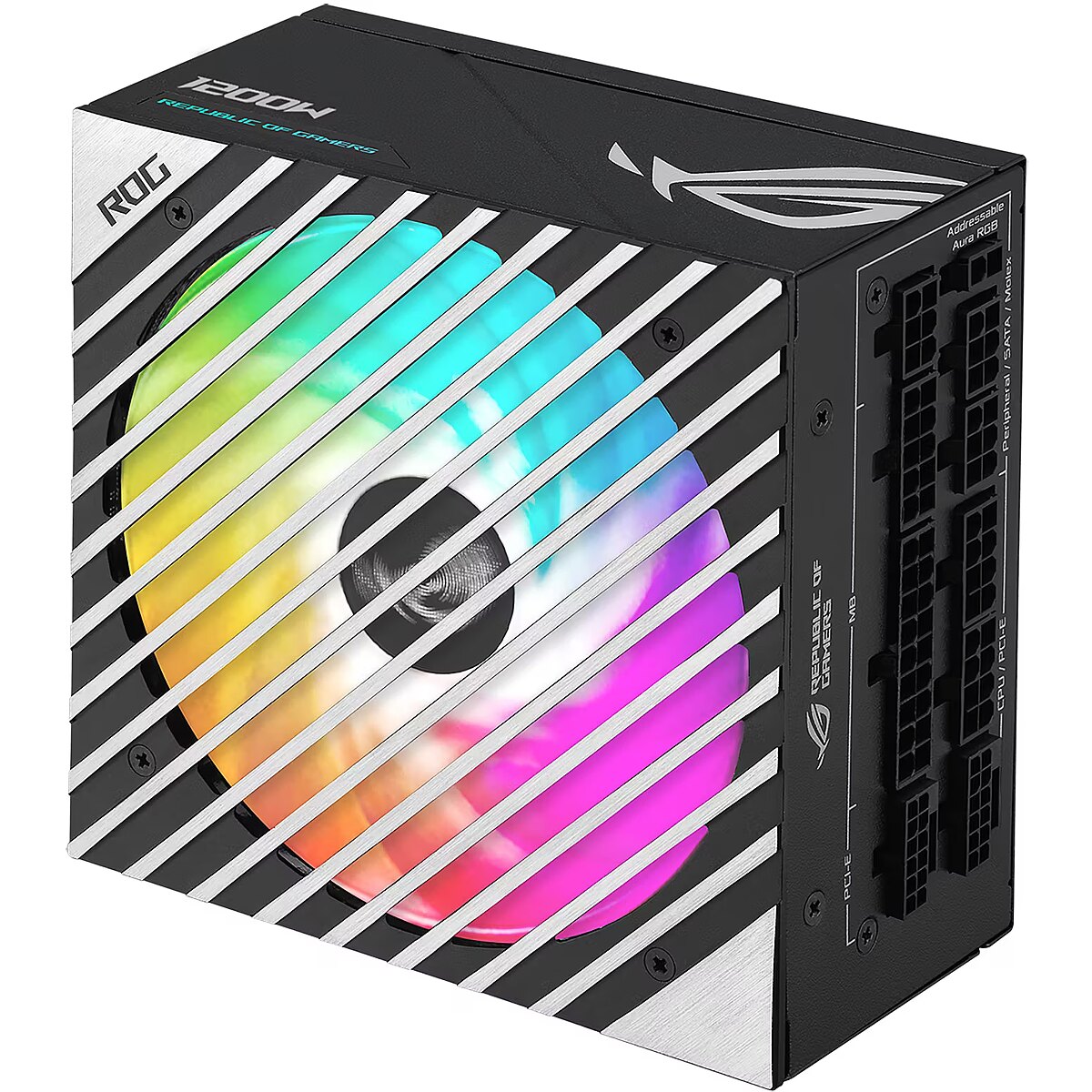

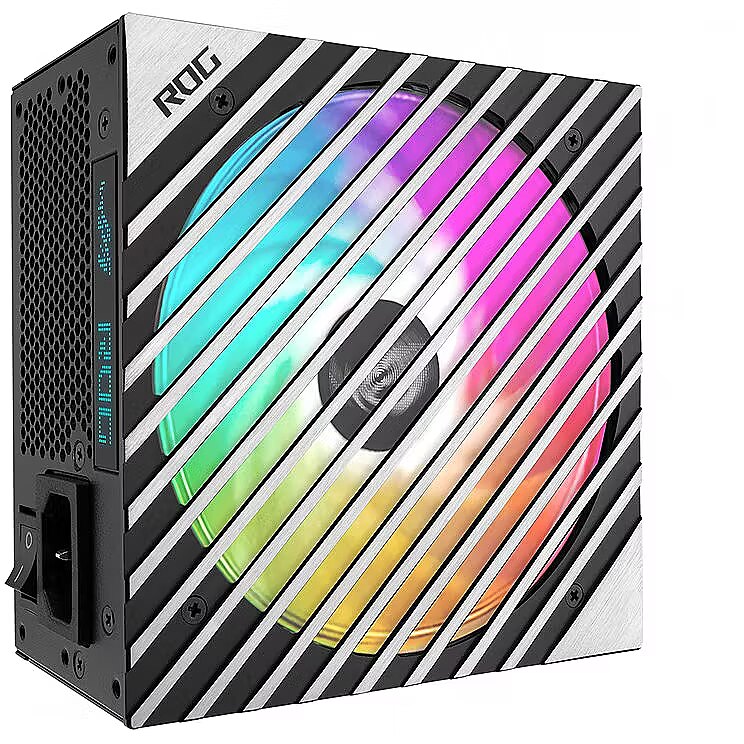

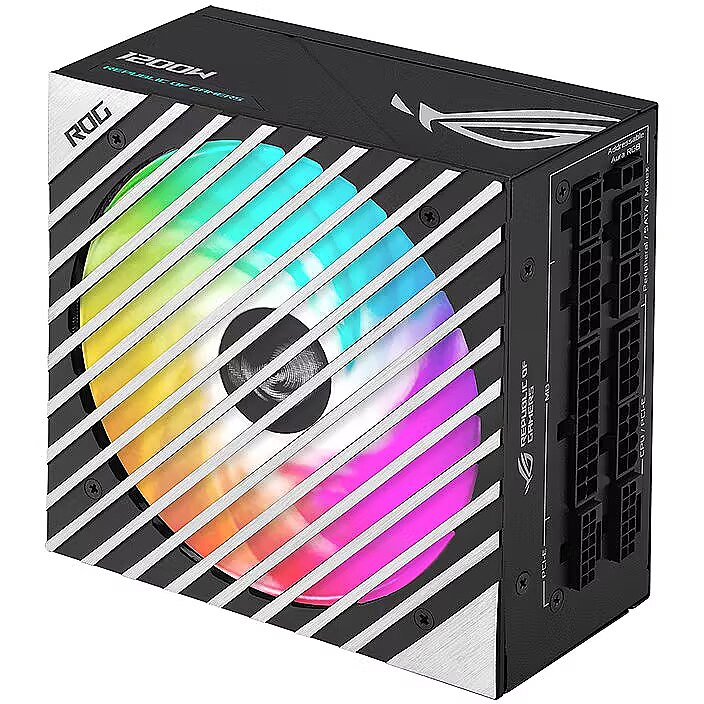

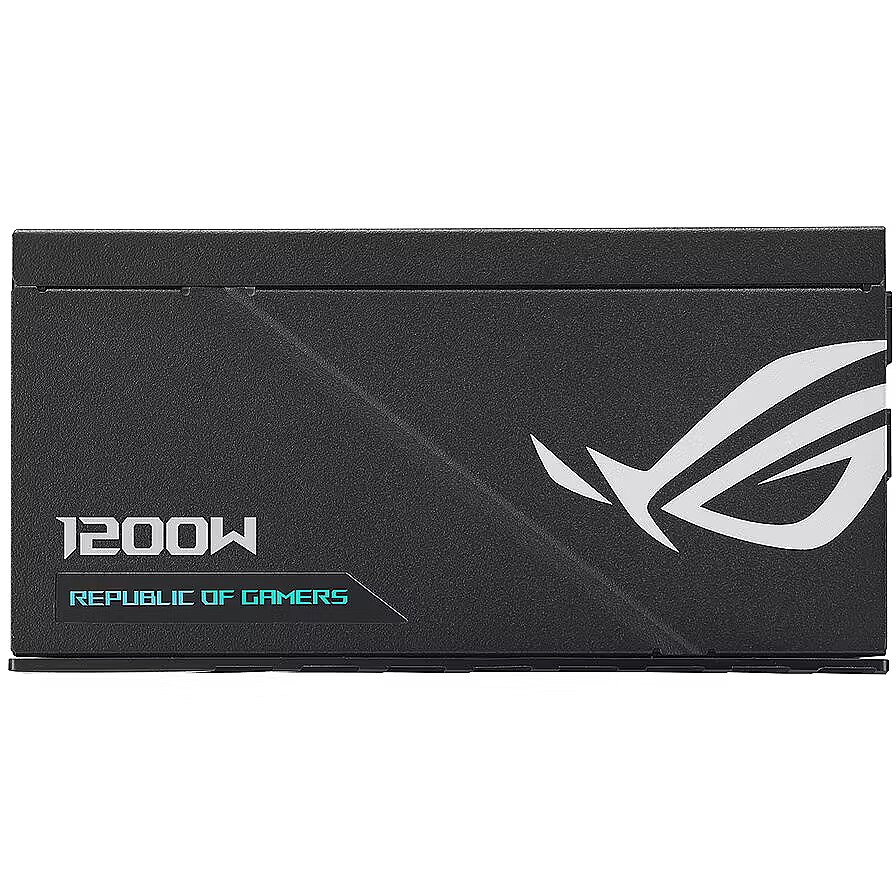

Asus ROG Loki SFX-L Titanium, 1200W, ATX 3.0, 80PLUS Titanium
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 08.01.2025
- Delivery to Omniva parcel machine free of charge: 08.01.2025
- Piegāde uz DPD Pickup Paku Skapi free of charge: 08.01.2025
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 08.01.2025
- Delivery to address in Riga 3.99 €: 08.01.2025
- Delivery to address in Latvia 6.99 €: 08.01.2025
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 06.01.2025 after 15:00
Main product parameters All parameters
- Producer: Asus
- Power output: 1200W
- 80 PLUS certification: 80 PLUS Titanium
- Fan size: 120 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Description
We offer to purchase a Asus power supply unit with a power capacity of 1200W, which has received the 80 PLUS Titanium energy efficiency certification.

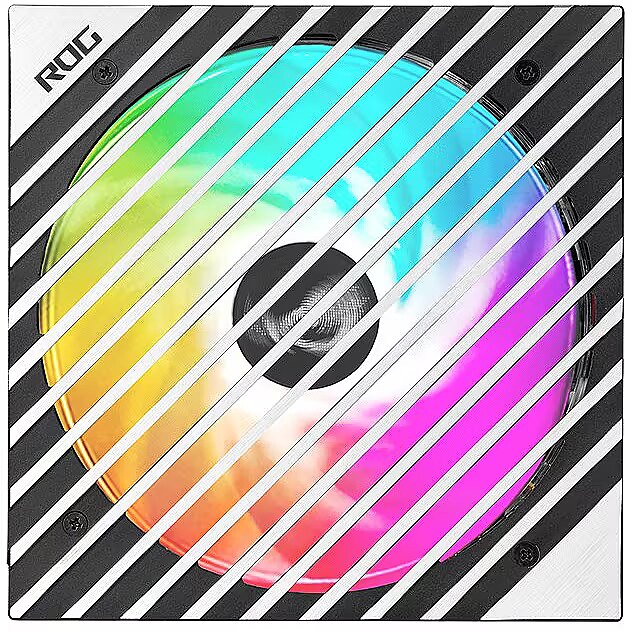

This power supply unit is equipped with a 120 mm fan, which is the industry standard for ensuring quiet operation in average computers. If you want an especially quiet unit, look for one with a fan diameter of 135 mm or 140 mm.
80 PLUS Titanium energy efficiency certificate, which this power supply unit has received, guarantees at least 94% efficiency at 50% load. In other words, for every 100 W of energy that the power supply unit receives from the electrical grid, at least 94 W goes to your computer components, while 6 W is lost as heat.
The power supply unit contains a connector designed for modern graphics cards, such as the Nvidia GeForce RTX 4070 or more powerful ones, the 2 x 600W 12VHPWR plug. Lower-level graphics cards (for example, RTX 4060) will suffice with a standard 8-pin connector.
The color of this power supply is Melna. The cable color is Melna and they are flat.
This power supply is assigned the ATX 3.0 standard. This means that the unit has a 16-pin (12VHPWR) connector, providing up to 600W of power for the newest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards. Additionally, the ATX 3.0 standard supports a 200% power increase for 1 millisecond to ensure more stable power for the components.
The power supply has a Cybenetics Standard ++ noise level certificate, which means its noise level is 30-35 dB.
Thanks to the fact that this power supply has modular cables, you can add hard drives, video cards, and other components as needed, using the various cables included in the package. This way, there are fewer wires in the computer, which improves ventilation and appearance (especially useful for those who choose a partially transparent case).
This power supply has received RGB lighting.
This is a SFX (Small Form Factor eXtended) type power supply. It is smaller in size and power compared to AFX type units, but is ideally suited for small form (SFF) computers where space is limited. It has smaller size fans and it is compatible with
This power supply is manufactured by Asus. You can view all Asus power supplies here.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Cybenetics Standard ++
Power supply type
: SFX-L
Power output
1200W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Titanium
Total amperage (+12V)
: 100A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: RGB
Color
: Melna
Modular cables
: Fully-Modular

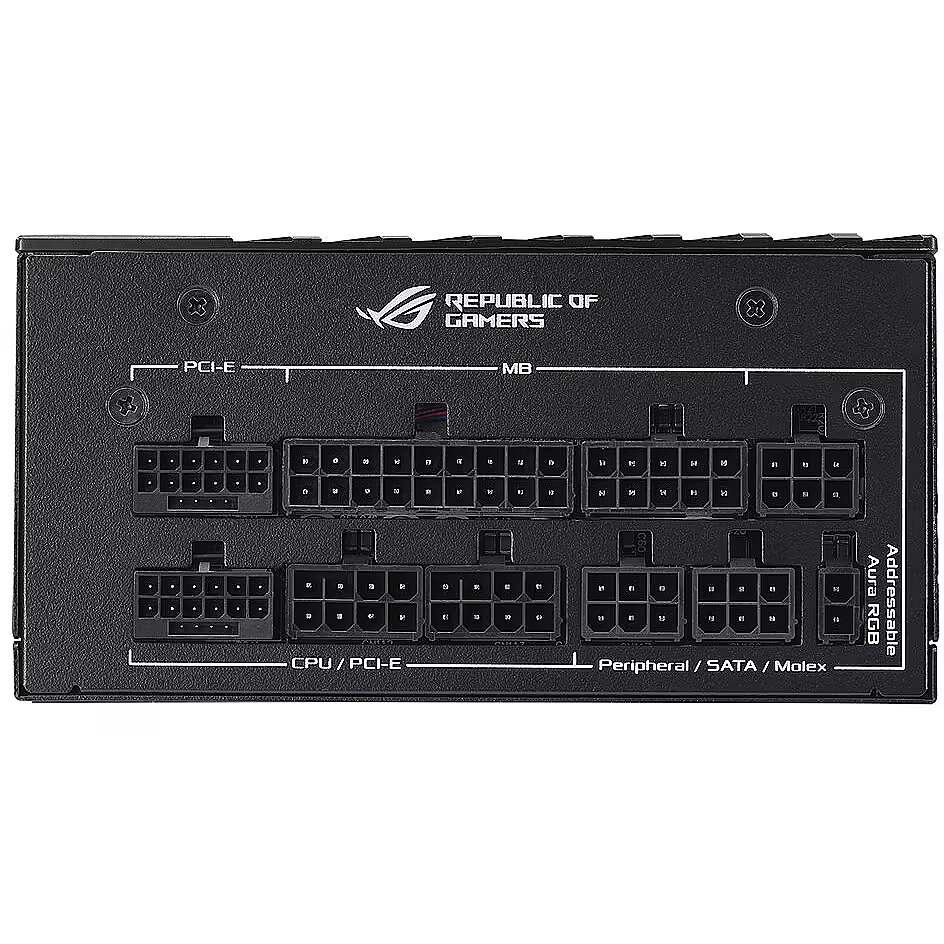

Ports and equipment
PCI-E 5.0
: 2 x 600W 12VHPWR
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 4 X 6+2pin
SATA cconnectors
: 6
4pin Molex
: 4
More detailed specification
8-pin 12V power connectors - 0
Accessories included - Kabel zasilający Kabel zasilający do płyty głównej (450 mm) 2 x Kabel do procesora (550 mm) 2 x Kabel 16-pinowy PCI-E Gen 5 (450 mm) 2 x Kabel PCI-E (16-pinowy na 8-pin-8-pin) (450 mm) 2 x Kabel SATA 1 na 3 (300 + 200 + 100 mm) Kabel do urządzeń peryferyjnych 1 na 4 (300 + 100 + 100 + 100 mm) Kabel do adresowalnego oświetlenia RGB (800 mm) Instrukcja obsługi Uchwyt adapterowy ATX na SFX
Brand - ASUS
BrandPartCode - 90YE00N0-B0NA00
category - PC Components|Power Supplies|PCIe 5.0
Category - Power Supply Units
Certificates 80+ - 80 PLUS Titanium
code - 90YE00N0-B0NA00
Description - Zasilacz SFX-L LOKI ROG 1200W Titanium 80+ ATX 3.1/ARGB/czarny Wzorowana na modelu ROG Thor jednostka zasilająca ROG Loki 1200W Titanium oferuje te same komponenty i funkcje klasy sprzętu dla entuzjastów, a wszystko to w obudowie o rozmiarach SFX-L. Zapewniając cichą pracę i wysoką wydajność, jednostka zasilająca Loki idealnie nadaje się do zasilania Twojego następnego systemu o kompaktowych rozmiarach (SFF).
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Illumination - Yes
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black, Silver
dimension depth - 100 mm
dimension height - 285 mm
Dimensions - 63,5 x 125 x 125 mm
dimension weight - 2915 g
dimension width - 190 mm
ean - 4711081721574
Fan - 12 cm
Filters / protection - Circuit
Filters / protection - Current too high
Filters / protection - Overload
Filters / protection - Surge
Filters / protection - Thermal
Floppy power connectors - 0
GTIN - 4711081721574
guarantee - 120
guarantee_type - normal
LongDesc - The World's Quietest and Most Powerful SFX-L PSUTaking after the ROG Thor, the ROG Loki 1200W Titanium brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.COOLINGROG HeatsinksCool under pressureROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.Dual Ball Fan Bearings2x longer lifespanThe fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.0dB TechnologyQuiet intelligenceTo reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 40% or below.Lambda Standard ++ CertificationQuietly deviantOn average, ROG Loki 1200W Titanium emits less than 35 dB of noise – earning a coveted Cybenetics Lambda standard ++ certification.ENGINEERING80 PLUS Titanium CertifiedEffortless outputLow-ESR Japanese capacitors further improve efficiency and reduce heat, readying ROG Loki to reliably fuel your build for years to come.ATX 3.0 CompatibleStep into the futureThe latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ROG Loki steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities to SFF rigs.EXPERIENCEARGB-illuminated Fan & Aura SyncMagical glowThe Loki's 120 mm fan features eight addressable LEDs ready to be customized with Aura Sync to create coordinated lighting patterns across your build.* If the connector cable is not used, the default color effect is rainbow.* To enjoy Aura Sync, you’ll need an Aura Sync-compatible ASUS or ROG motherboard. Similarly, the Smart Mode lighting effect, which reflects GPU temperature, requires use of a compatible ASUS or ROG graphics card.10-Year WarrantyA decade of powerWe're so confident about the reliability of the ROG Loki SFX-L 1200W Titanium that we back it with a 10-year warranty.*Core product operation is guaranteed for 10 years. The RGB LEDs are subject to a 3-year warranty.
LongProductName - ROG Loki SFX-L 1200W Titanium fully modular gaming power supply (120mm PWM ARGB fan, Aura Sync ARGB lighting, ATX 3.0 compatible, PCIe 5.0 Ready, incl. 16-pin cable, 80+ Titanium certification, Lambda Standard ++ certification)
LongSummaryDescription - ASUS ROG -LOKI-1200T-SFX-L-GAMING. Total power: 1200 W, AC input voltage: 100 - 240 V, Peak power: 1200 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 45 cm, SATA power cable length: 100,200,300 mm. Purpose: PC, Power supply unit (PSU) form factor: SFX-L, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Silver, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
MB power connector - 20 + 4 pin
Modular power supply - Yes
MOLEX power connectors - 4
name - ASUS ROG Loki SFX-L 1200W, 80 PLUS Titanium Netzteil, modular, PCIe 5.0 - 1200 Watt, weiß
name - Power supply SFX-L LOKI ROG 1200W Titanium 80+ ATX 3.1/ARGB/black
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 2
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 0
Other features -
Packaging content - Cables included - AC, CPU, PCIe, Peripheral (Molex), SATA
Packaging data - Manual - Yes
Packaging data - Package depth - 190 mm
Packaging data - Package height - 100 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.84 kg
Packaging data - Package width - 285 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 4
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - ATX version - 3.0
Performance - Bearing technology - Ball bearing
Performance - Power supply unit (PSU) form factor - SFX-L
Performance - Purpose - PC
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 55 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 45 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power connectors (8-pin) - 4
Ports & interfaces - PCI Express power connectors (16-pin) - 2
Ports & interfaces - Peripheral (Molex) power cable length - 100,300 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Ports & interfaces - SATA power cable length - 100,200,300 mm
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 1200 W
Power - Combined power (-12V) - 9.6 W
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 100 A
Power - Max output current (-12V) - 0.8 A
Power - Peak power - 1200 W
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage
Power - Total power - 1200 W
Power supply - 1200 W
producer - Asus
ProductName - ROG-LOKI-1200T-SFX-L-GAMING
SATA power connectors - 6
ShortSummaryDescription - ASUS ROG -LOKI-1200T-SFX-L-GAMING, 1200 W, 100 - 240 V, 1200 W, Active, 110 W, 1200 W
Technical details - Compliance certificates - RoHS
Technical details - Sustainability compliance - Yes
Technical details - Warranty period - 10 year(s)
Title - ASUS ROG -LOKI-1200T-SFX-L-GAMING power supply unit 1200 W 20+4 pin ATX Black, Silver
URL - https://rog.asus.com/power-supply-units/rog-loki/rog-loki-1200t-sfx-l-gaming-model/
vendpn - 90YE00N0-B0NA00
WarrantyInfo - 10 years
Weight - 2.15 kg
Weight & dimensions - Depth - 125 mm
Weight & dimensions - Height - 63.5 mm
Weight & dimensions - Weight - 2.15 kg
Weight & dimensions - Width - 125 mm
