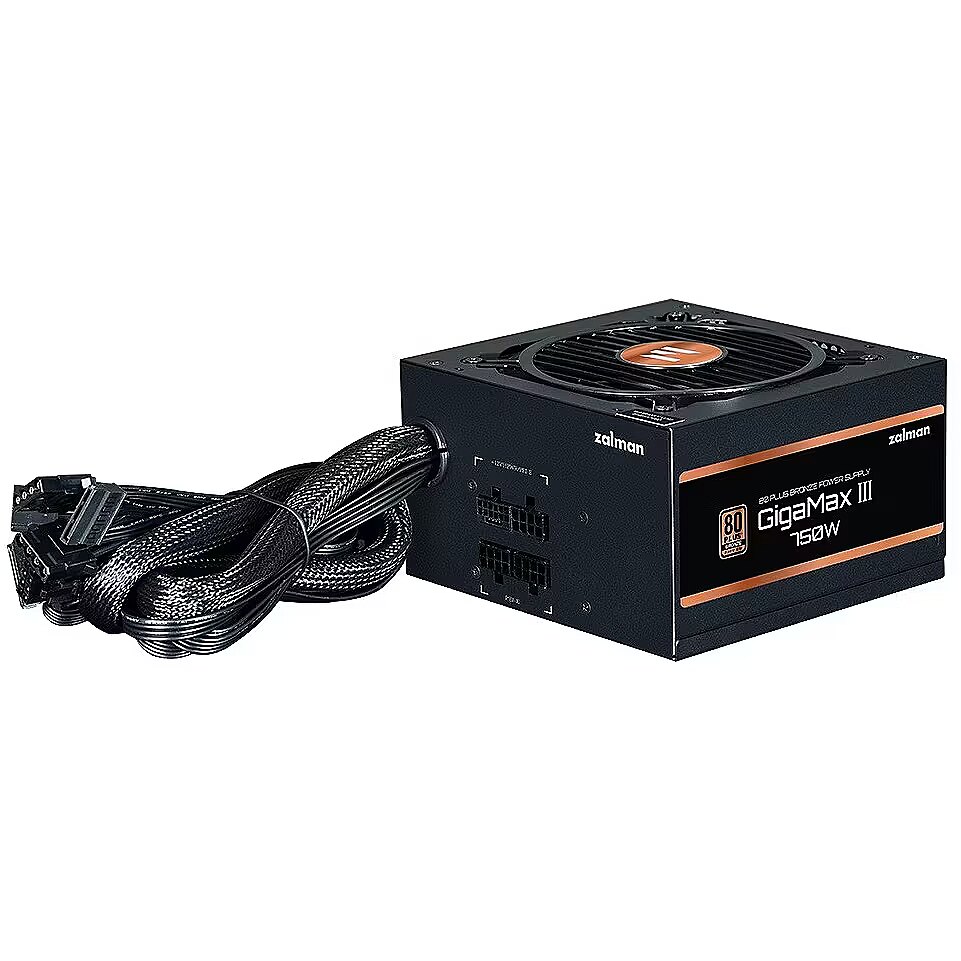

Zalman GigaMax III, 750W, 80PLUS Bronze, ATX 3.0

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1073645 Product code: ZM750-GV3
Can be ordered 8 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
95.06 €
Delivery options More about shipping
  • Delivery to Smartpost free of charge: 27.11.2024
  • Delivery to Omniva parcel machine free of charge: 27.11.2024
  • Piegāde uz DPD Pickup Paku Skapi free of charge: 27.11.2024
  • Delivery to Latvian post office, parcel locker or Circle K free of charge: 27.11.2024
  • Delivery to address in Riga 3.99 €: 27.11.2024
  • Delivery to address in Latvia 6.99 €: 27.11.2024
  • Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 25.11.2024 after 15:00
Main product parameters All parameters
  • Producer: Zalman
  • Power output: 750W
  • 80 PLUS certification: 80 PLUS Bronze
  • Fan size: 120 mm
  • Modular cables: Semi-Modular
  • Processor plug-in: 1 x 8-pin(4+4) EPS
  • PCI-E: 4 X 6+2pin
Description

This Zalman brand power supply unit has an 80 PLUS Bronze energy efficiency certificate and a power output of 750W.

To ensure a good mid-range gaming experience, 750W of power will be sufficient. With this power supply unit, you will be able to run a computer with a high-end processor, multiple SSD/HDD drives, and a powerful mid-range graphics card (for example, RTX 4070).

The diameter of this power supply unit's fan is 120 mm, which will ensure quiet operation in mid-range computers. For especially quiet power supply unit operation, we recommend selecting a fan with a 135 mm or 140 mm diameter.

The power supply has received the 80 PLUS Bronze energy efficiency certificate, which guarantees at least 85% efficiency at 50% load. This means that for every 100W of power the power supply draws from the electrical grid, at least 85W is delivered to your computer components, while the remaining 15W is lost as heat.

The power supply unit contains a connector designed for modern graphics cards, such as the Nvidia GeForce RTX 4070 or more powerful ones, the 1 x 12VHPWR plug. Lower-level graphics cards (for example, RTX 4060) will suffice with a standard 8-pin connector.

The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.

This power supply is assigned the ATX 3.0 standard. This means that the unit has a 16-pin (12VHPWR) connector, providing up to 600W of power for the newest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards. Additionally, the ATX 3.0 standard supports a 200% power increase for 1 millisecond to ensure more stable power for the components.

The power supply unit has received the Cybenetics Standard ++ noise level certificate – the noise generated by the unit will be 30-35 decibels.

This power supply unit uses semi-modular cables. It has cables attached to the unit, and others that can be added or removed as needed. We recommend such power supplies for those who do not want a fully modular system but desire some flexibility.

Basic information
Cybenetics Efficiency certification : Cybenetics Silver
Cybenetics Noise level certification : Cybenetics Standard ++
Power supply type : ATX
Power output 750W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Bronze
Total amperage (+12V) : 62.5A
Fan size : 120 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Semi-Modular
Ports and equipment
PCI-E 5.0 : 1 x 12VHPWR
Processor plug-in : 1 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 4 X 6+2pin
SATA cconnectors : 3
4pin Molex : 3
Case
More detailed specification
8-pin 12V power connectors - 1
Accessories included -
Certificates 80+ - 80 PLUS Bronze
Description - GigaMax3 power supply ETA Silver GigaMax3 has an ETA Silver performance rating, which means it is guaranteed to deliver 85% typical performance. Lambda Not only the efficiency of power supplies is assessed, but also the noise they generate. The GigaMax 3 series is Lambda rated for a certified silent power supply. PCIe 5.0 and 12VHPWR Ready! Compatible with ATX 3.0, 100% ready for Intel and AMD PCIe 5.0 Ready Supports dedicated 16-pin PCIe 5.0 connector for the latest graphics cards. EU 80 PLUS Bronze 230 V certified 80PLUS Bronze guarantees efficiency of 85%, 88%, 85% at 20%, 50% and 100% load, significantly reducing the overall energy consumption of the system. Higher power supply efficiency means less leakage current, which means less heat, high-frequency noise and fan noise. Semi-modular power supply The semi-modular design minimizes resistance and voltage drop across cables and lowers impedance to further increase energy efficiency by connecting only the cables your system needs to allow smooth airflow to cool the system.
dimension depth - 190 mm
dimension height - 280 mm
Dimensions - 140 x 150 x 86 mm
dimension weight - 2100 g
dimension width - 110 mm
ean - 8809213765568
Fan - 12 cm
Floppy power connectors - 0
guarantee - 60
guarantee_type - normal
Modular power supply - Semi
MOLEX power connectors - 0
name - ZALMAN GigaMax III 750W 80+ BRONZE ATX 3.0
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 1
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Other features -
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
PFC - Active
Power supply - 750 W
producer - Zalman
SATA power connectors - 3
vendpn - ZM750-GV3
