Deepcool PX1300P, 1300W, 80PLUS Platinum, PCI-E 5.0
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 30.12.2024
- Delivery to Omniva parcel machine free of charge: 30.12.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 30.12.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 30.12.2024
- Delivery to address in Riga 3.99 €: 30.12.2024
- Delivery to address in Latvia 6.99 €: 30.12.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Monday, 23.12.2024 sākot no 9:00
Main product parameters All parameters
- Producer: Deepcool
- Power output: 1300W
- 80 PLUS certification: 80 PLUS Platinum
- Fan size: 120 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 5 x 6+2pin
Description
This Deepcool brand power supply unit has an 80 PLUS Platinum energy efficiency certificate and a power output of 1300W.
This power supply unit is equipped with a 120 mm fan, which is the industry standard for ensuring quiet operation in average computers. If you want an especially quiet unit, look for one with a fan diameter of 135 mm or 140 mm.
The power supply has been awarded the 80 PLUS Platinum energy efficiency certificate, which ensures at least 92% efficiency at 50% load. This indicates that at least 92 W out of 100 W of power that the power supply receives from the power grid is delivered to the computer components, while the remaining 8 W is lost as heat.
1 x 600W 12VHPWR connector, with which this power supply unit is equipped, is intended for use with modern graphics cards such as Nvidia GeForce RTX 4070 and above (RTX 4060 and below use the standard 8-pin connector).
The color of the block is Melna. The block has flat cables, whose color is Melna.
This power supply is assigned the ATX 3.0 standard. This means that the unit has a 16-pin (12VHPWR) connector, providing up to 600W of power for the newest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards. Additionally, the ATX 3.0 standard supports a 200% power increase for 1 millisecond to ensure more stable power for the components.
The noise level of this power supply is 35-40 dB and it has a Cybenetics Standard + noise level certification.
This power supply has modular cables, which provide the possibility to add video card cables, hard disk cables, etc. as needed from the supplied range. This way, the wire clutter in the computer is reduced, improving ventilation and the aesthetic factor (particularly important for those who purchase a partially transparent case).
The power supply manufacturer is Deepcool. All power supplies produced by Deepcool can be viewed here.
Basic information
Cybenetics Efficiency certification
: Cybenetics Platinum
Cybenetics Noise level certification
: Cybenetics Standard +
Power supply type
: ATX
Power output
1300W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Platinum
Total amperage (+12V)
: 108.3A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Fully-Modular
Ports and equipment
PCI-E 5.0
: 1 x 600W 12VHPWR
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 5 x 6+2pin
SATA cconnectors
: Eight Core
4pin Molex
: 4
More detailed specification
category - PC Components|Power Supplies
Category_1 - Power
Category_2 - PSU - Accessories
code - R-PXD00P-FC0B-EU
Code - R-PXD00P-FC0B-EU
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 2059
EAN - 6933412717355
ean - 6933412717355
EAN_code - 6933412717355
Link - https://www.deepcool.com/products/PowerSupplyUnits/powersupplyunits/PX1300P-ATX-3.0-Platinum-Power-Supply/2023/17420.shtml
Manufacturer - Deepcool
Manufacturer_code - R-PXD00P-FC0B-EU
Name - DeepCool PX-P 1300W Platinum, power supply (1x 12VHPWR, 5x PCIe, cable management, 1300 watts)
name - DeepCool PX1300P Netzteil, 80 Plus Platinum, ATX 3.0, PCIe 5.0 - 1.300 Watt
Name - Deepcool | PSU | PX1300P | 1300 W
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 160.00 mm
Package features > Gross height (mm) - 86.00 mm
Package features > Gross width (mm) - 150.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 419 pc(s)
Package features > Paper/Pasteboard - 260.00 g
Package features > Plastic (No PET) - 40.00 g
Package features > Tare weight (kg) - 0.30 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No

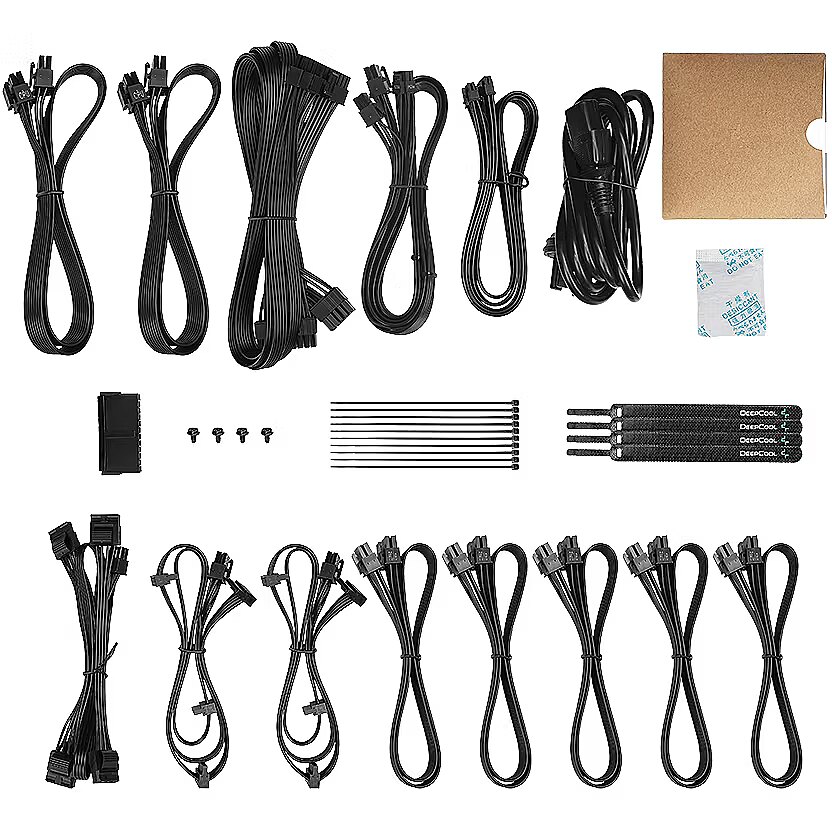

Packaging content - Cables included - AC, PCIe, CPU, Peripheral (Molex), SATA
Packaging data - Package type - Box
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - ATX version - 3.0
Performance - Bearing technology - FDB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Modular
Ports & interfaces - CPU power cable length - 70 cm
Ports & interfaces - CPU power connector (4+4 pin) - 2
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 65 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 5
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 500 mm
Ports & interfaces - Peripheral (Molex) power cable length - 650
Ports & interfaces - Peripheral (Molex) power cable length - 800
Ports & interfaces - Peripheral (Molex) power cable length - 950 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Ports & interfaces - SATA power cable length - 500 mm
Ports & interfaces - SATA power cable length - 650
Ports & interfaces - SATA power cable length - 800
Ports & interfaces - SATA power cable length - 950 mm
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 130 W
Power - Combined power (+5V) - 130 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 1299.6 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 92%
Power - Hold time - 16 ms
Power - Max output current (+3.3V) - 25 A
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 108.3 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - NLO
Power - Power protection features - OCP (overcurrent protection)
Power - Power protection features - OPP (overload protection)
Power - Power protection features - OTP (overheat protection)
Power - Power protection features - OVP (overvoltage protection)
Power - Power protection features - SCP (short circuit protection)
Power - Power protection features - SIP (surge and shock protection)
Power - Power protection features - UVP (undervoltage protection)
Power - Total power - 1300 W
Power > Nominal power - 1300 W
producerCode - R-PXD00P-FC0B-EU
Producer product family - PSU
Producer product name - PX1300P
productName - DeepCool PX1300P power supply unit 1300 W 20+4 pin ATX ATX Black
productSize - Normal
sizeX - 360
sizeY - 130
sizeZ - 220
Technical details > Gross weight - 1.40 kg
Technical details > Net weight - 1.10 kg
Technical details > Producer - Deepcool
Warranty - 120
Warranty - 120 month(s)
warrantyLength - 144
warrantyType - G
Weight - 0,10
weight - 4100
Weight & dimensions - Depth - 160 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
