ID: 1039530
Product code: STC600
In stock 3 units
Warranty: 2 years

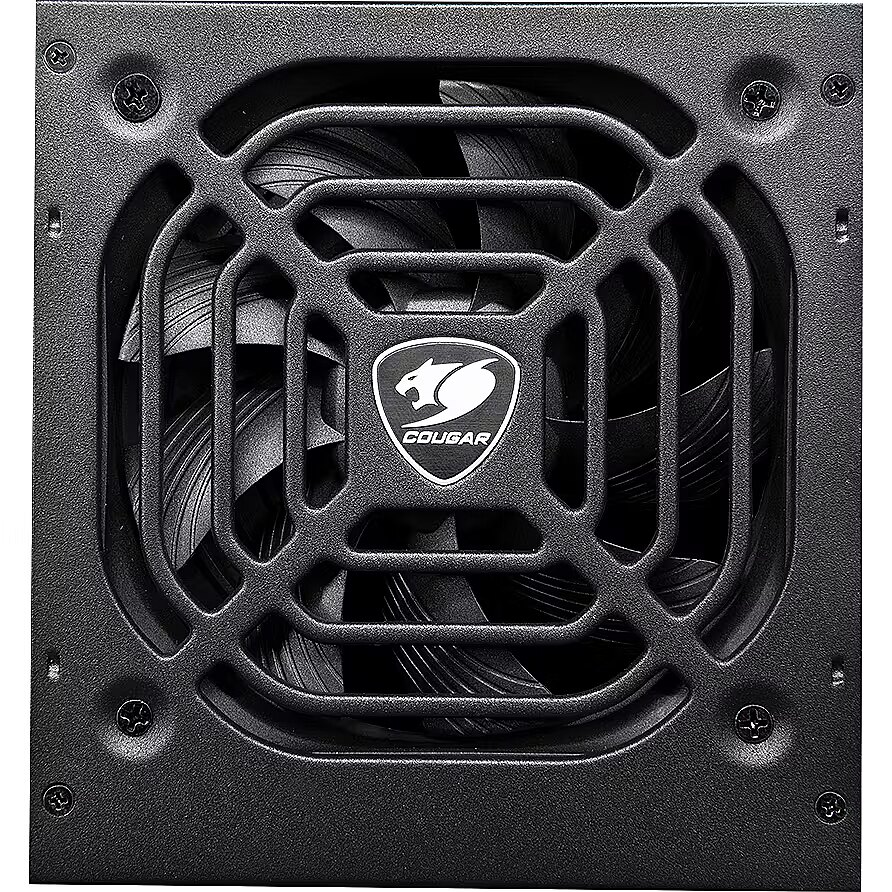

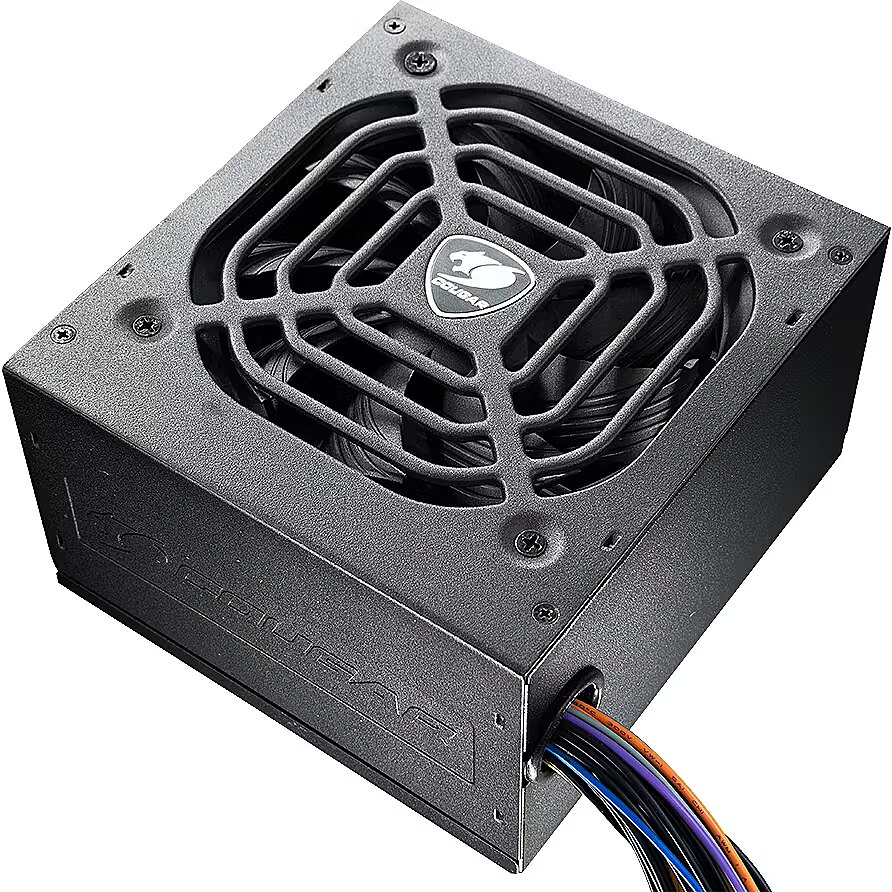

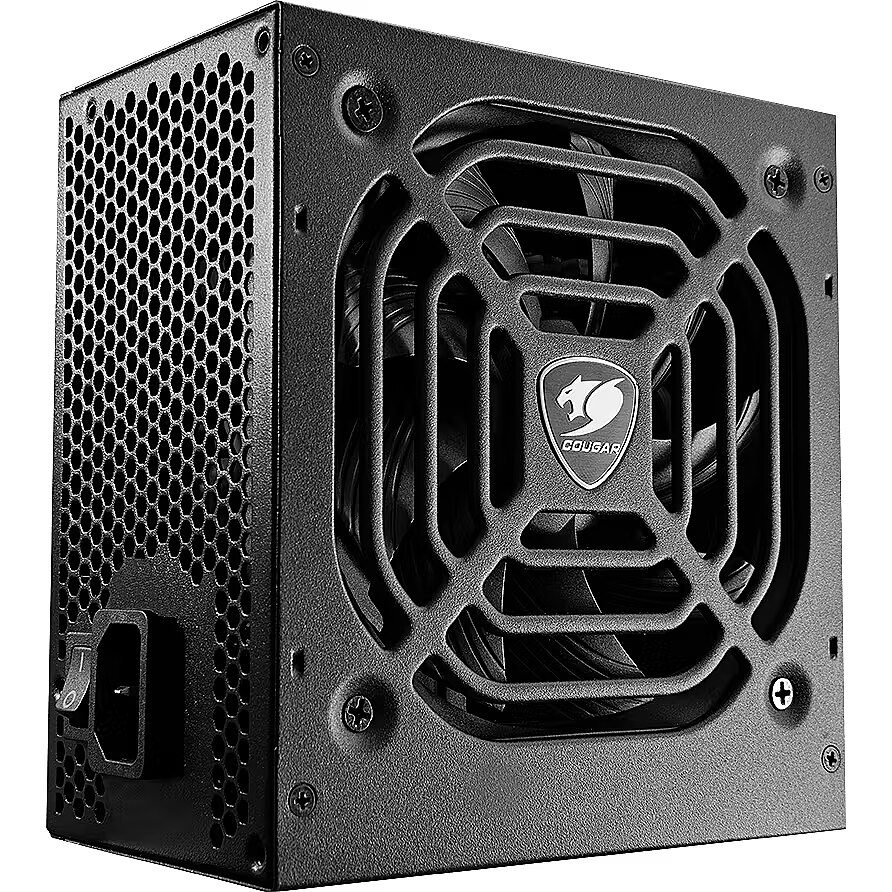

Cougar STC600, 600W, 80PLUS
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: on Thursday, 26.09.2024
- Delivery to Omniva parcel machine free of charge: on Thursday, 26.09.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: on Thursday, 26.09.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: on Thursday, 26.09.2024
- Delivery to address in Riga 3.99 €: on Thursday, 26.09.2024
- Delivery to address in Latvia 6.99 €: on Thursday, 26.09.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Thuesday, 24.09.2024 after 15:00
Main product parameters All parameters
- Producer: Cougar
- Power output: 600W
- 80 PLUS certification: 80 PLUS (White)
- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 1 x 8-pin(4+4) EPS
- PCI-E: 2 X 6+2pin
Description
This Cougar brand power supply unit has an 80 PLUS (White) energy efficiency certificate and a power output of 600W.
600W power is sufficient to run Microsoft Office, surf the web, and play budget computer games. With this power supply, you can run a computer with a mid-range processor, a mid-range graphics card (such as the GTX 1650), and one or two hard drives. If you plan to seriously play games, get a power supply with higher wattage.
This power supply unit is equipped with a 120 mm fan, which is the industry standard for ensuring quiet operation in average computers. If you want an especially quiet unit, look for one with a fan diameter of 135 mm or 140 mm.
The power supply unit has received the 80 PLUS (White) energy efficiency certificate, which guarantees at least 80% efficiency. This means that for every 100W of power that the power supply unit receives from the electrical grid, at least 80W is delivered to your computer components, while the remaining 20W is lost as heat.
The color of the block is Melna. The block has flat cables, whose color is Raiba.
ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.
This power supply has no removable cables and all cables are attached to the power supply. It has a simple design, but it works just as well as a power supply with modular cables.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
600W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS (White)
Total amperage (+12V)
: 49A
Fan size
: 120 mm
Functionality
Cable colour
: Raiba
Lighting
: Nav
Color
: Melna
Modular cables
: Nav
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 1 x 8-pin(4+4) EPS
Motherboard power
: 24-pin
PCI-E
: 2 X 6+2pin
SATA cconnectors
: 6
4pin Molex
: 2
More detailed specification
+3.3V - 18 A (115 W)
+5V - 20 A (115 W)
+5VSB - 3 A
+12V - 49 A (588 W)
-12V - 0.3 A
4-pin Peripheral Power Connector - 2
4/8-pin +12V Power Connector - 1
6/8-pin PCI Express Connector - 2
20+4-pin Main Connector - 1
80 Plus Certification - Yes
Box Weight Brutto (kg) - 14.8 kg
Circuit Protection - Over Voltage Undervoltage Over Current Short Circuit Protection Over Power
EAN Code - 4710483774324
Efficiency - 86%
External Color - Melna
Fan Diameter - 120 mm
Fans Installed Quantity - 1
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/230726160011129248.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/230726160011227251.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/230726160011346716.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/230726160011397767.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/230726160011500889.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/230726160011577307.jpg
Included Accessories - Īsa lietotāja rokasgrāmata
Input Frequency - 50 Hz
Input Voltage - AC 200-240 V
Maximum Non-Operating Ambient Temperature - 70 °C
Maximum Non-Operating Humidity - 95 %
Maximum Operating Ambient Temperature - 40 °C
Maximum Operating Humidity - 85 %
Maximum Output Power - 600 W
Minimum Non-Operating Ambient Temperature - -40 °C
Minimum Non-Operating Humidity - 5 %
Minimum Operating Ambient Temperature - 10 °C
Minimum Operating Humidity - 20 %
Package Type - Box
Packs in Box - 9
Pack Weight Brutto (kg) - 1.6 kg
Pack Weight Netto (kg) - 1.3 kg
Pieces in pack - 1
Power Adapter and Power Supply Features - Active PFC
Power Device Location - Plug-in-module
Power Device Type - Power Supply
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=230426062844580370&THEME=asbis&LANG=lv
ProductCategory - Kabeļi
ProductCode - STC600
ProductDescription - COUGAR PSU STC600 / 600W
ProductType - Power Supply Unit
Rated Input Current - 5 A
S-ATA Connector - 6
Vendor - COUGAR GAMING
Warranty Products Returnable - Yes
Warranty Term (month) - 24 mēneši
Warranty validation Criteria - Serial Number
