Aerocool KCAS PLUS, 850W, 80PLUS Gold
- Delivery to Smartpost free of charge: 16.04.2025
- Delivery to Omniva parcel machine free of charge: 16.04.2025
- Piegāde uz DPD Pickup Paku Skapi free of charge: 16.04.2025
- Delivery to Latvian post office or parcel locker free of charge: 16.04.2025
- Delivery to address in Riga 3.99 €: 16.04.2025
- Delivery to address in Latvia 6.99 €: 16.04.2025
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 14.04.2025 after 15:00

- Producer: Aerocool
- Power output: 850W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 3 x 6+2pin
Available for purchase is a power supply produced by Aerocool with a power output of 850W. The product has been awarded an 80 PLUS Gold energy efficiency certificate.
850W power supply unit designed for a high-performance gaming computer or workstation. It will be able to power a top-tier processor (possibly overclocked), a high-end graphics card (for example, RTX 4070 Ti SUPER), multiple hard drives (SSD/HDD), and water cooling.
120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.
80 PLUS Gold energy efficiency certificate received by this power supply guarantees at least 90% efficiency at 50% load. In other words, for every 100 W of energy the power supply receives from the power grid, at least 90 W goes to your computer components, and the remaining 10 W is lost as heat.
The color of the block is Melna. The block has flat cables, whose color is Melna.
This power supply unit has been assigned the ATX 2.0 standard. This means that the unit is equipped only with 6-pin and 8-pin connectors, providing 75W and 150W power respectively. It's important to note that this unit will be compatible with RTX 4070 and more powerful cards, but you will need to use the 2x8-pin to 16-pin 12VHPWR adapter included with the graphics card. ATX 2.0 power connectors are not designed to handle the high power fluctuations of modern graphics cards; therefore, if you are building a system with a powerful GPU, such as the RTX 4070, we recommend choosing a power supply unit with the ATX 3.* standard and 12VHPWR (PCIe 5.0) connector.

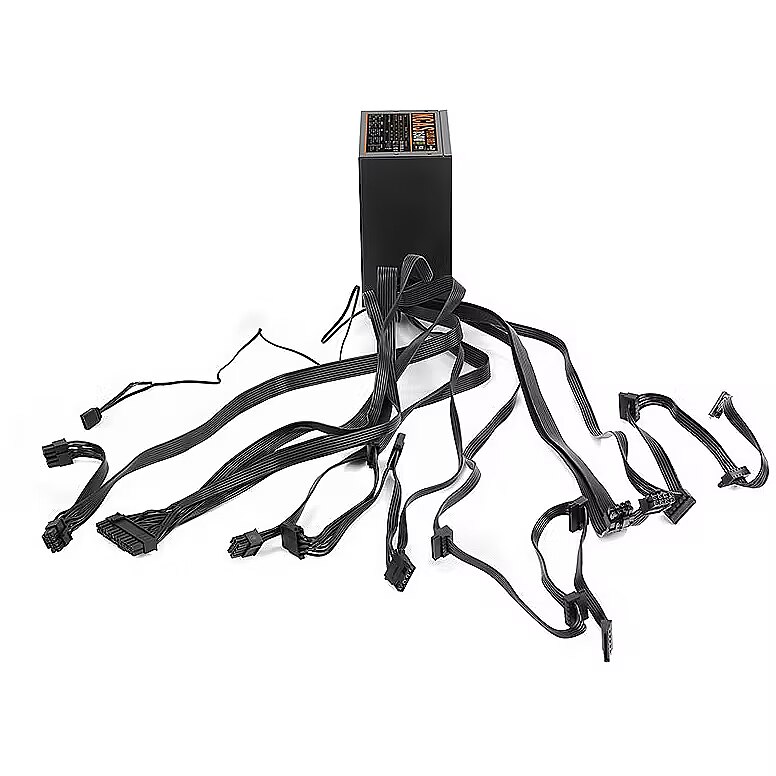

This power supply unit does not have modular cables – all its cables are attached to the unit and are not detachable. Despite the simple design, it will fulfill its functions just as well as a power supply unit with modular cables.

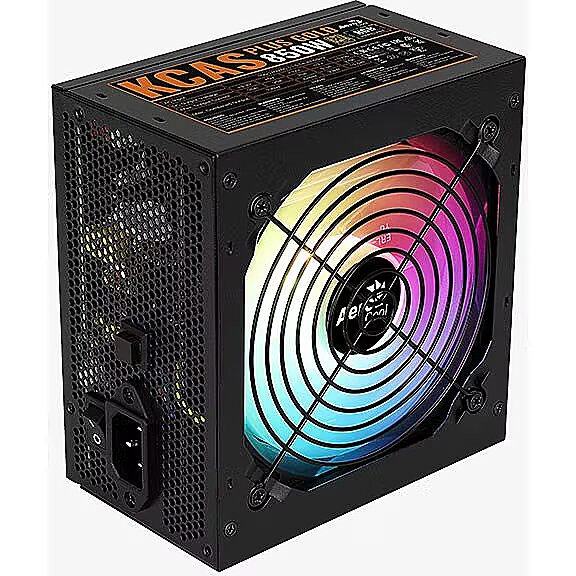

This power supply has received RGB lighting.
BrandPartCode - AEROPGSKCAS+RGB850-G
Category - Power Supply Units
Certificates - Certification - ROHS

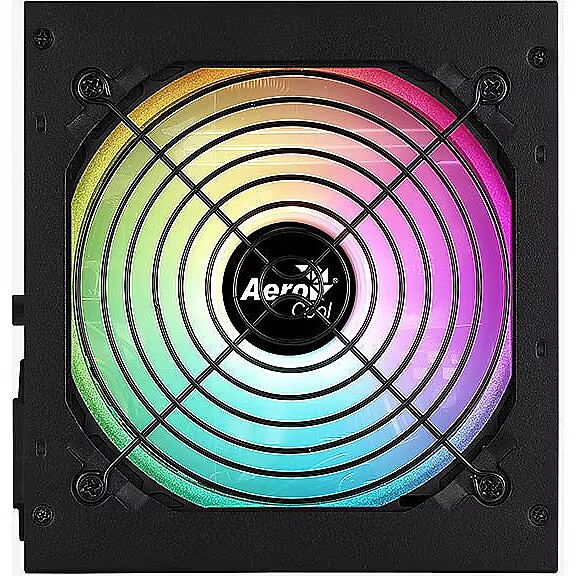

Design - Fan diameter - 12 cm
Design - Illumination - Yes
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 920
GTIN - 4710562759228
LongDesc - Featuring a stylish design with a built-in 12cm ARGB fan, the KCAS PLUS GOLD enhances the look and feel of your gaming setup while efficiently powering your system. Bring your system to life with 13 preset lighting effects that can be controlled via LED control button. Compatible with Addressable RGB motherboards using ARGB connector.The KCAS PLUS GOLD is 80Plus Gold Certified for up to 92%+ efficiency, delivering maximum efficiency performance.UP TO 92%+ EFFICIENCY80Plus Gold Certified for up to 92%+ efficiency, delivering maximum efficiency performance.ADDRESSABLE RGB COMPATIBLEStylize and personalize your lighting experience with 16.8 million colors by connecting your power supply to your Addressable RGB motherboard.To switch between motherboard and button control:- Make sure PSU is connected to motherboard’s ARGB header- Hold button on PSU for 3 seconds- Control will switch from PSU to motherboard.DC-TO-DC CONVERSION CIRCUITBuilt-in DC-to-DC conversion circuit for higher efficiency and tight voltage regulation even under heavy cross-loading conditions.ACTIVE POWER FACTOR CORRECTIONBuilt-in APFC providing higher voltage stabilization and lower power consumption (Active Power Factor Correction rate > 0.9.BUILT-IN 105°C JAPANESE CAPACITORSBuilt-in premium 105°C Japanese capacitors provide uncompromised performance, reliability and durability even under the most demanding conditions.HIGH-END SOLID STATE CAPACITORSHigh-end solid state capacitors provide great DC output quality for improved noise filtering and low rippleOPTIMIZED THERMAL FAN SPEED CONTROLOptimized fan speed allows for near inaudible fan noise and silent PSU operation.Smart thermal fan control keeps the fan running at startup speed before reaching 60% load at 40°C ambient temperatures.DUAL CPU POWER CONNECTORSDual CPU power connectors allows for compatibility with high-end AMD Ryzen CPUs.
LongProductName - 850W, 80Plus Gold Certified, Ø 12cm ARGB fan, 20+4 Pin Motherboard connector
LongSummaryDescription - Aerocool KCAS PLUS GOLD 850W. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Certification: ROHS
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 2.52
Performance - Certification - ROHS
Performance - Purpose - PC
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 4
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power connectors (6+2 pin) - 3
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 130 W
Power - Combined power (+5V) - 130 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 840 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 92%
Power - Input current - 11 - 5.5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 70 A
Power - Max output current (-12V) - 0.3 A
Power - Total power - 850 W
producerCode - AEROPGSKCAS+RGB850-G
productName - Aerocool KCAS PLUS GOLD 850W power supply unit 20+4 pin ATX Black
ProductName - KCAS PLUS GOLD 850W
productSize - Normal
ShortSummaryDescription - Aerocool KCAS PLUS GOLD 850W, 850 W, 100 - 240 V, 47 - 63 Hz, 11 - 5.5 A, 130 W, 840 W
sizeX - 230
sizeY - 200
sizeZ - 100
Title - Aerocool KCAS PLUS GOLD 850W power supply unit 20+4 pin ATX Black
URL - https://aerocool.io/product/kcas-plus-gold-850w/
WarrantyInfo -
warrantyLength - 24
warrantyType - G
weight - 2186
