ID: 1006555
Product code: PPA6504801
In stock 8 units
Warranty: 2 years

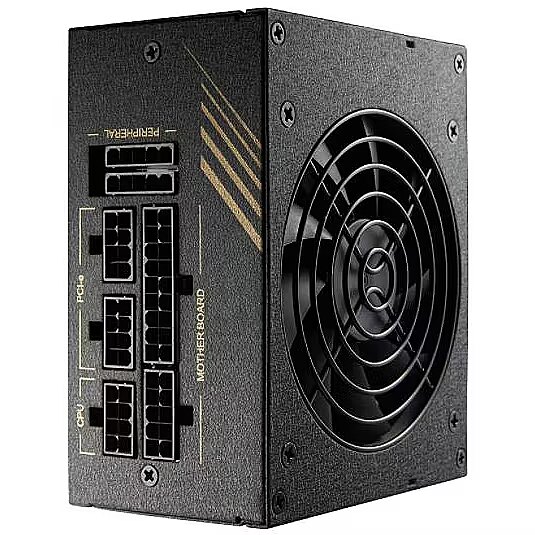

FSP Dagger PRO, 650W, 80PLUS Gold
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 27.09.2024
- Delivery to Omniva parcel machine free of charge: 27.09.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 27.09.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 27.09.2024
- Delivery to address in Riga 3.99 €: 27.09.2024
- Delivery to address in Latvia 6.99 €: 27.09.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Wednesday, 25.09.2024 after 15:00
Main product parameters All parameters
- Producer: FSP
- Power output: 650W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 92 mm
- Modular cables: Fully-Modular
- Processor plug-in: 1 x 8-pin(4+4) EPS
- PCI-E: 2 X 6+2pin
Description
We offer to purchase a FSP power supply unit with a power capacity of 650W, which has received the 80 PLUS Gold energy efficiency certification.
650W power is sufficient to run Microsoft Office, surf the web, and play budget computer games. With this power supply, you can run a computer with a mid-range processor, a mid-range graphics card (such as the GTX 1650), and one or two hard drives. If you plan to seriously play games, get a power supply with higher wattage.
The power supply has been awarded the 80 PLUS Gold energy efficiency certificate, which provides at least 90% efficiency at 50% load. This indicates that at least 90 W out of 100 W of power drawn from the electrical grid by the power supply is delivered to the computer components, with the remaining 10 W lost as heat.
The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.
This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.
Thanks to the fact that this power supply has modular cables, you can add hard drives, video cards, and other components as needed, using the various cables included in the package. This way, there are fewer wires in the computer, which improves ventilation and appearance (especially useful for those who choose a partially transparent case).
This is a SFX (Small Form Factor eXtended) type power supply. It is smaller in size and power compared to AFX type units, but is ideally suited for small form (SFF) computers where space is limited. It has smaller size fans and it is compatible with
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: SFX
Power output
650W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Gold
Total amperage (+12V)
: 54A
Fan size
: 92 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Fully-Modular
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 1 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 2 X 6+2pin
SATA cconnectors
: 5
4pin Molex
: 2
More detailed specification
Brand - FSP
BrandPartCode - PPA6504801
Category - Power Supply Units
Category 1 - Netzteile
Code - DAGGER PRO 650
Design - Cooling type - Active
Design - Fan diameter - 9.2 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
EAN - 4713224522055
GTIN - 4713224522055
Link - https://www.fsplifestyle.com/PROP194003547/
Logistics data - Harmonized System (HS) code - 84733020

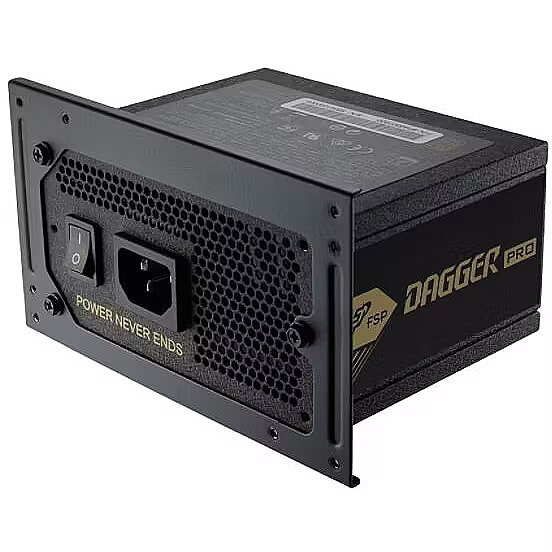

LongDesc - The FSP DAGGER PRO features with standard SFX size and included ATX adapter bracket to help users easily install an SFX power supply into an ATX, Micro-ATX or Mini-ITX chassis. With this compact size but comes with powerful output, especially the +12V single-rail offers VGA cards full power individually and to avoid any overloading conditions. Besides, the fully modular and all black cable design save your system an optimal airflow space and easy to make a cable management for a polished look.The DAGGER PRO series is compatible with most Mini-ITX and Micro ATX small form factor PCs. It is an ideal for home computer rigs but a great alternative for mini-PC enthusiasts.Advance Cable Management and Flat Ribbon CablesFully-modular design and flat ribbon cables provide easier installation. An ideal solution for applications with space constraints, enhancing overall airflow efficiency and cable management.92mm Fan Optimized for Low-Noise OperationDAGGER PRO features an advanced semi-fanless design to keep your system silent within 20% loading and reduce noise level under maximum operation. Its silent mode offers 0dBA when the loading is less than 20%.80 Plus® Gold CertificationDagger PRO series is a power supply with 80 PLUS® Gold Certification that guarantees to operate at a minimum of 90% efficiency at 50% load of PSU rated power and reduces electricity cost.Powerful +12V Single Rail for your VGAVGA card is a component which requires stable power. The compact size DAGGER PRO series comes with a single +12V rail design that offers VGA cards full power individually and avoids any overloading conditions.Supports High-end MotherboardFor gaming enthusiast, the DAGGER PRO 650W features dual CPU power connectors to support high-end motherboard and and provide stable power to the CPU for gaming enthusiast.Compatible to PS2 caseNot only does it fit into cases with the SFX form factor, but it can also be installed simply into regular ATX, Micro-ATX or Mini-ITX cases.
LongProductName - 650W, 80 PLUS Gold, SFX12V, 92mm
LongSummaryDescription - FSP DAGGER PRO 650W. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, CPU power cable length: 85 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: SFX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 9.2 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA
Manufacturer - FSP
MPN - PPA6504801
Name - 650W FSP DAGGER PRO 650 Kabelmanagement
Name - Fortron | PSU | DAGGER PRO 650W | 648 W | 650 W
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 150.00 mm
Package features > Gross height (mm) - 86.00 mm
Package features > Gross width (mm) - 140.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 621 pc(s)
Package features > Paper/Pasteboard - 100.00 g
Package features > Plastic (No PET) - 80.00 g
Package features > Tare weight (kg) - 0.18 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No
Packaging content - Cables included - CPU, PCIe, Peripheral (Molex), SATA
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - Bearing technology - Ball bearing
Performance - Mean time between failures (MTBF) - 200000 h
Performance - Noise level - 40 dB
Performance - Power supply unit (PSU) form factor - SFX
Performance - Purpose - PC
Performance - Silent mode - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 85 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 648 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Maximum input current (@110V) - 10 A
Power - Maximum input current (@220V) - 5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 22 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 54 A
Power - Max output current (-12V) - 0.3 A
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit
Power - Total power - 650 W
Power > Combined power (+12V) - 648 W
Power > Nominal power - 650 W
Producer product family - PSU
Producer product name - DAGGER PRO 650W
ProductName - DAGGER PRO 650W
ShortSummaryDescription - FSP DAGGER PRO 650W, 650 W, 100 - 240 V, 50 - 60 Hz, 10 A, 5 A, 120 W
Technical details > Gross weight - 1.61 kg
Technical details > Net weight - 1.43 kg
Technical details > Other features - Compliant with latest SFX12V V3.3; Efficiency ≧ 90% at typical load; MIA IC (Multiple Intelligence Ability) chip set inside; Semi-fanless design for silent operation; Quiet and long-lasting 92mm ball bearing fan; All black ribbon cables; Powerful single +12V rail design; Full Japanese electrolytic capacitors; Intel Latest CPU ready; Full protections OCP, OVP, SCP, OPP, OTP
Technical details > Producer - Fortron
Title - FSP DAGGER PRO 650W power supply unit 20+4 pin ATX SFX Black
URL - https://www.fsplifestyle.com/en/product/DAGGERPRO650W.html
Warranty - 24
Warranty - 24 month(s)
WarrantyInfo -
Weight - 1.74
Weight & dimensions - Depth - 125 mm
Weight & dimensions - Height - 63.5 mm
Weight & dimensions - Width - 100 mm
