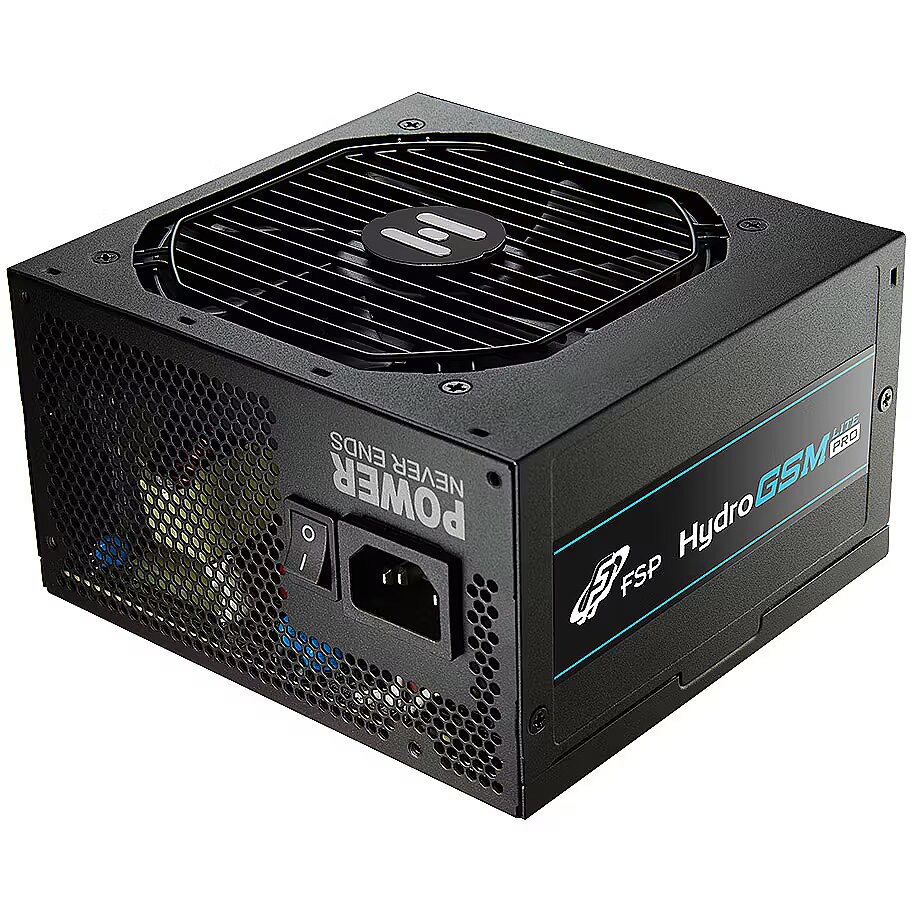

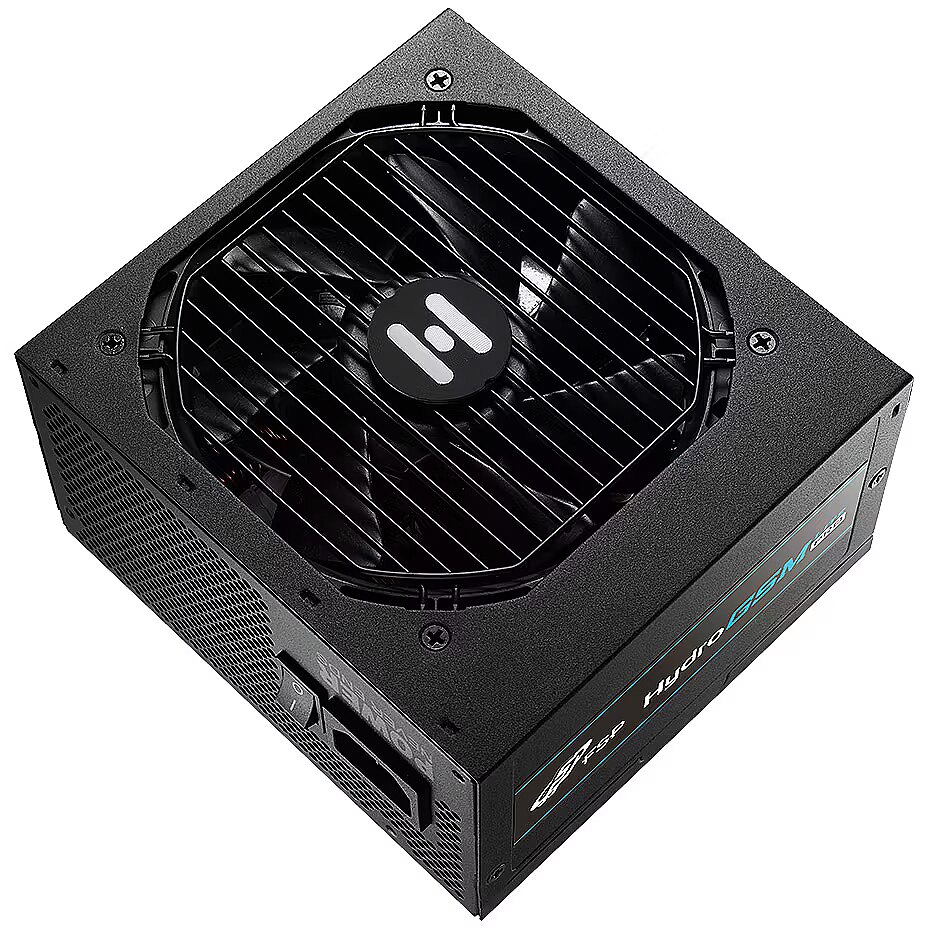

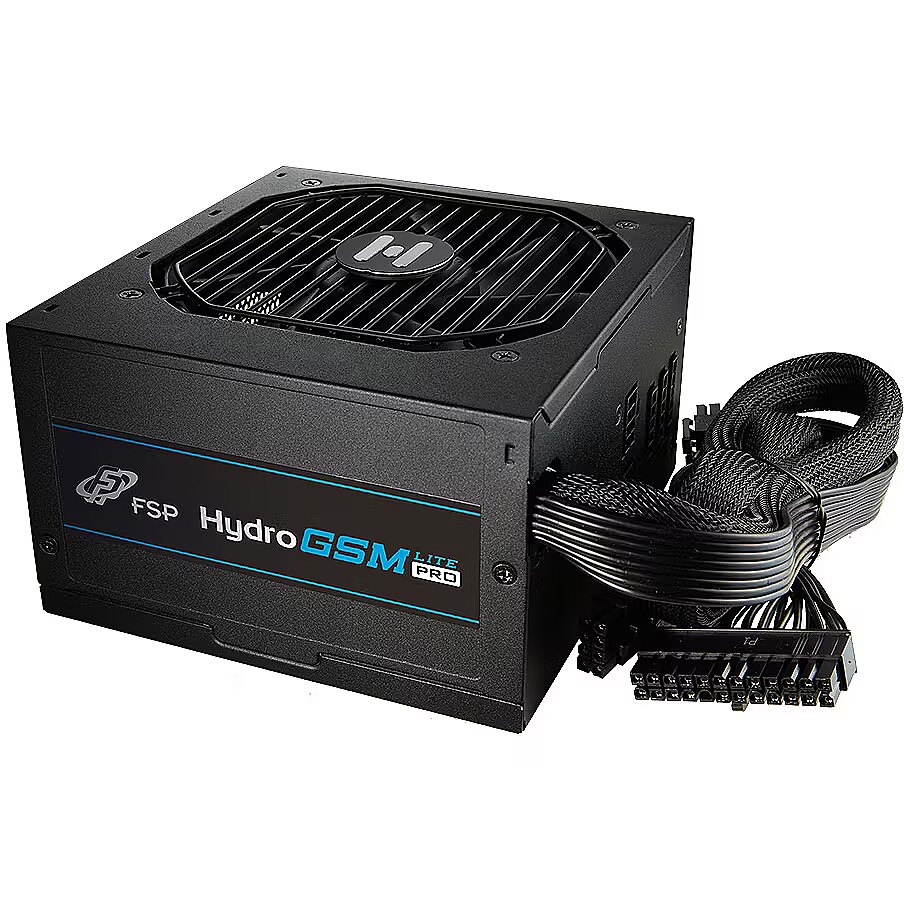

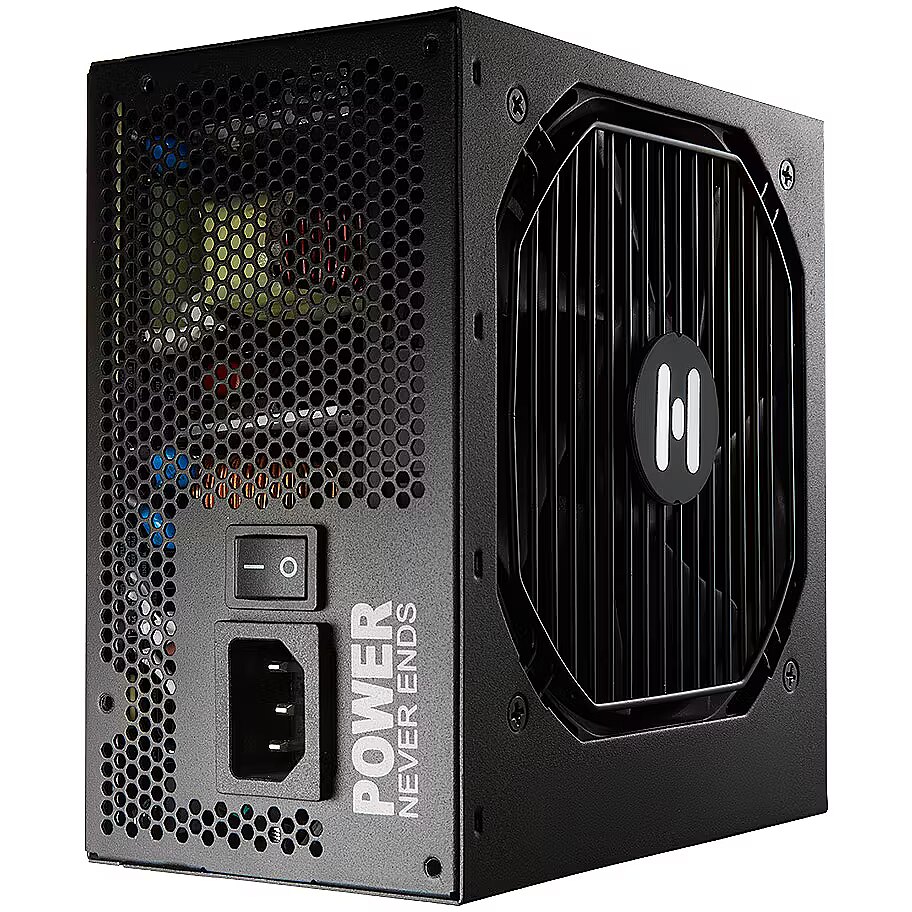

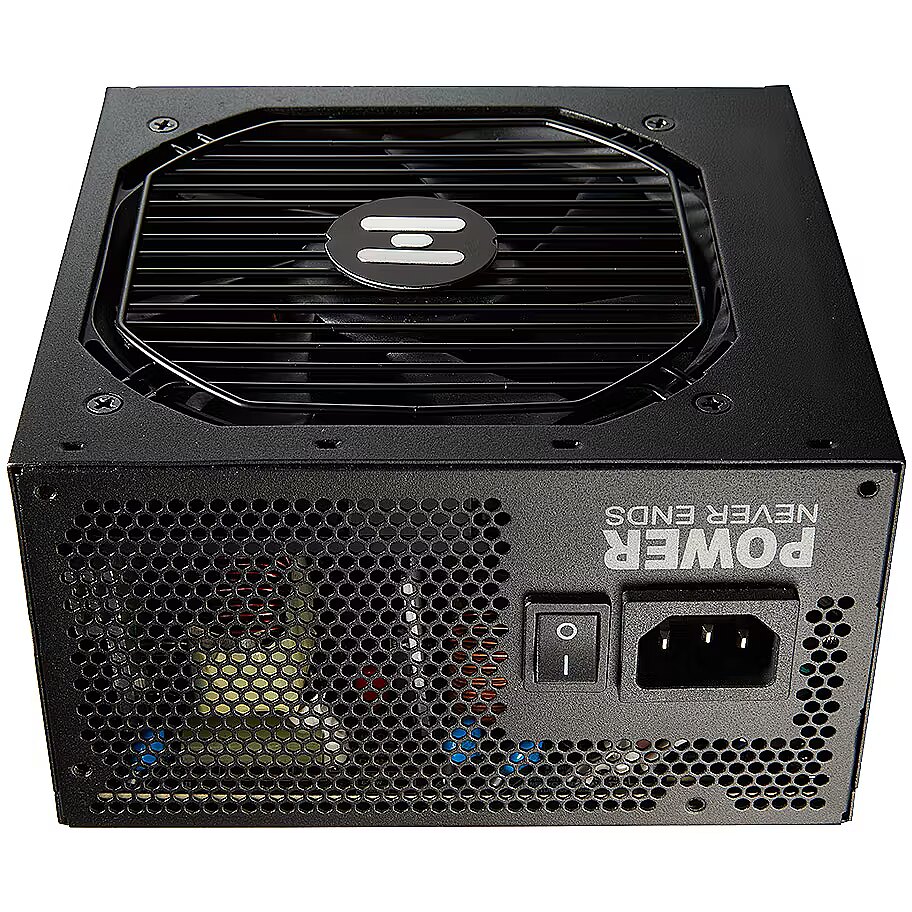

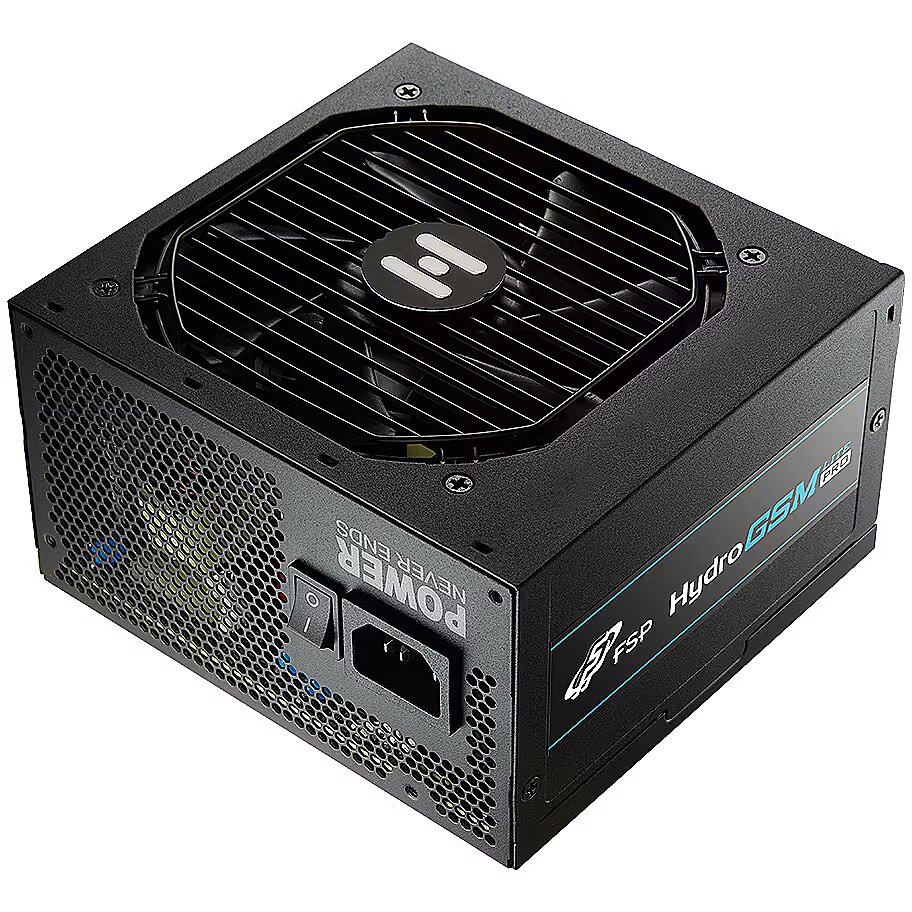

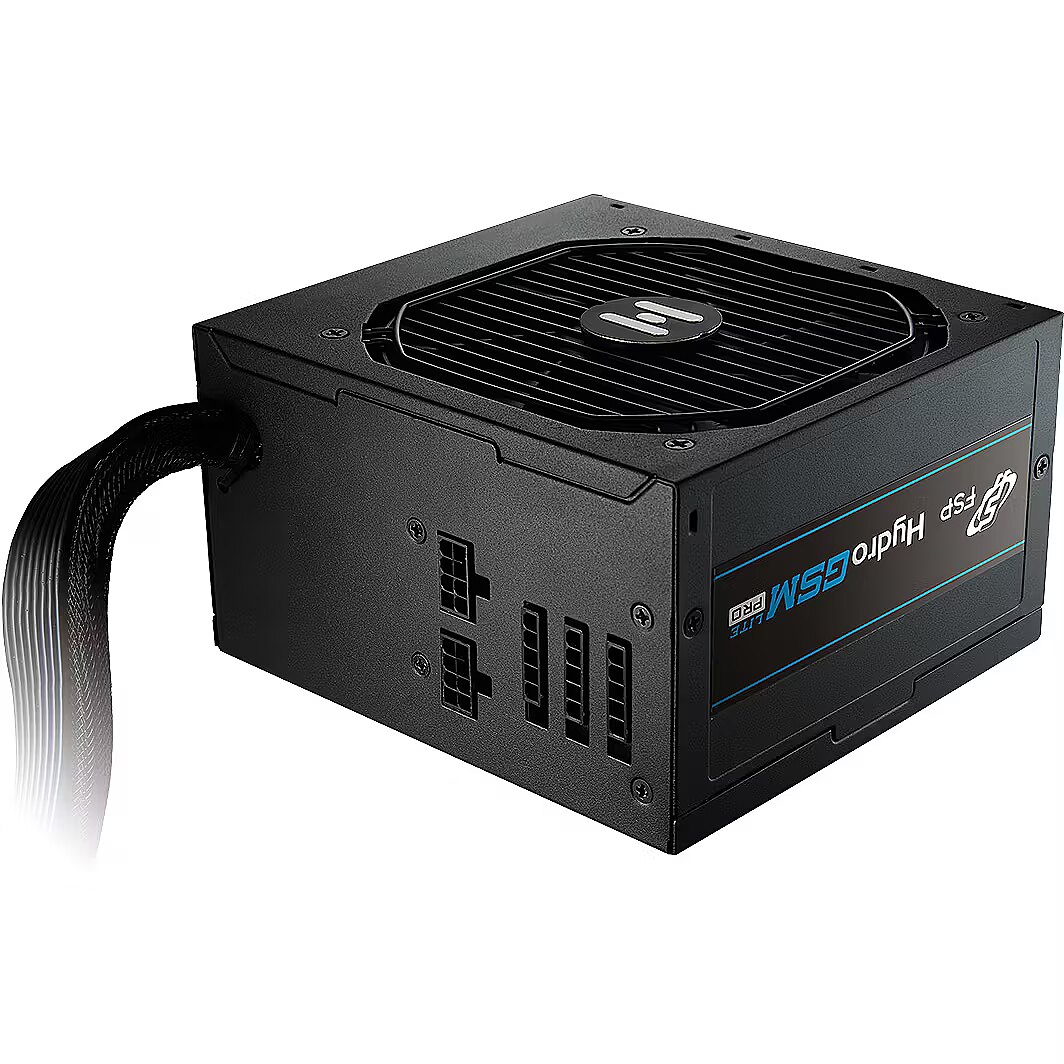

FSP Hydro GSM Lite PRO, 750W, 80PLUS Gold

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1006348 Product code: PPA7506101
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

Dateks.lv website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years (Warranty for business entities 1 year)
Main product parameters All parameters
  • Producer: FSP
  • Power output: 750W
  • 80 PLUS certification: 80 PLUS Gold
  • Fan size: 120 mm
  • Modular cables: Semi-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 4 X 6+2pin
Similar Products
This product FSP Hydro GSM Lite PRO, 750W, 80PLUS Gold
Recommended Gigabyte P750GM, 750W, 80PLUS Gold
Recommended Gigabyte UD750GM PG5, 750W, 80PLUS Gold, PCIe 5.0
Recommended Deepcool PN750M, 750W, Sleeved Cables, 80PLUS Gold, PCI-E 5.0
Recommended Gigabyte UD1000GM, 1000W, 80PLUS Gold
Show similar specs. Hide similar specs.
104.87 €
93.49 €
102.70 €
112.30 €
131.35 €
Basic information
Cybenetics Efficiency certification Nav Cybenetics Platinum Nav Cybenetics Gold Nav
Cybenetics Noise level certification Nav Cybenetics Standard ++ Nav Cybenetics Standard ++ Nav
Power supply type ATX ATX ATX ATX ATX
Power output 750W 750W 750W 750W 1000W
80 PLUS certification 80 PLUS Gold 80 PLUS Gold 80 PLUS Gold 80 PLUS Gold 80 PLUS Gold
Total amperage (+12V) 62.5A 61A 62.5A 62.5A 83.3A
Fan size 120 mm 120 mm 120 mm 120 mm 120 mm
Functionality
Cable colour Melna Melna Melna Melna Melna
Lighting Nav Nav Nav Nav Nav
Color Melna Melna Melna Melna Melna
Modular cables Semi-Modular Fully-Modular Fully-Modular Fully-Modular Fully-Modular
Ports and equipment
PCI-E 5.0 Nav Nav 1 x 450W 12VHPWR 1 x 450W 12VHPWR Nav
Processor plug-in 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS
Motherboard power 20+4pin 20+4pin 20+4pin 20+4pin 20+4pin
PCI-E 4 X 6+2pin 4 X 6+2pin 4 X 6+2pin 3 x 6+2pin 6 x 6+2pin
SATA cconnectors 3 Eight Core Eight Core Eight Core Eight Core
4pin Molex 3 3 3 2 3
Description

We offer to purchase a FSP power supply unit with a power capacity of 750W, which has received the 80 PLUS Gold energy efficiency certification.

With 750W power, it will be sufficient for a good mid-level gaming experience. The power supply unit will be able to run a computer with a high-class processor, a powerful mid-range graphics card (for example, RTX 4070), and several drives (SSD/HDD).

120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.

The power supply has received the 80 PLUS Gold energy efficiency certificate, which guarantees at least 90% efficiency at 50% load. This means that for every 100W of power received from the electrical grid, at least 90W is delivered to your computer components, and the remaining 10W is lost as heat.

The color of the block is Melna. The block has flat cables, whose color is Melna.

This power supply unit has been assigned the ATX 2.0 standard. This means that the unit is equipped only with 6-pin and 8-pin connectors, providing 75W and 150W power respectively. It's important to note that this unit will be compatible with RTX 4070 and more powerful cards, but you will need to use the 2x8-pin to 16-pin 12VHPWR adapter included with the graphics card. ATX 2.0 power connectors are not designed to handle the high power fluctuations of modern graphics cards; therefore, if you are building a system with a powerful GPU, such as the RTX 4070, we recommend choosing a power supply unit with the ATX 3.* standard and 12VHPWR (PCIe 5.0) connector.

This power supply has semi-modular cables. Some cables are permanently attached, while others can be added or removed as needed. The power supply is suitable for users who want some flexibility but do not want a fully modular system.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 750W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Gold
Total amperage (+12V) : 62.5A
Fan size : 120 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Semi-Modular
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 4 X 6+2pin
SATA cconnectors : 3
4pin Molex : 3
More detailed specification
Brand - FSP
BrandPartCode - PPA7506101
Category - Power Supply Units
Category 1 - Netzteile
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
EAN - 4713224524387
GTIN - 4713224524387
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - LLC topology and all Japanese e-capacitors make Hydro GSM Lite PRO series a perfect solution for your power-hungry components, which realize ultra-high efficiency as well as extraordinary performance. The intelligent 120mm thermal control fan allows optimal coolng air to be drawn in to the PCB board, making it almost impossible to heat. In terms of the product look, Hydro GSM Lite PRO is coated with matte black finish and mounted with octagonal stainless fan grill that enables excellent airflow while remaining stylish for PC gamers.
LongProductName - HGS-750M, ATX, 80 PLUS Gold, 100V-240V, 10-5A, 10-5A, Silent Fan, 120 mm (HYB)
LongSummaryDescription - FSP Hydro GSM Lite PRO 750W. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA
Manufacturer - FSP
MPN - PPA7506101
Name - 750W FSP Hydro GS 750M
Packaging content - Cables included - CPU, PCIe, Peripheral (Molex), SATA
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 2.52
Performance - Bearing technology - HYB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 750 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Maximum input current (@110V) - 10 A
Power - Maximum input current (@220V) - 5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 62.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit
Power - Total power - 750 W
ProductName - Hydro GSM Lite PRO 750W
ShortSummaryDescription - FSP Hydro GSM Lite PRO 750W, 750 W, 100 - 240 V, 50 - 60 Hz, 10 A, 5 A, Active
Title - FSP Hydro GSM Lite PRO 750W power supply unit 20+4 pin ATX ATX Black
URL - https://www.fsplifestyle.com/en/product/HydroGSMLitePRO750W.html
WarrantyInfo -
Weight - 2.68
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 140 mm
