ID: 1054769
Product code: 1PD142
Can be ordered 4 units Availability: 14 days after order approval
Warranty: 3 years

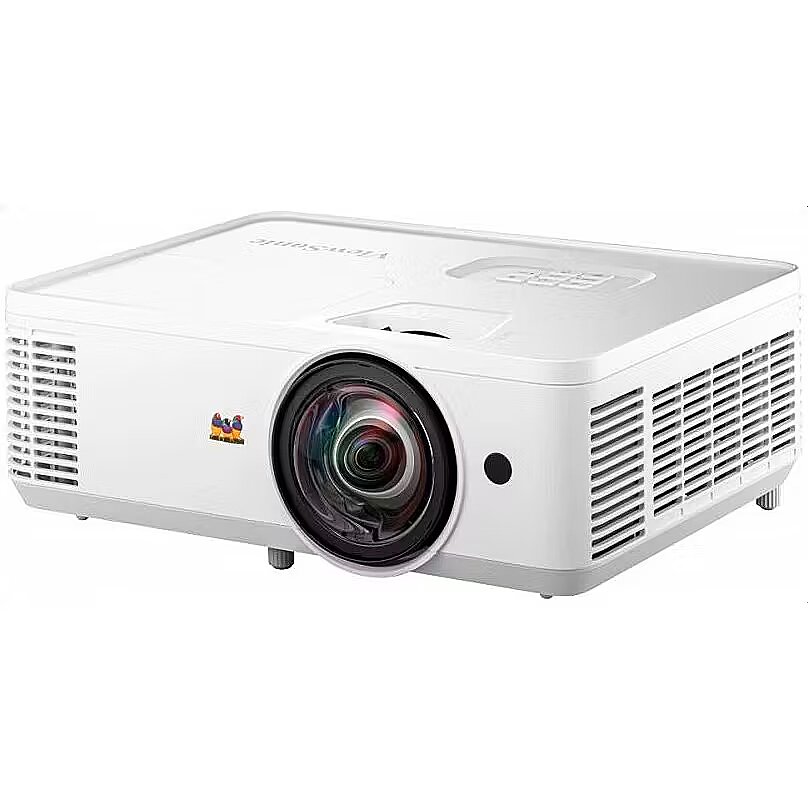

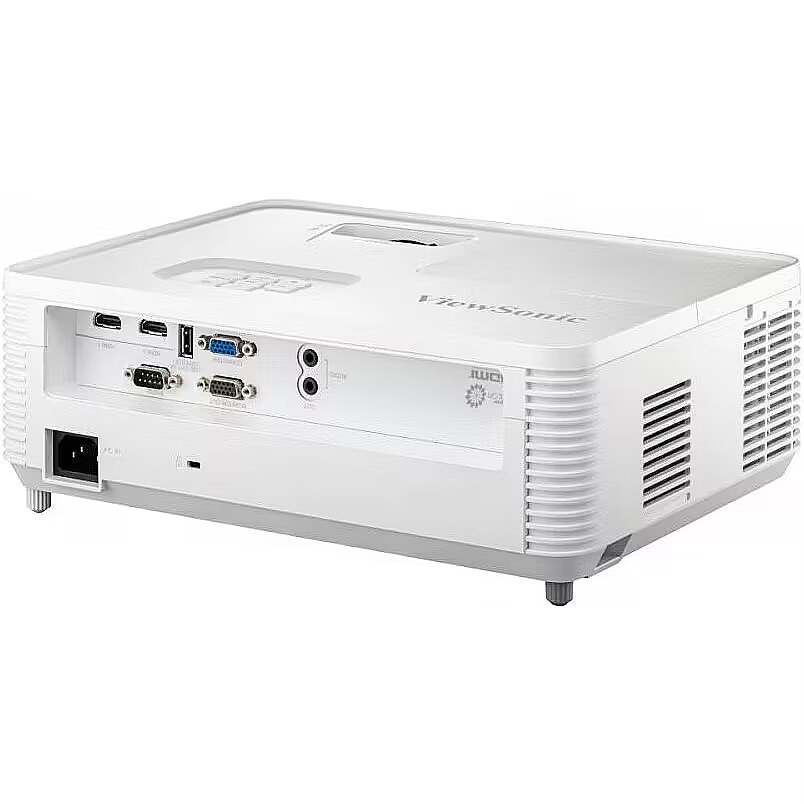

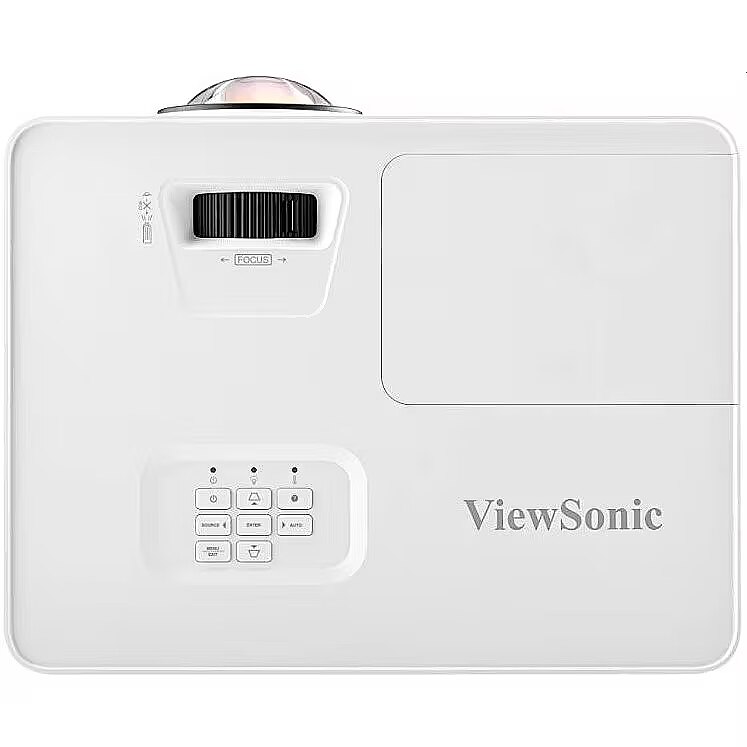

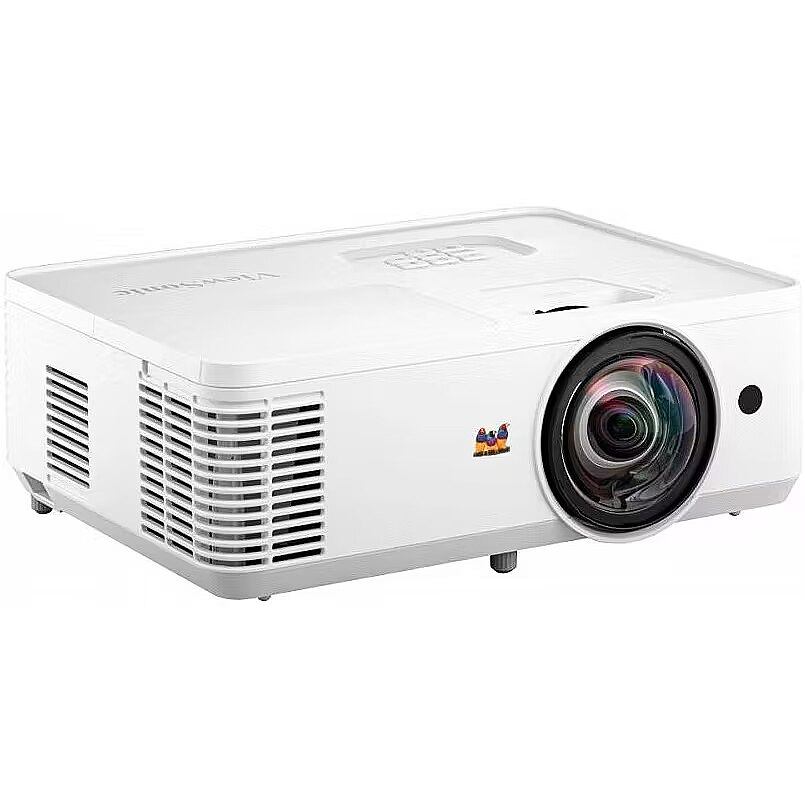

ViewSonic PS502X-EDU
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 29.11.2024
- Delivery to Omniva parcel machine free of charge: 29.11.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 29.11.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 29.11.2024
- Delivery to address in Riga 3.99 €: 29.11.2024
- Delivery to address in Latvia 6.99 €: 29.11.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 27.11.2024 after 15:00
Main product parameters All parameters
- Brightness (lumens): 4000 ANSI
- Contrast ratio: 15000:1
- Native resolution: XGA 1024x768
All parameters
Brightness (lumens)
4000 ANSI
The brightness of the projector bulb in ANSI lumens units. This is an important indicator if you want to use the projector in daylight conditions or lit rooms. A higher number of lumens means better brightness. Dateks.lv recommends to buy a projector with 2000 and more lumens.
Contrast ratio
15000:1
The projector contrast determines the sharpness of the image. The higher the contract the clearer the visibility of the text on the screen; the contrast also determines how well the lines will be pronounced in the image created by the projector. A high contrast is an important factor when a projector for the presentation needs is selected.
The measuring unit of the contrast is the ratio between the lightest and darkest condition of the pixel. The higher the ration the better the contrast.
The measuring unit of the contrast is the ratio between the lightest and darkest condition of the pixel. The higher the ration the better the contrast.
Native resolution
XGA 1024x768
The matrix (natural) resolution determines the number of colour dots (pixels) the projector can display without compression (at the maximum sharpness of the image). The higher the matrix resolution the better the sharpness of the image and the bigger the software desktop for efficient work.
More detailed specification
Accessories included - VGA cable (D-Sub 15) Power cable Warranty Card Lens hood Remote Quick start guide Replaceable filter
Aspect ratio - 1:1
Brand - Viewsonic
BrandPartCode - PS502X
Brightness - 4000 ANSI Lumen
Category - Data Projectors
Color - White
Description - PROJECTOR PS502X- EDU is a high-brightness XGA short-throw projector from ViewSonic, created for business and educational applications. With a high brightness of 4,000 ANSI Lumens, the projector delivers clear and vivid images, making it ideal for light-filled rooms. With a short throw ratio of 0.616, the projector can project a 100-inch screen from a distance of just 1.3m, enabling a large screen to be projected even in small rooms. An added benefit is that presenters will stay away from the projector beam, eliminating shadows on the projection screen. Two HDMI ports provide convenience, with no need to unplug one device to switch to the other. Simply use the on-screen display to select and change the input source. The use of ViewSonic's exclusive colour technology ensures the highest quality presentation with realistic colour reproduction. Updating the projector's software is hassle-free, thanks to the ability to update remotely via a USB cable connected to a laptop. The built-in 5V/1.5A USB power output can be used to power wireless devices, eliminating the need for separate power supplies when transferring media content. The projector is equipped with a 16W speaker to present images with sound, without the need for external speakers.
Design - Cable lock slot - Yes
Design - Cable lock slot type - Kensington
Design - LED indicators - Yes
Design - Market positioning - Business
Design - Market positioning - Education
Design - Product colour - White
Design - Product type - Short throw projector
dimensionalWeight - 4556
dimension depth - 165 mm
dimension height - 335 mm
Dimensions - Height 115 x width 309 x depth 234 mm
dimension weight - 4375 g
dimension width - 395 mm
Display - Built-in display - No
Display technology - DLP
ean - 766907020021
Features - Air filter - Yes
Features - HDCP - Yes
Features - HDCP version - 1.4
Features - Interactive - No
Features - Noise level - 32 dB
Features - Noise level - 34 dB
Features - Noise level (economic mode) - 25 dB
Features - Number of OSD languages - 22
Features - On Screen Display (OSD) - No
Features - On Screen Display (OSD) - Yes
Features - On Screen Display (OSD) languages - Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Indonesian, Italian, Korean, Polish, Portuguese, Russian, Thai, Turkish, Vietnamese
GTIN - 0766907020021
GTIN - 766907020021
guarantee - 60
guarantee_type - external
I/O connectors - 1 x HDMI
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 2 x 3,5 mm minijack
Lens - Lens F=2.7, f=7.15mm Throw factor: 0.616 Zoom/Focus 0.8X-2.0X (digital)
Lens system - Digital zoom - 2x
Lens system - F-number (relative aperture) - 2.7
Lens system - Fixed focal length - 7.15 mm
Lens system - Focus - Manual
Lens system - Offset - 115%
Lens system - Throw ratio - 0.616
Lens system - Zoom capability - Yes
light life time - 4000 h
light life time (ECO mode) - 12000 h
Light source - Lamp power - 240 W
Light source - Lamps quantity - 1 lamp(s)
Light source - Lamp type - UHP
Light source - Light source type - Lamp
Light source - Service life of light source - 4000 h
Light source - Service life of light source (economic mode) - 12000 h
Logistics data - Quantity per pack - 1 pc(s)
LongDesc - The PS502X is ViewSonic’s high brightness XGA short throw business/education projector. Boasting 4,000 ANSILumens of high brightness, the projector offers clear images of up-to-300” large screen in meeting rooms,classrooms, or any other bright environment. With 0.616 short throw ratio, the projector can provide 100”large screen size from only 1.3m away without being obstructed by shadows, allowing for a large screen even in smallspaces. The dual HDMI ports allow you to flexibly connect to multiple devices, easily switching between contentsources. The USB Type-A port can supply power to HDMI wireless dongles, making wireless content streaming moreconvenient. The projector also allows software updates via USB cable connection with simply your laptops,skipping trips to service centers.High Brightness for Business & Education EnvironmentsThanks to 4,000 ANSI Lumens brightness, you're guaranteed clear visuals of vibrancy, which are perfectly suitable for spaces with a lot of ambient light.Big Screen for Small SpacesThe PS502W’s 0.52 short throw projection gives you 100” from only 1.3m away when positioning the projector. Presenters will stay clear of the projector beam, eliminating eye glare and shadows on the projection screen.Ultra-Large Screen with Lower Cost-per-inchThe projector allows for an up-to-300” image size, which is much larger and easier to install than commercial displays. Easy and Flexible ConnectionThe dual HDMI ports offer ample connectivity to accommodate all your HDMI-enabled multimedia devices. You no longer have to unplug your existing device to switch to a new one. Simply use the on-screen display to select and change the input source. Vibrant Colors for Captivating PresentationsImpress any audience with ViewSonic’s exclusive color technology and elevate your presentation with a true-to-life color experience.A Simpler Way to Update Projector SoftwareSkip trips to the service center by keeping software up to date easily and onsite via USB cable connection with your laptop.*The latest projector software update can be found in the download section at the bottom of the page when available.USB Type A Power SupplyA built-in 5V/1.5A USB power output can be used to supply power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming your multimedia content. Audio Right Out of the BoxThe projector comes equipped with a 16W speaker, allowing for audio to be delivered during presentations without the need for external speakers.
LongProductName - XGA, 4000 ANSI, 15000:1, 1.07 B, 240W UHP, 16W, HDMI, Audio-in/out, VGA, RS232, USB, 100-240 V, 2.87 kg
LongSummaryDescription - Viewsonic PS502X. Projector brightness: 4000 ANSI lumens, Projector native resolution: XGA (1024x768), Contrast ratio (typical): 15000:1. Light source type: Lamp, Service life of light source: 4000 h, Service life of light source (economic mode): 12000 h. Focus: Manual, Fixed focal length: 7.15 mm, Digital zoom: 2x. Analog signal format system: NTSC, PAL, SECAM, Supported graphics resolutions: 640 x 480 (VGA), 1920 x 1080 (HD 1080), Supported video modes: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p. Serial interface type: RS-232, HDMI connector type: Full-size, Service port type: USB Type-A
Maximum image diagonal - 300 ''
Minimum image diagonal - 60 ''
Model - PS502X-EDU
Multimedia - Built-in speaker(s) - Yes
Multimedia - RMS rated power - 16 W
name - Projector PS502X-EDU XGA/4000
Network - Ethernet LAN - No
Network - Smart TV - No
Network - Wi-Fi - No
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Optional accessory - Bag Ceiling mount Wall mount Replaceable filter
Other features - Built-in speakers: 16W Noise Level: 34 dB (Normal Mode) / 25 dB (ECO Mode) Projector Features: Kensington Lock Digital zoom
Packaging content - Cables included - AC
Packaging content - Cables included - AC, VGA
Packaging content - Quick start guide - Yes
Packaging content - Remote control included - Yes
Packaging content - Remote control type - IR
Packaging content - Warranty card - Yes
Ports & interfaces - AC (power) in - Yes
Ports & interfaces - Audio (L/R) in - 1
Ports & interfaces - Audio (L/R) out - 2
Ports & interfaces - DVI port - No
Ports & interfaces - HDMI connector type - Full-size
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 1.4
Ports & interfaces - PC Audio in - Yes
Ports & interfaces - PC Audio out - Yes
Ports & interfaces - PC in (D-Sub) - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - Service port type - USB Type-A
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB 2.0 Type-A ports quantity - 1
Ports & interfaces - VGA (D-Sub) ports quantity - 2
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 295 W
Power - Power source - AC
Power consumption - 295 W
producer - ViewSonic
producerCode - 1PD142
ProductName - PS502X
productName - Viewsonic PS502X-EDU 4000 ANSI lumens DLP XGA (1024x768) White
productSize - Normal
Projection - Short throw
Projector - Contrast ratio (typical) - 15000:1
Projector - Horizontal scan range - 15 - 102 kHz
Projector - Keystone correction, vertical - -19 - 19°
Projector - Number of colours - 1.07 billion colours
Projector - Projection distance - 0.75 - 3.76 m
Projector - Projection technology - DLP
Projector - Projector brightness - 4000 ANSI lumens
Projector - Projector native resolution - XGA (1024x768)
Projector - Screen size compatibility - 1524 - 7620 mm (60 - 300")
Projector - Smart projector - No
Projector - Vertical scan range - 23 - 120 Hz
Resolution - 1024 x 768 (XGA)
ShortSummaryDescription - Viewsonic PS502X, 4000 ANSI lumens, XGA (1024x768), 15000:1, 1524 - 7620 mm (60 - 300"), 0.75 - 3.76 m, 1.07 billion colours
sizeX - 400
sizeY - 335
sizeZ - 170
Static contrast - 15 000:1
Storage - Card reader integrated - No
Supplier features - Recommended gender - Any gender
Technical details - Image lag time - 33.2 ms
Title - Viewsonic PS502X data projector Short throw projector 4000 ANSI lumens XGA (1024x768) White
URL - https://www.viewsonic.com/global/products/projectors/PS502X
vendpn - 1PD142
Video - 3D - No
Video - Analog signal format system - NTSC, PAL, SECAM
Video - Full HD - No
Video - Full HD - Yes
Video - Supported graphics resolutions - 640 x 480 (VGA), 1920 x 1080 (HD 1080)
Video - Supported graphics resolutions - 1024 x 768 (XGA)
Video - Supported video modes - 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Warranty - The educational warranty is 5 years for the projector and 3 years (up to 2000 hours) for the lamp.
WarrantyInfo -
warrantyLength - 60
warrantyType - F
Weight - 2.87 kg
weight - 2900
Weight & dimensions - Depth - 234 mm
Weight & dimensions - Height - 115 mm
Weight & dimensions - Package depth - 337 mm
Weight & dimensions - Package height - 168 mm
Weight & dimensions - Package weight - 4.08 kg
Weight & dimensions - Package width - 400 mm
Weight & dimensions - Weight - 2.87 kg
Weight & dimensions - Width - 309 mm
Zoom - Automatic (Digital)
