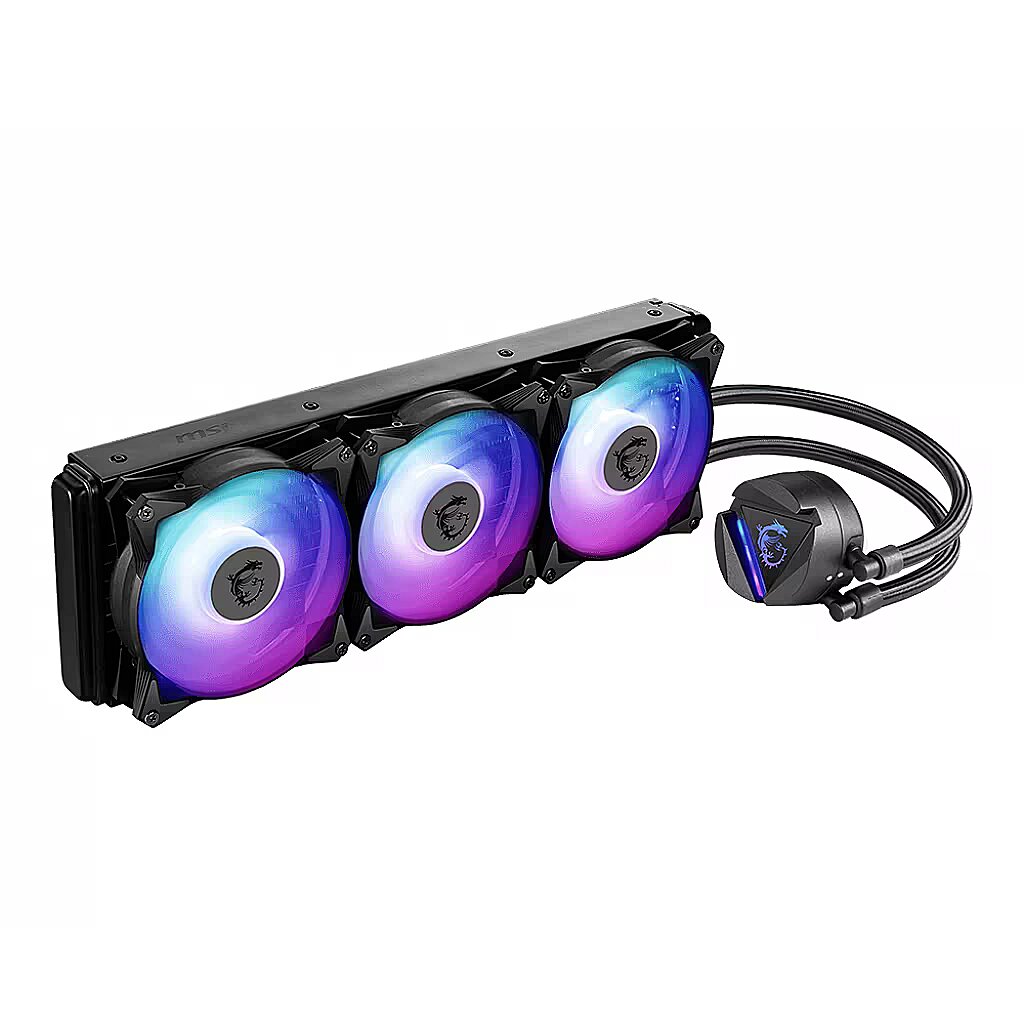

MSI MAG CoreLiquid 360R V2

Accessories included - 1 x 1 do 3 Kabel PWM wentylatora 1 x Kabel wentylatora zasilacza Molex 4-Pin do 4-Pin (2-pinowy) 1 x Kabel redukcji szumów
Air flow - 78.73 cfm
Air flow rates - 78.73 cfm
Bearing type - Ball
Brand - MSI
BrandPartCode - MAG-CRLQD-360R2
Category - Computer Cooling Systems
category - Liquid Cooling|Sets & Bundles|AIO Liquid Coolers|360 mm AiOs
Category - Root/Electronics/PC parts/Cooling/Processor fans
Category Code - COC
CnCode CnCode - 84145925
code - 306-7ZW1C41-813
Cooler type - Liquid
Cooling technology - Liquid
CPU socket - LGA1150
CPU socket - LGA1151
CPU socket - LGA1155
CPU socket - LGA1156
CPU socket - LGA1200
CPU socket - LGA1366
CPU socket - LGA1700
CPU socket - LGA2011
CPU socket - LGA2011-3
CPU socket - LGA2066
CPU socket - Socket AM2
CPU socket - Socket AM2+
CPU socket - Socket AM3
CPU socket - Socket AM3+
CPU socket - Socket AM4
CPU socket - Socket FM1
CPU socket - Socket FM2
CPU socket - Socket FM2+
CPU socket - Socket SP3
CPU socket - Socket sTRX4
CPU socket - Socket TR4
Description - Chłodzenie procesora MAG CORELIQUID 360R V2
Description - MSI LIQUID COOLING MAG CORELIQUID 360R V2
Design - Fan connector - 4-pin
Design - Illumination LED - Yes
Design - Number of fans - 3 fan(s)
Design - Product colour - Black
Design - Radiator material - Aluminum
dimensionalWeight - 2681
dimension depth - 145 mm
dimension height - 440 mm
Dimensions - Wymiary wentylatora: 120 x 120 x 25 mm Wymiary grzejnika: 394 x 120 x 27 mm Wymiary grzejnika: 394 x 120 x 27 mm
dimension weight - 2382 g
dimension width - 185 mm
ean - 4719072864088
Eans - 4719072864088
Fan - 12 cm
Fan light - Yes
Fan size group - 120mm
Fan speed - 500 ~ 2000 RPM
Fan speed (max) - 500 rpm
Fan speed (min) - 2000 rpm
Full Description Line - 360R V2|Liquid|LGA1150/LGA1151/LGA1155/LGA1156/LGA1200/LGA1700/LGA2011/LGA2011-3/LGA2066/SA/SAM2/SAM2+/SAM3/SAM3+/SAM4/SAM5/SF/SFM1/SFM2/SFM2+|Fan speed 500 ~ 2000 RPM|Air flow 78.73 cfm|Fan light|Noise level, max 34.3 dB|Weight 1.9 kg
GTIN - 4719072864088
guarantee - 36
guarantee_type - normal
Logistics data - Harmonized System (HS) code - 84733080
LongDesc - CONQUER THE BATTLEFIELDThe MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.The newly introduced MAG CORELIQUID has everything you're looking for in a liquid cooler, ranging from quality materials that provide reliable durability to heat dissipation technologies that are extremely effective. Users can even enjoy perks like ARGB lighting and a 270-degree rotating blockhead that is simple to use. On top of that, the blockhead boasts a unique irregular aesthetic that is both stylish and artistic. Every single component of the MAG CORELIQUID is designed with the end goal in mind: to provide effective cooling without any compromise.ROTATABLE BLOCKHEADMount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.RADIATOR PUMP DESIGNThe pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump's life expectancy by moving it away from the heat source.LGA 1700 COMPATIBLEThe MAG CORELIQUID R Series liquid cooler provides out of box support for LGA 1700.PUMP MOTOR RESONANCE ELIMINATIONA durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.HIGH THERMAL DISSIPATIONA split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.EVAPORATION PROOF TUBINGConstructed with three layers of netted plastic tubing and a reinforced mesh exterior.DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENTConnect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.MORE SILENCE THAN EXPECTEDMAG CORELIQUID 360R V2's noise level is significantly lower than that of competitor's by 10%.COOLING YOU CAN'T HEARFor those who prefer a quieter environment, a bundled noise reducer cable changes the fans’ speed to produce less sound while still providing good airflow.EXTENSIVE COMPATIBILITYRobust yet built for flexibility, MAG CORELIQUID has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.
LongProductName - 2000/4200 RPM, 14.3-34.3 dBA, 21.63-78.73 CFM, 1.8/4.08W, ARGB, 12V DC
LongSummaryDescription - MSI MAG CORELIQUID 360R V2 Liquid CPU Cooler '360mm Radiator, 3x 120mm ARGB PWM Fan, ARGB lighting, Center Supported, Compatible with Intel and AMD Platforms, Latest LGA 1700 ready'. Type: Liquid cooling kit, Fan diameter: 12 cm, Maximum airflow: 78.73 cfm, Minimum air pressure: 0.23 mmH2O, Maximum air pressure: 2.39 mmH2O. Product colour: Black
Model name - 360R V2
name - MAG Core Liquid 360R V2 360mm ARGB CPU Cooler
Name - MSI MAG CORELIQUID 360R V2
name - MSI MAG CoreLiquid 360R V2 Komplett-Wasserkühlung, ARGB - 360mm
Noise - 34.3 dB
Noise level, max - 34.3 dB
Number of fans - 3
Other features - Łożysko wentylatora: dwa łożyska kulkowe Oczekiwana żywotność wentylatora: 70 000 godzin Napięcie znamionowe wentylatora: 12 V DC Prąd znamionowy wentylatora: 0,15 A Pobór mocy wentylatora: 1,8 W Tryb PWM Długość kabla (kabel 5V ARGB/PWM): 550/350 mm Złącze kabla ARGB: pin + gniazdo Długość rury chłodzącej wodę: 400 mm Oświetlenie blokowe: ARGB Oczekiwana żywotność pompy: 100 000 godzin Poziom hałasu pompy: 18 dBA Prąd obciążenia pompy: 0,34 A Pobór mocy pompy: 4,08 W Prędkość pompy: 4200 obr/min Napięcie znamionowe pompy: 12 V DC Długość kabla ARGB 5V: 400 mm Złącze kabla ARGB: pin + gniazdo
Performance - Compatible processor series - 3rd Gen AMD Ryzen™ Threadripper™
Performance - Compatible processor series - 3rd Generation AMD Ryzen™ 9
Performance - Compatible processor series - AMD Ryzen 7 5th Gen
Performance - Compatible processor series - AMD Ryzen 7 5th Gen, 3rd Generation AMD Ryzen™ 9, AMD Ryzen 9 5th Gen, 3rd Gen AMD Ryzen™ Threadripper™, Intel® Core™ i7, Intel® Core™ i9
Performance - Compatible processor series - AMD Ryzen 9 5th Gen
Performance - Compatible processor series - Intel® Core™ i7
Performance - Compatible processor series - Intel® Core™ i9
Performance - Fan bearing technology - Ball bearing
Performance - Fan diameter - 12 cm
Performance - Fan diameter 2 - 12 cm
Performance - Fan noise level (max) - 34.3 dB
Performance - Fan noise level (min) - 14.3 dB
Performance - Fan speed (max) - 2000 RPM
Performance - Fan speed (min) - 500 RPM
Performance - Maximum airflow - 78.73 cfm
Performance - Maximum air pressure - 2.39 mmH2O
Performance - Minimum airflow (imperial) - 21.63 cfm
Performance - Minimum air pressure - 0.23 mmH2O
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Pump bearing technology - Ceramic bearing
Performance - Pump connector - 3-pin
Performance - Pump motor speed - 4200 RPM
Performance - Pump noise level - 18 dB
Performance - Suitable location - Motherboard, Processor
Performance - Supported processor sockets - LGA 1150 (Socket H3)
Performance - Supported processor sockets - LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+, Socket SP3, Socket TR4, Socket sTRX4
Performance - Supported processor sockets - LGA 1151 (Socket H4)
Performance - Supported processor sockets - LGA 1155 (Socket H2)
Performance - Supported processor sockets - LGA 1156 (Socket H)
Performance - Supported processor sockets - LGA 1200 (Socket H5)
Performance - Supported processor sockets - LGA 1366 (Socket B)
Performance - Supported processor sockets - LGA 1700
Performance - Supported processor sockets - LGA 2011 (Socket R)
Performance - Supported processor sockets - LGA 2011-v3 (Socket R)
Performance - Supported processor sockets - LGA 2066
Performance - Supported processor sockets - Socket AM2
Performance - Supported processor sockets - Socket AM2+
Performance - Supported processor sockets - Socket AM3
Performance - Supported processor sockets - Socket AM3+
Performance - Supported processor sockets - Socket AM4
Performance - Supported processor sockets - Socket FM1
Performance - Supported processor sockets - Socket FM2
Performance - Supported processor sockets - Socket FM2+
Performance - Supported processor sockets - Socket SP3
Performance - Supported processor sockets - Socket sTRX4
Performance - Supported processor sockets - Socket TR4
Performance - Type - Liquid cooling kit
Performance - Type - Liquid сooling kit
Power - Fan current - 0.15 A
Power - Fan power consumption - 1.8 W
Power - Fan voltage - 12 V
Power - Pump current - 340 mA
Power - Pump power consumption - 4.08 W
Power - Pump voltage - 12 V
producer - MSI
Producer - MSI
producerCode - 306-7ZW1C41-813
ProducerCode - 306-7ZW1C41-813
productName - MSI MAG CORELIQUID 360R V2 Liquid CPU Cooler '360mm Radiator, 3x 120mm ARGB PWM Fan, ARGB lighting, Center Supported, Compatible with Intel and AMD Platforms, Latest LGA 1700 ready'
ProductName - MSI MAG CORELIQUID 360R V2 Liquid CPU Cooler '360mm Radiator, 3x 120mm ARGB PWM Fan, ARGB lighting, MSI Center Supported, Compatible with Intel and AMD Platforms, Latest LGA 1700 ready'
productSize - Normal
Radiator - Aluminium
Radiator material - Aluminum
Shipping Box Depth Shipping/Package Box Dimensions - 44 cm
Shipping Box Height Shipping/Package Box Dimensions - 19 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.398 kg
Shipping Box Width Shipping/Package Box Dimensions - 15 cm
ShortDescription - wentylator CPU - chłodzenie wodne |
ShortSummaryDescription - MSI MAG CORELIQUID 360R V2 Liquid CPU Cooler '360mm Radiator, 3x 120mm ARGB PWM Fan, ARGB lighting, Center Supported, Compatible with Intel and AMD Platforms, Latest LGA 1700 ready', Liquid cooling kit, 12 cm, 78.73 cfm, Black
sizeX - 156
sizeY - 191
sizeZ - 450
Socket - LGA1150/LGA1151/LGA1155/LGA1156/LGA1200/LGA1700/LGA2011/LGA2011-3/LGA2066/SA/SAM2/SAM2+/SAM3/SAM3+/SAM4/SAM5/SF/SFM1/SFM2/SFM2+
Title - MSI MAG CORELIQUID 360R V2 Liquid CPU Cooler '360mm Radiator, 3x 120mm ARGB PWM Fan, ARGB lighting, Center Supported, Compatible with Intel and AMD Platforms, Latest LGA 1700 ready'
Type of cooling - Active
Unit Box Height - 0.19
Unit Box Length - 0.44
Unit Box Width - 0.15
Unit Brutto Volume - 0.01254 cubm
Unit Gross Weight - 2.4 kg
Unit Net Weight - 1.9 kg
URL - https://www.msi.com/Liquid-Cooling/MAG-CORELIQUID-360R-V2/Overview
Vendor Homepage - www.msi.com/Liquid-Cooling/MAG-CORELIQUID-360R-V2
vendpn - MAG CORELIQUID 360R V2
Warranty - 24 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 2350
Weight & dimensions - Fan dimensions (W x D x H) - 120 x 120 x 25 mm
Weight & dimensions - Radiator depth - 12 cm
Weight & dimensions - Radiator height - 2.7 cm
Weight & dimensions - Radiator width - 39.4 cm
Weight & dimensions - Tube length - 40 cm
Weight & dimensions - Waterblock depth - 6.68 cm
Weight & dimensions - Waterblock height - 4.86 cm
Weight & dimensions - Waterblock width - 8.06 cm
