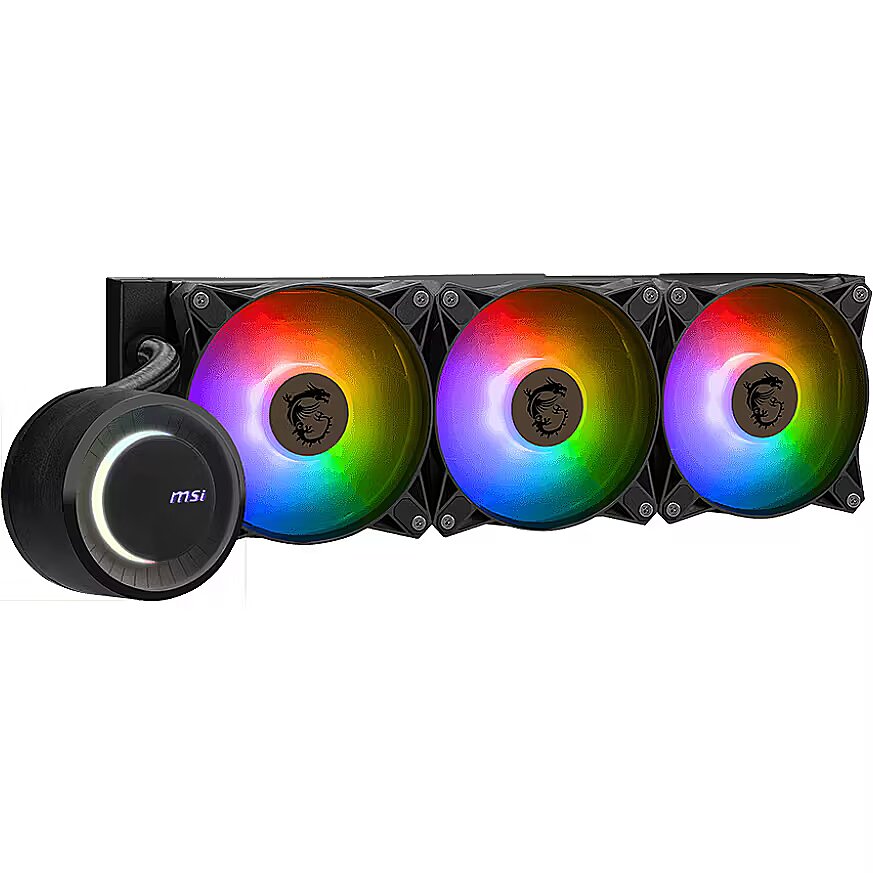

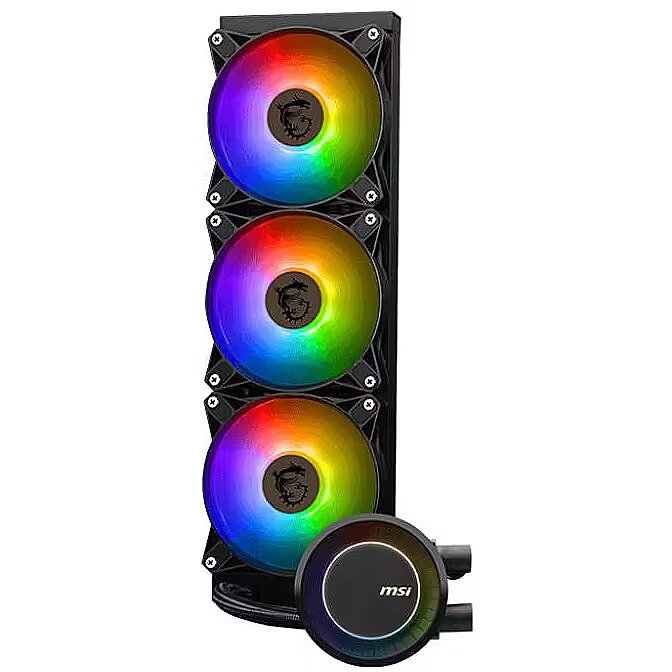

MSI MAG CoreLiquid E360

Accessories included - Kabel PWM wentylatora 1 do 3 x 1 Kabel wentylatora Molex 4-Pin do 4-Pin x 1 Kabel reduktora szumów x 1 Pasta termoprzewodząca x 1
Air flow - 75.04 cfm
Air flow rates - 75.04 cfm
Bearing type - Fluid
Brand - MSI
BrandPartCode - MAG CORELIQUID E360
Category - Computer Cooling Systems
category - Liquid Cooling|Sets & Bundles|AIO Liquid Coolers|360 mm AiOs
Category - Root/Electronics/PC parts/Cooling/Processor fans
Category Code - COC
code - 306-7ZW6E17-C24
Colour - Black
Cooler type - Liquid
Cooling technology - Liquid
CPU socket - LGA1150
CPU socket - LGA1151
CPU socket - LGA1155
CPU socket - LGA1156
CPU socket - LGA1200
CPU socket - LGA1700
Description - Chłodzenie MAG CORELIQUID E360       Powiększona powierzchnia bazowa miedzi pomaga osiągnąć najwyższą wymianę ciepła z najnowszą generacją procesorów. Zmaksymalizuj mikrokanały, aby skutecznie rozpraszać ciepło Obrotowa nasadka bloku wodnego o 270 stopni. Wentylator ARGB może zmieniać oświetlenie przez centrum MSI. Zwiększona wydajność wentylatora w celu szybkiego rozpraszania ciepła. Pompa rozdziela miejsca wody zimnej i ciepłej, aby uniknąć mieszania się temperatur wody i skutecznie zredukować źródło ciepła. Trwały trójfazowy silnik pompy generuje minimalne wibracje, co zapewnia długotrwałą pracę. Rozmieszczona przez radiator droga szybko rozprasza ciepło.
Description - The MAG CORELIQUID E Series, inspired by the passing of time and the shape of solar eclipse, is an innovative product that combines advanced cooling technology with a striking visual design. The MAG CORELIQUID E Series’ circular shape represents the cyclical nature of time and the continuous flow of energy.
Design - Fan connector - 4-pin
Design - Illumination LED - Yes
Design - Number of fans - 3 fan(s)
Design - Product colour - Black
Design - Radiator material - Aluminum
dimension depth - 142 mm
dimension height - 210 mm
Dimensions - Wymiary wentylatora: 120 x 120 x 25 mm Długość kabla (kabel 5 V ARGB / PWM): 550 / 500 mm Rozmiar radiatora: 360 mm Wymiary radiatora: 394 x 119,2 x 27 mm Długość rury chłodzącej wodą: 400 mm
dimension weight - 2540 g
dimension width - 465 mm
ean - 4711377115735
Eans - 4711377115735
Fan - 12 cm
Fan light - Yes
Fan size group - 120mm
Fan speed - 600 ~ 1800rpm
Fan speed (max) - 600 rpm
Fan speed (min) - 1800 rpm
Full Description Line - MAG CORELIQUID E360|Liquid|LGA1150/LGA1151/LGA1155/LGA1156/LGA1200/LGA1700/SAM4/SAM5/STR4/sTRX4|Fan speed 600 ~ 1800rpm|Air flow 75.04 cfm|Fan light|Noise level, max 32.5 dB|Colour Black|Weight 2 kg
GTIN - 4711377115735
guarantee - 36
guarantee_type - normal
LongDesc - MAG - Unite as OneThe MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.The MAG CORELIQUID E Series, inspired by the passing of time and the shape of solar eclipse, is an innovative product that combines advanced cooling technology with a striking visual design. The MAG CORELIQUID E Series’ circular shape represents the cyclical nature of time and the continuous flow of energy.ROTATABLE BLOCKHEADMount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.ACHIEVE FULL CPU COVERAGEBy enlarging the contact area between the coolant and the copper base of the water block, the MAG CORELIQUID E Series maximizes heat dissipation from the CPU. The enhanced density of the micro-channel design improves the efficiency of the water cooling system by enlarging the contact surface area.PUMP COOLING DESIGNEnsures that the cooled water temperature can be delivered to the desired location of the heat source, effectively reducing the temperature of the heat source.PUMP MOTOR RESONANCE ELIMINATIONA durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.HIGH THERMAL DISSIPATIONThe radiator has a 12 pathway designed to help rapidly dissipate heat.EVAPORATION PROOF TUBINGThe multi-layer structure effectively prevents the liquid from evaporating, while the reinforced mesh plastic tube enhances the durability of the exterior mesh.FAN CONSTRUCTIONThe fan's FDB bearing helps reduce noise level while minimizing vibrations.The fan blades are constructed of low impurity acrylic for better ARGB lighting presentation.INTEGRATING WITH THE SYSTEM ENVIRONMENTWith the MSI CENTER software, users can integrate MSI liquid cooling with MSI motherboard and adjust the speed of the cooling fan and pump through the motherboard. The MSI CENTER provides users with easy-to-use controls to fine-tune their hardware and achieve optimal computer performance.GLOW YOUR PCSplash on some color and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colors and fancy LED effects. MSI Mystic Light provides you complete control of RGB lighting of your PC in one software.
LongProductName - 360 mm, 4-pin, ARGB, 20 dBA, 3000 RPM, 394 x 119.2 x 27mm
LongSummaryDescription - MSI MAG CORELIQUID E360. Type: Liquid cooling kit, Fan diameter: 12 cm, Maximum airflow: 75.04 cfm. Product colour: Black
Model name - MAG CORELIQUID E360
name - MAG CORELIQUID E360 360mm 3xARGB FAN
Name - MSI MAG CORELIQUID E360
name - MSI MAG Coreliquid E360 Kompett-Wasserkühlung - 360 mm
Noise - 32.5 dB
Noise level, max - 32.5 dB
Number of fans - 3
Other features -
Performance - Fan diameter - 12 cm
Performance - Maximum airflow - 75.04 cfm
Performance - Minimum airflow (imperial) - 25.5 cfm
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Pump motor speed - 3000 RPM
Performance - Pump noise level - 20 dB
Performance - Suitable location - Motherboard, Processor
Performance - Supported processor sockets - LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700
Performance - Type - Liquid cooling kit
Power - Fan power consumption - 3 W
Power - Pump power consumption - 4.8 W
producer - MSI
Producer - MSI
ProducerCode - 306-7ZW6E17-C24
ProductName - MAG CORELIQUID E360
Radiator - Aluminium
Radiator material - Aluminum
Shipping Box Depth Shipping/Package Box Dimensions - 46.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 14.2 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.56 kg
Shipping Box Width Shipping/Package Box Dimensions - 21 cm
ShortDescription - wentylator CPU - chłodzenie wodne |
ShortSummaryDescription - MSI MAG CORELIQUID E360, Liquid cooling kit, 12 cm, 75.04 cfm, Black
Socket - LGA1150/LGA1151/LGA1155/LGA1156/LGA1200/LGA1700/SAM4/SAM5/STR4/sTRX4
Stand / CPU block - Copper
Title - MSI MAG CORELIQUID E360 computer cooling system Motherboard, Processor Liquid cooling kit 12 cm Black
Type of cooling - Active
Unit Box Height - 0.142
Unit Box Length - 0.465
Unit Box Width - 0.21
Unit Brutto Volume - 0.01387 cubm
Unit Gross Weight - 2.56 kg
Unit Net Weight - 2 kg
URL - https://www.msi.com/Liquid-Cooling/MAG-CORELIQUID-E360
Vendor Homepage - www.msi.com/Liquid-Cooling/MAG-CORELIQUID-E360
vendpn - MAG CORELIQUID E360
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Cable length - 500 m
Weight & dimensions - Fan dimensions (W x D x H) - 120 x 120 x 25 mm
Weight & dimensions - Radiator depth - 11.9 cm
Weight & dimensions - Radiator height - 2.7 cm
Weight & dimensions - Radiator width - 39.4 cm
