Deepcool AK620 WH

category - Aircooling|Coolers|CPU Coolers|Intel|Socket 2011/2066
Category - Datortehnika :: Datoru komponentes :: CPU Dzesētāji
Category - Root/Electronics/PC parts/Cooling/Processor fans
Category_1 - Obudowy i Chłodzenie
Category_2 - Coolers for CPU
code - R-AK620-WHNNMT-G-1
Code - R-AK620-WHNNMT-G-1
Code - R-AK620-WHNNMT-G1
Desc - Dzesētāja tips: CPU, Ligzda (socket): 2066/2011-v3/2011/1700/1200/1151/1150/1155 AMD AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1, Ventilatora diametrs: 120 mm, Ventilatora ātrums (apgr.min.): 1850 apgr. min., Garantija: 2 gadi
Design - Fan connector - 4-pin
Design - Number of fans - 2 fan(s)
Design - Number of heat pipes - 6
Design - Product colour - White
Design > Colour of product - White
dimensionalWeight - 1385
EAN - 6933412727453
ean - 6933412727453
Eans - 6933412727453
EAN_code - 6933412727453
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_93273_1.jpg
LargeDescHTML - AK620 WH installation guide
Link - https://www.deepcool.com/products/Cooling/cpuaircoolers/AK620-WH-High-Performance-CPU-Cooler/2022/15496.shtml
Logistics data - Harmonized System (HS) code - 84733080
Manufacturer - Deepcool
Manufacturer_code - R-AK620-WHNNMT-G-1
Name - DeepCool AK620 chłodzenie CPU - 120mm, biały
name - DeepCool AK620 CPU-Kühler - 120mm, weiß
Name - DeepCool AK620 WH, CPU cooler (white)
Name - Deepcool AK620 White
Name - Deepcool | AK620 | White | Intel, AMD | CPU Air Cooler
Other features > Bearing technology - Fluid Dynamic Bearing
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 223 mm
Package features > Gross depth master carton - 465 mm
Package features > Gross height (mm) - 194 mm
Package features > Gross height master carton - 435 mm
Package features > Gross width (mm) - 160 mm
Package features > Gross width master carton - 340 mm
Package features > Net weight master carton - 13.896 kg
Package features > Packing quantity - 8 pc(s)
Package features > Palette Qty - 200 pc(s)
Package features > Paper/Pasteboard - 250.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.30 kg
Package features > Tare weight master carton - 1.169 kg
Package features > Volume (m3) - 0.00692192 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - Fan
Packaging content - CPU bracket(s) - Yes
Packaging content - Installation instruction - Yes
Packaging content - Mounting kit - Yes
Packaging content - Package type - Box
Packaging content - Screws included - Yes
Packaging content - Thermal pad included - Yes
Performance - Fan bearing technology - Fluid Dynamic Bearing (FDB)
Performance - Fan diameter - 12 cm
Performance - Fan speed (max) - 1850 RPM
Performance - Fan speed (min) - 500 RPM
Performance - Maximum airflow - 68.99 cfm
Performance - Maximum air pressure - 2.19 mmH2O
Performance - Noise level (high speed) - 28 dB
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Quantity per pack - 1 pc(s)
Performance - Rotational speed (max) - 1850 RPM
Performance - Rotational speed (min) - 500 RPM
Performance - Suitable location - Processor
Performance - Supported processor sockets - LGA 1150 (Socket H3)
Performance - Supported processor sockets - LGA 1151 (Socket H4)
Performance - Supported processor sockets - LGA 1155 (Socket H2)
Performance - Supported processor sockets - LGA 1200 (Socket H5)
Performance - Supported processor sockets - LGA 1700
Performance - Supported processor sockets - LGA 2011 (Socket R)
Performance - Supported processor sockets - LGA 2011-v3 (Socket R)
Performance - Supported processor sockets - LGA 2066
Performance - Supported processor sockets - Socket AM4
Performance - Type - Air cooler
Performance > Minimum airflow - 68.99 cfm
Performance > Type - CPU Air Cooler
Power - Fan current - 0.12 A
Power - Fan power consumption - 1.44 W
Power - Fan voltage - 12 V
Power - Thermal Design Power (TDP) - 260 W
Producer - Deepcool
producerCode - R-AK620-WHNNMT-G-1
ProducerCode - R-AK620-WHNNMT-G-1
productName - DeepCool AK620 WH Processor Air cooler 12 cm White 1 pc(s)
productSize - Normal
ShortDescription -
sizeX - 160
sizeY - 195
sizeZ - 222
Technical details > Fan speed (max) - 1850 RPM
Technical details > Fan speed (min) - 500 RPM
Technical details > Gross weight - 1.737 kg
Technical details > Net weight - 1.437 kg
Technical details > Noise level (max) - ≤28 dB
Technical details > Processor brand name - Intel, AMD
Technical details > Producer - Deepcool
Technical details > Producer product name - AK620

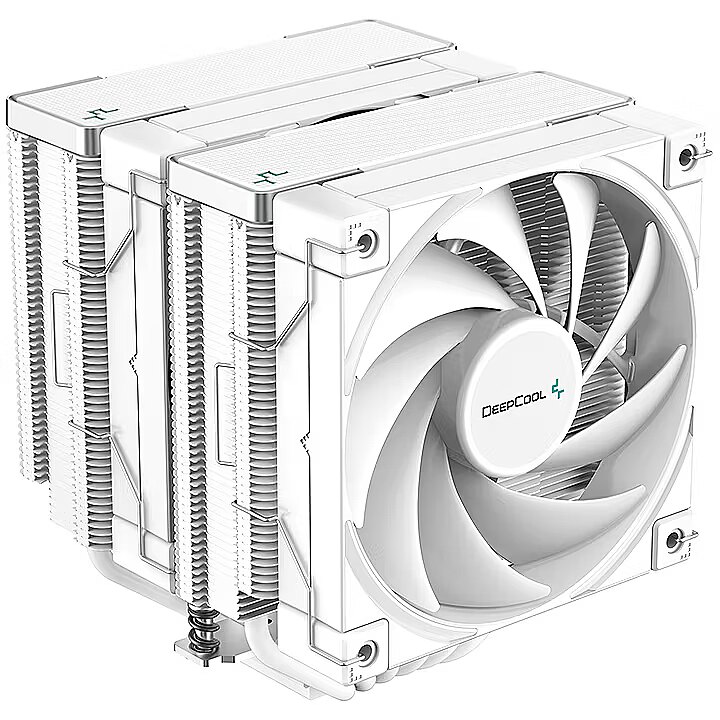

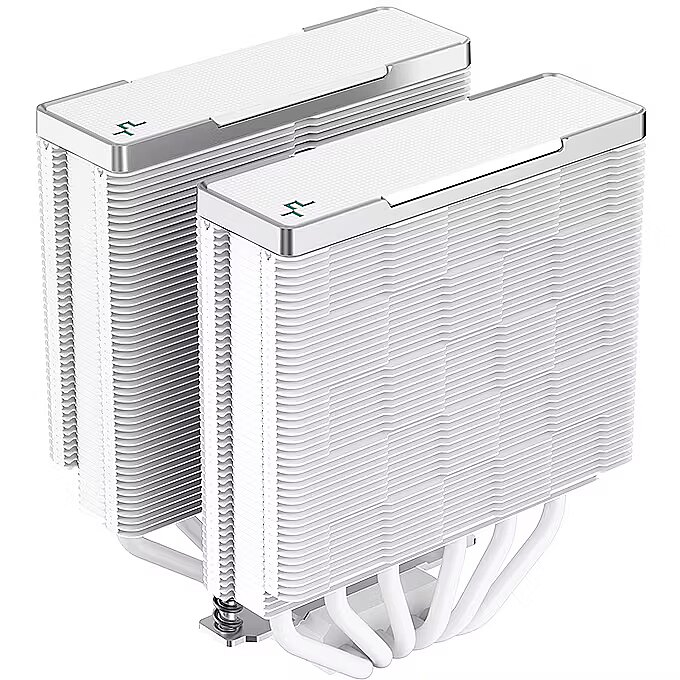

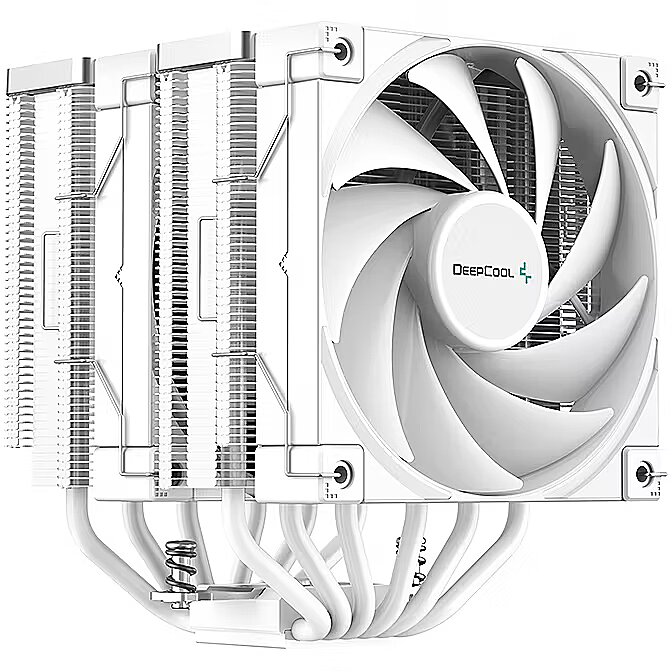

Technical_details - AK620 WH, CPU cooler The DeepCool AK620 is a high-performance CPU cooler with six copper heat pipes. With its dense dual-tower fin array and two 120 FDB fans, it ensures superior cooling and quiet efficiency. The AK620 features a precision-machined convex copper base and six copper heat pipes that allow for improved heat transfer. The dense matrix fin array in a dual-tower heatsink layout provides better efficiency for high-performance systems. Dual 120 PWM fans with superior fluid dynamic bearings provide silent operation with no loss of cooling performance for a balanced tuning. With a maximum thermal output of 260W and improved airflow to reduce temperatures, the AK620 is also suitable for demanding system applications. The all-metal mounting bracket kit offers a stable and easy installation process for both Intel and AMD platforms. Type: Processor cooler Color white EAN: 6933412727453 Manufacturer No.: R-AK620-WHNNMT-G-1 Type: CPU cooler with fan CPU cooler design: dual tower Suitable sockets: 1150, 1151, 1155, 2011, 2011-3, AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+, AM4, 2066, 1200, 1700 Fastening: screwed Loudness: 28dB CPU: up to max. TDP | 260 watts Equipment: thermal paste/pad Speed: 500 to 1,850 rpm Material heat sink: aluminum, copper Fan Bearing: FDB - Fluid Dynamic Bearing Airflow: 68.99 cfm Power connector: 4-pin PWM Voltage range: 12 volts Power consumption: 1.44 watts Additional information: 6x 6mm heat pipes Dimensions: Fan1 | Quantity: 2 pieces, width: 120 mm, height: 120 mm, depth: 25 mm Dimensions: Heatsink | Width: 127mm x Height: 157mm x Depth: 110mm Dimensions: Overall | Width: 129mm x Height: 160mm x Depth: 138mm
Warranty - 24
Warranty - 24 month(s)
warrantyLength - 36
warrantyType - G
Weight - 1,73
weight - 1710
Weight & dimensions - Depth - 138 mm
Weight & dimensions - Fan dimensions (W x D x H) - 120 x 120 x 25 mm
Weight & dimensions - Heat pipes diameter - 6 mm
Weight & dimensions - Height - 160 mm
Weight & dimensions - Radiator depth - 11 cm
Weight & dimensions - Radiator height - 15.7 cm
Weight & dimensions - Radiator width - 12.7 cm
Weight & dimensions - Weight - 1.46 kg
Weight & dimensions - Width - 129 mm
Weight & dimensions > Fan dimensions (W x D x H) - 120 × 120 × 25 mm
