Air flow rates - 61.36 cfm
Brand - Zalman
BrandPartCode - CNPS9X PERFORMA BLACK
Category - Computer Cooling Systems
Cooling technology - Air
CPU socket - LGA1150
CPU socket - LGA1151
CPU socket - LGA1152
CPU socket - LGA1154
CPU socket - LGA1155
CPU socket - LGA1156
CPU socket - LGA1200
CPU socket - LGA1700
CPU socket - Socket AM4
CPU socket - Socket AM5
Description - CNPS9X PERFORMA BLACK Minimize noise and air resistance with Vortex Breaker Blade with PWM control Applied rubber damper to minimize vibration noise during operation. Minimize heat resistance with DTH technology. Four high-performance nickel-plated copper heat pipes. Excellent thermal conductive thermal compound (ZM-STC8) provided. Fully compatible with the latest high-performance processors Intel, AMD Platform
It is fully compatible with the latest intel's processors and AMD Ryzen. Power management technology for each processor is seamless, so you dont have to worry about compatibility issues.
Vortex Breaker Blade(VBB)
Unlike regular cooling fans, VBB provides minimum resistance to airflow allowing minimum operation noise.
Anti-vibration rubber damper
Applied rubber damper to minimize vibration noise during operation.

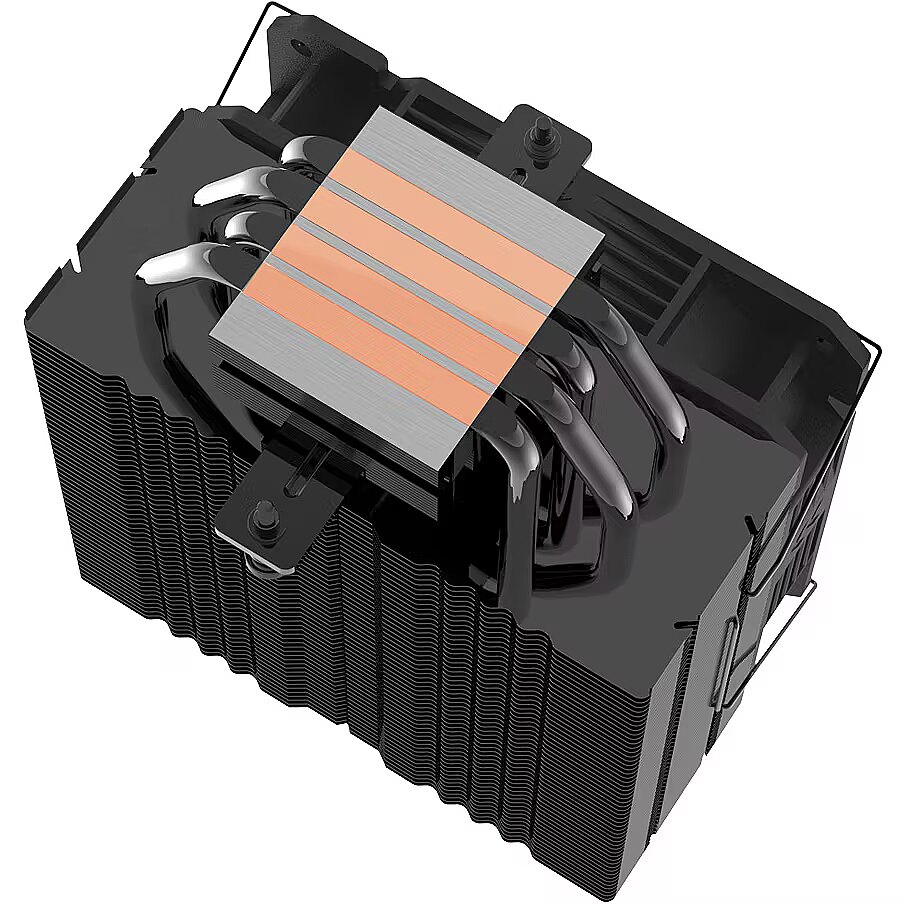

DTH (Direct Touch Heat pipes)
Direct heat transfers to heat pipes maximize cooling performance and minimize heat resistance.
Nickel-plated copper heat pipes
Nickle-plated adds aesthetic to CNPS 9X Performa and increases thermal conductivity and rust resistance of the heat pipes.
Electrophoretic coating Process
Special black coating provides optimal heat transfer with electrophoresis.
Excellent thermal conductive thermal compound ZM-STC8
CNPS9X Performa comes with ZM-STC8. It will provide ideal heat transfer to keep your system cool and ready for heavy loads. Minimizing heat resistance and filling in spaces between your cooler(DTH) and CPU will provide you excellent gaming experience.
Design - Fan connector - 4-pin
Design - Material - Aluminium, Copper
Design - Number of fans - 1 fan(s)
Design - Number of heat pipes - 4
Design - Product colour - Black
dimension depth - 185 mm
dimension height - 150 mm
Dimensions - 122 x 76 x 157 mm
dimension weight - 1020 g
dimension width - 130 mm
ean - 8809213764639
Fan - 12 cm
Fan speed (max) - 1800 rpm
Fan speed (min) - 700 rpm
GTIN - 8809213764639
guarantee - 24
guarantee_type - normal
LongDesc - Zalman CNPS9X PERFORMA BLACK (Ultra Quiet CPU Cooler) / - 120mm PWM White LED Fan / - 600 ~ 1500RPM plm10%, Intel LGA 115x, 1200, AMD AM4, AM3+, AM3, FM2+, FM2Main features- Minimize noise and air resistance with Vortex Breaker Blade with PWM control- Applied rubber damper to minimize vibration noise during operation- Minimize heat resistance with DTH technology- Four high-performance black coated copper heat pipes- Excellent thermal conductive thermal compound (ZM-STC8) providedFully compatible with the latest high-performance processorsIt is fully compatible with the latest intel’s processors and AMD Ryzen. Power management technology for each processor is seamless, so you don’t have to worry about compatibility issues.Vortex Breaker Blade(VBB)Unlike regular cooling fans, VBB provides minimum resistance to airflow allowing minimum operation noise. Like the slit of a bird wing, VBB provides space for the air to travel through, eliminating vortex to form within the airflow.Anti-vibration rubber damperApplied rubber damper to minimize vibration noise during operation.DTH (Direct Touch Heat pipes)Direct heat transfers to heat pipes maximize cooling performance and minimize heat resistance.Black coated copper heat pipesBlack coated adds aesthetic to CNPS 9X Performa Black and increases thermal conductivity and rust resistance of the heat pipes.Electrophoretic coating ProcessThe unique black coating using the electrophoresis method provides a sleek stealth look.Optimized PWM controlCNPS 9X Performa’s Fan has been optimized to perform at its best.Excellent thermal conductive thermal compound ZM-STC8CNPS9X Performa Black comes with ZM-STC8. It will provide ideal heat transfer to keep your system cool and ready for heavy loads. Minimizing heat resistance and filling in spaces between your cooler(DTH) and CPU will provide you excellent gaming experience.SpecificationsModel: CNPS9X PERFORMA BLACKDimensions: 122 x 76 x 157(H)mmMaterials: Pure Copper, Pure AluminumWeight: 680 gHeat Dissipation Area: 6,510 cm2Heat Pipe: 4Q’Max: 180 WFan Dimensions: 120 x 120 x 25(H)mmFan Bearing Type: Hydro BearingFan Speed: 700 ∼ 1,800 RPM ± 10%Max. Fan Noise Level: 28 dB(A) ± 10%Max. Fan Air Flow: 61.36CFM ± 10%Max. Fan Air Pressure: 1.43mm H2O ± 10%Fan Life Span: 50,000 hoursFan Connector Type: 4-PinFan Control Method: PWM ControlRated Voltage: 12V DCRated Current: 0.15APower Consumption: 1.8WSocket Compatibility: Intel Socket LGA1700/1200/115X, AMD Socket AM4
LongProductName - Zalman CNPS9X PERFORMA BLACK (Ultra Quiet CPU Cooler) / - 120mm PWM White LED Fan / - 600 ~ 1500RPM plm10%, Intel LGA 115x, 1200, AMD AM4, AM3+, AM3, FM2+, FM2
LongSummaryDescription - Zalman CNPS9X PERFORMA BLACK. Type: Air cooler, Fan diameter: 12 cm, Airflow: 104.25 m³/h, Maximum air pressure: 1.43 mmH2O. Width: 122 mm, Depth: 76 mm, Height: 157 mm. Product colour: Black
name - CPU Cooler CNPS9X PERFORMA Black
Noise - 28 dB
Number of fans - 1
Number of Heatpipe tubes - 4
Other features - Material: Copper, Aluminum
Performance - Airflow - 104.25 m³/h
Performance - Fan's mean time to failure (MTTF) - 50000 h
Performance - Fan bearing technology - Hydro bearing
Performance - Fan diameter - 12 cm
Performance - Fan noise level (min) - 28 dB
Performance - Fan speed (max) - 1800 RPM
Performance - Fan speed (min) - 700 RPM
Performance - Maximum air pressure - 1.43 mmH2O
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Suitable location - Processor
Performance - Supported processor sockets - LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4
Performance - Type - Air cooler
Power - Power consumption (typical) - 1.8 W
Power - Rated current - 0.15 A
Power - Rated voltage - 12 V
producer - Zalman
ProductName - CNPS9X PERFORMA BLACK
ShortSummaryDescription - Zalman CNPS9X PERFORMA BLACK, Air cooler, 12 cm, 104.25 m³/h, Black

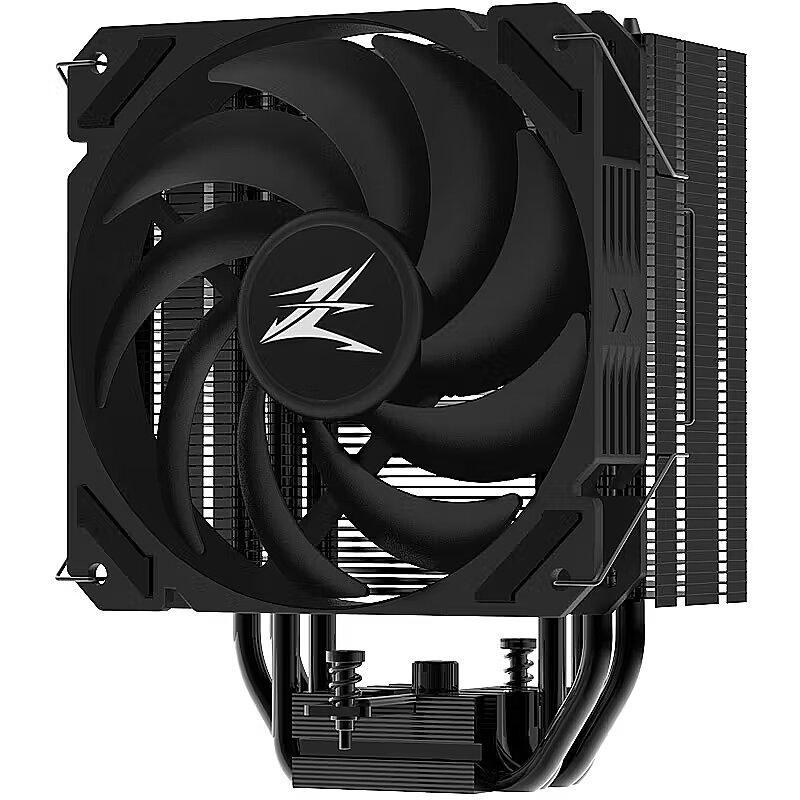

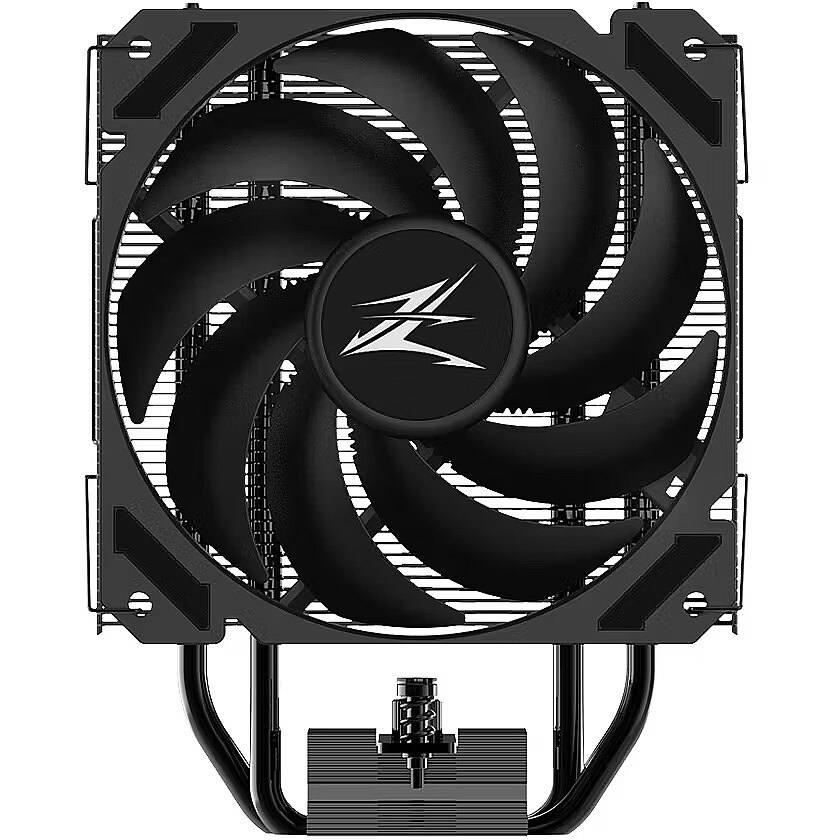

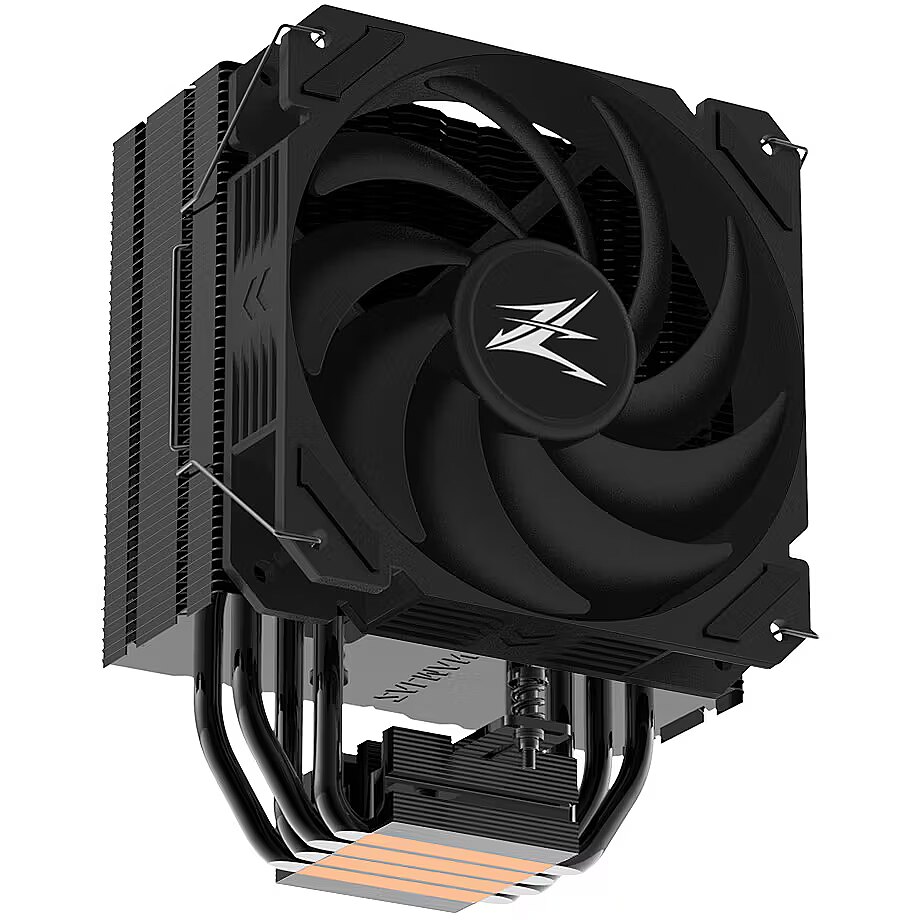

Title - Zalman CNPS9X PERFORMA BLACK computer cooling system Processor Air cooler 12 cm
Type of cooling - Active
URL - https://www.zalman.com/EN/Product/ProductDetail.do?pageIndex=1&pageSize=10&productSeq=1376&searchCategory1=4&searchCategory2=-99&searchCategory3=-99&searchKey=&searchWord=&active=pro_featureTab#pro_detail_tab
vendpn - CNPS9X PERFORMA BLACK
WarrantyInfo -
Weight - 680 g
Weight & dimensions - Depth - 76 mm
Weight & dimensions - Fan dimensions (W x D x H) - 120 x 120 x 25 mm
Weight & dimensions - Height - 157 mm
Weight & dimensions - Weight - 680 g
Weight & dimensions - Width - 122 mm
