category - PC Components|Network & Adapter Cards|Adapter Cards|USB 3.0
Category_1 - Controllers
Category_2 - Controllers - USB
code - SST-EC04-E
ean - 4710007220573
EAN_code - 4710007220573
Manufacturer - Silverstone Technology
Manufacturer_code - SST-EC04-E
Name - SilverStone SST-EC04-E - Controller USB 3.0
name - SilverStone SST-EC04-E PCIe-Karte für 2 int./ext. USB-3.0-Ports

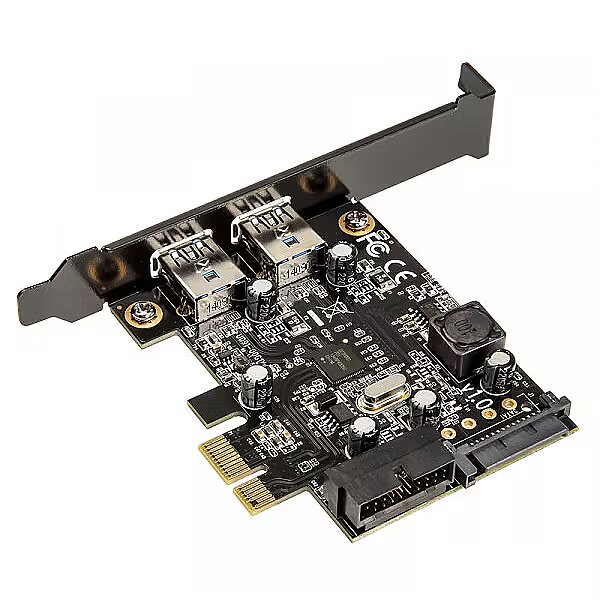

Technical_details - SilverStone created an excellent extension card product, the EC04-E, which connects to the motherboard via single lane PCI Express 2.0 to support two external and a dual port USB 3.0 connector for maximum compatibility and flexibility. This card is a great add-on for systems that require connections to multiple USB 3.0 devices such as SilverStone’s own USB 3.0 enclosures RVS02 and TS07. - USB 3.0 with two external standard Type-A ports and one dual port internal connector
- PCI Express 2.0 with single lane (x1) throughput 5Gbit/s
- Supports simultaneous operation of multiple USB 3.0/2.0/1.1 devices

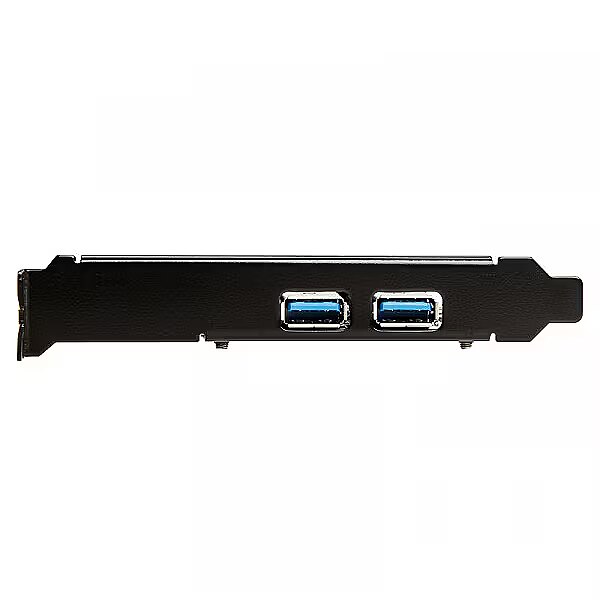

- Adds four total USB 3.0 ports to your system
- Built-in power connector to receive extra power from system power supply Controller Type USB 3.0 Connection Type PCIe 2.0 x1 Ports (extern) USB-A 2 Adapter Required Yes Protocols USB 3.0 Data Rate 600 MB/s 5 DTR Controller Chip NEC uPD720201 Maximum Devices 127 Channels 0 Design also suitabel for Low-Profile Yes Compatible to Windows XP, Vista, 7(32bit/64bit)
Weight - 0,14
