VESA support
: 100 x 100, 200 x 200, 400 x 200, 400 x 400
More detailed specification

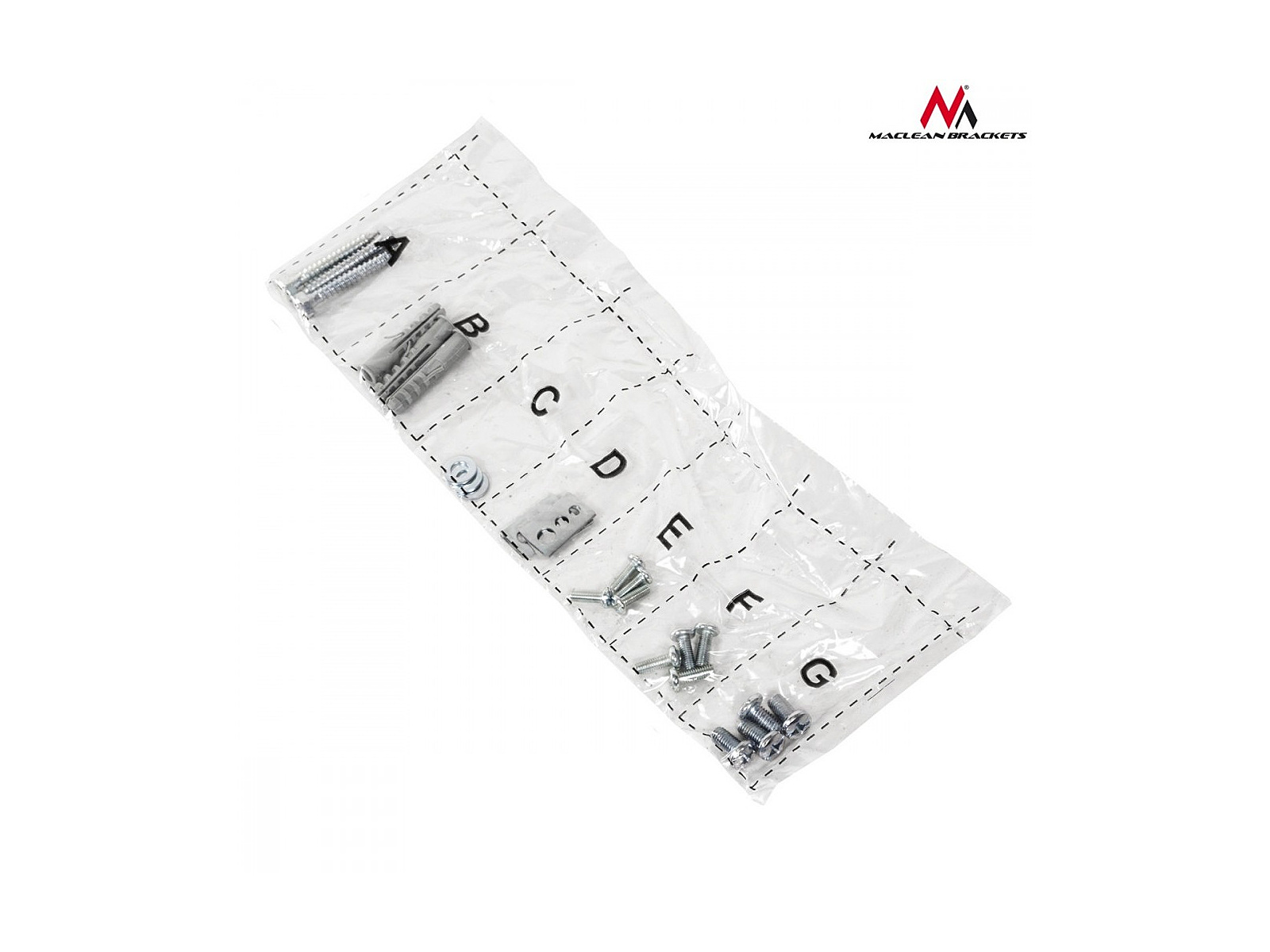

Accessories included - - Zestaw śrub montażowych do ściany oraz do przykręcenia telewizora
- Polska instrukcja montażu
Category - Root/Electronics/PC peripherals/Accessories/Grip holders/Wall brackets
Color - Black
Corner mount - No

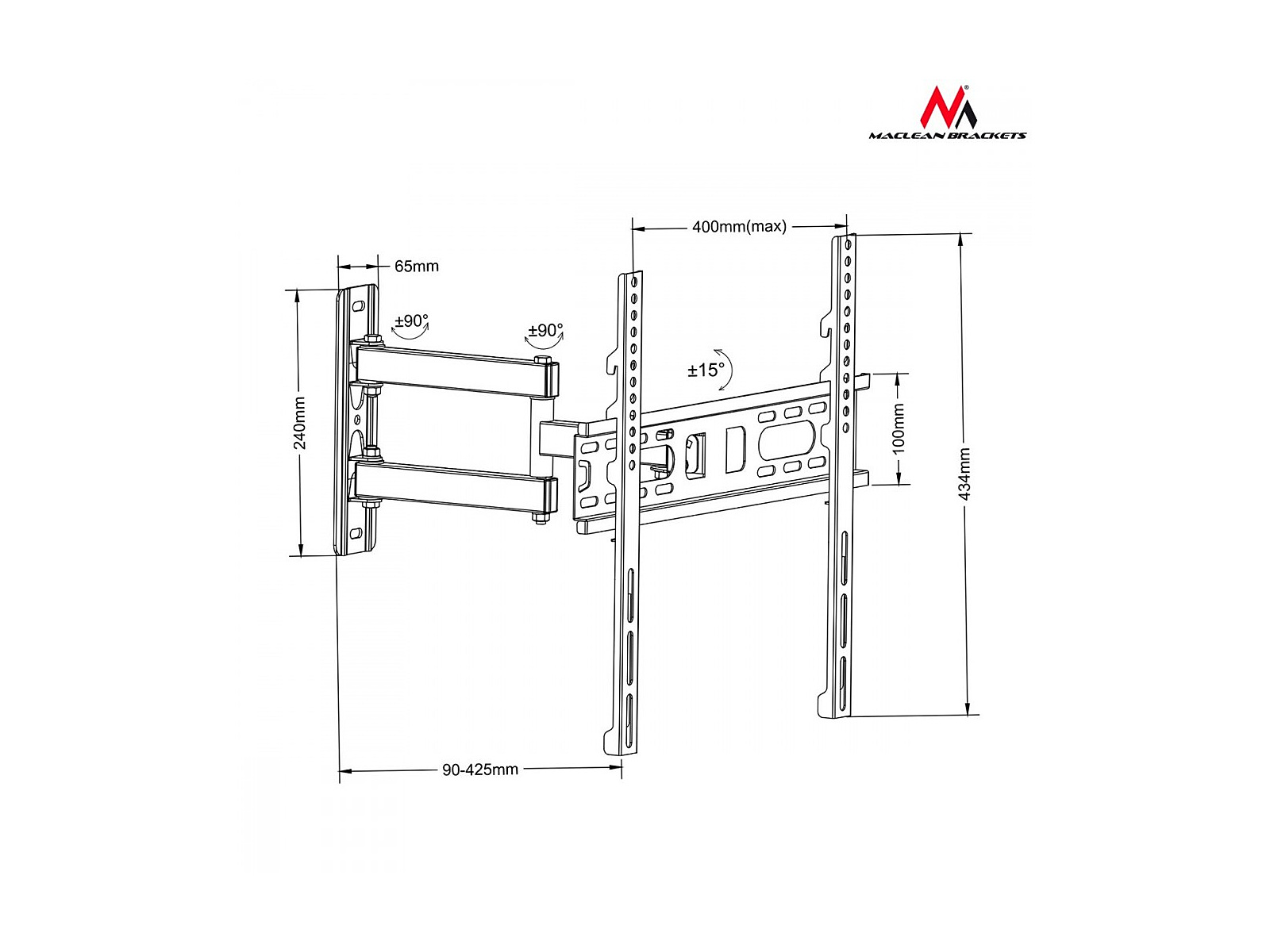

Description - Maclean's universal wall mount is safe for both LED and LCD as well as plasma screens. Wall bracket fits TVs from 26 "to 60" with a weight of up to 30kg. Suitable for all brands with VESA standard hole spacing up to 400x400 The bracket allows a rotation of up to 90 degrees either to the left or to the right. The screen can also be tilted up to 15 degrees down or up. You can also adjust the wall distance from 90 up to 425 mm. The given screen size is only a suggestion. The handle can be mounted larger TV if it has no more than the maximum weight and is within the specified VESA standard. All this is rounded off by a complete set of screws and plugs as well as the operating instructions to make the installation as fast and simple as possible. Brand: Maclean Brackets Model: MC-761 Type: TV / Monitor Wall Mount Load capacity: Max. 30 kg Screen diagonal: 26 - 60 "inches Horizontal VESA hole spacing: Max. 400 mm Vertical VESA-hole spacing: Max. 400 mm Wall distance: 90 - 425 mm Tilt angle: 15 ° degrees Angle of rotation: 3x 90 ° degrees Material: High-quality metal construction Color: Black powdercoated Mounting accessories & instructions incl.
dimensionalWeight - 2649
dimension depth - 105 mm
dimension height - 510 mm
Dimensions -
dimension weight - 2800 g
dimension width - 270 mm
ean - 5902211107163
Eans - 5902211107163
Features - Distance to the wall (max) - 44,8 cm
Features - Distance to the wall (min) - 9 cm
Features - Housing material - Steel
Features - Maximum screen size - 139.7 cm (55")
Features - Maximum weight capacity - 30 kg
Features - Minimum screen size - 66 cm (26")
Features - Panel mounting interface - 100 x 100 mm
Features - Panel mounting interface - 200 x 200
Features - Panel mounting interface - 200 x 400
Features - Panel mounting interface - 400 x 400
Features - Product colour - Black
Features - Product type - Grip
guarantee - 24
guarantee_type - external
Load (max) - 30 kg
name - Brackest for TV MC-761 26-55 cali 35kg black
Name - Maclean TV/LCD MC-761
Other features -
producer - Maclean
Producer - Maclean
producerCode - MC-761
ProducerCode - MC-761
productName - Maclean MC-761 Wall Bracket Suitable For TV 26 "to 55" to 30 kg Black
productSize - Normal
Range (max) - 425 mm
Range (min) - 90 mm
Range adjustment - No
Screen size (max) - 60 ''
Screen size (min) - 26 ''
ShortDescription -
sizeX - 495
sizeY - 265
sizeZ - 101
Stuff - Metal
Type - Wall
Usage - Monitors
Usage - TV
vendpn - MC-761
Vertical adjustment - 15 °
VESA - 100 x 100
VESA - 200 x 200
VESA - 400 x 200
VESA - 400 x 400
warrantyLength - 24
warrantyType - F
weight - 2840
