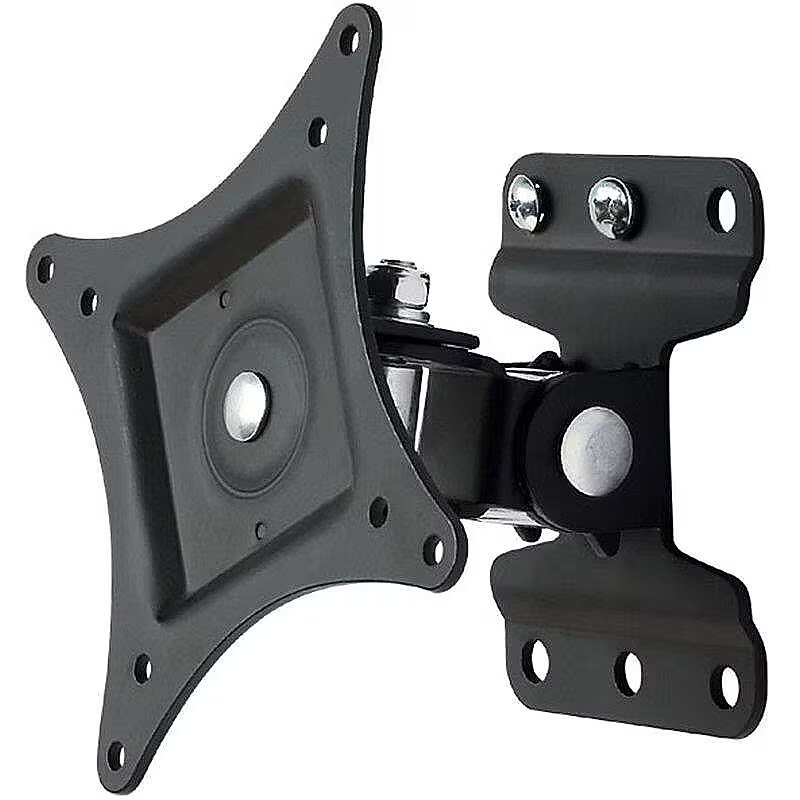

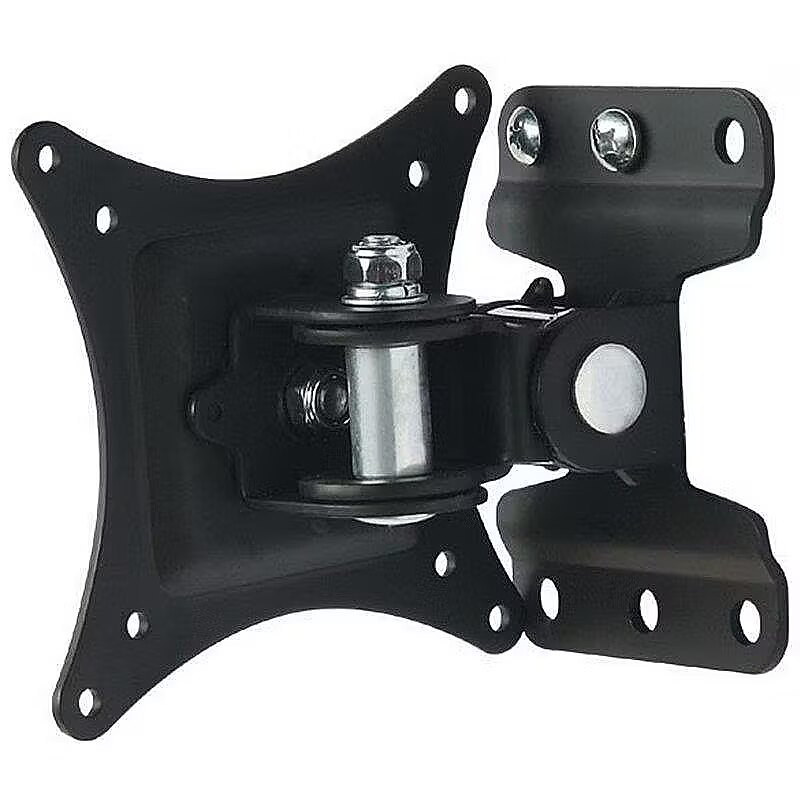

Techly Full Motion Wall Bracket for TV, 13-30"

Accessories included - - Wall mount
- Fitting elements
- User's Guide
Brand - Techly
BrandPartCode - ICA-LCD 201BK
Category - Root/Electronics/PC peripherals/Accessories/Grip holders/Wall brackets
Category - TV Mounts & Stands
Color - Black
Corner mount - No
Description - Wall mount LCD/LED 13-30 inches, 23kg
- Enables secure mounting on the LCD / LCD display or TV
- Steel construction guarantees maximum safety
- Mounting the display in VESA standard
- Ability to adjust the tilt angle
- The ability to adjust the rotation in the horizontal plane
- Adjustable vertical rotation (PIVOT)
- Ideal for home, office and commercial use
Design - Anti-theft function - No
Design - Product colour - Black
dimensionalWeight - 263
dimension depth - 85 mm
dimension height - 125 mm
Dimensions -
dimension weight - 764 g
dimension width - 120 mm
ean - 8057685301849
Eans - 8057685301849
Ergonomics - Angle of rotation - 360°
Ergonomics - Built-in spirit level - No
Ergonomics - Distance to the wall (max) - 9.8 cm
Ergonomics - Distance to the wall (min) - 9.8 cm
Ergonomics - Swivel angle - 60°
Ergonomics - Swivel angle range - 0 - 360°
Ergonomics - Tilt angle range - -15 - 15°
GTIN - 8057685301849
guarantee - 36
guarantee_type - external
Horizontal adjustment - 60 °
Load (max) - 23 kg
Logistics data - Harmonized System (HS) code - 85299097
LongDesc -
LongProductName - 13"-30" Wall Bracket for LED LCD TV Full Motion
LongSummaryDescription - Techly 13-30" Wall Bracket for LED LCD TV Full Motion" ICA-LCD 201BK. Maximum weight capacity: 23 kg, Minimum screen size: 33 cm (13"), Maximum screen size: 76.2 cm (30"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Tilt angle range: -15 - 15°, Swivel angle range: 0 - 360°, Angle of rotation: 360°, Distance to the wall (min): 9.8 cm, Distance to the wall (max): 9.8 cm. Product colour: Black
Mounting - Maximum screen size - 76.2 cm (30")
Mounting - Maximum VESA mount - 100 x 100 mm
Mounting - Maximum weight capacity - 23 kg
Mounting - Minimum screen size - 33 cm (13")
Mounting - Minimum VESA mount - 75 x 75 mm
Mounting - Mounting type - Wall
Mounting - Number of displays supported - 1
Name - Techly Uchwyt ścienny LCD (301849) 30"
name - Wall mount LCD/LED 13-30 inches black, 23kg
Other features - PIVOT: 360°
Other features - Number of products included - 1 pc(s)
Packaging content - Mounting kit - Yes
producer - Techly
Producer - Techly
producerCode - 301849
ProducerCode - 301849
ProductName - 13-30" Wall Bracket for LED LCD TV Full Motion" ICA-LCD 201BK
productName - Techly 13-30" Wall Bracket for LED LCD TV Full Motion" ICA-LCD 201BK
productSize - Normal
Range (max) - 98 mm
Range adjustment - No
Screen size (max) - 30 ''
Screen size (min) - 13 ''
ShortDescription - Solidne, regulowane mocowanie LCD 13-30" do 23kg
ShortSummaryDescription - Techly 13-30" Wall Bracket for LED LCD TV Full Motion" ICA-LCD 201BK, 75 x 75 mm, 100 x 100 mm, -15 - 15°, 0 - 360°, 360°, Black
sizeX - 123
sizeY - 87
sizeZ - 123
Stuff - Steel
Technical details - Compliance certificates - RoHS
Technical details - Number of joints - 1
Technical details - Sustainability certificates - RoHS
Technical details - Warranty period - 10 year(s)
Title - Techly 13-30" Wall Bracket for LED LCD TV Full Motion" ICA-LCD 201BK
Type - Wall
URL - https://www.techly.com/13-30-wall-bracket-for-led-lcd-tv-full-motion.html
Usage - Monitors
Usage - TV
vendpn - 301849
Vertical adjustment - 15 °
VESA - 75 x 75
VESA - 100 x 100
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 0.744 kg
weight - 708

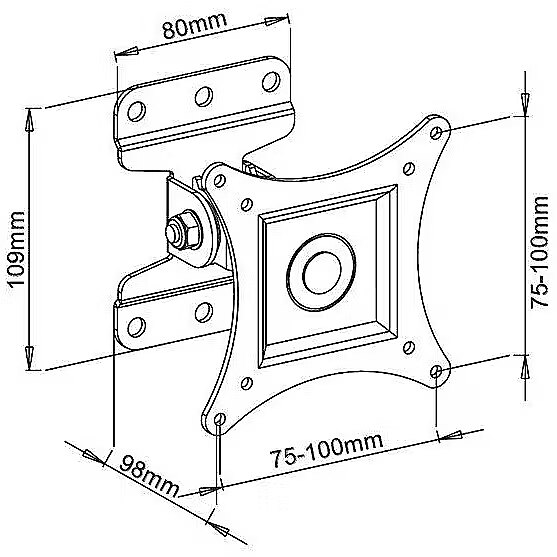

Weight & dimensions - Depth - 98 mm
Weight & dimensions - Height - 109 mm
Weight & dimensions - Weight - 781 g
Weight & dimensions - Width - 80 mm
