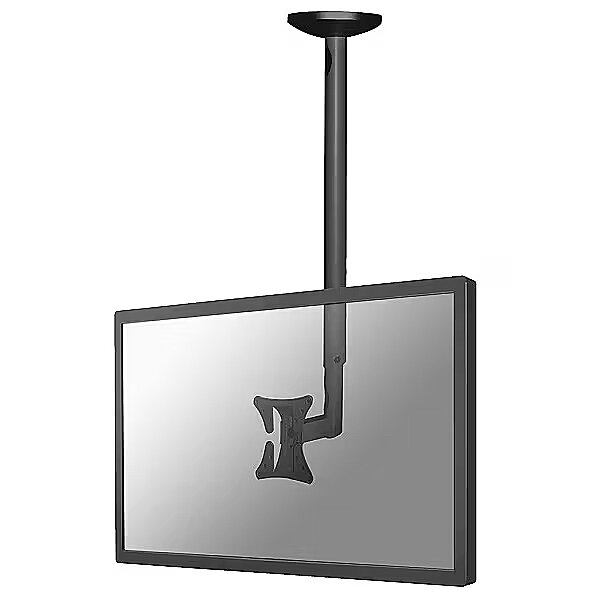

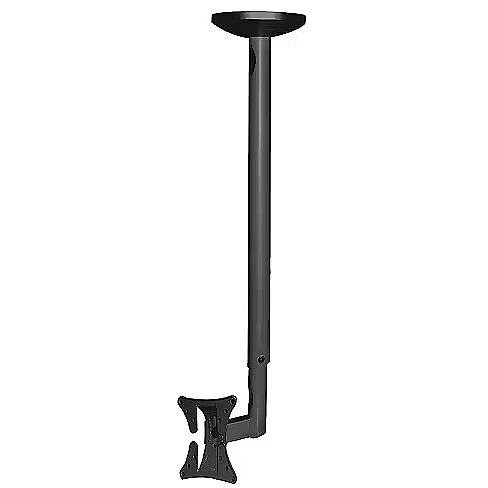

Newstar TV/Monitor Ceiling Mount, 10"-30"

50 mm x 50 mm VESA mounting interface - Yes
100 mm x 100 mm VESA mounting interface - Yes
Accessories included -
Brand - Neomounts
BrandPartCode - FPMA-C050BLACK
Category - Signage Display Mounts
Category Code - MAS
Color - Black
Colour - Black
Corner mount - No
Description - NEWSTAR FLAT SCREEN CEILING MOUNT (HEIGHT: 60-85 CM) 10-30" BLACK
Description - The NewStar ceiling mount, model FPMA-C050BLACK is a tilt- and swivel ceiling mount for flat screens up to 30”. This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option. NewStars’ unique tilt (40°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 50 to 85 centimeters. A unique cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy. NewStar FPMA-C050BLACK has two pivot points and is suitable for screens up to 30" (75 cm). The weight capacity of this product is 20 kg. The ceiling mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using NewStar VESA adapter plates. All installation material is included with the product. Screens: 1 Screen size: 10-30" Max. weight:20kg VESA minimum: 50x50mm VESA maximum: 100x100mm Depth: 13cm Height: 50-85cm Tilt: 40° Swivel: 180°
Description - Uchwyt sufitowy do telewizora/monitora do ekranu 10"-30", z regulacją wysokości - czarny
Design - Housing material - Steel
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 60 mm
dimension height - 530 mm
Dimensions -
dimension weight - 1968 g
dimension width - 255 mm
ean - 8717371442460
Ergonomics - Depth adjustment - 13 cm
Ergonomics - Height adjustment - Yes
Ergonomics - Height adjustment range - 600 - 850 mm
Ergonomics - Height adjustment type - Manual
Ergonomics - Swivel angle - 180°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle - 40°
Ergonomics - Tilt angle range - 0 - 40°
Fits screens sized - 10-30"
Full Description Line - Max. weight 20 kg|Fits screens sized 10-30"|50 mm x 50 mm|100 mm x 100 mm|Colour Black
GTIN - 8717371442460
guarantee - 60
guarantee_type - normal
Height - 251.000000
Height adjustment - Yes
Length - 60.000000
Load (max) - 20 kg
Logistics data - Harmonized System (HS) code - 7326909890
Logistics data - Master (outer) case gross weight - 10.5 kg
Logistics data - Master (outer) case height - 270 mm
Logistics data - Master (outer) case length - 320 mm
Logistics data - Master (outer) case net weight - 7.7 kg
Logistics data - Master (outer) case width - 545 mm
Logistics data - Products per master (outer) case - 5 pc(s)
Logistics data - Products per pallet (EU) - 120 pc(s)
Logistics data - Quantity per master (outer) case - 5 pc(s)
LongDesc - The Neomounts ceiling mount, model FPMA-C050BLACK is a tilt- and swivel ceiling mount for flat screens up to 30". This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option.Neomounts versatile tilt (40°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 50 to 85 centimetres. An innovative cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy.Neomounts FPMA-C050BLACK has two pivot points and is suitable for screens up to 30" (76 cm). The weight capacity of this product is 20 kg. The ceiling mount is suitable for screens that meetVESA hole pattern 50x50 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.All installation material is included with the product.
LongProductName - Neomounts TV/Monitor Ceiling Mount for 10"-30" Screen, Height Adjustable - Black
LongSummaryDescription - Neomounts monitor ceiling mount. Maximum weight capacity: 20 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 76.2 cm (30"), Minimum VESA mount: 50 x 50 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment range: 600 - 850 mm, Tilt angle range: 0 - 40°, Swivel angle: 180°. Product colour: Black
Manufacturer - NEOMOUNTS
ManufacturerPartNumber - FPMA-C050BLACK
Max. weight - 20 kg
Maximum weight (capacity), kg - 20
Motorized - No
Mounting - Maximum screen size - 76.2 cm (30")
Mounting - Maximum VESA mount - 100 x 100 mm
Mounting - Maximum weight capacity - 20 kg
Mounting - Minimum screen size - 25.4 cm (10")
Mounting - Minimum VESA mount - 50 x 50 mm
Mounting - Mounting type - Ceiling
Mounting - Number of displays supported - 1
Mounting - Panel mounting interface - 75 x 75,100 x 100,50 x 50
name - FPMA-C050BLACK monitor ceiling mount
Other features - Pochylenie (stopnie): 40° Obrót (stopnie): 180° Typ regulacji: ręczny Regulacja głębokości: 13 cm Regulacja wysokości: 60 - 85 cm
Other features - Country of origin - China
Packaging data - Package depth - 60 mm
Packaging data - Package height - 530 mm
Packaging data - Package weight - 1.5 kg
Packaging data - Package width - 250 mm
PeriodofWarranty - 5 Y
producer - Neomounts
ProductName - Neomounts monitor ceiling mount
Screen size (max) - 30 ''
Screen size (min) - 10 ''
Shipping Box Depth Shipping/Package Box Dimensions - 53.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 25.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.967 kg
Shipping Box Width Shipping/Package Box Dimensions - 6 cm
Short summary - Neomounts by Newstar TV/Monitor Ceiling Mount for 10"-30" Screen, Height Adjustable - Black
ShortSummaryDescription - Neomounts monitor ceiling mount, 20 kg, 25.4 cm (10"), 76.2 cm (30"), 50 x 50 mm, 100 x 100 mm, 600 - 850 mm
Stand/mount type - Ceiling
Technical details - Package net weight - 1.54 kg
Tilt - Yes
Title - Neomounts monitor ceiling mount
Turn - No
Type - Ceiling
Unit Brutto Volume - 0.008186 cubm
Unit Gross Weight - 1.97 kg
Unit Net Weight - 1.8 kg
URL - https://www.neomounts.com/default.asp?pageid=44&artdetail=FPMA-C050BLACK
Usage - Monitors
Vendor Homepage - http://en.newstar.eu/av-mounts/flat-screen-mounts/ceiling-mounts/newstar-flat-screen-ceiling-mount-7/?alstart=0
vendpn - FPMA-C050BLACK
VESA - 50 x 50
VESA - 100 x 100
VESA-standard, mm - 50 x 50
VESA-standard, mm - 100 x 100
Warranty - 60 months
WarrantyInfo - 5 year
Weight - 1.980000
Weight & dimensions - Depth - 130 mm
Weight & dimensions - Height - 850 mm
Wheels - No
Width - 533.000000
