Newstar Bolt-down TV desk mount, 32-55"

Name: Newstar Bolt-down TV desk mount, 32-55"
Brand: Newstar
SKU: 1165854
Price: 81.12 EUR
Availability: OutOfStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1165854 Product code: DS42-430BL14

Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

Dateks.lv website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 3 years

Compare

Main product parameters All parameters

Maximum load (1 screen), kg: 50.00
Maximum screen diagonal, inches: 55
Minimum screen diagonal, inches: 32

Similar ProductsFull list


	This product Newstar Bolt-down TV desk mount, 32-55"	Newstar Quad monitor desk mount, 10-27"	Samsung Frame 65 White Modern 2021, Openbox	Newstar TV wall mount, 32-55"	Newstar TV wall mount, 32-55"
Show similar specs. Hide similar specs.	81.12 €	198.14 €	39.99 €	65.77 €	81.09 €
Colour	Melna	Melna	Balta	Melna	Melna
Maximum load (1 screen), kg	50.00	8.00	N/A	35.00	40.00
Maximum screen diagonal, inches	55	27	65	55	55
Minimum screen diagonal, inches	32	10	65	32	32
Notebook holder	Nav	Nav	Nav	Nav	Nav
Number of supported screens	1	4	1	1	1
Rotation	Not	Is	Not	Not	Not
Swivel	Ir	Ir	Nav	Ir	Ir
Tilt	Not	Is	Not	Is	Is
Type of attachment	Galda	Galda	Papildus aksesuārs	Sienas	Sienas
VESA support	100 x 100 100 x 150 100 x 200 120 x 120 200 x 100 200 x 200 200 x 300 200 x 400 300 x 100 300 x 200 300 x 300 350 x 350 400 x 200 400 x 300 400 x 400	75 x 75 100 x 100	Nav	100 x 100 200 x 100 200 x 200 200 x 300 200 x 400 300 x 200 300 x 300 400 x 200 400 x 300 400 x 400	100 x 100 100 x 150 100 x 200 200 x 100 200 x 200

All parameters

Colour : Melna

Maximum load (1 screen), kg : 50.00

Maximum screen diagonal, inches : 55

Minimum screen diagonal, inches : 32

Notebook holder : Nav

Number of supported screens : 1

Rotation : Not

Swivel : Ir

Tilt : Not

Type of attachment : Galda

VESA support : 100 x 100, 100 x 150, 100 x 200, 120 x 120, 200 x 100, 200 x 200, 200 x 300, 200 x 400, 300 x 100, 300 x 200, 300 x 300, 350 x 350, 400 x 200, 400 x 300, 400 x 400

More detailed specification

Additional information in manufacturers website Newstar Bolt-down TV desk mount, 32-55"

100 mm x 100 mm VESA mounting interface - Yes
200 mm x 100 mm VESA mounting interface - Yes
200 mm x 200 mm VESA mounting interface - Yes
300 mm x 200 mm VESA mounting interface - Yes
300 mm x 300 mm VESA mounting interface - Yes
400 mm x 200 mm VESA mounting interface - Yes
400 mm x 300 mm VESA mounting interface - Yes
400 mm x 400 mm VESA mounting interface - Yes
Brand - Neomounts
BrandPartCode - DS42-430BL14
Category - TV Mounts & Stands
Category Code - MAS
Colour - Black
Description - DS42-430BL14 Neomounts bolt-down TV desk mount.
Description - NEOMOUNTS TV DESK MOUNT 32-55? (GROMMET)
Design - Housing material - Steel
Design - Product colour - Black

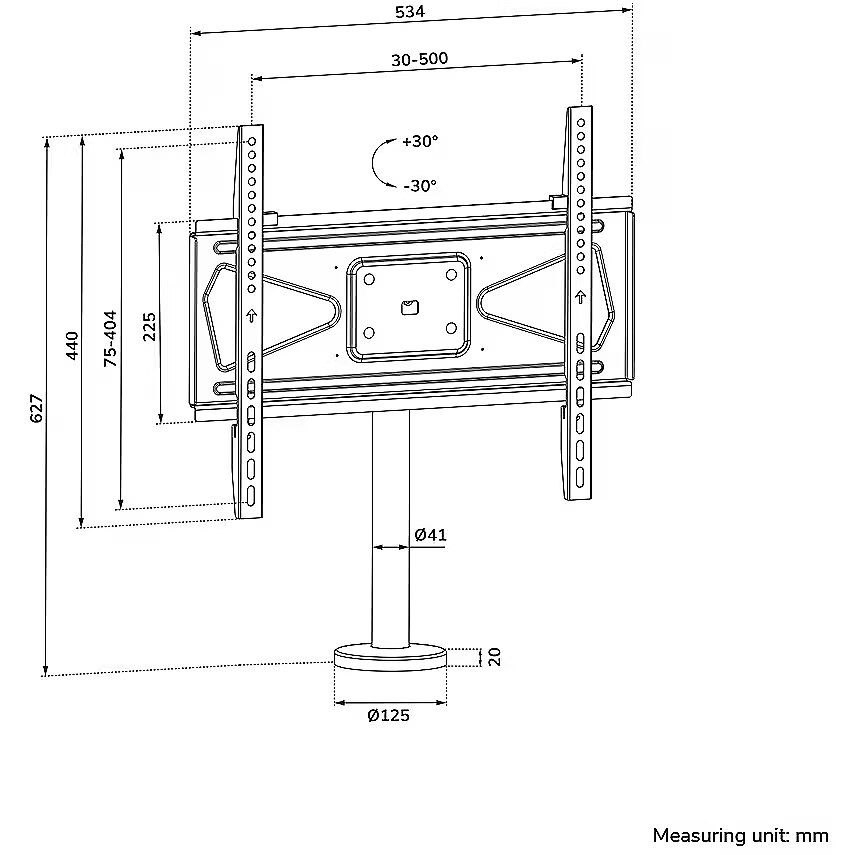

Dimensions W x D x H, mm - 534 x 125 x 627

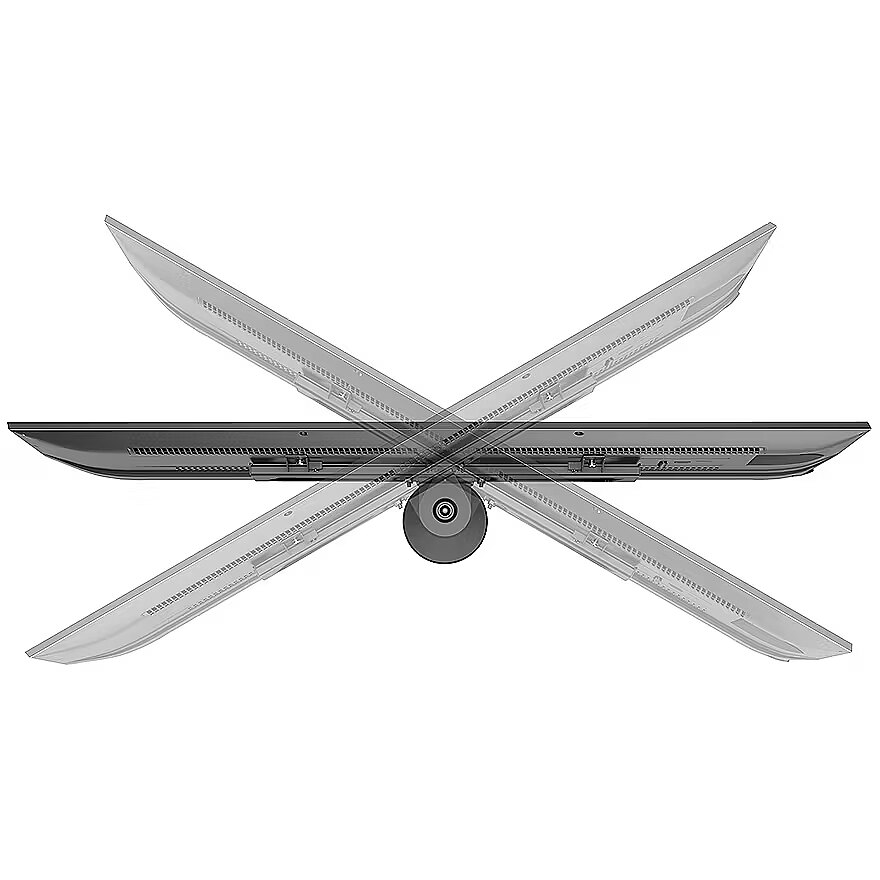

Ergonomics - Swivel angle range - -30 - 30°
Ergonomics - Swivelling - Yes
Fits screens sized - 32-55"
Full Description Line - Max. weight 50 kg|Fits screens sized 32-55"|100 mm x 100 mm|200 mm x 100 mm|200 mm x 200 mm|300 mm x 200 mm|300 mm x 300 mm|400 mm x 200 mm|400 mm x 300 mm|400 mm x 400 mm|Colour Black
GTIN - 8717371445355
Height - 230.000000
Height adjustment - No
Length - 560.000000
Logistics data - Harmonized System (HS) code - 7326909890
Logistics data - Master (outer) case gross weight - 19.7 kg
Logistics data - Master (outer) case height - 580 mm
Logistics data - Master (outer) case length - 295 mm
Logistics data - Master (outer) case net weight - 18.4 kg
Logistics data - Master (outer) case width - 480 mm
Logistics data - Products per master (outer) case - 4 pc(s)
Logistics data - Products per pallet (EU) - 64 pc(s)

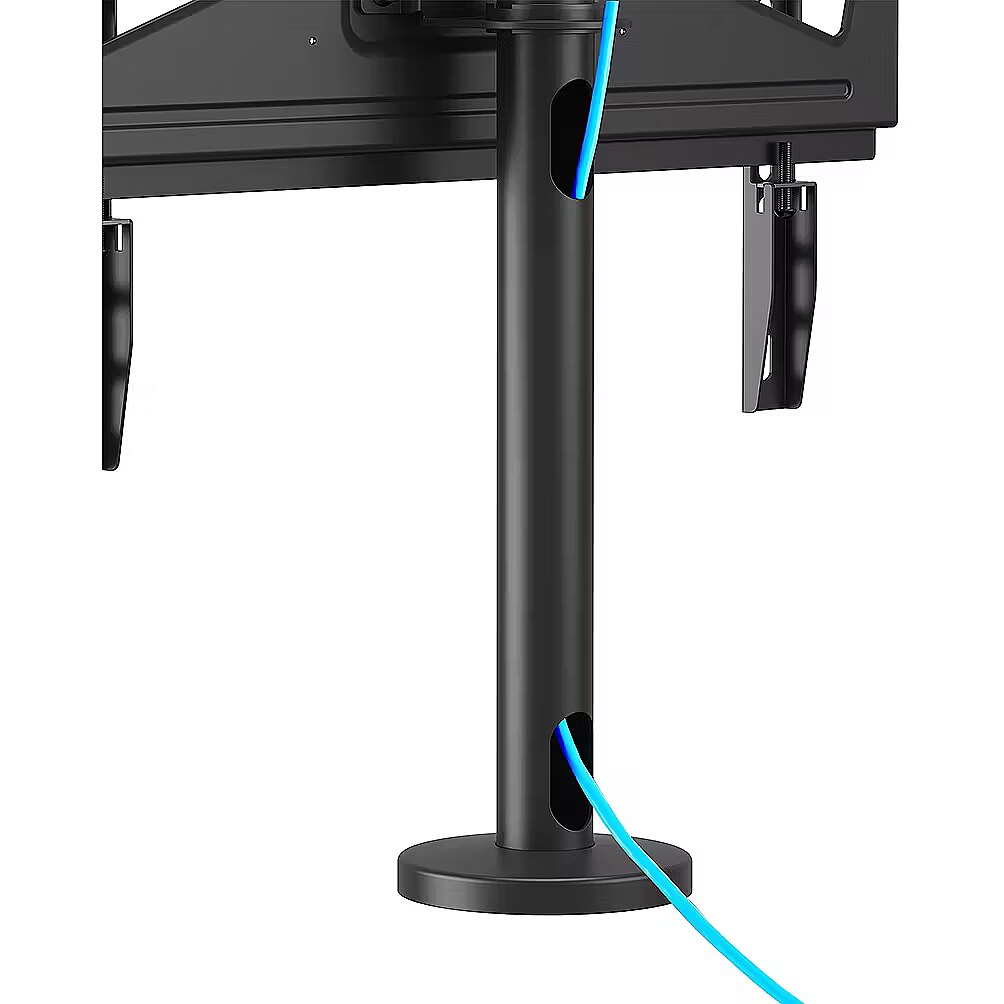

LongDesc - The Neomounts DS42-430BL14 is a bolt-down TV desk mount for screens up to 55" with a weight capacity of 50 kg. The TV mount features a practical swivel option (60°) to easily position the TV in the optimum viewing angle. The DS42-430BL14 is suitable for screens that meet pattern 100x100 to 400x400 mm. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. Cables can be routed neatly through the rod and table top thanks to the internal cable management. The bolt down base ensures solid installation of the mount to the desk.
LongProductName - Neomounts DS42-430BL14 TV stand 1 screen - 32-55" - 0-50 kg - VESA 100x100-400x400 - bolt-down - 60° swivel - black
LongSummaryDescription - Neomounts DS42-430BL14 TV stand 32-55"- bolt-down - swivel. Maximum weight capacity: 50 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 139.7 cm (55"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 400 x 400 mm. Swivel angle range: -30 - 30°. Product colour: Black
Manufacturer - Neomounts
ManufacturerPartNumber - DS42-430BL14
Max. weight - 50 kg
Maximum weight (capacity), kg - 50
Mounting - Maximum screen size - 139.7 cm (55")
Mounting - Maximum VESA mount - 400 x 400 mm
Mounting - Maximum weight capacity - 50 kg
Mounting - Minimum screen size - 81.3 cm (32")
Mounting - Minimum VESA mount - 100 x 100 mm
Mounting - Mounting type - Desk
Mounting - Number of displays supported - 1
Mounting - Panel mounting interface - 100 x 100,100 x 200,200 x 200,200 x 400,400 x 400,200 x 300,300 x 300,300 x 200,400 x 300,200 x 100,300 x 100,100 x 150,120 x 120,350 x 350,400 x 200,150 x 200,200 x 150
Number of screens - 1
Other features - Mounting - Bolt-down
Packaging data - Package depth - 138 mm
Packaging data - Package height - 560 mm
Packaging data - Package weight - 4.6 kg
Packaging data - Package width - 230 mm
PeriodofWarranty - 5 Y
ProductName - Neomounts DS42-430BL14 TV stand 32-55"- bolt-down - swivel
Product Net Weight - 4 kg
Screen size compatibility, " - 32 - 55
Shipping Box Depth Shipping/Package Box Dimensions - 58 cm
Shipping Box Height Shipping/Package Box Dimensions - 29.5 cm
Shipping Box Weight Shipping/Package Box Dimensions - 18.7 kg
Shipping Box Width Shipping/Package Box Dimensions - 48 cm
Short summary - Neomounts DS42-430BL14 TV stand 1 screen - 32-55" - 0-50 kg - VESA 100x100-400x400 - bolt-down - 60° swivel - black
ShortSummaryDescription - Neomounts DS42-430BL14 TV stand 32-55"- bolt-down - swivel, 139.7 cm (55"), 100 x 100 mm, 400 x 400 mm, -30 - 30°, Steel, Black
Stand/mount type - Table
Technical details - Country of origin - China
Technical details - Warranty period - 5 year(s)
Tilt - No
Title - Neomounts DS42-430BL14 TV stand 32-55"- bolt-down - swivel
Turn - Yes
Turn, ° - -30 - 30
Unit Calculated Volume - 0.02053 cubm
Unit Calculated Weight - 4.67 kg
Units per Shipping Box - 4
URL - https://www.neomounts.com/default.asp?pageid=44&artdetail=DS42-430BL14
Vendor Homepage - www.neomounts.com/escritorio/soportes-de-tv/ds42-430bl14-neomounts-soporte-atornillable-a-mesa-para-tv/
VESA-standard, mm - 100 x 100
VESA-standard, mm - 100 x 150
VESA-standard, mm - 100 x 200
VESA-standard, mm - 120 x 120
VESA-standard, mm - 200 x 100
VESA-standard, mm - 200 x 200
VESA-standard, mm - 200 x 300
VESA-standard, mm - 200 x 400
VESA-standard, mm - 300 x 100
VESA-standard, mm - 300 x 200
VESA-standard, mm - 300 x 300
VESA-standard, mm - 350 x 350
VESA-standard, mm - 400 x 200
VESA-standard, mm - 400 x 300
VESA-standard, mm - 400 x 400
Warranty - 60 months
WarrantyInfo - 5 year
Weight - 4.600000
Weight & dimensions - Depth (max) - 62.7 cm
Weight & dimensions - Depth (min) - 12.5 cm
Weight & dimensions - Weight - 3.93 kg
Weight & dimensions - Width - 534 mm
Wheels - No
Width - 140.000000
