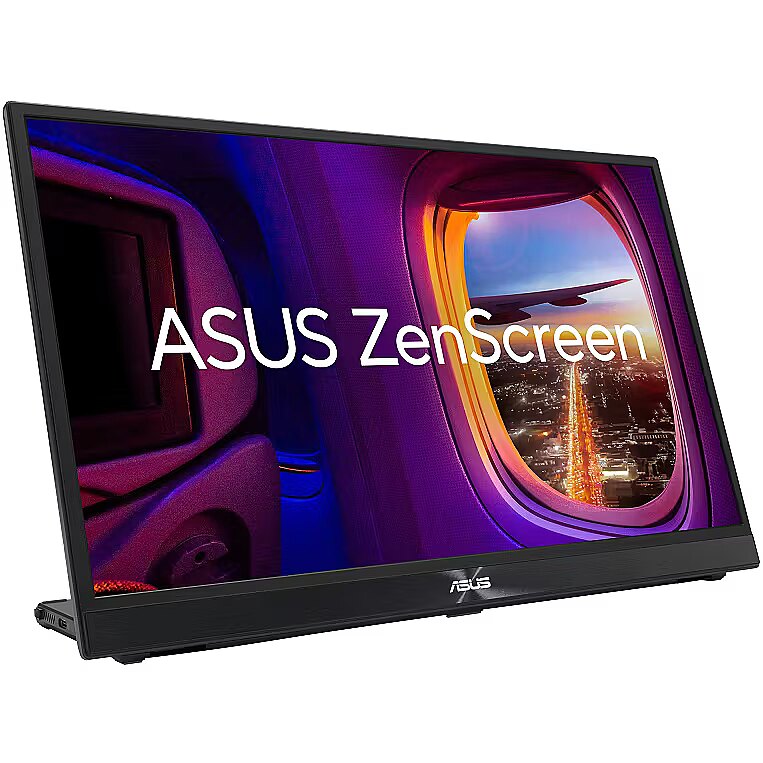

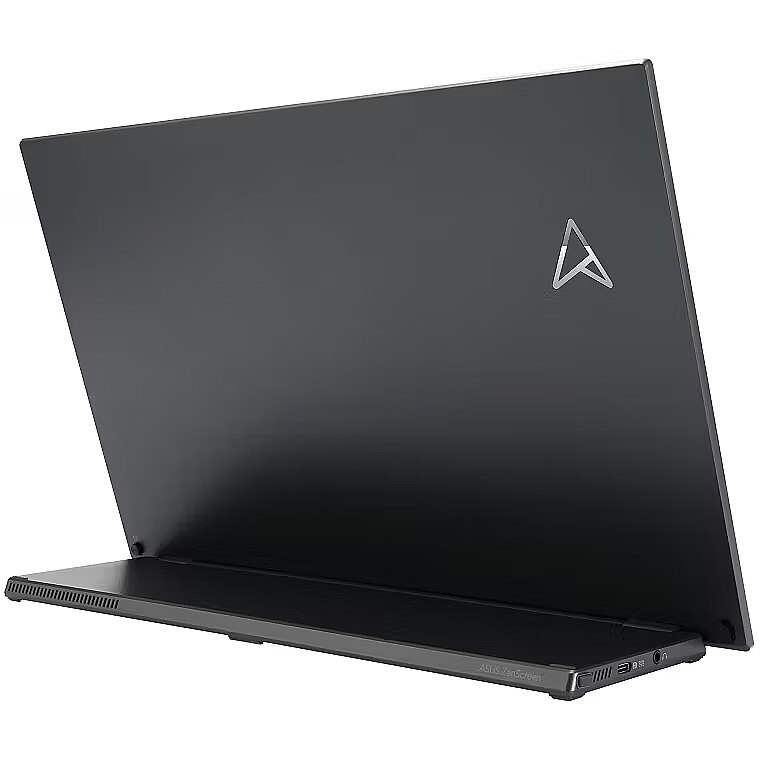

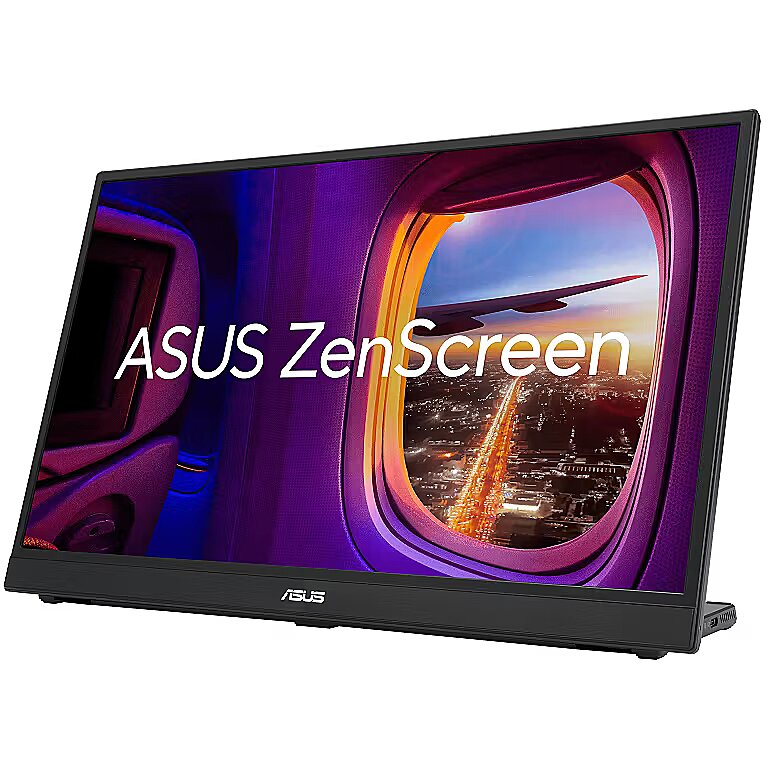

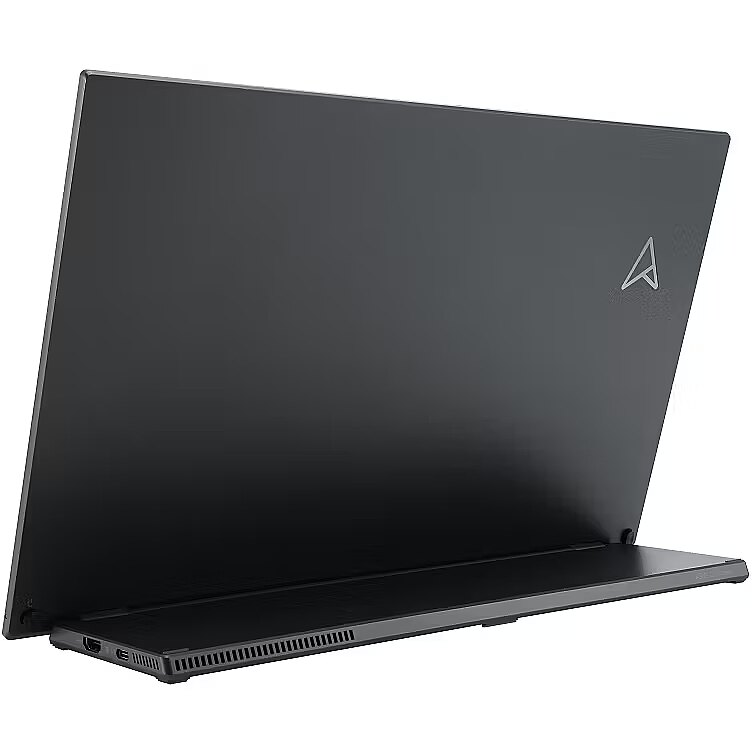

Asus ZenScreen MB17AHG, 17.3"

Name: Asus ZenScreen MB17AHG, 17.3"
Brand: Asus
SKU: 980657
Price: 390.04 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 980657 Product code: 90LM08PG-B01170

Can be ordered 20 units Availability: 14 days after order approval

Warranty: 2 years (Warranty for business entities 1 year)

Compare

Delivery options More about shipping

Delivery to Smartpost free of charge: 10.01.2025
Delivery to Omniva parcel machine free of charge: 10.01.2025
Piegāde uz DPD Pickup Paku Skapi free of charge: 10.01.2025
Delivery to Latvian post office, parcel locker or Circle K free of charge: 10.01.2025
Delivery to address in Riga 3.99 €: 10.01.2025
Delivery to address in Latvia 6.99 €: 10.01.2025
Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 08.01.2025 after 15:00

Main product parameters All parameters

Curved: Nav
Panel Type: IPS
Refresh rate: 144 Hz
Response time: 5ms
Contrast ratio: 800:1
Brightness: 300cd/m2
Size: 17.3"
Resolution: FHD 1920x1080

Description

We offer to buy Asus 17.3" a monitor with FHD 1920x1080 resolution.

IPS matrix for this monitor provides high colour correspondence parameters, superior picture contrast and good visibility from eventually all viewing angles.
The compatibility with the modern graphics cards and video players will be ensured by HDMI input.
Thanks to the 5ms fast response time this monitor will be an excellent choice for enjoying dynamic games and films.

Display characteristics

AMD FreeSync : Ir

Curved : Nav

NVIDIA G-SYNC : Nav

Panel Type IPS

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 144 Hz

Touchscreen : YES

VESA DisplayHDR : Nav

Response time 5ms

The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.dateks.lv recommends to buy monitors with 5ms response time or lower.

Contrast ratio 800:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 300cd/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām Dateks.lv iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information

Application : Mobile

Aspect ratio : 16:9

Color : Black

Size 17.3"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution FHD 1920x1080

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality

Flicker-free : Ir

Height adjustment : Nav

Pivot : Nav

Swivel : None

Tilt : NO

VESA wall mount : NO

Ports and equipment

D-SUB Nav

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort Nav

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI Nav

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port 1

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Nav

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : NO

USB-C Power Delivery : Nav

USB-C video input : 1

More detailed specification

Additional information in manufacturers website Asus ZenScreen MB17AHG, 17.3"

Accessories included -
Aspect ratio - 16:9
Bluetooth - No
Brand - ASUS
BrandPartCode - 90LM08PG-B01170
Brightness - 300 cd/m²
Category - Computer Monitors
Category - Root/Electronics/PC peripherals/Monitors
Category_1 - Monitors and TV
Category_2 - LED Monitors up to 19 inches
category_en - Computers & Components > Monitors and accessories > LCD monitors
category_lv - Datortehnika > Monitori un aksesuāri > LCD monitori
category_ru - Datortehnika > Monitori un aksesuāri > LCD monitori
Certificates - AMD FreeSync Premium
Certificates - TUV
Color - Black
Depth with stand - 20.6 mm
Description - 17.3-inch FHD (Full HD) screen with a SmoothMotion refresh rate of 144 Hz; supports FreeSync Premium technology, ensuring extremely smooth images. The elegant, ultra-thin 7 mm thick profile allows for easy portability. Rich connectivity includes two USB-C ports that function as full-fledged ports on either side of the monitor for easy cable management, plus an HDMI port and a headphone jack.
description_en - Product colour: Black
Anti-glare screen: Yes
Backlight type: LED
Colour gamut: 100 %
Contrast ratio (typical): 800:1
Digital horizontal frequency: 30 - 180 kHz
Digital vertical frequency: 60 - 144 Hz
Display brightness (typical): 300 cd/m²
Display diagonal: 17.3 "
Display number of colours: 16.7 million colours
Display resolution: 1920 x 1080 Pixels
HD type: Full HD
Maximum refresh rate: 144 Hz
Native aspect ratio: 16:9
Panel type: IPS
Pixel density: 127 ppi
Pixel pitch: 0.199 x 0.199 mm
Response time: 5 Millisecond
RGB colour space: sRGB
Screen shape: Flat
Viewable size, horizontal: 38.1888 cm
Viewable size, vertical: 21.4812 cm
Viewing angle, horizontal: 178 °
Viewing angle, vertical: 178 °
Height adjustment: No
Multimedia Built-in camera: No
Built-in speaker(s): No
Operating relative humidity (H-H): 20 - 90 %
Depth (package,cm): 11.9 cm
Gross Weight (Package, kg): 7.8 kg
Height (package,cm): 32.3 cm
Width (package,cm): 47.3 cm
AMD FreeSync: Yes
AMD FreeSync type: FreeSync Premium
Brand specific technologies: SPLENDID
Flicker-free technology: Yes
Game mode: Yes
Low Blue Light technology: Yes
Built-in USB hub: No
HDCP: Yes
HDCP version: 2.2
HDMI: Yes
HDMI ports quantity: 1
HDMI version: 1.4
Headphone out: Yes
Headphone outputs: 1
Number of USB Type-C upstream ports quantity: 2
USB Type-C DisplayPort Alternate Mode: Yes
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Power consumption (off): 0.5 Watt
Power consumption (PowerSave): 0.5 Watt
Power consumption (typical): 18 Watt
Net Weight (Product, kg): 6 kg
Brand Name: Asus
Depth (with stand): 2.06 cm
Height (with stand): 24.905 cm
Weight (with stand): 1.29 kg
Width (with stand): 38.99 cm
description_lv - Produkta krāsa: melna
Pretspīduma ekrāns: Jā
Fona apgaismojuma veids: LED
Krāsu gamma: 100 %
Kontrasta attiecība (parasti): 800:1
Digitālā horizontālā frekvence: 30 - 180 kHz
Digitālā vertikālā frekvence: 60 - 144 Hz
Displeja spilgtums (parasti): 300 cd/m²
Displeja diagonāle: 17,3 collas
Displeja krāsu skaits: 16,7 miljoni krāsu
Displeja izšķirtspēja: 1920 x 1080 pikseļi
HD veids: Full HD
Maksimālais atsvaidzes intensitāte: 144 Hz
Vietējā malu attiecība: 16:9
Paneļa tips: IPS
Pikseļu blīvums: 127 ppi
Pikseļu solis: 0,199 x 0,199 mm
Reakcijas laiks: 5 milisekundes
RGB krāsu telpa: sRGB
Ekrāna forma: plakana
Skatāmais izmērs, horizontāli: 38,1888 cm
Skatāmais izmērs, vertikāli: 21,4812 cm
Skata leņķis, horizontāls: 178 °
Skata leņķis, vertikāls: 178 °
Augstuma regulēšana: Nē
Multivide Iebūvētā kamera: Nē
Iebūvētais skaļrunis(-i): Nē
Darba relatīvais mitrums (H-H): 20 - 90 %
Dziļums (iepakojumā,cm): 11,9 cm
Bruto svars (Iepakojumā, kg): 7,8 kg
Augstums (iepakojumā, cm): 32,3 cm
Platums (iepakojumā,cm): 47,3 cm
AMD FreeSync: Jā
AMD FreeSync veids: FreeSync Premium
Zīmola specifiskās tehnoloģijas: SPLENDID
Tehnoloģija bez mirgošanas: jā
Spēles režīms: Jā
Low Blue Light tehnoloģija: Jā
Iebūvētais USB centrmezgls: Nē
HDCP: Jā
HDCP versija: 2.2
HDMI: Jā
HDMI portu skaits: 1
HDMI versija: 1.4
Austiņu izeja: Jā
Austiņu izejas: 1
USB Type-C augšupējo portu skaits skaits: 2
USB Type-C DisplayPort alternatīvais režīms: jā
Maiņstrāvas ievades frekvence: 50/60 Hz
Maiņstrāvas ieejas spriegums: 100 - 240 V
Enerģijas patēriņš (izslēgts): 0,5 vati
Enerģijas patēriņš (PowerSave): 0,5 vati
Enerģijas patēriņš (parasti): 18 vati
Neto svars (Produkts, kg): 6 kg
Zīmola nosaukums: Asus
Dziļums (ar statīvu): 2,06 cm
Augstums (ar statīvu): 24,905 cm
Svars (ar statīvu): 1,29 kg
Platums (ar statīvu): 38,99 cm
description_ru - Цвет продукта: Черный
Антибликовый экран: Да
Тип подсветки: Светодиодная
Цветовой охват: 100 %
Контрастность (типичная): 800:1
Цифровая горизонтальная частота: 30 - 180 кГц
Цифровая вертикальная частота: 60 - 144 Гц
Яркость дисплея (типичная): 300 кд/м²
Диагональ дисплея: 17,3 "
Количество цветов дисплея: 16,7 млн цветов
Разрешение дисплея: 1920 x 1080 пикселей
Тип HD: Full HD
Максимальная частота обновления: 144 Гц
Собственное соотношение сторон: 16:9
Тип панели: IPS
Плотность пикселей: 127 ppi
Шаг пикселя: 0,199 x 0,199 мм
Время отклика: 5 миллисекунд
Цветовое пространство RGB: sRGB
Форма экрана: Плоская
Видимая область, горизонтальный: 38,1888 см
Видимая область, вертикальная: 21,4812 см
Угол обзора, горизонтальный: 178 °
Угол обзора, вертикальный: 178 °
Регулировка высоты: Нет
Встроенная камера мультимедиа: Нет
Встроенные динамики: Нет
Рабочая относительная влажность (В-В): 20 - 90 %
Глубина (упаковка, см): 11,9 см
Вес брутто (упаковка, кг): 7,8 кг
Высота (упаковка, см): 32,3 см
Ширина (упаковка, см): 47,3 см
AMD FreeSync: Да
Тип AMD FreeSync: FreeSync Premium
Технологии бренда: SPLENDID
Технология Flicker-free: Да
Игровой режим: Да
Технология Low Blue Light: Да
Встроенный USB-концентратор: Нет
HDCP: Да
Версия HDCP: 2.2
HDMI: Да
Порты HDMI количество: 1
Версия HDMI: 1.4
Выход для наушников: Да
Выходы для наушников: 1
Количество портов USB Type-C upstream количество: 2
Альтернативный режим USB Type-C DisplayPort: Да
Частота входного переменного тока: 50/60 Гц
Входное напряжение переменного тока: 100 - 240 В
Потребляемая мощность (выкл.): 0,5 Вт
Потребляемая мощность (PowerSave): 0,5 Вт
Потребляемая мощность (обычная): 18 Вт
Вес нетто (продукт, кг): 6 кг
Бренд: Asus
Глубина (с подставкой): 2,06 см
Высота (с подставкой): 24,905 см
Вес (с подставкой): 1,29 кг
Ширина (с подставкой): 38,99 см
Design - Product colour - Black
dimension depth - 120 mm
dimension height - 320 mm
dimension weight - 3000 g
dimension width - 470 mm
Display - Anti-glare screen - Yes
Display - Backlight type - LED
Display - Colour gamut - 100%
Display - Colour gamut standard - sRGB
Display - Contrast ratio (typical) - 800:1
Display - Digital horizontal frequency - 30 - 180 kHz
Display - Digital vertical frequency - 60 - 144 Hz
Display - Display brightness (typical) - 300 cd/m²
Display - Display diagonal - 43.9 cm (17.3")
Display - Display number of colours - 16.7 million colours
Display - Display resolution - 1920 x 1080 pixels
Display - HD type - Full HD
Display - Maximum refresh rate - 144 Hz
Display - Native aspect ratio - 16:9
Display - Panel type - IPS
Display - Pixel density - 127 ppi
Display - Pixel pitch - 0.199 x 0.199 mm
Display - Response time - 5 ms
Display - Screen shape - Flat
Display - Viewable size, horizontal - 38.2 cm
Display - Viewable size, vertical - 21.5 cm
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Display surface - Matt
Dot pitch - 0.199 mm
ean - 4711387005804
EAN - 4711387005804
Eans - 4711387005804
EAN_code - 4711387005804
Energy class - not applicable
Energy label - Pobierz
Ergonomics - Height adjustment - No
Frequency, horizontal max. - 180 kHz
Frequency, horizontal min. - 30 kHz
Frequency, vertical max. - 144 Hz
Frequency, vertical min. - 60 Hz
gross_weight - 7.9 kg
GTIN - 0195553996518
GTIN - 195553996518
GTIN - 4711387005804
guarantee - 36
guarantee_type - external
Height adjustment - No
Height with stand - 249.05 mm
I/O connectors - 1 x 3,5 mm minijack
I/O connectors - 1 x HDMI
I/O connectors - 2 x USB (Type C)
LongDesc - Get More Done , With Less EffortASUS ZenScreen MB17AHG is a 17.3-inch portable monitor with an Full HD IPS display that delivers supersmooth, fluid visuals. Its ultrathin 7 mm profile and lightweight design ensure unmatched portability, making it the ideal secondary display to boost hybrid work productivity. Thanks to an integrated L-shaped kickstand, ZenScreen MB17AHG can be used in landscape or portrait orientation. USB-C® ports on both sides of the monitor offer versatility, and a refresh rate of up to 144 Hz ensures supersmooth visuals.
LongProductName - ZenScreen MB17AHG portable monitor – 17 inch (17.3 inch viewable) FHD (1920 x 1080) IPS panel, 144 Hz , SmoothMotion technology, L-shaped kickstand, tripod , USB Type-C®, HDMI®, Flicker Free, Low Blue Light, FSC
LongSummaryDescription - ASUS ZenScreen MB17AHG. Display diagonal: 43.9 cm (17.3"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Product colour: Black
Manufacturer - Asus
Manufacturer_code - 90LM08PG-B01170
Matrix type - TFT IPS
Model - MB17AHG
Model - ZenScreen MB17AHG
Multimedia - Built-in camera - No
Multimedia - Built-in speaker(s) - No
Name - ASUS ZenScreen MB17AHG, LED monitor - 17.3 - black, USB-C, HDMI, FullHD, 144Hz panel
Name - ASUS ZenScreen MB17AHG - 17,3'' | IPS | Full HD | 144Hz
name - Monitor 17 inches MB17AHG IPS
Number of colors - 16,7 mln
Operational conditions - Operating relative humidity (H-H) - 20 - 90%
Optional accessory -
Other features -
Other features - Brand specific technologies - SPLENDID
Packaging data - Package depth - 119 mm
Packaging data - Package height - 323 mm
Packaging data - Package type - Box
Packaging data - Package weight - 3.65 kg
Packaging data - Package width - 473 mm
Performance - AMD FreeSync - Yes
Performance - AMD FreeSync type - FreeSync Premium
Performance - Flicker-free technology - Yes
Performance - Game mode - Yes
Performance - Low Blue Light technology - Yes
Ports & interfaces - Built-in USB hub - No
Ports & interfaces - HDCP - Yes
Ports & interfaces - HDCP version - 2.2
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 1.4
Ports & interfaces - Headphone out - Yes
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - Number of USB Type-C upstream ports quantity - 2
Ports & interfaces - USB Type-C DisplayPort Alternate Mode - Yes
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - European Product Registry for Energy Labelling (EPREL) code - 1493104
Power - Power consumption (off) - 0.5 W
Power - Power consumption (PowerSave) - 0.5 W
Power - Power consumption (typical) - 18 W
producer - Asus
Producer - ASUS
Producer - Asus
ProducerCode - MB17AHG
ProductName - MB17AHG
Refresh rate - 144 Hz
Resolution - 1920 x 1080 (FHD 1080)
Response time - 5 ms
Screen size (diag.) - 17.3''
ShortDescription - 17,3'' | IPS | Full HD | 144Hz
ShortSummaryDescription - ASUS ZenScreen MB17AHG, 43.9 cm (17.3"), 1920 x 1080 pixels, Full HD, 5 ms, Black
Speakers built-in - No
Static contrast - 800:1
Title - ASUS ZenScreen MB17AHG computer monitor 43.9 cm (17.3") 1920 x 1080 pixels Full HD Black
title_en - Asus ZenScreen MB17AHG Monitor 17.3'' / 1920 x 1080 / 144Hz
title_lv - Asus ZenScreen MB17AHG Monitors 17.3'' / 1920 x 1080 / 144Hz
title_ru - Asus ZenScreen MB17AHG Монитор 17.3'' / 1920 x 1080 / 144Hz
Touch screen - Yes
Transreflective technology - LED
TV tuner built-in - No
URL - https://www.asus.com/displays-desktops/monitors/zenscreen/asus-zenscreen-mb17ahg/
vendpn - MB17AHG
Viewing angle, horizontal - 178 °
Viewing angle, vertical - 178 °
Visible area, horizontal - 381.888 mm
Visible area, vertical - 214.812 mm
Warranty -
WarrantyInfo -
Web camera - None
Weight - 3,70
weight - 6 kg
Weight & dimensions - Depth (with stand) - 20.6 mm
Weight & dimensions - Height (with stand) - 249.1 mm
Weight & dimensions - Weight (with stand) - 1.29 kg
Weight & dimensions - Width (with stand) - 389.9 mm
Weight with stand - 1.29 kg
Width - 389.9 mm
WiFi - No
