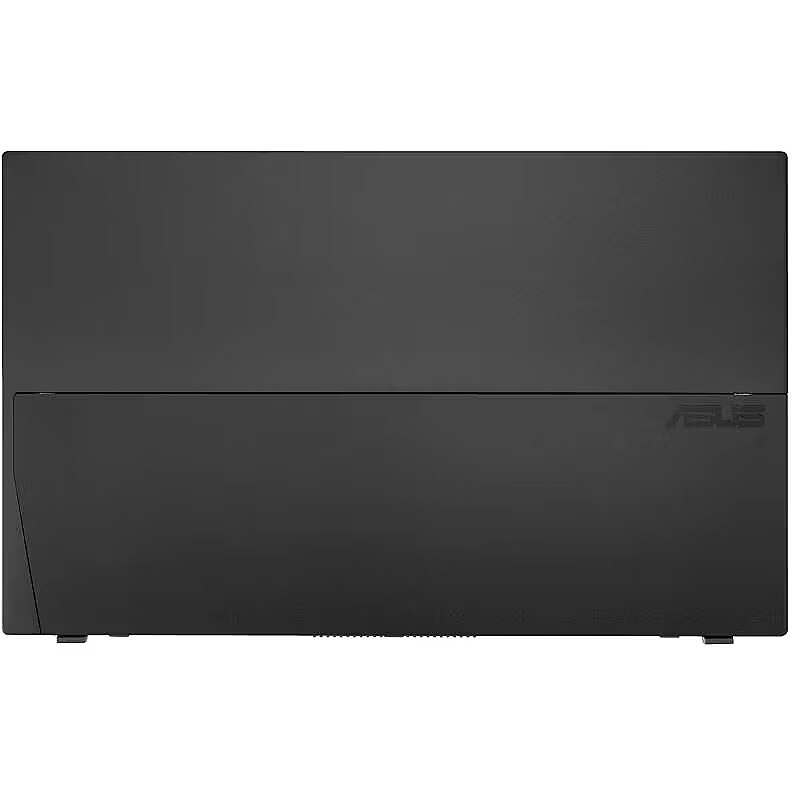

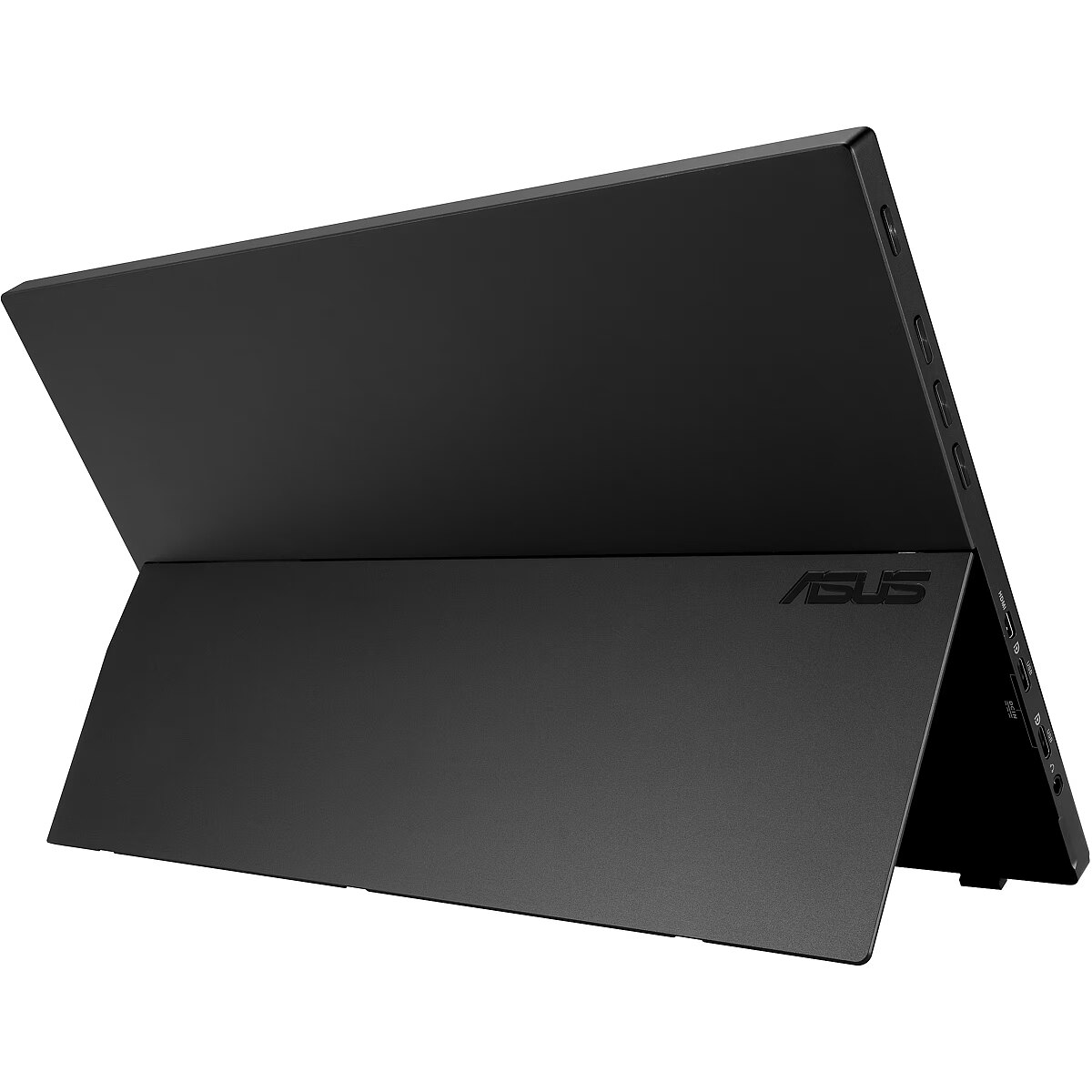

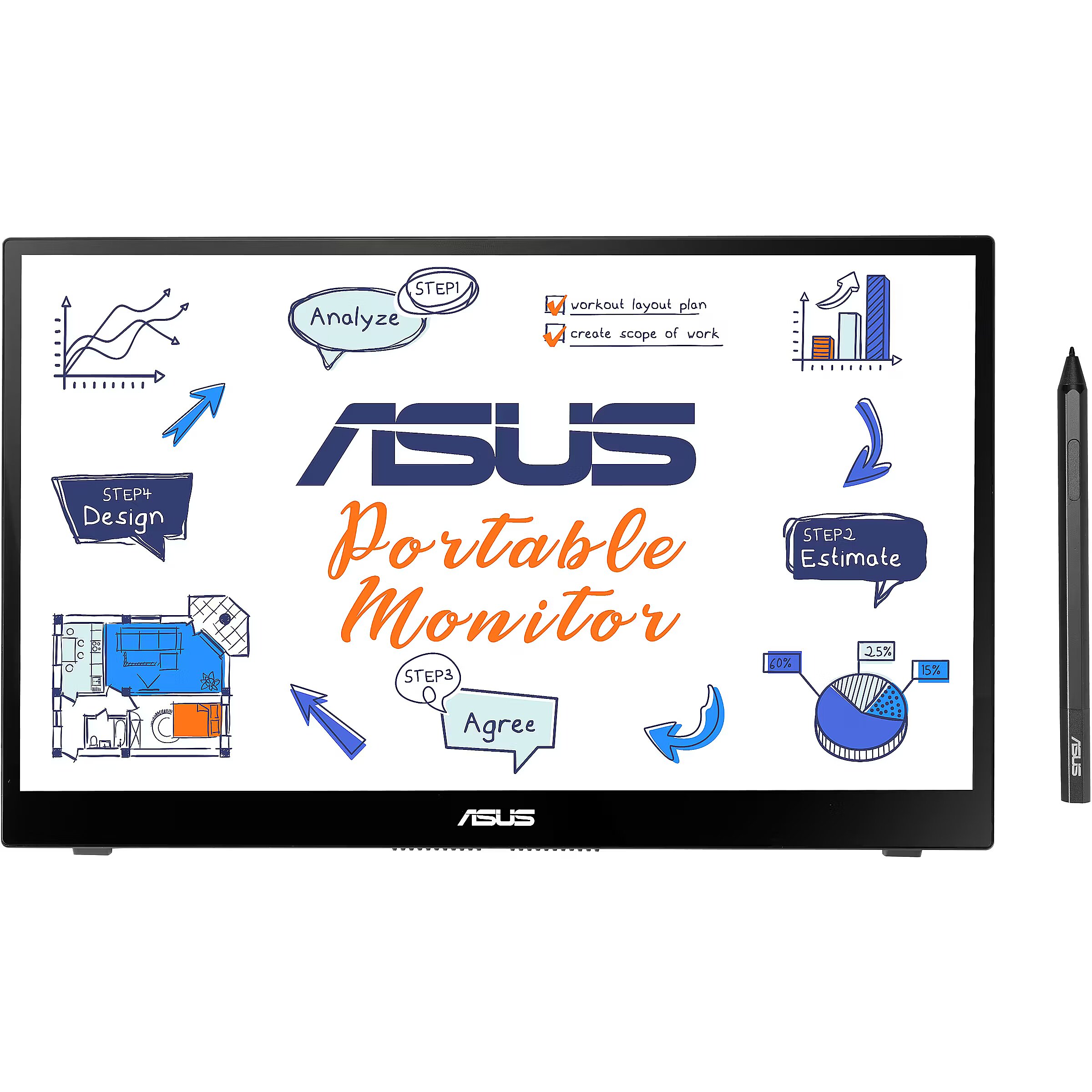

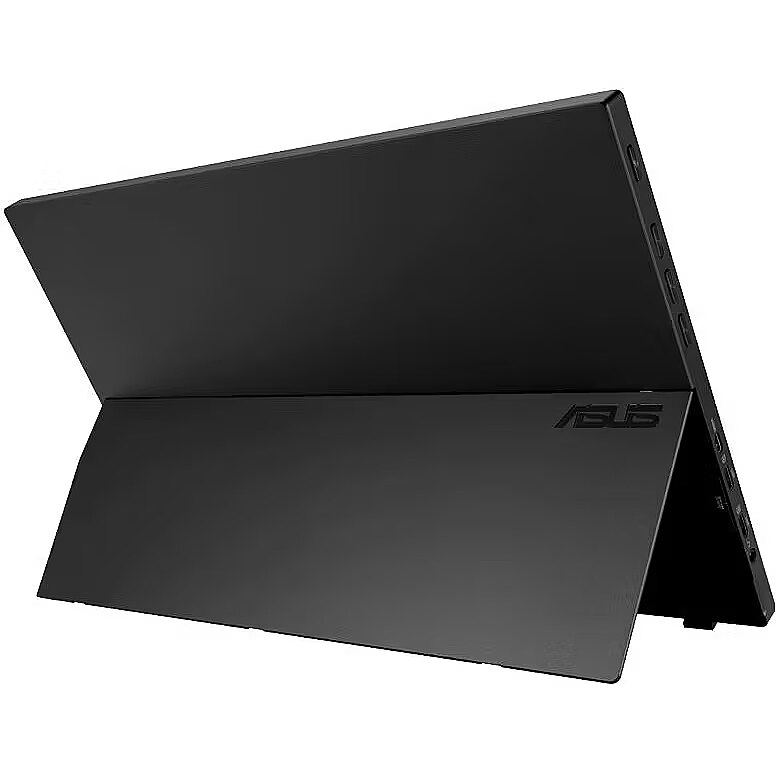

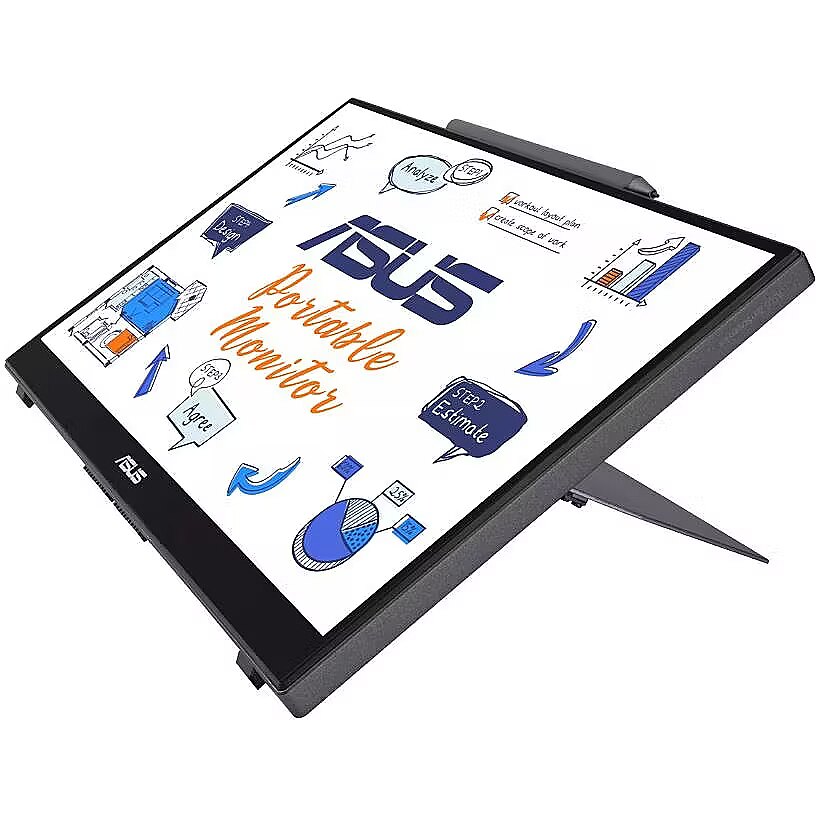

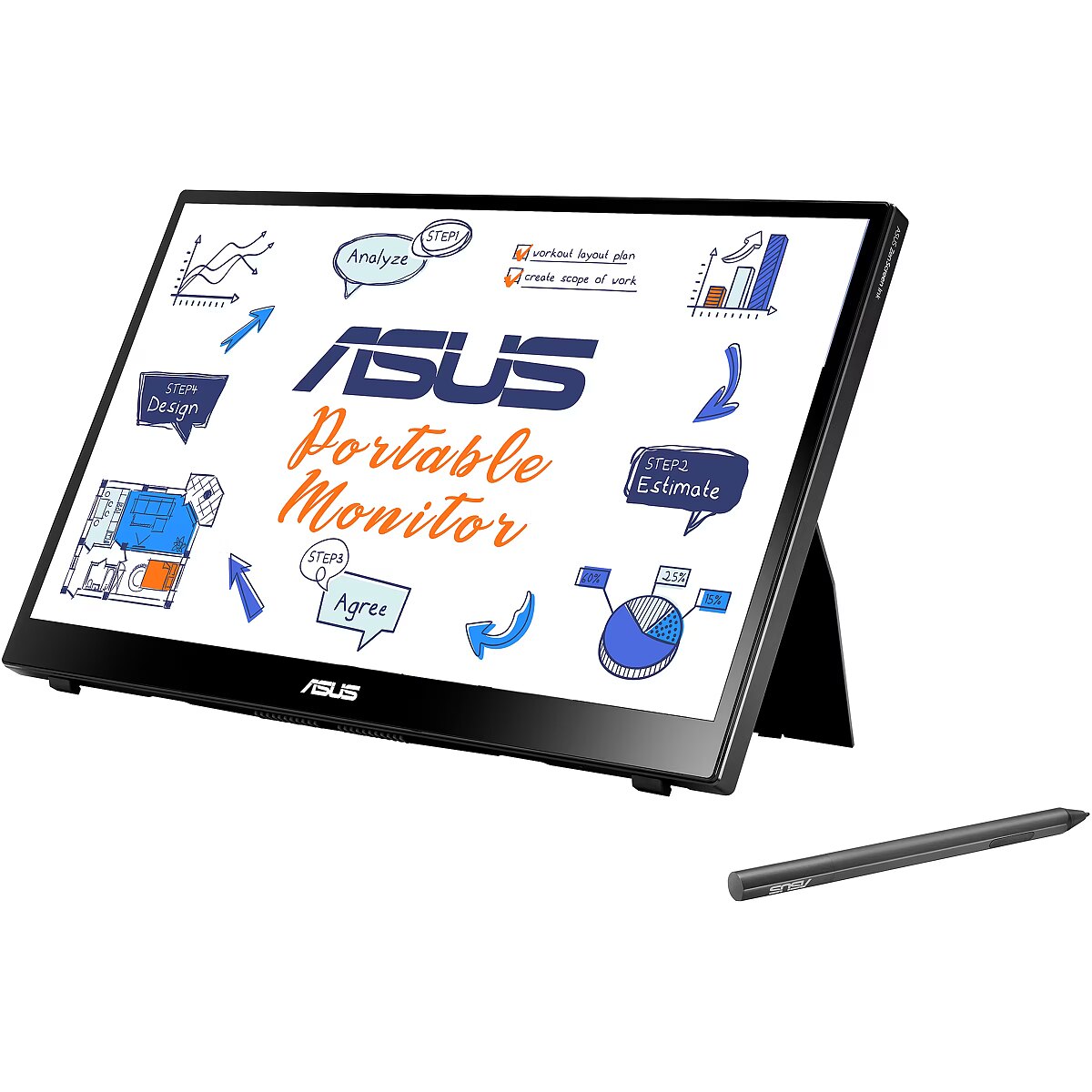

Asus ZenScreen MB14AHD, 14"

Name: Asus ZenScreen MB14AHD, 14"
Brand: Asus
SKU: 910056
Price: 454.83 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 910056 Product code: 90LM063V-B01170

Can be ordered 2 units Availability: 14 days after order approval

Warranty: 2 years (Warranty for business entities 1 year)

Compare

Delivery options More about shipping

Delivery to Smartpost free of charge: 10.01.2025
Delivery to Omniva parcel machine free of charge: 10.01.2025
Piegāde uz DPD Pickup Paku Skapi free of charge: 10.01.2025
Delivery to Latvian post office, parcel locker or Circle K free of charge: 10.01.2025
Delivery to address in Riga 3.99 €: 10.01.2025
Delivery to address in Latvia 6.99 €: 10.01.2025
Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 08.01.2025 after 15:00

Main product parameters All parameters

Curved: Nav
Panel Type: IPS
Refresh rate: 60 Hz
Response time: 5ms
Contrast ratio: 800:1
Brightness: 220cd/m2
Size: 14"
Resolution: FHD 1920x1080

Description

We offer to buy Asus 14" a monitor with FHD 1920x1080 resolution.

Thanks to FullHD (1920px X 1080px) resolution this monitor will be perfectly suitable for enjoying BlueRay quality films in the full screen mode.
IPS matrix for this monitor provides high colour correspondence parameters, superior picture contrast and good visibility from eventually all viewing angles.
5ms the response time is suitable for games and dynamic films.

Display characteristics

AMD FreeSync : Nav

Curved : Nav

NVIDIA G-SYNC : Nav

Panel Type IPS

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 60 Hz

Touchscreen : YES

VESA DisplayHDR : Nav

Response time 5ms

The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.dateks.lv recommends to buy monitors with 5ms response time or lower.

Contrast ratio 800:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 220cd/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām Dateks.lv iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information

Application : Mobile

Aspect ratio : 16:9

Color : Black

Size 14"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution FHD 1920x1080

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality

Flicker-free : Ir

Height adjustment : Nav

Pivot : Nav

Swivel : None

Tilt : NO

VESA wall mount : NO

Ports and equipment

D-SUB Nav

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort Nav

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI Nav

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port 1

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Nav

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : NO

USB-C Power Delivery : Nav

USB-C video input : 2

More detailed specification

Additional information in manufacturers website Asus ZenScreen MB14AHD, 14"

Accessories included -
Aspect ratio - 16:9
Auto Pivot - No
Bluetooth - No
Brand - ASUS
BrandPartCode - 90LM063V-B01170
Brightness - 220 cd/m²
Category - Computer Monitors
Category - Root/Electronics/PC peripherals/Monitors
Category_1 - Monitors and TV
Category_2 - Touchscreen
Certificates - TUV
Color - Black
Depth - 12.5 mm
Description - 14" FHD (1920 x 1080) IPS portable monitor with 10-point touch and active stylus support Rich connectivity thanks to dual USB-C (DP Alt mode) and micro HDMI Integrated infinite stand allows hinge movement of up to 150° in both landscape and portrait orientations to suit different scenarios
Design - Product colour - Black
dimension depth - 75 mm
dimension height - 310 mm
dimension weight - 2550 g
dimension width - 455 mm
Display - Backlight type - LED
Display - Contrast ratio (dynamic) - 100000000:1
Display - Contrast ratio (typical) - 800:1
Display - Display brightness - 220 cd/m²
Display - Display diagonal - 35.6 cm (14")
Display - Display resolution - 1920 x 1080 pixels
Display - Display technology - LCD
Display - HD type - Full HD
Display - LED backlight - Yes
Display - Maximum refresh rate - 60 Hz
Display - Native aspect ratio - 16:9
Display - Number of simultaneous touchpoints - 10
Display - Panel type - IPS
Display - Pixel pitch - 0.161 x 0.161 mm
Display - Response time - 5 ms
Display - Screen shape - Flat
Display - Touchscreen - Yes
Display - Touch technology - Multi-touch
Display - Viewable size, horizontal - 30.9 cm
Display - Viewable size, vertical - 17.4 cm
Display - Viewing angle, horizontal - 170°
Display - Viewing angle, vertical - 170°
Display surface - Glare
Dot pitch - 0.161 mm
Dynamic contrast - 100 000 000:1
ean - 4711081557364
Eans - 4711081557364
EAN_code - 4711081557364
Energy class - not applicable
Ergonomics - Height adjustment - No
Ergonomics - Wall mountable - No
Frequency, horizontal max. - 83 kHz
Frequency, horizontal min. - 24 kHz
GTIN - 0195553550864
GTIN - 195553550864
GTIN - 4711081557364
guarantee - 36
guarantee_type - external
Height - 201.2 mm

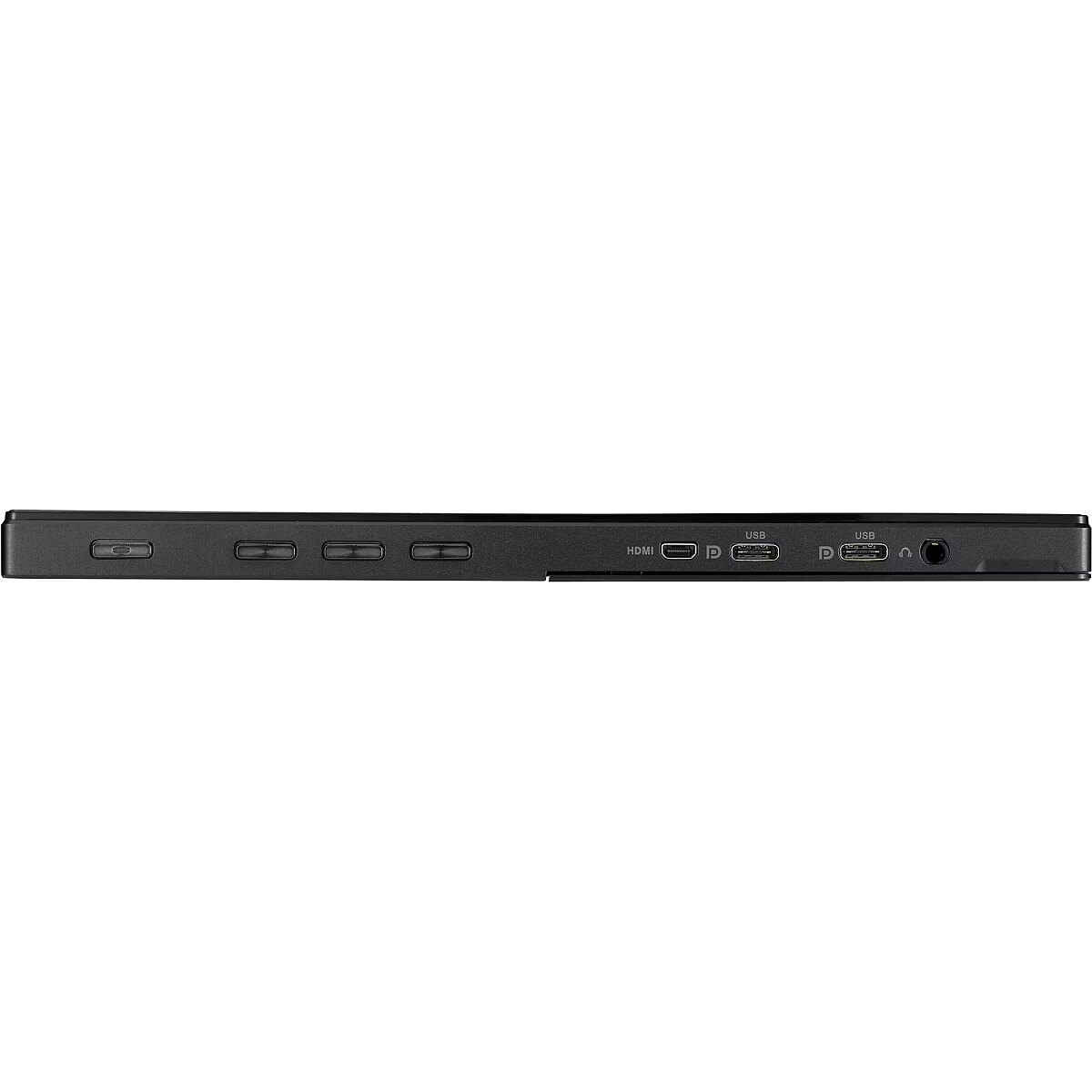

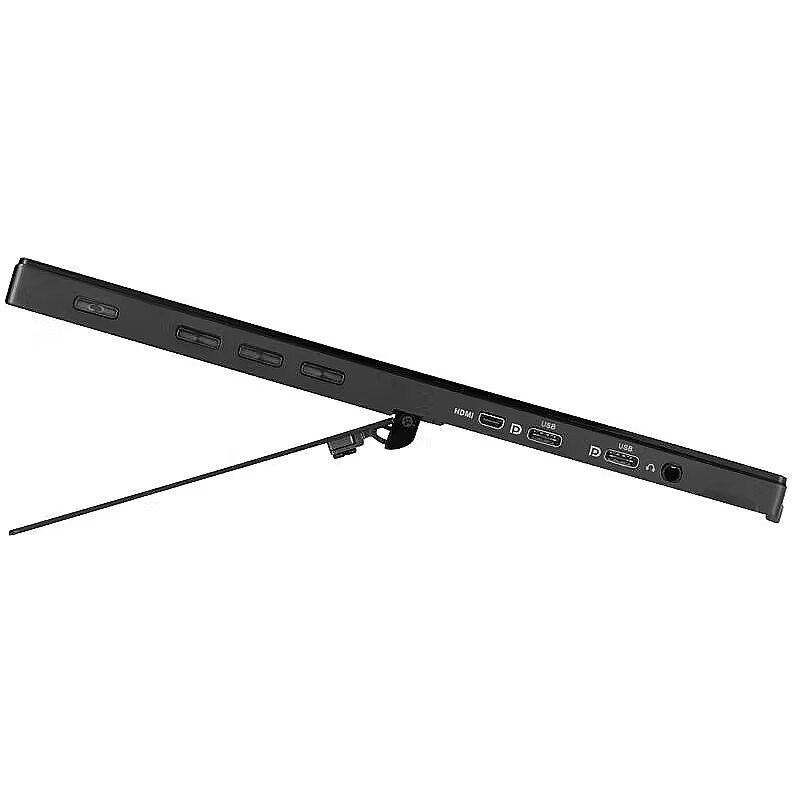

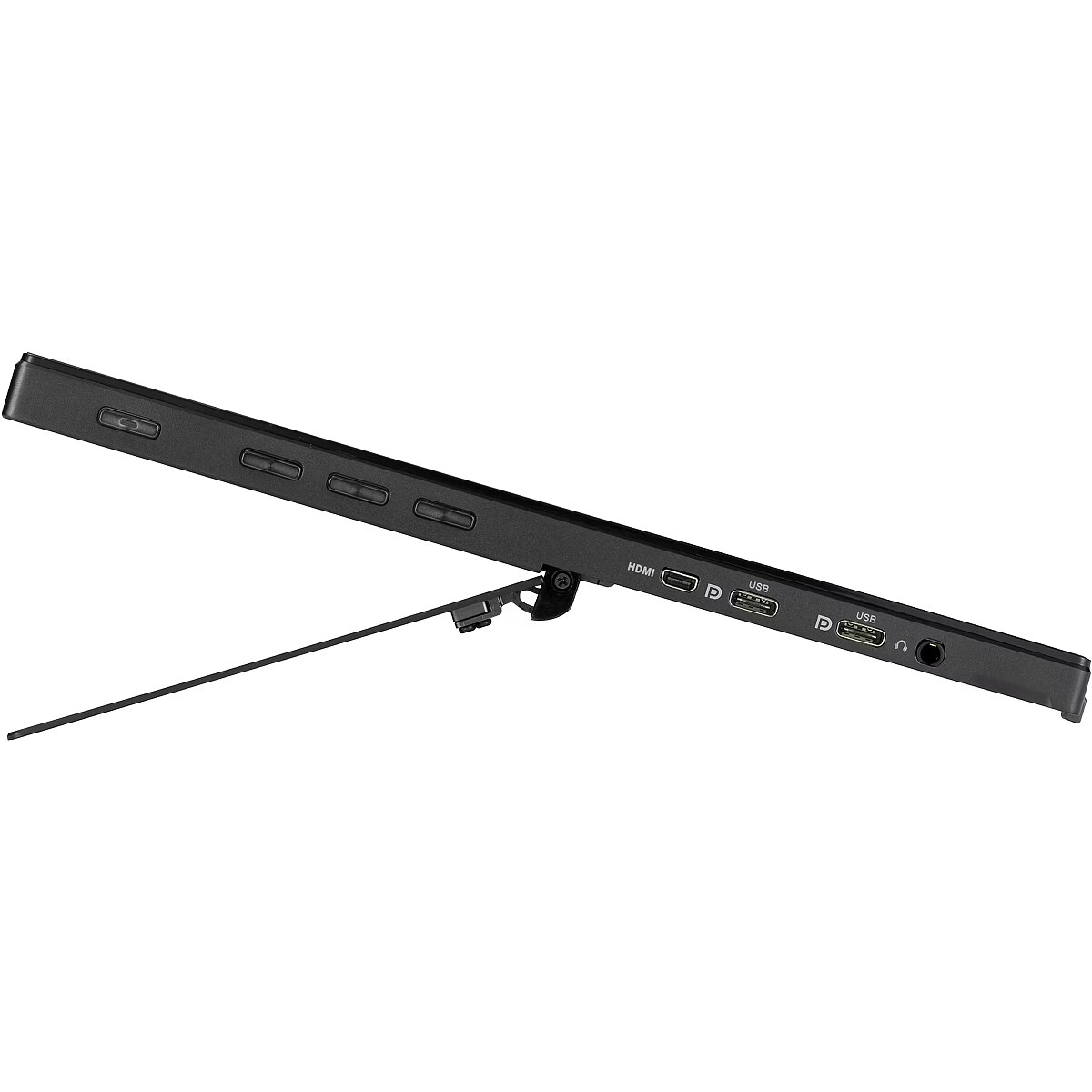

I/O connectors - 1 x 3,5 mm minijack
I/O connectors - 1 x micro HDMI
I/O connectors - 2 x USB (Type C)
Logistics data - Harmonized System (HS) code - 85285210
LongDesc - Productivity at the tip of your stylusASUS ZenScreen Ink MB14AHD is a 14-inch IPS FHD portable monitor with 10-point touch functionality and ASUS Pen (SA201H)* that allows users to write, draw anytime and anywhere. The included ASUS Pen features MPP 2.0 and 4096 pressure level for precise and lag-free writing and drawing experiences. It even features an integrated stepless kickstand, enabling ZenScreen Ink to be used in almost any position.*10-point touch and stylus only works in WindowsThe ultimate portable touchscreen and pen combinationWith the MPP 2.0-compliant ASUS Pen, 10-point touch functionality and portable design, ZenScreen Ink is the perfect companion for taking notes, drawing or even signing documents – anywhere, anytime. Use it as an extended display to work more efficiently on the go, or simply kick back for hands-free tasks.ASUS PenTake note of every creative ideaASUS Pen is the perfect accessory for ZenScreen Ink, empowering you to write, draw or annotate in any supported app. It features Microsoft Pen Protocol (MPP) 2.0 technology and 4096-level sensitivity for low latency and fast response, enabling smooth, natural writing experiences. With built-in magnets securing it to the top of the monitor, and lasting up to a year on a single battery charge*, ASUS Pen is ready to use whenever and wherever you want.*Based on average daily use of two hours.Compatible softwareZenScreen Ink is designed for productivity and is fully compatible with numerous writing software and other tools including Microsoft Windows Ink, Whiteboard and OneNote.Tap into productivityWith its interactive 10-point touchscreen, ZenScreen Ink offers highly-accurate, responsive and seamless touch experiences*, enabling you to edit documents, draw on slides or play games with your fingertips. It is Windows 10/11 compatible, allowing you to work smarter and more efficiently.* Availability of 10-point touchscreen functionality depends on operating system.Flexible viewing positionsThe built-in stepless kickstand supports both landscape and portrait modes. It offers up to 150° of hinge movement, so it’s easy to use and flexible for all kinds of touch or writing scenarios. There’s also an integrated tripod socket, enabling ZenScreen Ink to be elevated and oriented into any position.Automatic screen orientationWhen connected to a Windows PC, the ASUS DisplayWidget Lite tool* enables ZenScreen Ink to sense its orientation and automatically switches the display between landscape and portrait modes. Landscape mode is ideal for presentations and spreadsheets, while portrait style provides the perfect long view for documents, books or websites.*Software required. Auto-rotate function works only with the Windows operating system.Rich connectivityZenScreen Ink includes a Micro HDMI® port and two USB-C® ports with DisplayPort™ Alt Mode for quick connections to compatible devices. The USB-C ports can also be used for power input.Protect your eyes with ASUS Eye Care technologyASUS Ultra-Low Blue Light technologyExclusive ASUS Ultra-Low Blue Light technology protects you from potentially harmful blue light. It offers four filter settings that are easily accessed through the onscreen display menu via the hotkey.Blue Light Filter LevelASUS Flicker Free technologyTÜV Rheinland-certified ASUS Flicker Free technology eliminates flicker, ensuring comfortable viewing experiences. This technology helps minimize eyestrain and other ailments typically associated with extended hours of viewing.
LongProductName - ASUS ZenScreen Ink MB14AHD portable monitor – 14-inch FHD (1920 x 1080), IPS, 10-point touch, Stylus Pen, USB-C®, Micro HDMI, ergo kickstand, tripod socket, ASUS Flicker Free and Low Blue Light technologies
LongSummaryDescription - ASUS MB14AHD. Display diagonal: 35.6 cm (14"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 170°, Viewing angle, vertical: 170°. Product colour: Black
Manufacturer - Asus
Manufacturer_code - 90LM063V-B01170
Matrix type - TFT IPS
Model - ZenScreen Ink
Multimedia - Built-in camera - No
Multimedia - Built-in microphone - No
Multimedia - Built-in speaker(s) - No
Name - ASUS ZenScreen Ink MB14AHD - 14'' | IPS | Full HD
Name - ASUS ZenScreen MB14AHD - 14 - LED - black, FullHD, touchscreen, HDMI, USB-C
name - Monitor ZenScreen Ink MB14AHD 14 cali IPS 10-point touch, Stylus Pen, USB Type-C, Micro HDMI
Optional accessory -
Other features -
Other features - Display viewable area (HxV) - 309.37 x 174.02 mm
Packaging content - Cables included - AC, HDMI, USB Type-C
Packaging content - Stylus included - Yes
Packaging data - Package depth - 78 mm
Packaging data - Package height - 310 mm
Packaging data - Package weight - 2.64 kg
Packaging data - Package width - 454 mm
Performance - AMD FreeSync - No
Performance - NVIDIA G-SYNC - No
Ports & interfaces - HDCP - Yes
Ports & interfaces - Headphone out - Yes
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - Micro HDMI ports quantity - 1
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 2
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Energy consumption (SDR) per 1000 hours - 8 kWh
Power - Energy efficiency class (SDR) - D
Power - Energy efficiency scale - A to G
Power - European Product Registry for Energy Labelling (EPREL) code - 1172091
Power - Power consumption (off) - 0.5 W
Power - Power consumption (typical) - 10 W
Power consumption - 10 W
producer - Asus
Producer - Asus
ProducerCode - MB14AHD
ProductName - MB14AHD
Refresh rate - 60 Hz
Resolution - 1920 x 1080 (FHD 1080)
Response time - 5 ms
Screen size (diag.) - 14''
ShortDescription - 14'' | IPS | Full HD
ShortSummaryDescription - ASUS MB14AHD, 35.6 cm (14"), 1920 x 1080 pixels, Full HD, LCD, 5 ms, Black
Speakers built-in - No
Static contrast - 800:1
Title - ASUS MB14AHD computer monitor 35.6 cm (14") 1920 x 1080 pixels Full HD LCD Touchscreen Black
Touch screen - Yes
Transreflective technology - LED
TV tuner built-in - No
URL - https://www.asus.com/Displays-Desktops/Monitors/ZenScreen/ZenScreen-Ink-MB14AHD/
vendpn - MB14AHD
Viewing angle, horizontal - 170 °
Viewing angle, vertical - 170 °
Visible area, horizontal - 309.37 mm
Visible area, vertical - 174.02 mm
Warranty -
WarrantyInfo -
Web camera - None
Weight - 0.87 kg
Weight - 2,00
Weight & dimensions - Depth (without stand) - 12.5 mm
Weight & dimensions - Height (without stand) - 201.2 mm
Weight & dimensions - Weight (without stand) - 870 g
Weight & dimensions - Width (without stand) - 324.2 mm
Width - 324.2 mm
WiFi - No
