AG NEOVO TX-1702, 17"

Name: AG NEOVO TX-1702, 17"
Brand: AG NEOVO
SKU: 866866
Price: 708.88 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 866866 Product code: TX-1702

Can be ordered 6 units Availability: 14 days after order approval

Warranty: 2 years (Warranty for business entities 1 year)

Compare

Delivery options More about shipping

Delivery to Smartpost free of charge: 23.12.2024
Delivery to Latvian post office, parcel locker or Circle K free of charge: 23.12.2024
Delivery to address in Riga 3.99 €: 23.12.2024
Delivery to address in Latvia 6.99 €: 23.12.2024
Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 19.12.2024 after 15:00

Main product parameters All parameters

Curved: Nav
Panel Type: TN
Refresh rate: 75 Hz
Response time: 3ms
Contrast ratio: 1000:1
Brightness: 250cd/m2
Size: 17"
Resolution: SXGA 1280x1024

Description

We offer to buy AG NEOVO 17" a monitor with SXGA 1280x1024 resolution.

The compatibility with the modern graphics cards and video players will be ensured by HDMI input.
DisplayPort port ensures the receipt of a higher quality picture from the computer graphics card supporting this technology.
The port D-SUB supports graphics cards with the preceding generation analogous VGA plug-in and the comparatively newer generation DVI-I standard using a transition DVI-I -> D-Sub.
Thanks to the 3ms fast response time this monitor will be an excellent choice for enjoying dynamic games and films.

Display characteristics

AMD FreeSync : Nav

Curved : Nav

NVIDIA G-SYNC : Nav

Panel Type TN

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 75 Hz

Touchscreen : YES

VESA DisplayHDR : Nav

Response time 3ms

The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.dateks.lv recommends to buy monitors with 5ms response time or lower.

Contrast ratio 1000:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 250cd/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām Dateks.lv iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information

Application : Home & Office

Aspect ratio : 16:9

Color : Black

Size 17"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution SXGA 1280x1024

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality

Flicker-free : Nav

Height adjustment : Nav

Pivot : Nav

Swivel : None

Tilt : YES

VESA wall mount : 100x100 mm

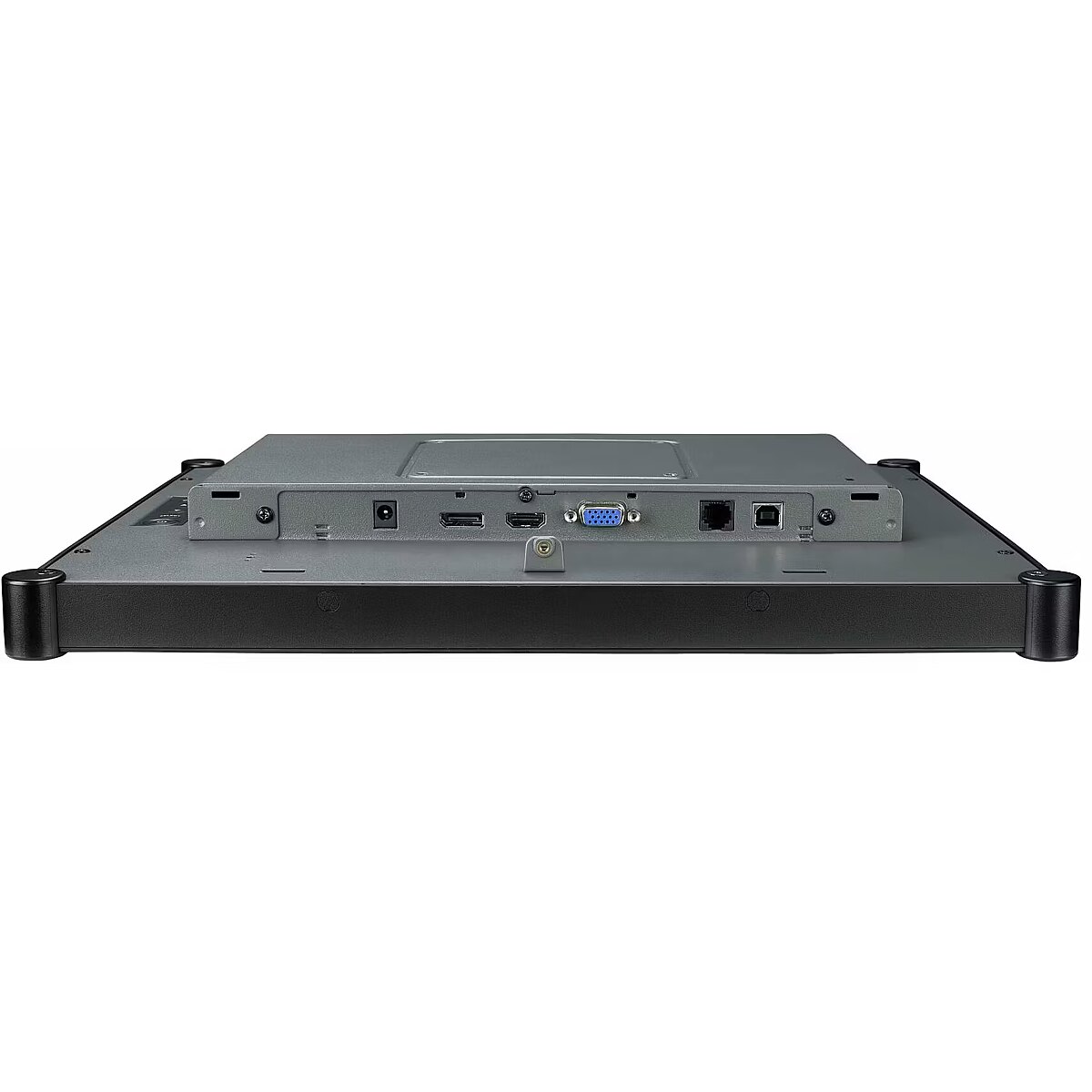

Ports and equipment

D-SUB 1

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort 1

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI Nav

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port 1

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Nav

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : NO

USB-C Power Delivery : Nav

USB-C video input : 0

More detailed specification

Additional information in manufacturers website AG NEOVO TX-1702, 17"

ARTIKEL1 - TX-1702 TFT LCD 17IN 0.264MM
ARTIKEL2 - 250CD/M SXGA 1280X1024
Brand - AG Neovo
BrandPartCode - TX172011E0100
Breite - 0
Category - Computer Monitors
Design - Glass thickness - 3.1 mm
Design - Housing material - Metal
Design - Market positioning - Business
Design - Product colour - Black
Display - Anti-glare screen - Yes
Display - Backlight type - LED
Display - Colour gamut standard - NTSC
Display - Contrast ratio (typical) - 1000:1
Display - Digital horizontal frequency - 31 - 80 kHz
Display - Digital vertical frequency - 50 - 75 Hz
Display - Display brightness (typical) - 250 cd/m²
Display - Display diagonal - 43.2 cm (17")
Display - Display diagonal (metric) - 43.1 cm
Display - Display number of colours - 16.7 million colours
Display - Display resolution - 1280 x 1024 pixels
Display - Display technology - LCD
Display - Haze rate - 25%
Display - HD type - SXGA
Display - Native aspect ratio - 16:9
Display - NTSC coverage (typical) - 72%
Display - Number of simultaneous touchpoints - 10
Display - Panel type - TN
Display - Pixel pitch - 0.264 x 0.264 mm
Display - Response time - 3 ms
Display - Screen shape - Flat
Display - Surface hardness - 7H
Display - Touchscreen - Yes
Display - Touchscreen technology - Projected capacitive system
Display - Touchscreen type - Tabletop
Display - Touch technology - Multi-touch
Display - Viewing angle, horizontal - 170°
Display - Viewing angle, vertical - 160°
EANCode - 4710739597264
Ergonomics - Cable lock slot - Yes
Ergonomics - Cable lock slot type - Kensington
Ergonomics - Height adjustment - No
Ergonomics - Panel mounting interface - 100 x 100 mm
Ergonomics - Plug and Play - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - -5 - 90°
Ergonomics - VESA mounting - Yes
Ergonomics - Wall mountable - Yes
Gewicht - 7.67
GRUPPE1 - Displays
GRUPPE2 - Lcd Touchscreen
GTIN - 4710739597264
HERSTELLER - AG NEOVO TECHNOLOGY
Hoehe - 0
HSTNUMMER - TX-1702
Laenge - 0
Logistics data - Harmonized System (HS) code - 85285210
LongDesc - AG Neovo TX-1702 17-inch touch screen monitor provides a smooth and responsive touch experience with 10-point projected capacitive (PCAP) multi-touch screens, including responsiveness to latex gloves. With DisplayPort, HDMI and VGA input connectivity, the TX-1702 supports analogue and digital signals respectively, making them flexible for various applications such as factory automation, information displays, digital signage, and self-service kiosks. The TX-1702 touch monitor is complemented by a metal housing with an edge-to-edge tempered glass design which enhances durability for continuous operation in demanding and high-traffic areas.PREMIUM PCAP MULTI TOUCH SCREENBased on PCAP touch screen technology, the TX-1702 touch screen monitor can register up to 10 simultaneous touch points with fast, accurate, and extremely sensitive touch responses. These seamless touch senses are identical to those used in smartphones and tablets.CROSS-PLATFORM TOUCH CAPABILITYMulti-Touch capability is optimized to work with various operating systems, providing compatibility with Windows, Linux, macOS, and certain Android versions. This enables more choice to the operating system you use.IP65 DUST AND WATER PROTECTIONThe TX-1702 front IP65 touch screen monitor is designed to protect against dust and liquid spills. This makes the TX-1702 a durable touch monitor ideal for the industrial workplace or the demanding, high-use, and high-traffic public locations.CONSISTENT FORM FACTOR DESIGNReplacing AG Neovo touch screens never requires users to change their whole infrastructure. This is because AG Neovo offers a consistent form factor and long product life cycles. Even as technology advances, no change is made to exterior dimensions or design.DURABLE AND SCRATCH RESISTANT TOUCH SCREENFor 24/7 operations in public settings, the TX-1702 uses metal housing and 7H tempered glass displays to offer high durability and scratch resistance levels, all without compromising touch sensitivity.ERGONOMIC MONITORS WITH FLEXIBLE MOUNTINGThe TX-1702 touch monitor offers flexible mounting options, from the adjustable stand that come with the monitor to desk mounts, wall mounts, and all monitor mounts feature VESA mounting patterns. The TX-1702 features adjustable tilt stands. With a tilt capacity ranging from -5 to 90 degrees, users can work in the position most comfortable for them. Tilt stands are beneficial for facilitating public access by non-disabled and disabled users.VERSATILE CONNECTIVITYThe TX-1702 provides new and legacy systems the best of both worlds since it has both analogue (VGA) and digital (DisplayPort and HDMI) video inputs, which provide maximum versatility and facilitate users to connect to a variety of devices.
LongProductName - 17", SXGA 1280 x 1024, TN, LCD, 3 ms, 16.7M, VGA, HDMI, DisplayPort, 380 x 343.4 x 214.2 mm
LongSummaryDescription - AG Neovo TX-1702. Display diagonal: 43.2 cm (17"), Display resolution: 1280 x 1024 pixels, HD type: SXGA, Display technology: LCD, Response time: 3 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 170°, Viewing angle, vertical: 160°. VESA mounting. Product colour: Black
Multimedia - Built-in camera - No
Multimedia - Built-in microphone - No
Multimedia - Built-in speaker(s) - No
Operational conditions - Operating relative humidity (H-H) - 20 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 90%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other features - Certification - CE, LVD, WEEE, RoHS, REACH, EAC
Other features - Compliance certificates - CE, Low Voltage Directive (LVD), REACH, RoHS, WEEE
Other features - International Protection (IP) code - IP65
Other features - Mobile operating systems supported - Android 2.3, Android 4.0
Packaging content - Cables included - AC, HDMI, USB, VGA
Packaging content - Stand included - Yes
Packaging data - Package depth - 418 mm
Packaging data - Package height - 277 mm
Packaging data - Package weight - 8 kg
Packaging data - Package width - 450 mm
Performance - AMD FreeSync - No
Performance - Linux operating systems supported - Yes
Performance - Mac operating systems supported - Yes
Performance - NVIDIA G-SYNC - No
Performance - Operating hours (hours/days) - 24/7
Performance - Operating system installed - Windows 10
Performance - Windows operating systems supported - Windows 2000, Windows CE, Windows Vista, Windows XP
Ports & interfaces - Built-in USB hub - No
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 1.4
Ports & interfaces - Headphone out - No
Ports & interfaces - Number of upstream ports - 1
Ports & interfaces - USB upstream port type - USB Type-B
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Power - European Product Registry for Energy Labelling (EPREL) code - 456260
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.8 W
Power - Power consumption (typical) - 10 W
Power - Power supply type - External
ProductName - TX-1702
ShortSummaryDescription - AG Neovo TX-1702, 43.2 cm (17"), 1280 x 1024 pixels, SXGA, LCD, 3 ms, Black
Stck_Kart - 1
Stck_Pal - 4
Storno - Y
Sustainability - Sustainability compliance - Yes
Title - AG Neovo TX-1702 computer monitor 43.2 cm (17") 1280 x 1024 pixels SXGA LCD Touchscreen Tabletop Black
URL - https://www.agneovo.com/global/touchscreens/touch-monitors/tx-series/tx-1702
WarrantyInfo -
Weight & dimensions - Depth (without stand) - 318 mm
Weight & dimensions - Depth (with stand) - 343.4 mm
Weight & dimensions - Height (without stand) - 49.5 mm
Weight & dimensions - Height (with stand) - 214.2 mm
Weight & dimensions - Weight (without stand) - 3.9 kg
Weight & dimensions - Weight (with stand) - 5.8 kg
Weight & dimensions - Width (without stand) - 380 mm
Weight & dimensions - Width (with stand) - 380 mm
