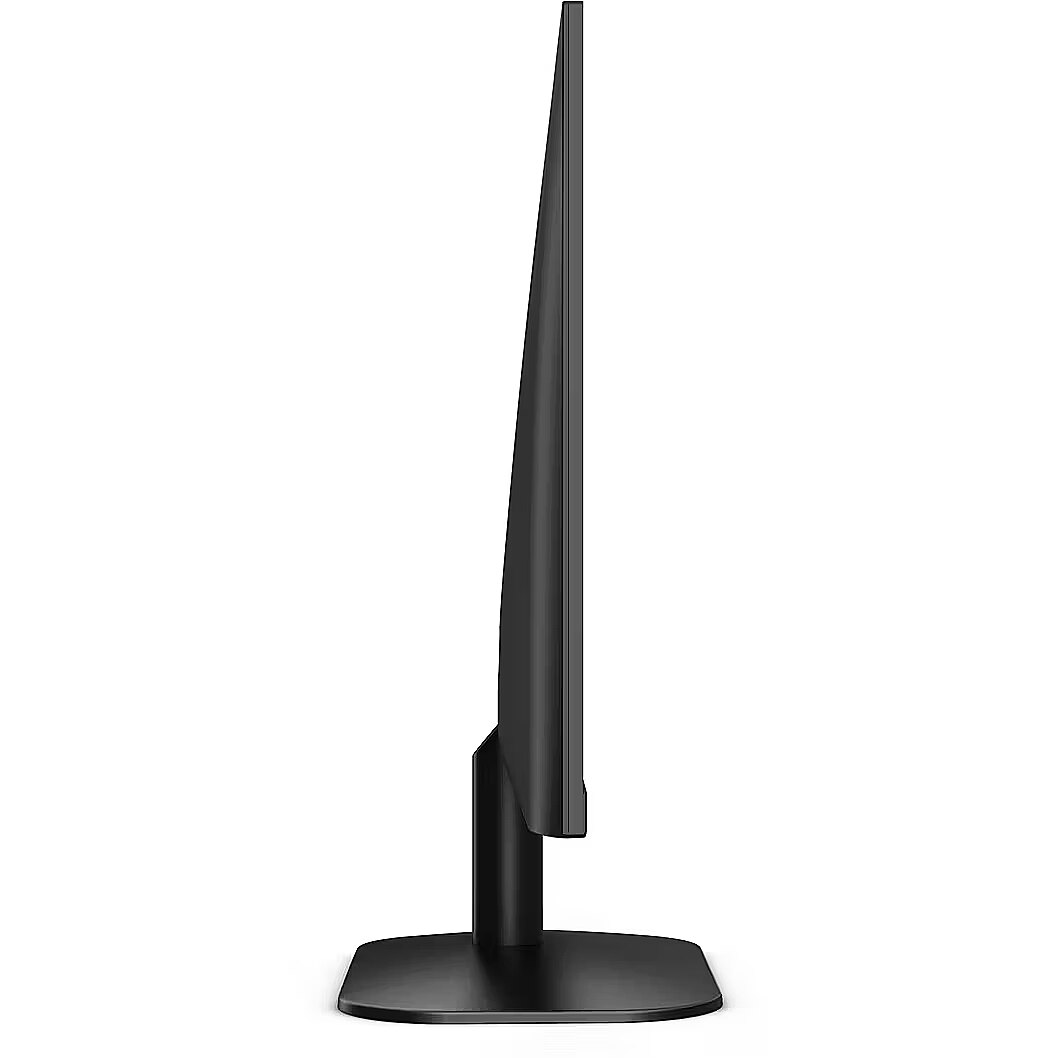

AOC 22B2H, 21.5"

Name: AOC 22B2H, 21.5"
Brand: AOC
SKU: 640321
Price: 95.54 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 640321 Product code: 22B2H/EU

Can be ordered 61 units Availability: 14 days after order approval

Warranty: 3 years

Compare

Delivery options More about shipping

Delivery to Smartpost free of charge: 10.12.2024
Delivery to Latvian post office, parcel locker or Circle K free of charge: 10.12.2024
Delivery to address in Riga 3.99 €: 10.12.2024
Delivery to address in Latvia 6.99 €: 10.12.2024
Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 06.12.2024 after 15:00

Main product parameters All parameters

Curved: Nav
Panel Type: VA
Refresh rate: 75 Hz
Response time: 4ms
Contrast ratio: 3000:1
Brightness: 200cd/m2
Size: 21.5"
Resolution: FHD 1920x1080

Display characteristics

AMD FreeSync : Ir

Curved : Nav

NVIDIA G-SYNC : Nav

Panel Type VA

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 75 Hz

Touchscreen : NO

VESA DisplayHDR : Nav

Response time 4ms

The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.dateks.lv recommends to buy monitors with 5ms response time or lower.

Contrast ratio 3000:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 200cd/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām Dateks.lv iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information

Application : Home & Office

Aspect ratio : 16:9

Color : Black

Size 21.5"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution FHD 1920x1080

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality

Flicker-free : Ir

Height adjustment : Nav

Pivot : Nav

Swivel : None

Tilt : YES

VESA wall mount : 100x100 mm

Ports and equipment

D-SUB 1

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort 1

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI Nav

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port 1

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Nav

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : NO

USB-C Power Delivery : Nav

USB-C video input : 0

More detailed specification

Additional information in manufacturers website AOC 22B2H, 21.5"

Accessories included -
Aspect ratio - 16:9
Auto Pivot - No
Bluetooth - No
Brand - AOC
BrandPartCode - 22B2H/EU
Brightness - 200 cd/m²
Category - Computer Monitors
Category - Root/Electronics/PC peripherals/Monitors
Certificates - CE
Certificates - EAC
Certificates - TUV
Color - Black
Depth - 36.2 mm
Depth with stand - 162.94 mm
Description - Nowoczesny i smukły, bezramkowy z 3 stron, 21,5-calowy monitor z rozdzielczością Full HD i technologiami ochrony wzroku LowBlue oraz FlickerFree
Elegancka konstrukcja i ostry obraz Full HD. Model 22B2H łączy smukłą konstrukcję bezramkową z 3 stron z atrakcyjną technologią. Można go podłączać do starszych (VGA) oraz najnowszych urządzeń (HDMI), co obejmuje komputery, odtwarzacze DVD, a nawet konsole. Pracuj, oglądaj przesyłane strumieniowo wideo lub graj w gry, korzystając z szerokich kątów oglądania i kojących wzrok technologii LowBlue oraz FlickerFree. Konstrukcja bezramkowa
Poza nowoczesnym i atrakcyjnym wyglądem, konstrukcje bezramkowe pozwalają na połączenie wielu monitorów bez przerw w wyświetlanym obszarze. Kursor/okna już nie będą ginąć w ciemnych czeluściach ramek, gdy wiele ekranów jest ustawionych obok siebie. Szeroki kąt oglądania
Szeroki kąt oglądania zapewnia precyzyjne wyświetlanie barw pod kątem widzenia do 178°. W ten sposób, nie ma znaczenia, skąd na niego patrzysz, by zobaczyć perfekcyjnie wyświetlone kolory. HDMI
Złącze HDMI (ang. High-Definition Multimedia Interface) jest obsługiwane przez konsole do gier najnowszej generacji, aktualnie dostępne karty graficzne i dekodery obsługujące system ochrony treści cyfrowej HDCP. HDMI w wersjach 1.3-1.4b obsługuje częstotliwość odświeżania do 144 Hz z 1080p i 75 Hz z 1440p, a wersje HDMI 2.0-2.0b obsługują 240 Hz z 1080p, 144 Hz z 1440p oraz 60 Hz z 2160p (4K). Rozdzielczość Full HD
Chcesz oglądać filmy Blu-ray w doskonałej jakości, grać gry w wysokiej rozdzielczości lub czytać ostry tekst w zastosowaniach biurowych? Dzięki rozdzielczości Full HD 1920 x 1080 pikseli ten monitor Ci to umożliwi. Niezależnie od tego, co oglądasz, rozdzielczość Full HD wyświetli to z pełnym bogactwem szczegółów bez użycia karty graficznej z wyższej półki i zużywania wielu zasobów systemowych. Tryb Low Blue Light
Niebieskie światło o krótkiej długości fali może być szkodliwe dla oczu. Technologia AOC Low Blue Light blokuje szkodliwe niebieskie promieniowanie świetlne, nie zmieniając barwy ekranu. Inne próby redukcji niebieskiego światła wykorzystują filtry lub ustawienia, które powodują przyciemnienie/zażółcenie obrazu.
Design - Certification - ISO
Design - Detachable stand - No
Design - Detachable stand - Yes
Design - Feet colour - Black
Design - Frameless design - Yes
Design - Front bezel colour - Black
Design - Heavy metals free - Hg (mercury)
Design - Market positioning - Home
Design - Product colour - Black
dimensionalWeight - 4884
dimension depth - 490 mm
dimension height - 605 mm
dimension weight - 5680 g
dimension width - 185 mm
Display - Adobe RGB coverage - 77%
Display - Aspect ratio - 4:3
Display - Aspect ratio - 4:3, 16:9
Display - Aspect ratio - 16:9
Display - Backlight type - W-LED
Display - Colour depth - 8 bit
Display - Colour gamut standard - sRGB
Display - Contrast ratio (dynamic) - 20000000:1
Display - Contrast ratio (typical) - 3000:1
Display - Display brightness (typical) - 200 cd/m²
Display - Display brightness (typical) - 250 cd/m²
Display - Display diagonal - 54.6 cm (21.5")
Display - Display diagonal (metric) - 54.61 cm
Display - Display number of colours - 16.7 million colours
Display - Display number of colours - 16.78 million colours
Display - Display resolution - 1920 x 1080 pixels
Display - Display surface - Matt
Display - Display technology - LED
Display - HD type - Full HD
Display - Horizontal scan range - 30 - 83 kHz
Display - Maximum refresh rate - 75 Hz
Display - Native aspect ratio - 16:9
Display - NTSC coverage (typical) - 73%
Display - Panel type - VA
Display - Pixel pitch - 0.2482 x 0.2482 mm
Display - Response time - 4 ms
Display - RGB colour space - sRGB
Display - Screen shape - Flat
Display - sRGB coverage (typical) - 98%
Display - Supported graphics resolutions - 1280 x 720 (HD 720)
Display - Supported graphics resolutions - 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1920 x 1080 (HD 1080)
Display - Supported graphics resolutions - 1280 x 768 (WXGA)
Display - Supported graphics resolutions - 1920 x 1080 (HD 1080)
Display - Supported video modes - 720p
Display - Supported video modes - 720p, 768p, 1080p
Display - Supported video modes - 768p
Display - Supported video modes - 1080p
Display - Surface hardness - 3H
Display - Touchscreen - No
Display - Vertical scan range - 50 - 76 Hz
Display - Viewable size, horizontal - 47.7 cm
Display - Viewable size, vertical - 26.8 cm
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Display surface - Matt
Dot pitch - 0.2482 mm
Dynamic contrast - 20 000 000:1
ean - 4038986127165
Eans - 4038986127165
Energy class - E
Energy label - Pobierz
Ergonomics - Cable lock slot - Yes
Ergonomics - Cable lock slot type - Kensington
Ergonomics - Height adjustment - No
Ergonomics - Number of OSD languages - 16
Ergonomics - On Screen Display (OSD) - Yes
Ergonomics - On Screen Display (OSD) languages - Czech
Ergonomics - On Screen Display (OSD) languages - Dutch
Ergonomics - On Screen Display (OSD) languages - English
Ergonomics - On Screen Display (OSD) languages - Finnish
Ergonomics - On Screen Display (OSD) languages - French
Ergonomics - On Screen Display (OSD) languages - German
Ergonomics - On Screen Display (OSD) languages - Italian
Ergonomics - On Screen Display (OSD) languages - Japanese
Ergonomics - On Screen Display (OSD) languages - Korean
Ergonomics - On Screen Display (OSD) languages - Polish
Ergonomics - On Screen Display (OSD) languages - Portuguese
Ergonomics - On Screen Display (OSD) languages - Russian
Ergonomics - On Screen Display (OSD) languages - SER
Ergonomics - On Screen Display (OSD) languages - Simplified Chinese
Ergonomics - On Screen Display (OSD) languages - Simplified Chinese, Traditional Chinese, Croatian, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian
Ergonomics - On Screen Display (OSD) languages - Spanish
Ergonomics - On Screen Display (OSD) languages - Traditional Chinese
Ergonomics - Panel mounting interface - 100 x 100 mm
Ergonomics - Pivot - No
Ergonomics - Plug and Play - Yes
Ergonomics - Tiltable - Y
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - -5 - 21.5°
Ergonomics - VESA mounting - Yes
Frequency, horizontal max. - 83 kHz
Frequency, horizontal min. - 30 kHz
Frequency, vertical max. - 76 Hz
Frequency, vertical min. - 50 Hz
GTIN - 4038986127165
guarantee - 36
guarantee_type - external
Height - 292.68 mm
Height with stand - 388.11 mm
I/O connectors - 1 x 15-pin D-Sub
I/O connectors - 1 x Audio out
I/O connectors - 1 x HDMI
Logistics data - Harmonized System (HS) code - 85285210
LongDesc - Modern and sleek 21.5" 3-sides borderless monitor with Full HD and eye-caring LowBlue and FlickerFree technologyModernized design and crisp Full HD images. The 22B2H/EU combines a sleek 3-sides frameless panel and VGA and HDMI connectivity. Enjoy working or streaming with wide viewing angles and eye-soothing LowBlue and FlickerFree technologies.
LongProductName - Screen size (inch) 21.5, Panel resolution 1920x1080, Refresh rate 75 Hz, Panel type VA, HDMI HDMI 1.4 x 1, D-SUB (VGA) 1x
LongSummaryDescription - AOC B2 22B2H/EU. Display diagonal: 54.6 cm (21.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Display surface: Matt, Response time: 4 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black
Matrix type - VA
Model - 22B2H/EU
Multimedia - Built-in camera - No
Multimedia - Built-in microphone - No
Multimedia - Built-in speaker(s) - No
Name - AOC 22B2H/EU - 21,5'' | VA | Full HD | 75Hz
name - Monitor 22B2H/EU 21.5 inch VA HDMI
Number of colors - 16,7 mln
Optional accessory -
Other features -
Other features - Certification - True
Other features - Energy efficiency class (old) - B
Other features - Exterior finish type - Textured
Other features - Heavy metals free - Hg (mercury)
Other features - Light effects - No
Other features - Recyclable packaging material - 100%
Packaging content - Cables included - HDMI
Packaging content - HDMI cable length - 1.8 m
Packaging content - Power adapter included - Yes
Packaging content - Power cable length - 1.8 m
Packaging content - Stand included - Yes
Packaging data - Cables included - HDMI
Packaging data - HDMI cable length - 1.8 m
Packaging data - Package depth - 120 mm
Packaging data - Package height - 370 mm
Packaging data - Package type - Box
Packaging data - Package weight - 3.5 kg
Packaging data - Package width - 550 mm
Packaging data - Power adapter included - Yes
Packaging data - Stand included - Yes
Performance - AMD FreeSync - No
Performance - Fast charging - No
Performance - Flicker-free technology - Yes
Performance - Low Blue Light technology - Yes
Performance - NVIDIA G-SYNC - No
Ports & interfaces - Audio input - No
Ports & interfaces - Built-in USB hub - No
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - DVI port - No
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 1.4
Ports & interfaces - Headphone connectivity - 3.5 mm
Ports & interfaces - Headphone out - Yes
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Power - AC input frequency - 50 - 60 Hz
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Annual energy consumption - 30 kWh
Power - Energy efficiency class (SDR) - E
Power - Energy efficiency scale - A+++ to D
Power - Energy efficiency scale - A to G
Power - External power adapter - Yes
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.3 W
Power - Power consumption (typical) - 18 W
Power consumption - 18 W
producer - AOC
Producer - AOC
producerCode - 22B2H/EU
ProducerCode - 22B2H/EU
ProductName - 22B2H/EU
productName - AOC B2 22B2H/EU LED display 54.6 cm (21.5") 1920 x 1080 pixels Full HD Black
productSize - Normal
Resolution - 1920 x 1080 (FHD 1080)
Response time - 4 ms
Screen size (diag.) - 21.5"
ShortDescription - 21,5'' | VA | Full HD | 75Hz
ShortSummaryDescription - AOC B2 22B2H/EU, 54.6 cm (21.5"), 1920 x 1080 pixels, Full HD, LED, 4 ms, Black
sizeX - 550
sizeY - 370
sizeZ - 120
Speakers built-in - No
Static contrast - 3 000:1
Sustainability - Sustainability certificates - ENERGY STAR
Technical details - Sustainability certificates - ENERGY STAR
Title - AOC B2 22B2H/EU LED display 54.6 cm (21.5") 1920 x 1080 pixels Full HD Black
Touch screen - No
Transreflective technology - LED
TV tuner built-in - No
URL - https://eu.aoc.com/
vendpn - 22B2H/EU
VESA - 100 x 100
Viewing angle, horizontal - 178 °
Viewing angle, vertical - 178 °
Visible area, horizontal - 476.64 mm
Visible area, vertical - 268.11 mm
Warranty -
WarrantyInfo - 3 years
warrantyLength - 36
warrantyType - F
Web camera - None
Weight - 2.1 kg
weight - 3300
Weight & dimensions - Depth (without stand) - 36.2 mm
Weight & dimensions - Depth (with stand) - 162.9 mm
Weight & dimensions - Height (without stand) - 292.7 mm
Weight & dimensions - Height (with stand) - 388.1 mm
Weight & dimensions - Weight (without stand) - 2.1 kg
Weight & dimensions - Weight (with stand) - 2.1 kg
Weight & dimensions - Width (without stand) - 492.8 mm
Weight & dimensions - Width (with stand) - 492.8 mm
Width - 492.78 mm
WiFi - No
