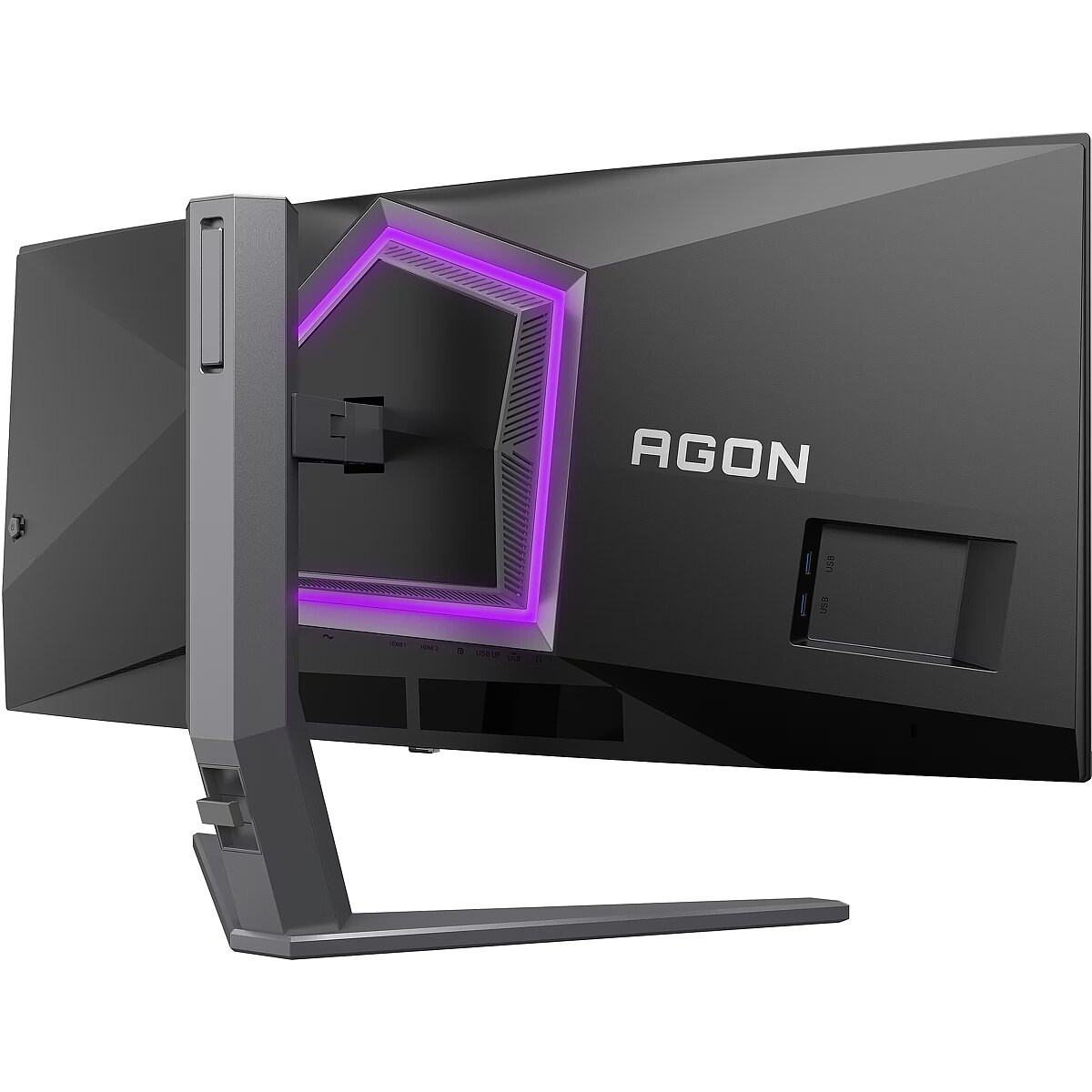

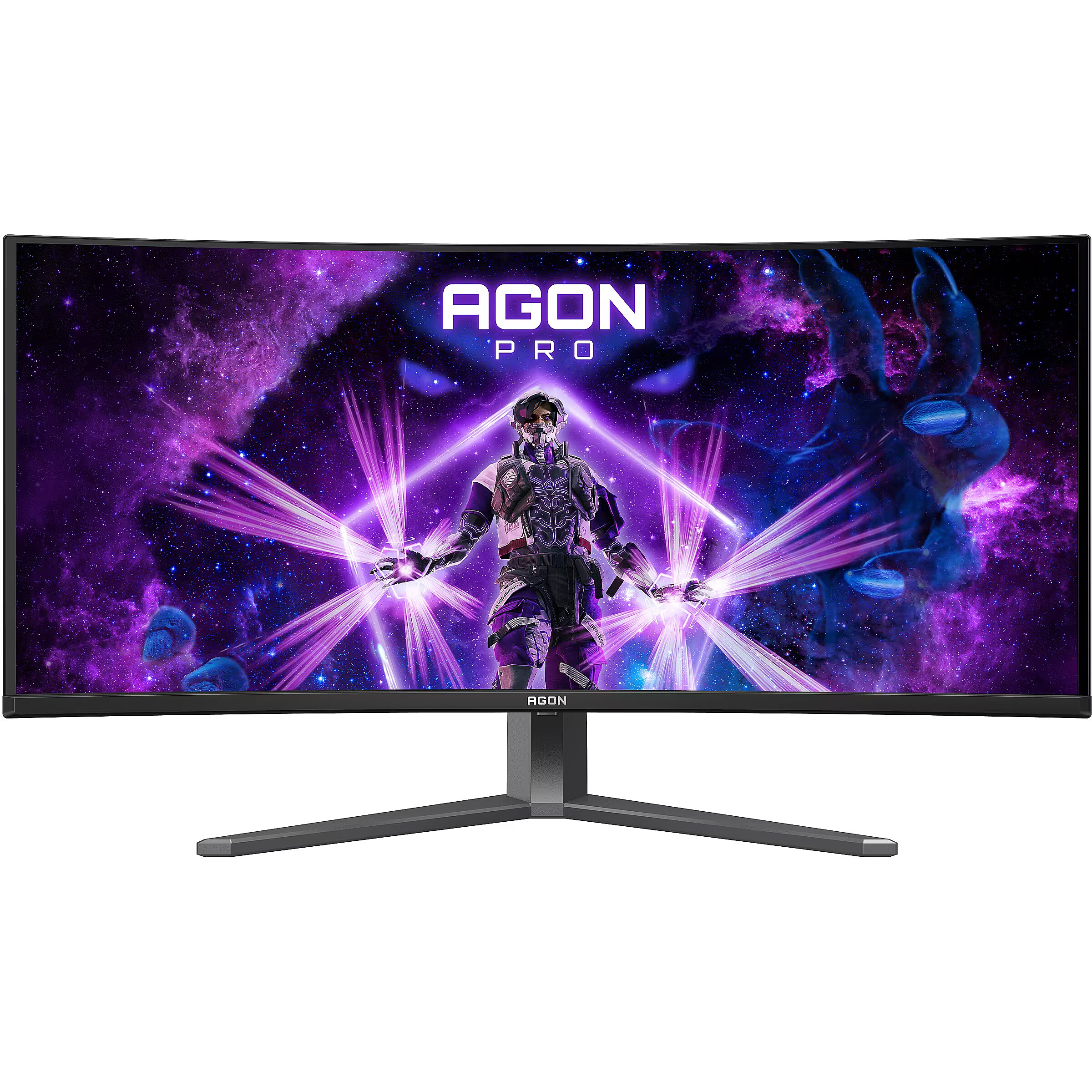

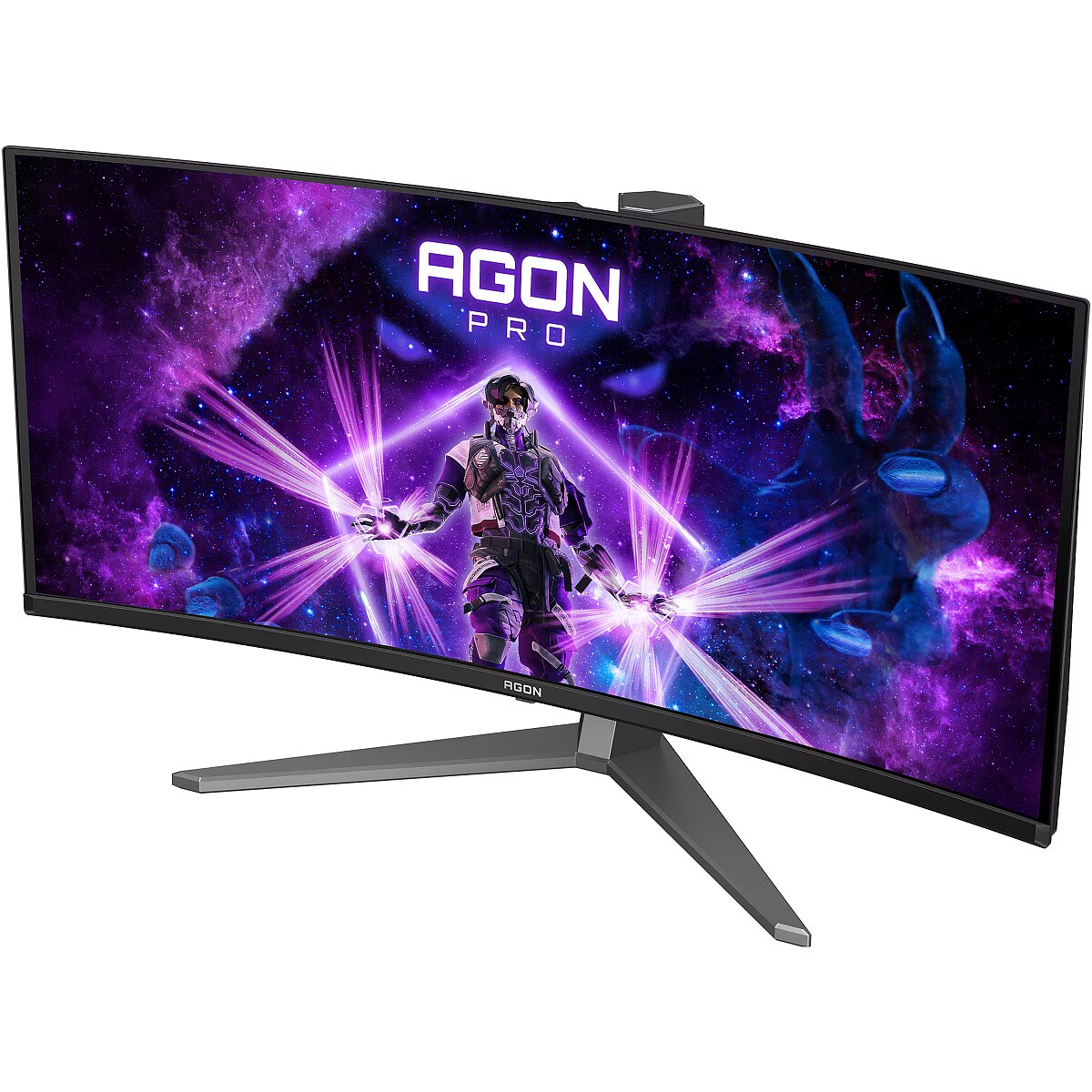

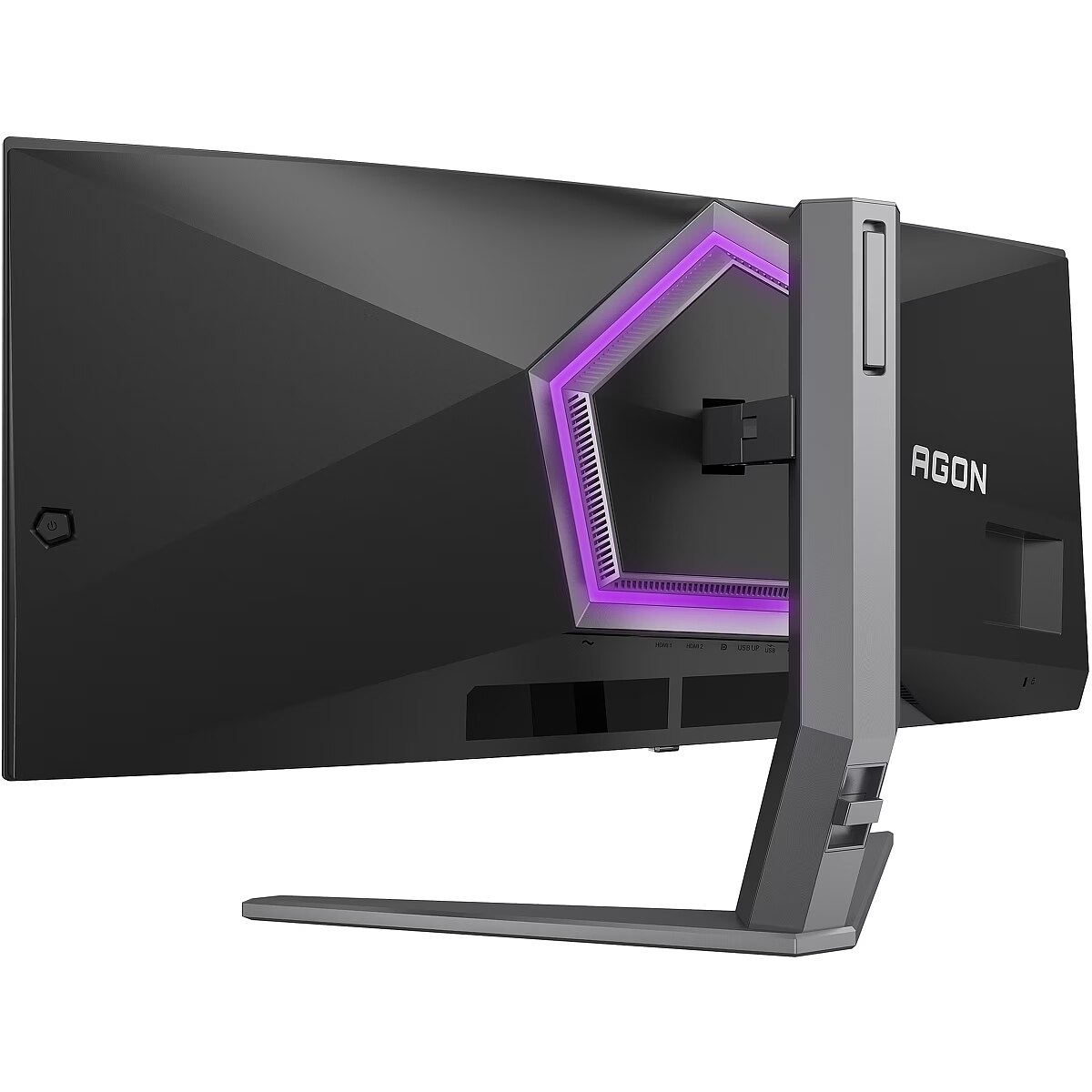

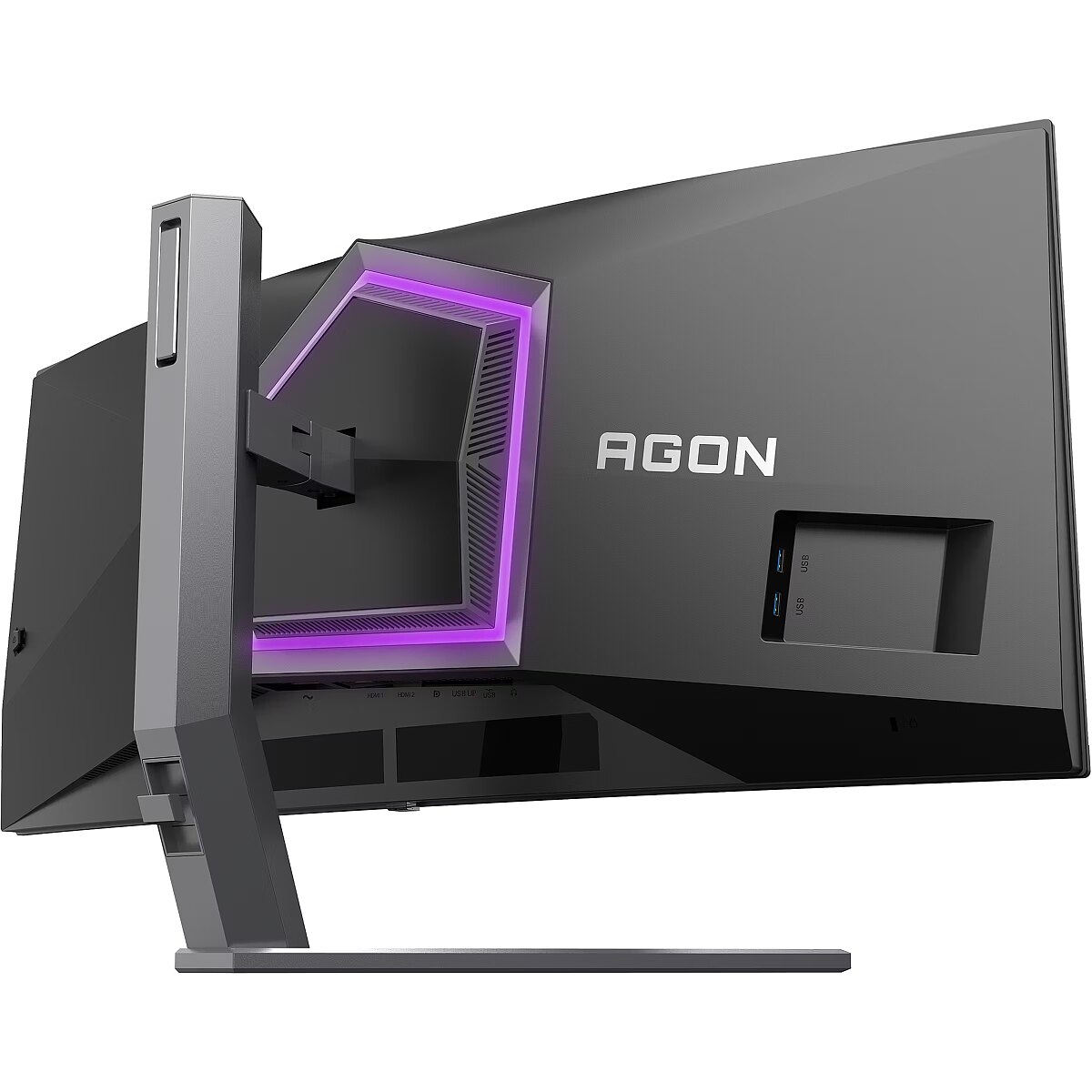

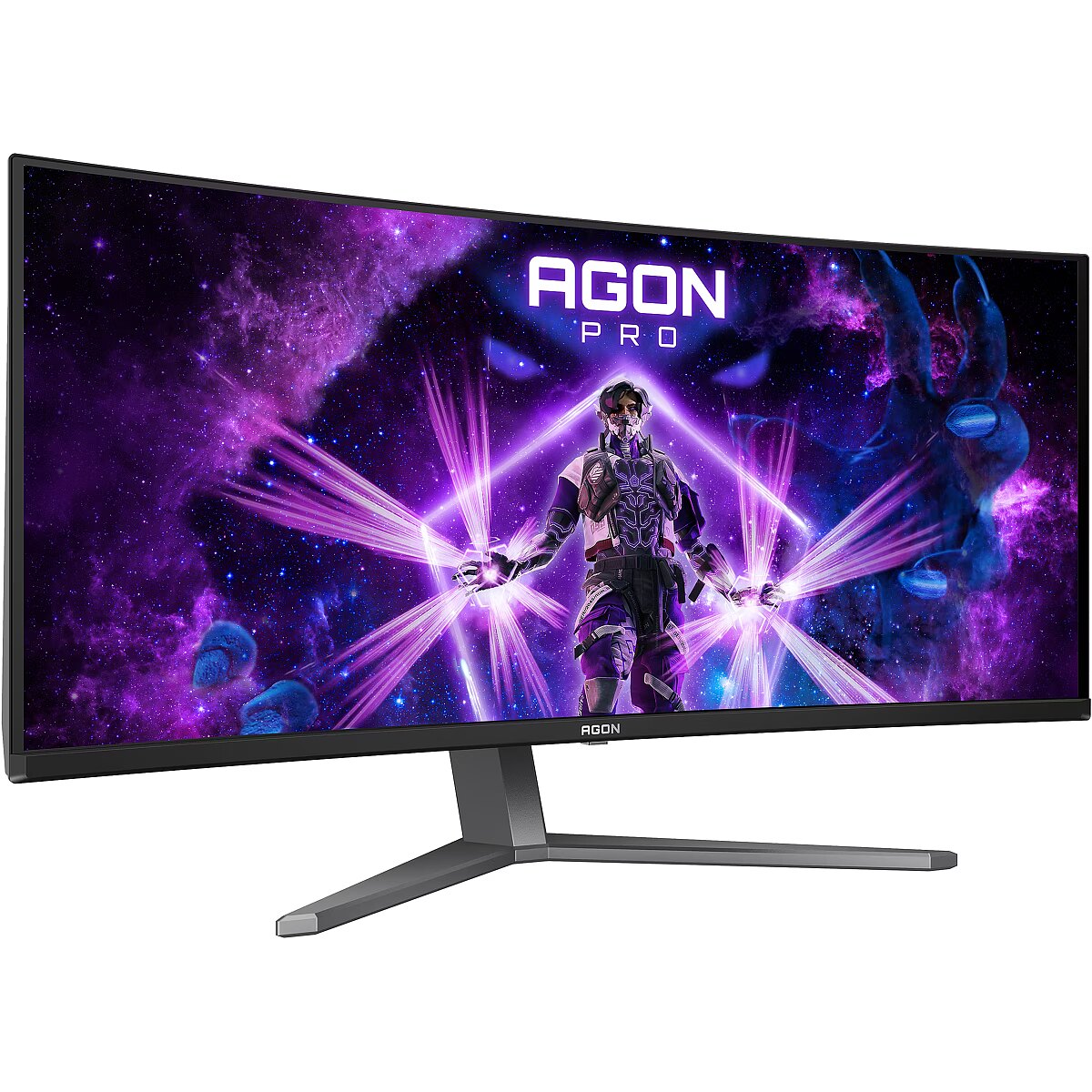

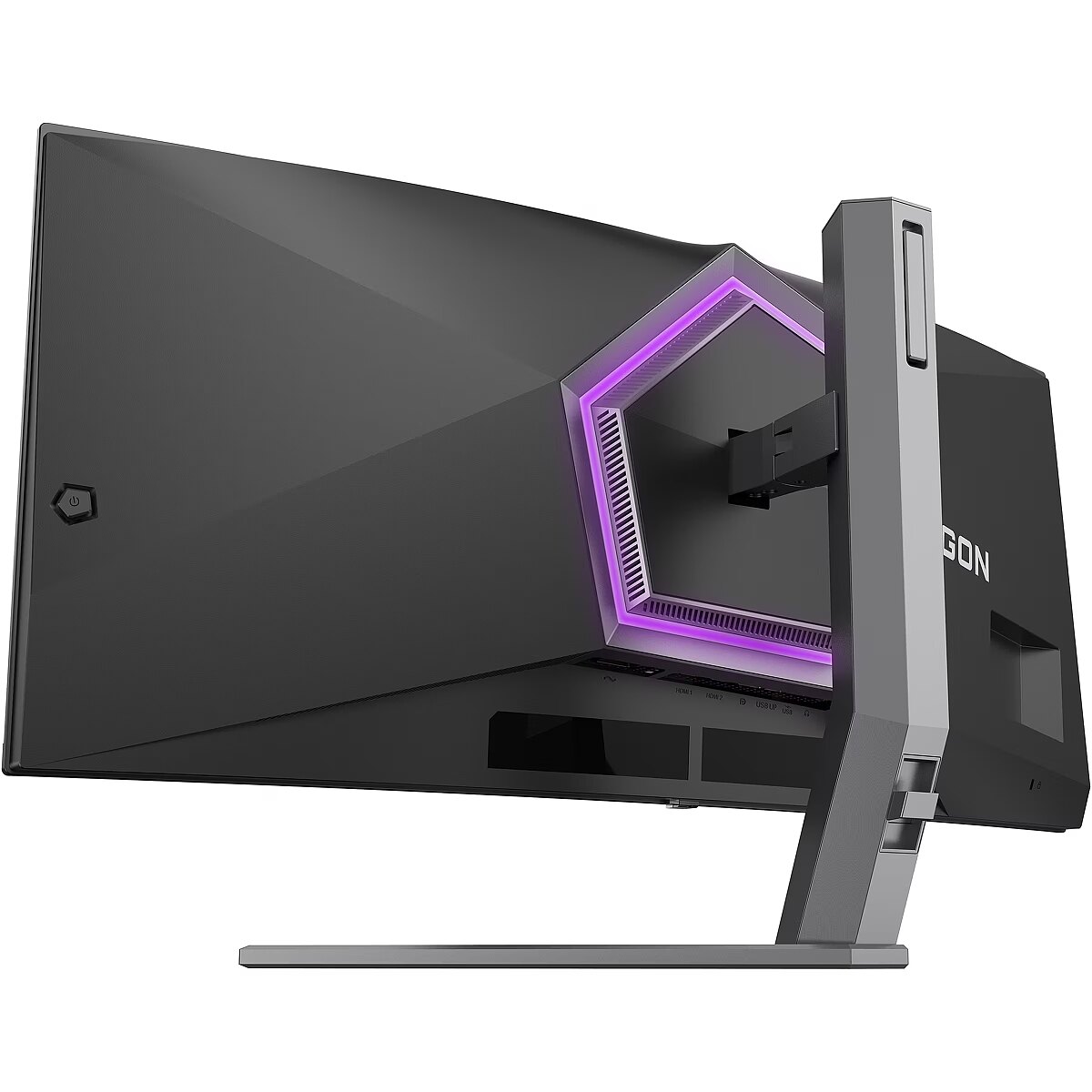

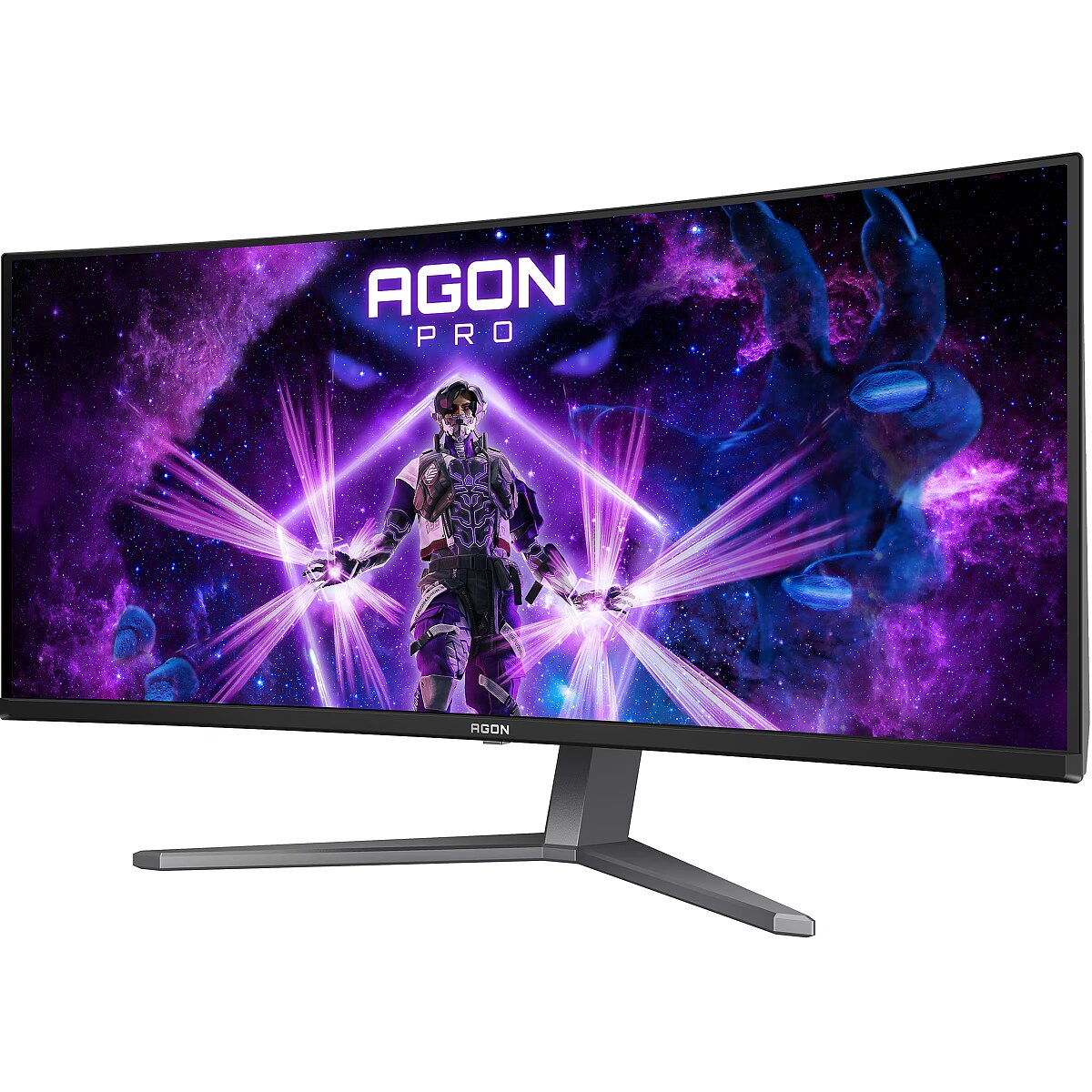

AOC AGON PRO AG346UCD, 34"

Name: AOC AGON PRO AG346UCD, 34"
Brand: AOC
SKU: 1162251
Price: 694.35 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1162251 Product code: AG346UCD

In stock 4 units

Warranty: 3 years

Compare

Delivery options More about shipping

Delivery to Smartpost free of charge: 02.12.2024
Delivery to Latvian post office, parcel locker or Circle K free of charge: 02.12.2024
Delivery to address in Riga 3.99 €: 02.12.2024
Delivery to address in Latvia 6.99 €: 02.12.2024
Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Thursday, 28.11.2024 after 15:00

Main product parameters All parameters

Curved: Ir
Panel Type: OLED
Refresh rate: 175 Hz
Response time: 0.03ms
Contrast ratio: 1500000:1
Brightness: 1000cd/m2
Size: 34"
Resolution: UWWQHD 3440x1440

Description

We offer to buy AOC 34" a monitor with UWWQHD 3440x1440 resolution.

The compatibility with the modern graphics cards and video players will be ensured by HDMI input.
DisplayPort port ensures the receipt of a higher quality picture from the computer graphics card supporting this technology.
The speakers system built in the monitor allows to listen to music and enjoy films with sound without making it necessary to buy additional speakers.

Display characteristics

AMD FreeSync : Ir

Curved : Ir

NVIDIA G-SYNC : Ir

Panel Type OLED

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 175 Hz

Touchscreen : NO

VESA DisplayHDR : Nav

Response time 0.03ms

The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.dateks.lv recommends to buy monitors with 5ms response time or lower.

Contrast ratio 1500000:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 1000cd/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām Dateks.lv iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information

Application : Gaming

Aspect ratio : 21:9

Color : Black, Gray

Size 34"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution UWWQHD 3440x1440

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality

Flicker-free : Ir

Height adjustment : Ir

Pivot : Nav

Swivel : And

Tilt : YES

VESA wall mount : 100x100 mm

Ports and equipment

D-SUB Nav

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort 1

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI Nav

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port 2

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Ir

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : YES

USB-C Power Delivery : Nav

USB-C video input : 0

More detailed specification

Additional information in manufacturers website AOC AGON PRO AG346UCD, 34"

Brand - AOC
BrandPartCode - AG346UCD
Category - Computer Monitors
category - Monitors|By Size|34 Inch
code - AG346UCD
Code - AG346UCD
Design - Frameless design - Yes
Design - Front bezel colour - Grey
Design - Market positioning - Gaming
Design - Product colour - Black, Grey
Display - Anti-glare screen - Yes
Display - Backlight type - W-LED
Display - Colour gamut standard - DCI-P3, sRGB
Display - Contrast ratio (typical) - 150000:1
Display - DCI-P3 coverage - 99%
Display - Digital horizontal frequency - 30 - 385 kHz
Display - Digital vertical frequency - 48 - 240 Hz
Display - Display brightness (typical) - 1000 cd/m²
Display - Display diagonal - 86.4 cm (34")
Display - Display diagonal (metric) - 86.36 cm
Display - Display number of colours - 1.07 billion colours
Display - Display resolution - 3440 x 1440 pixels
Display - Display technology - QDOLED
Display - Haze rate - 35%
Display - HD type - Wide Quad HD
Display - High Dynamic Range (HDR) supported - Yes
Display - High Dynamic Range (HDR) technology - High Dynamic Range 10 (HDR10)
Display - LED backlight - Yes
Display - Maximum refresh rate - 175 Hz
Display - Native aspect ratio - 21:9
Display - Panel type - OLED
Display - Pixel pitch - 0.2315 x 0.2315 mm
Display - Response time - 0.03 ms
Display - Response time measurement type - GTG (Gray to Gray)
Display - Screen curvature rating - 800R
Display - Screen shape - Curved
Display - sRGB coverage (typical) - 100%
Display - Surface hardness - 3H
Display - Touchscreen - No
Display - Viewable size, horizontal - 80.1 cm
Display - Viewable size, vertical - 33.7 cm
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Display > Aspect ratio - 21:9
Display > Display - 3440 x 1440 pixels
Display > Display brightness - 250 cd/m²
Display > Display diagonal - 34 "
Display > HD type - WQHD
Display > Maximum refresh rate - 175 Hz
Display > Panel type - OLED
Display > Response time - 0.03 ms
EAN - 4038986112444
ean - 4038986112444
Ergonomics - Cable lock slot - Yes
Ergonomics - Cable lock slot type - Kensington
Ergonomics - Cable management - Yes
Ergonomics - Height adjustment - 15 cm
Ergonomics - Height adjustment - Yes
Ergonomics - Panel mounting interface - 100 x 100 mm
Ergonomics - Picture-in-Picture - Yes
Ergonomics - Swivel angle range - -16 - 16°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - -5 - 23°
Ergonomics - VESA mounting - Yes
Ergonomics > Height adjustment - Yes
Ergonomics > Swivelling - Yes
Ergonomics > Tilt adjustment - Yes
GTIN - 4038986112444
GTIN - 6973985232213
Link - https://aoc.com/us/gaming/products/monitors/ag346ucd/specification
LongDesc - Become a legend with the AGON AG346UCD, a 34-inch WQHD curved monitor featuring QD-OLED technology and a 175Hz refresh rate.The AG346UCD is a 34-inch WQHD (21:9) curved monitor featuring QD-OLED technology for vivid color accuracy and deep contrasts. Its 175Hz refresh rate ensures ultra-smooth, lag-free visuals crucial for eSports. The HDR TB400 VESA certification enhances gaming with breathtaking brightness, while AdaptiveSync eliminates screen tearing. Creative professionals benefit from precise color reproduction and wide color gamut for graphic design. With an ergonomic design, a versatile USB hub, customizable RGB Light FX, and Gmenu, the AG346UCD is the definitive choice for achieving legendary status in gaming and creative endeavors alike.
LongProductName - Screen size (inch) 34, Panel resolution 3440x1440, Max Refresh rate 175 Hz, Panel type QD - OLED, HDMI HDMI 2.0 x 2, DisplayPort DisplayPort 1.4 x 1, Sync technology (VRR) Freesync Premium Pro
LongSummaryDescription - AOC AGON PRO AG346UCD. Display diagonal: 86.4 cm (34"), Display resolution: 3440 x 1440 pixels, HD type: Wide Quad HD, Display technology: QDOLED, Response time: 0.03 ms, Native aspect ratio: 21:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black, Grey
Multimedia - Built-in camera - No
Multimedia - Built-in speaker(s) - Yes
Multimedia - Number of speakers - 2
Multimedia - RMS rated power - 16 W
Multimedia > Built-in speaker(s) - Yes
Multimedia > TV tuner integrated - No
name - AOC AGON Pro AG346UCD, 34 Zoll Curved Gaming Monitor, 175 Hz, QD OLED, Adaptive Sync
Name - AOC AGON PRO AG346UCD | 34 " | OLED | WQHD | 21:9 | 175 Hz | 0.03 ms | 3440 x 1440 pixels | 250 cd/m² | HDMI ports quantity 2
Networking > Ethernet LAN (RJ-45) ports - No
Other features - Compliance certificates - CB, CE, Federal Communications Commission (FCC), KC, KCC, RoHS
Other features - Dial point - Yes
Other features - FPS counter - Yes
Other features - Low input lag - Yes
Other features - Picture-by-Picture (PbP) - Yes
Other features - Shadow control - Yes
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 930.00 mm
Package features > Gross height (mm) - 226.00 mm
Package features > Gross width (mm) - 470.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 10 pc(s)
Package features > Paper/Pasteboard - 2500.00 g
Package features > Plastic (No PET) - 830.00 g
Package features > Tare weight (kg) - 3.33 kg
Package features > Volume (m3) - 0.10 m³
Package features > WEE classification - CL109:2:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - DisplayPort, HDMI, USB Type-A to USB Type-B
Packaging content - DisplayPort cable length - 1.8 m
Packaging content - HDMI cable length - 1.8 m
Packaging data - Package depth - 226 mm
Packaging data - Package height - 470 mm
Packaging data - Package weight - 14.2 kg
Packaging data - Package width - 930 mm
PDF - https://www.blobs.lt/products/5/9/2/3/5/4/fba18228a50cd653d912e99b56c66c53/original.pdf
Performance - AMD FreeSync - Yes
Performance - AMD FreeSync type - FreeSync Premium
Performance - Game mode - Yes
Performance - Low Blue Light technology - Yes
Performance - NVIDIA G-SYNC - Yes
Performance - VESA Adaptive Sync support - Yes
Ports & interfaces - Built-in USB hub - Yes
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DisplayPort version - 1.4
Ports & interfaces - HDCP - Yes
Ports & interfaces - HDCP version - 2.2
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.0
Ports & interfaces - Headphone connectivity - 3.5 mm
Ports & interfaces - Headphone out - Yes
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - Number of upstream ports - 1
Ports & interfaces - USB hub version - 3.2 Gen 1 (3.1 Gen 1)
Ports & interfaces - USB Type-A downstream ports quantity - 3
Ports & interfaces - USB upstream port type - USB Type-B
Ports & interfaces > DisplayPorts quantity - 1
Ports & interfaces > HDMI ports quantity - 2
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Energy consumption (HDR) per 1000 hours - 31 kWh
Power - Energy consumption (SDR) per 1000 hours - 31 kWh
Power - Energy efficiency class (HDR) - F
Power - Energy efficiency class (SDR) - F
Power - Energy efficiency scale - A to G
Power - Input current - 2.5 A
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 100 W
Power - Power supply type - Internal
ProductName - AG346UCD
ShortSummaryDescription - AOC AGON PRO AG346UCD, 86.4 cm (34"), 3440 x 1440 pixels, Wide Quad HD, QDOLED, 0.03 ms, Black, Grey
Technical details > Gross weight - 14.15 kg
Technical details > Net weight - 10.82 kg
Technical details > Producer - AOC
Technical details > Producer product name - AGON PRO AG346UCD
Technical details > USB-C - No
Technical details > USB-C power delivery - N/A
Title - AOC AGON PRO AG346UCD computer monitor 86.4 cm (34") 3440 x 1440 pixels Wide Quad HD QDOLED Black, Grey
URL - https://eu.aoc.com/
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo - 3 years
Weight & dimensions - Depth (without stand) - 130.2 mm
Weight & dimensions - Depth (with stand) - 294.3 mm
Weight & dimensions - Height (without stand) - 361.2 mm
Weight & dimensions - Height (with stand) - 551.2 mm
Weight & dimensions - Weight (without stand) - 7.65 kg
Weight & dimensions - Weight (with stand) - 10.8 kg
Weight & dimensions - Width (without stand) - 811.7 mm
Weight & dimensions - Width (with stand) - 811.7 mm
