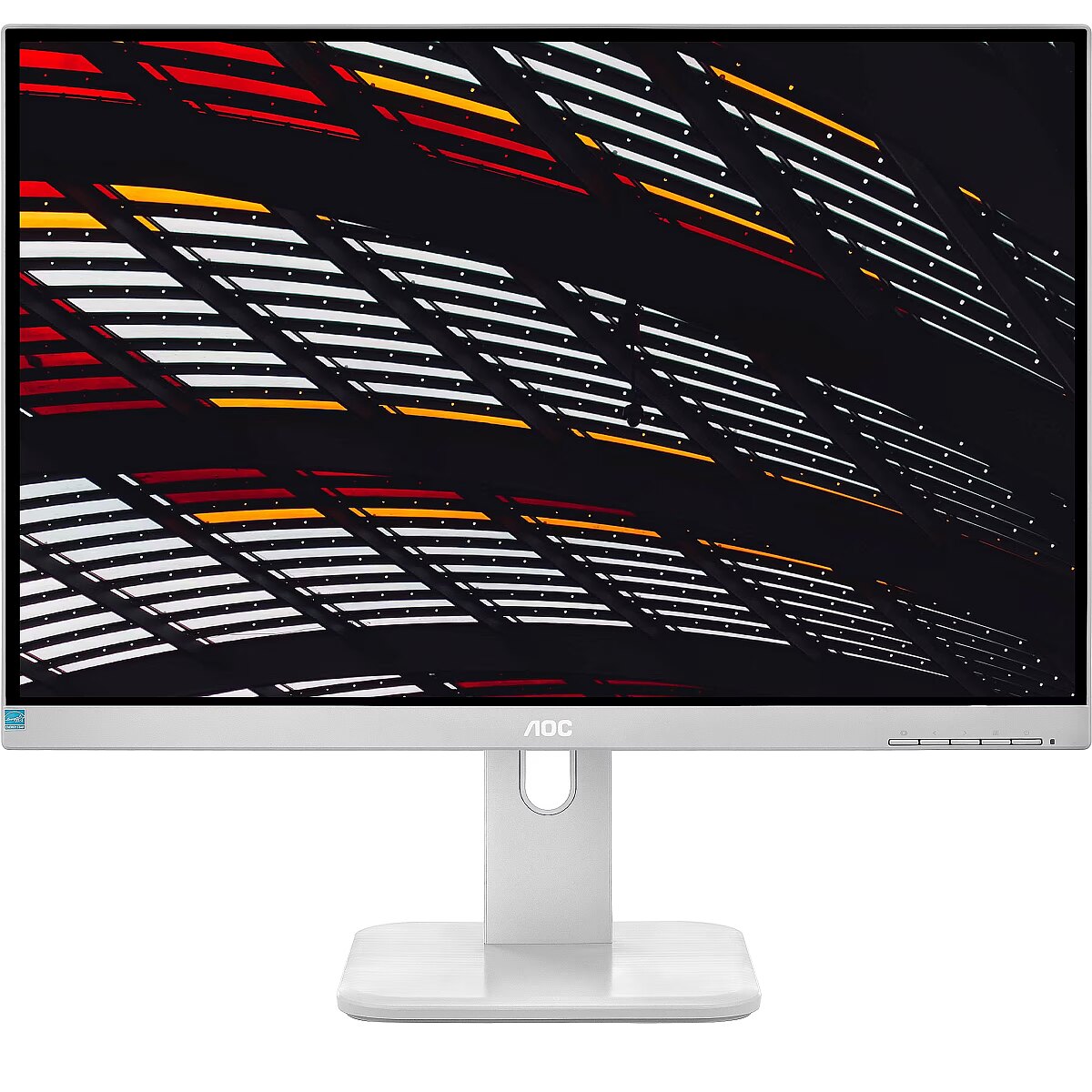

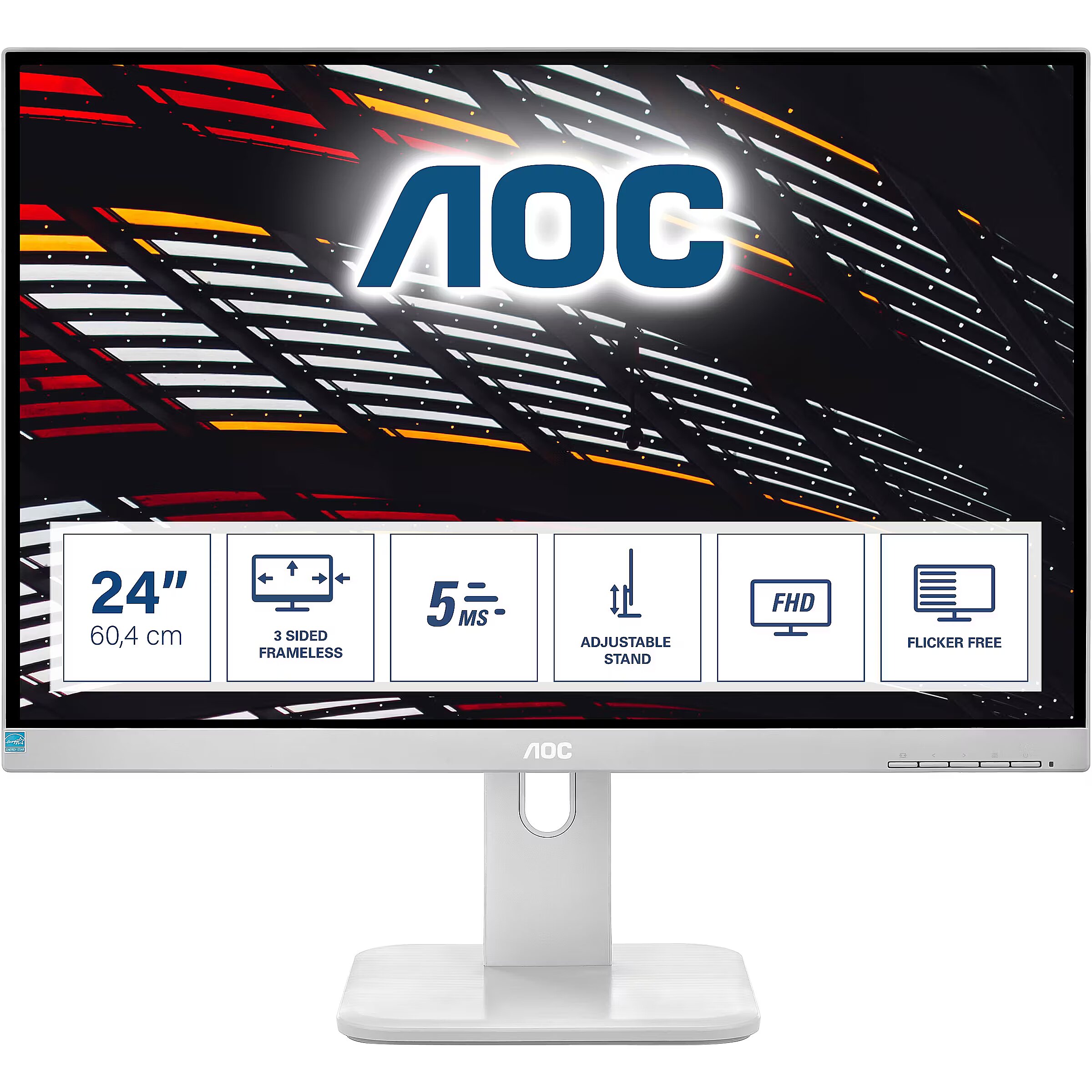

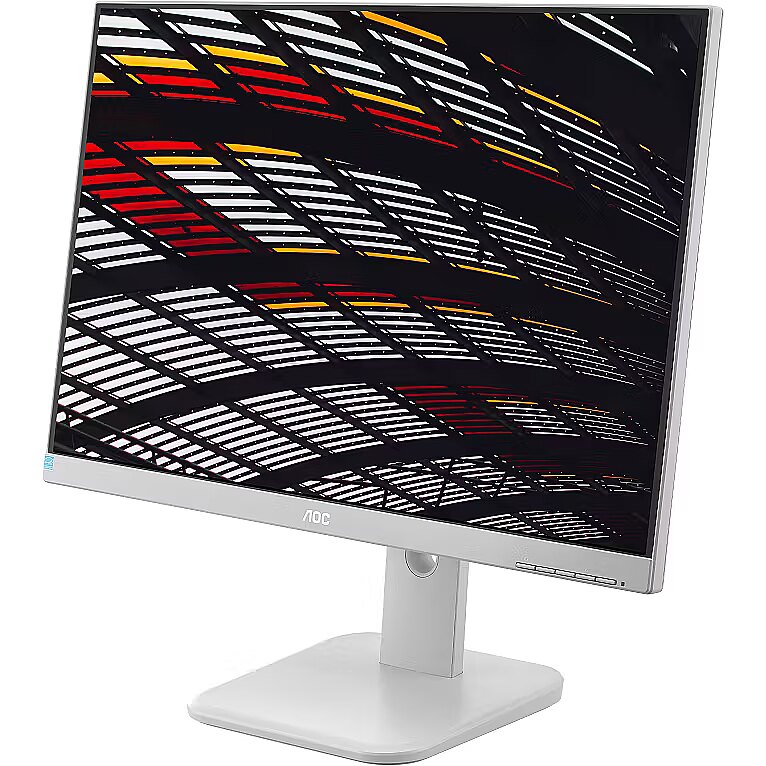

AOC 24P1/GR, 23.8"

Name: AOC 24P1/GR, 23.8"
Brand: AOC
SKU: 1157201
Price: 245.15 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1157201 Product code: 24P1/GR

Can be ordered 5 units Availability: 14 days after order approval

Warranty: 3 years

Compare

Delivery options More about shipping

Delivery to Smartpost free of charge: 26.11.2024
Delivery to Latvian post office, parcel locker or Circle K free of charge: 26.11.2024
Delivery to address in Riga 3.99 €: 26.11.2024
Delivery to address in Latvia 6.99 €: 26.11.2024
Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 22.11.2024 after 15:00

Main product parameters All parameters

Curved: Nav
Panel Type: IPS
Refresh rate: 60 Hz
Response time: 5ms
Contrast ratio: 1000:1
Brightness: 250cd/m2
Size: 23.8"
Resolution: FHD 1920x1080

Description

We offer to buy AOC 23.8" a monitor with FHD 1920x1080 resolution.

IPS matrix for this monitor provides high colour correspondence parameters, superior picture contrast and good visibility from eventually all viewing angles.
The compatibility with the modern graphics cards and video players will be ensured by HDMI input.
DisplayPort port ensures the receipt of a higher quality picture from the computer graphics card supporting this technology.
The port DVI ensures the compatibility with the classic video cards equipped with this port.
The port D-SUB supports graphics cards with the preceding generation analogous VGA plug-in and the comparatively newer generation DVI-I standard using a transition DVI-I -> D-Sub.
The speakers system built in the monitor allows to listen to music and enjoy films with sound without making it necessary to buy additional speakers.
5ms fast response time makes this monitor perfectly suitable for enjoying computer games and dynamic films.

Display characteristics

AMD FreeSync : Nav

Curved : Nav

NVIDIA G-SYNC : Nav

Panel Type IPS

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 60 Hz

Touchscreen : NO

VESA DisplayHDR : Nav

Response time 5ms

The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.dateks.lv recommends to buy monitors with 5ms response time or lower.

Contrast ratio 1000:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 250cd/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām Dateks.lv iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information

Application : Home & Office

Aspect ratio : 16:9

Color : Gray

Size 23.8"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution FHD 1920x1080

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality

Flicker-free : Ir

Height adjustment : Ir

Pivot : Ir

Swivel : And

Tilt : YES

VESA wall mount : 100x100 mm

Ports and equipment

D-SUB 1

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort 1

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI 1

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port 1

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Ir

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : YES

USB-C Power Delivery : Nav

USB-C video input : 0

More detailed specification

Additional information in manufacturers website AOC 24P1/GR, 23.8"

Brand - AOC
BrandPartCode - 24P1/GR
Category - Computer Monitors
Design - Detachable stand - Yes
Design - Feet colour - Grey
Design - Frameless design - Yes
Design - Front bezel colour - Grey
Design - Market positioning - Business
Design - Product colour - Grey
Display - 3D - No
Display - Adobe RGB coverage - 78%
Display - Aspect ratio - 16:9
Display - Backlight type - W-LED
Display - Colour depth - 6 bit
Display - Contrast ratio (dynamic) - 50000000:1
Display - Contrast ratio (typical) - 1000:1
Display - Digital horizontal frequency - 30 - 83 kHz
Display - Display brightness (typical) - 250 cd/m²
Display - Display diagonal - 60.5 cm (23.8")
Display - Display diagonal (metric) - 60.452 cm
Display - Display number of colours - 16.7 million colours
Display - Display resolution - 1920 x 1080 pixels
Display - Display technology - LED
Display - HD type - Full HD
Display - Horizontal scan range - 30 - 83 kHz
Display - Maximum refresh rate - 60 Hz
Display - Native aspect ratio - 16:9
Display - Panel type - IPS
Display - Pixel pitch - 0.2745 x 0.2745 mm
Display - Response time - 5 ms
Display - Screen shape - Flat
Display - sRGB coverage (typical) - 106%
Display - Supported graphics resolutions - 1920 x 1080 (HD 1080)
Display - Surface hardness - 3H
Display - Touchscreen - No
Display - Vertical scan range - 50 - 76 Hz
Display - Viewable size, horizontal - 52.7 cm
Display - Viewable size, vertical - 29.6 cm
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Ergonomics - Cable lock slot - Yes
Ergonomics - Cable lock slot type - Kensington
Ergonomics - Height adjustment - 15 cm
Ergonomics - Height adjustment - Yes
Ergonomics - On Screen Display (OSD) - Yes
Ergonomics - On Screen Display (OSD) languages - Simplified Chinese, Traditional Chinese, Croatian, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian
Ergonomics - Panel mounting interface - 100 x 100 mm
Ergonomics - Pivot - Yes
Ergonomics - Pivot angle - 1 - 90°
Ergonomics - Plug and Play - Yes
Ergonomics - Swivel angle range - -175 - 175°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - -5 - 35°
Ergonomics - VESA mounting - Yes
GTIN - 4038986146524
GTIN - 4038986146647
Logistics data - Harmonized System (HS) code - 85285210
LongDesc - 3-sides borderless 23.8” IPS display with Full HDSleek and elegant thanks to 3-sides borderless design, achieved thanks to the newest IPS panel in FHD (1920x1080px) resolution. Includes full range of display inputs (VGA, DVI, HDMI, DisplayPort), built-in speakers and improved ergonomic stand with height adjustment.
LongProductName - Screen size (inch) 23.8, Panel resolution 1920x1080, Refresh rate 60 Hz, Panel type IPS, HDMI HDMI 1.4 x 1, Display Port DisplayPort 1.2 x 1, D-SUB (VGA) 1x, DVI 1x DVI-D
LongSummaryDescription - AOC P1 24P1/GR. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Grey
Multimedia - Built-in camera - No
Multimedia - Built-in microphone - No
Multimedia - Built-in speaker(s) - Yes
Multimedia - Number of speakers - 2
Multimedia - RMS rated power - 2 W
Operational conditions - Non-operating altitude - 5000 - 12192 m
Operational conditions - Operating altitude - 0 - 5000 m
Operational conditions - Operating relative humidity (H-H) - 10 - 85%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 93%
Operational conditions - Storage temperature (T-T) - -25 - 55 °C
Other features - Anti-Blue-Light technology - Yes
Other features - Bezel thickness type - Frameless
Other features - Certification - True
Other features - Compatibility - VESA-P1
Other features - Exterior finish type - Textured
Other features - Heavy metals free - Hg (mercury)
Other features - Light effects - No
Other features - Mean time between failures (MTBF) - 50000 h
Other features - On/off switch - Yes
Other features - Recyclable packaging material - 100%
Other features - TV tuner integrated - No
Packaging content - Audio cable length - 1.5 m
Packaging content - Cables included - AC, DVI, DisplayPort, HDMI, USB, VGA
Packaging content - DisplayPort cable length - 1.8 m
Packaging content - HDMI cable length - 1.8 m
Packaging content - Power cable length - 1.8 m
Packaging content - Stand included - Yes
Packaging data - DVI cable length - 1.8 m
Packaging data - Package depth - 59 mm
Packaging data - Package height - 408 mm
Packaging data - Package type - Box
Packaging data - Package weight - 6.55 kg
Packaging data - Package width - 752 mm
Packaging data - USB cable length - 1.8 m
Performance - AMD FreeSync - No
Performance - Fast charging - Yes
Performance - Flicker-free technology - Yes
Performance - Low Blue Light technology - Yes
Performance - NVIDIA G-SYNC - No
Ports & interfaces - Audio input - Yes
Ports & interfaces - Built-in USB hub - Yes
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DisplayPort version - 1.2
Ports & interfaces - DVI port - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 1.4
Ports & interfaces - Headphone connectivity - 3.5 mm
Ports & interfaces - Headphone out - Yes
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - Microphone in - Yes
Ports & interfaces - USB hub version - 3.2 Gen 1 (3.1 Gen 1)
Ports & interfaces - USB Type-A downstream ports quantity - 4
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Energy consumption (SDR) per 1000 hours - 18 kWh
Power - Energy efficiency class (SDR) - E
Power - Energy efficiency scale - A to G
Power - European Product Registry for Energy Labelling (EPREL) code - 413379
Power - Power consumption (off) - 0.23 W
Power - Power consumption (standby) - 0.32 W
Power - Power consumption (typical) - 16.73 W
ProductName - 24P1/GR
Recycling data - Post-consumer recycled plastic - 85%
ShortSummaryDescription - AOC P1 24P1/GR, 60.5 cm (23.8"), 1920 x 1080 pixels, Full HD, LED, 5 ms, Grey
Sustainability - Doesn't contain - PVC/BFR
Sustainability - Sustainability certificates - EPEAT Silver
Title - AOC P1 24P1/GR LED display 60.5 cm (23.8") 1920 x 1080 pixels Full HD Grey
URL - https://eu.aoc.com/
WarrantyInfo - 3 years
Weight & dimensions - Depth (with stand) - 202.5 mm
Weight & dimensions - Height (with stand) - 518.9 mm
Weight & dimensions - Weight (with stand) - 4.6 kg
Weight & dimensions - Width (with stand) - 539.1 mm
