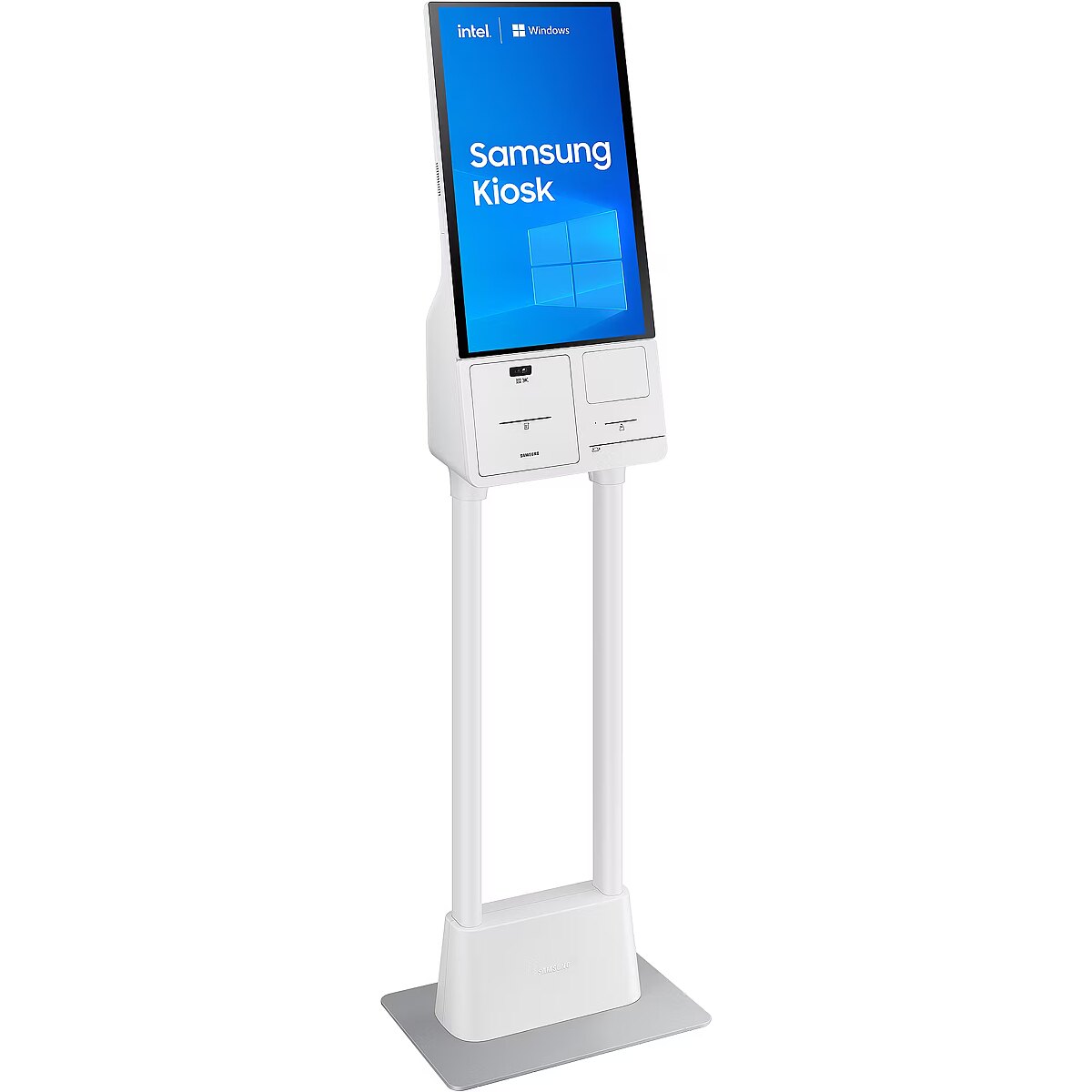

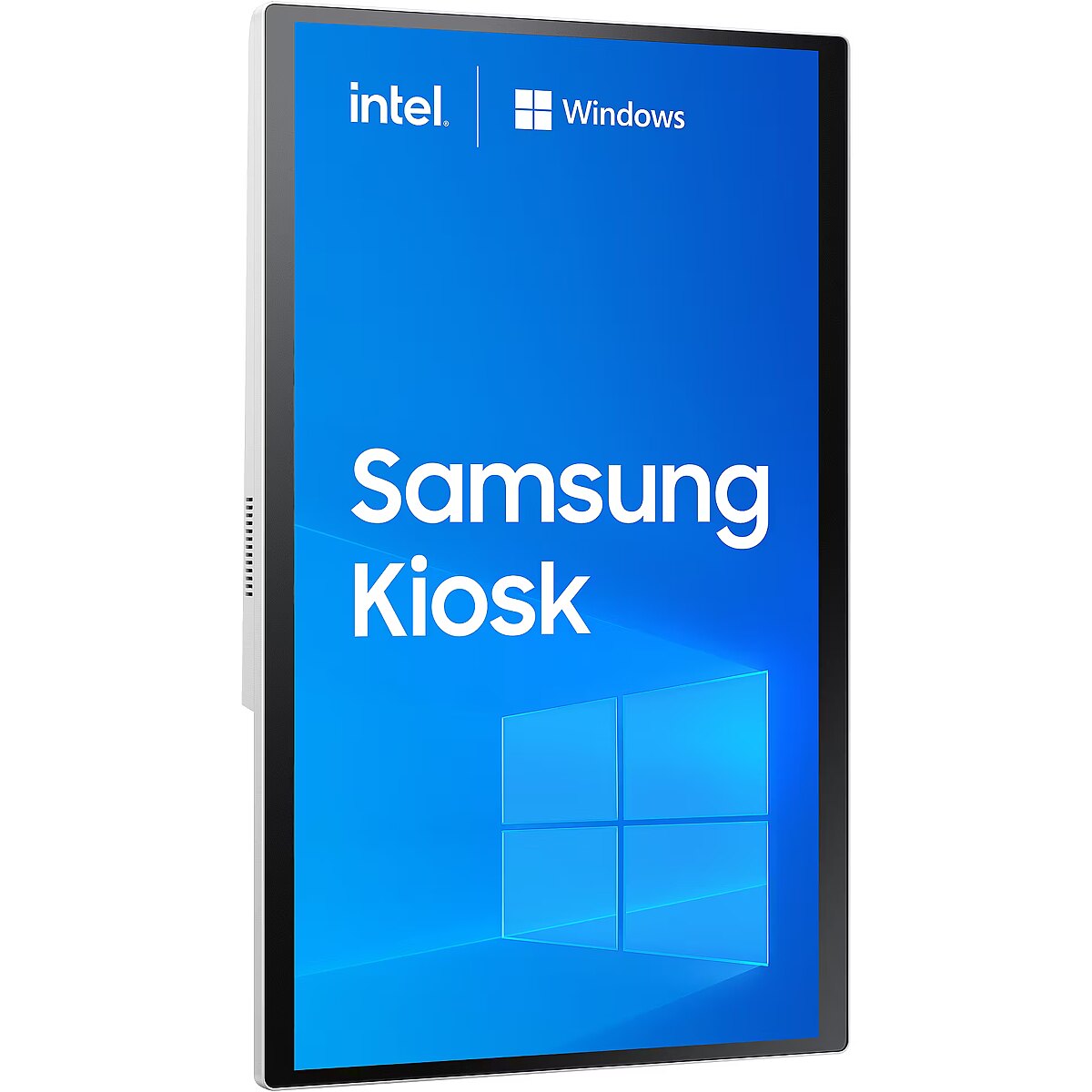

Samsung KIOSK KM24C, 24"

Name: Samsung KIOSK KM24C, 24"
Brand: Samsung
SKU: 1156839
Price: 2061.37 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1156839 Product code: LH24KMCCBGCXEN

Can be ordered 10 units Availability: 14 days after order approval

Warranty: 2 years (Warranty for business entities 1 year)

Compare

Delivery options More about shipping

Delivery to Latvian post office, parcel locker or Circle K free of charge: 10.01.2025
Delivery to address in Riga 3.99 €: 10.01.2025
Delivery to address in Latvia 6.99 €: 10.01.2025
Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 08.01.2025 after 15:00

Main product parameters All parameters

Curved: Nav
Panel Type: IPS
Refresh rate: 75 Hz
Response time: 14ms
Contrast ratio: 1000:1
Brightness: 250cd/m2
Size: 24"
Resolution: FHD 1920x1080

Description

We offer to buy Samsung 24" a monitor with FHD 1920x1080 resolution.

IPS matrix for this monitor provides high colour correspondence parameters, superior picture contrast and good visibility from eventually all viewing angles.

Display characteristics

AMD FreeSync : Nav

Curved : Nav

NVIDIA G-SYNC : Nav

Panel Type IPS

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 75 Hz

Touchscreen : YES

VESA DisplayHDR : Nav

Response time 14ms

The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.dateks.lv recommends to buy monitors with 5ms response time or lower.

Contrast ratio 1000:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 250cd/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām Dateks.lv iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information

Application : Home & Office

Aspect ratio : 16:9

Color : White

Size 24"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution FHD 1920x1080

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality

Flicker-free : Nav

Height adjustment : Nav

Pivot : Nav

Swivel : None

Tilt : NO

VESA wall mount : NO

Ports and equipment

D-SUB Nav

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort Nav

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI Nav

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port Nav

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Nav

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : YES

USB-C Power Delivery : Nav

USB-C video input : 0

More detailed specification

Additional information in manufacturers website Samsung KIOSK KM24C, 24"

Accessories included -
Auto Pivot - No
Bluetooth - No
Brand - Samsung
BrandPartCode - LH24KMCCBGCXEN
Brightness - 250 cd/m²
Category - Signage Displays
Certificates - CB
Certificates - EMC
Certificates - Certification - Class A FCC (USA) Part 15, Subpart B 　 KCC/EK (Korea) Tuner : KN32 / KN35 　 Tunerless : KN32 / KN35 CE (Europe) EN55032 : 2012 or 2015 　 EN55024:2010 or EN 55035:2017 VCCI (Japan) VCCI CISPR32:2016 　 CCC(China) GB/T9254-2008 　 GB17625.1-2012 BSMI (Taiwan) CNS13438 ( ITE EMI ) CNS14336-1 ( ITE Safety ) CNS15663 (RoHS) 　 C-Tick (Australia) AS/NZS CISPR32:2015 　 GOST(Russia/CIS) ROCT CISPR 24-2013 　 ROCT CISPR 22:2005
Color - White
Computer system - Built-in processor - Yes
Computer system - Computer system - Yes
Computer system - Computer system type - System on Chip (SoC)
Computer system - Internal memory - 256 GB
Computer system - Operating system installed - Windows 10 IoT Enterprise
Computer system - Processor family - Intel® Celeron®
Computer system - Processor manufacturer - Intel
Depth - 48.8 mm
Description - Self-service kiosk with Windows system ready for immediate use Introducing the Samsung Windows Kiosk: compact, eye-catching, and reliable in any business location. With Windows 10 IoT Enterprise built-in, the kiosk works with more third-party devices and services to integrate your business operations. Modular functionality to handle any type of payment More customer satisfaction thanks to an intuitive all-in-one payment and ordering system, without peripheral devices. Samsung's modular kiosk offers customers a variety of payment options (including credit card, barcode, QR code and NFC authentication). It is also equipped with a printer. A comprehensive solution with extended compatibility The Samsung Windows Kiosk is an all-in-one solution that doesn't require an external computer. Windows 10 IoT Enterprise provides comprehensive connectivity to a variety of devices and services, making it suitable for a wide range of business applications. Solid but stable performance Equipped with an 11th generation Intel Core processor, the Samsung Windows Kiosk stands out for its high computing power, versatility, stability and reliability, making a very positive impression on users in any business environment. Compact and modern design The Samsung Kiosk consists of one display, a junction box and an optional pedestal. This design allows for clean and convenient cable routing, and the gray and white color and simple plinth perfectly blend the kiosk into any stylish interior. A versatile solution for every scenario To increase the usability of the new kiosk in any business environment, three mounting options are provided: in a countertop, on a floor pedestal and on a wall. The cabling is hidden and the lack of an external computer saves space. The screen is always sterile Thanks to the antimicrobial coating, the Samsung Kiosk inhibits the growth of microorganisms, and therefore protects against the spread of certain bacteria. Thanks to this, customers can focus calmly on what is on the screen. Splinter protection Samsung understands that accidents happen. To protect students and teachers, the Samsung Kiosk screen is covered with a proprietary, unique anti-splinter film, which keeps the screen together in the event of a break.
Design - Anti-glare screen - Yes
Design - Bezel width (bottom) - 1.79 cm
Design - Bezel width (side) - 9.4 mm
Design - Bezel width (top) - 1.79 cm
Design - Orientation - Vertical
Design - Placement supported - Indoor
Design - Product colour - White
Design - Product design - Kiosk design
Design - Screen shape - Flat
Design - VESA mounting - No
dimension depth - 620 mm
dimension height - 420 mm
dimension weight - 6000 g
dimension width - 120 mm
Display - Colour gamut - 72%
Display - Contrast ratio (typical) - 1000:1
Display - Display brightness - 250 cd/m²
Display - Display diagonal - 61 cm (24")
Display - Display diagonal (metric) - 60.4 cm
Display - Display resolution - 1920 x 1080 pixels
Display - Display technology - LED
Display - Dynamic contrast ratio marketing name - Mega Contrast
Display - Haze rate - 25%
Display - HD type - Full HD
Display - Horizontal scan range - 56 - 84.5 kHz
Display - Native aspect ratio - 16:9
Display - Panel type - ADS
Display - Pixel pitch - 0.2745 x 0.2745 mm
Display - Response time - 14 ms
Display - Touchscreen - Yes
Display - Touchscreen technology - Capacitive
Display - Vertical scan range - 48 - 75 Hz
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Display surface - Matt
Dot pitch - 0.2745 mm
ean - 8806095038667
Energy class - not applicable
Frequency, horizontal max. - 84.5 kHz
Frequency, horizontal min. - 56 kHz
Frequency, vertical max. - 75 Hz
Frequency, vertical min. - 48 Hz
GTIN - 8806095038667
guarantee - 36
guarantee_type - external
Height - 334.4 mm
Height adjustment - No
I/O connectors - 1 x USB 2.0
LongDesc - Self-service out of the box with Windows OSIntroducing Samsung Kiosk with Windows OS: a compact, eye-catching kiosk to provide reliable performance in any business location. With built-in Windows 10 IoT Enterprise OS, it supports enhanced compatibility with various 3rd party devices and services to integrate business operations.Modular functionality to support any payment typeBoost every customer experience with the intuitive all-in-one payment and ordering system with no additional peripherals needed. Adopting a modular design, Samsung Kiosk offers a variety of customer payment options including credit card, barcode, QR code and NFC, along with a built-in printer.All-in-one solution with upgraded compatibilitySamsung Kiosk operating on Windows is an all-in-one solution without the need for an external PC. With Windows 10 IoT Enterprise OS, it enables flexible connection with versatile devices and services, making it suitable for a wide array of business use cases.Robust yet stable performancePowered by 11th Gen Intel® Core™ Processor, Samsung Kiosk built on Windows OS features high performance computing power for flexible, stable, and enhanced capabilities that deliver amazing and robust experiences to users in any business environment.Compact and modern designSamsung Kiosk is composed of a single display part and connection box, along with an optional stand. The design enables clean and convenient cable management while the grey-white color and simple stand means the kiosk blends perfectly into any store interior with a stylish look.Versatile solution for any scenarioFor enhanced flexibility in any business environment, Samsung’s new kiosk offers three installation types – countertop, floor stand and wall-mounting – along with hidden cabling and power strip, with no external PC needed either for optimized space saving.Keep the screen cleanThanks to an Antimicrobial Coating, Samsung Kiosk inhibits microbial growth to help protect against certain bacteria. This enables customers to stay focused on what’s on the screen with peace of mind.Minimize accidents and risksShatterproof protectionSamsung understands that accidents happen. To protect students and educators, the Samsung Kiosk screen is wrapped in a proprietary shatterproof film, ensuring the screen stays intact in the event of a break.
LongProductName - 24" ADS, 1920 x 1080, 250 cd/m², 1000:1, 178/178, 14 ms, SoC, Celeron, 256 GB, RJ45, HDMI, USB, 16/7, Windows 10 IoT Enterprise
LongSummaryDescription - Samsung KM24C-C. Product design: Kiosk design. Display diagonal: 61 cm (24"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 250 cd/m², HD type: Full HD, Touchscreen. Operating hours (hours/days): 16/7. Operating system installed: Windows 10 IoT Enterprise. Product colour: White
Matrix type - Advanced PLS
Model - LH24KMCCBGCXEN
name - Professional monitor KIOSK KM24C 24 inch Matte, Touch 16h/7 250(cd/m2) 1920 x 1080(FHD) Win10 IoT Celeron 3 years d2d (LH24KMCCBGCXEN)
Operational conditions - Operating relative humidity (H-H) - 10 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 90%
Operational conditions - Storage temperature (T-T) - -20 - 45 °C
Optional accessory -
Other features -
Other features - Safety - CB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : NOM-001-SCFI-1993IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998KC(Korea) : K 60950-1EAC(Russia) : EAC+IEC60950-1INMETRO(Brazil) : INMETRO+IEC60950-1BSMI(Taiwan) : BSMI+IEC60950-1RCM(Australia) : IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950
Packaging content - Stand included - No
Packaging data - Package depth - 122 mm
Packaging data - Package height - 419 mm
Packaging data - Package weight - 5.7 kg
Packaging data - Package width - 620 mm
Performance - Operating hours (hours/days) - 16/7
Performance - Purpose - Commercial
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - USB port - Yes
Ports & interfaces - USB ports quantity - 1
Power - Power consumption (sleep) - 0.5 W
Power - Power consumption (typical) - 88 W
Power consumption - 88 W
producer - Samsung
ProductName - KM24C-C
Resolution - 1920 x 1080 (FHD 1080)
Response time - 14 ms
Screen size (diag.) - 24"
ShortSummaryDescription - Samsung KM24C-C, Kiosk design, 61 cm (24"), LED, 1920 x 1080 pixels, 16/7
Speakers built-in - No
Static contrast - 1 000:1
Title - Samsung KM24C-C Kiosk design 61 cm (24") LED 250 cd/m² Full HD White Touchscreen Built-in processor Windows 10 IoT Enterprise 16/7
Touch screen - Yes
Transreflective technology - LED
TV tuner built-in - No
URL - https://www.samsung.com/uk/business/smart-signage/interactive-display/samsung-kiosk-with-windows-os-lh24kmc3bgcxen/
vendpn - LH24KMCCBGCXEN
Viewing angle, horizontal - 178 °
Viewing angle, vertical - 178 °
Warranty -
WarrantyInfo -
Web camera - None
Weight - 4.3 kg
Weight & dimensions - Display depth - 48.8 mm
Weight & dimensions - Display height - 334.4 mm
Weight & dimensions - Display weight - 4.3 kg
Weight & dimensions - Display width - 547.9 mm
Width - 547.9 mm
WiFi - No
