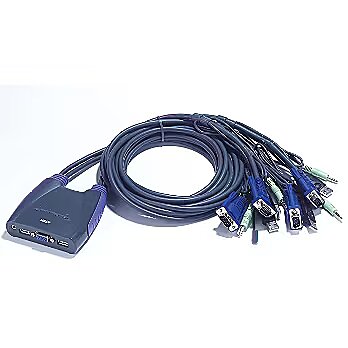

Aten CS64US 4-Port USB KVM Switch, Speaker Support, 0.9/1.2m cables

Accessories included - - USB KVM switch
- 2x sticker on shortcut keys
- User manual
Brand - ATEN
BrandPartCode - CS64US-AT
Category - KVM Switches
Code - CS64US-AT
Color - Navy blue
Description -
Design - Hot keys - Yes
Design - Housing material - Plastic
Design - LED indicators - Yes
Design - Product colour - Blue
Design > Material - Plastic
dimension depth - 100 mm
dimension height - 220 mm
Dimensions - 10.90 x 9.72 x 2.54 cm
dimension weight - 820 g
dimension width - 265 mm
Display - Built-in display - No
EAN - 4710423776456
ean - 4710423776456
Features > Cable length - 2 x 0.9 m; 2 x 1.2 m m
GTIN - 0102930758928
GTIN - 102930758928
GTIN - 0132017782300
GTIN - 132017782300
GTIN - 0172302707120
GTIN - 172302707120
GTIN - 0352237784476
GTIN - 352237784476
GTIN - 0779301428331
GTIN - 779301428331
GTIN - 0803982761774
GTIN - 803982761774
GTIN - 0999992485578
GTIN - 999992485578
GTIN - 4014619575305
GTIN - 4710423776456
GTIN - 6727920019946
guarantee - 24
guarantee_type - external
Logistics data - Harmonized System (HS) code - 85176200
Logistics data - Master (outer) case gross weight - 4.24 kg
Logistics data - Master (outer) case height - 283 mm
Logistics data - Master (outer) case length - 500 mm
Logistics data - Master (outer) case net weight - 2.9 kg
Logistics data - Master (outer) case width - 232 mm
Logistics data - Products per master (outer) case - 5 pc(s)
LongDesc - The CS64US takes a giant step forward from prior cable KVM models in the Petite series, by offering built-in cables, USB peripheral sharing, and a firmware upgrade function that allows you to keep up with latest available versions.1x 4-Port CS64US USB KVM Switch2x Hotkey Stickers1x User Guide
LongProductName - 4-Port USB VGA KVM Switch with Audio
LongSummaryDescription - ATEN 4-Port USB VGA KVM Switch with Audio. Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels, Scan interval: 1,5,99 s. Product colour: Blue, Housing material: Plastic. Power source: DC, Input voltage: 5 V, Power consumption (typical): 0.9 W. Width: 94.1 mm, Depth: 97.2 mm, Height: 26 mm
Name - Aten 4-Port USB VGA/Audio Cable KVM Switch | Aten | 4-Port USB VGA/Audio Cable KVM Switch (0.9m, 1.2m)
name - KVM switch 4 USB PORT VGA CS64US
Operational conditions - Operating relative humidity (H-H) - 0 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 80%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Operational conditions > Temperature range (T-T) - 0 - 50°C °C
Other features - - Max video resolution: 2048 x 1536
- Max. Number of PCs connected 4 computers with VGA output and 2 x PS / 2 + Audio
- Built-in 4 x 1.8m cables - combined
- Type of cable to connect KVM 2 x USB + VGA + 1 x mini audio jack
- PC connection USB + VGA + 1 x mini audio jack
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 265 mm
Package features > Gross depth master carton - 500 mm
Package features > Gross height (mm) - 220 mm
Package features > Gross height master carton - 285 mm
Package features > Gross weight - 0.772 kg
Package features > Gross width (mm) - 95 mm
Package features > Gross width master carton - 235 mm
Package features > Net weight master carton - 3.86 kg
Package features > Packing quantity - 5 pc(s)
Package features > Palette Qty - 255 pc(s)
Package features > Paper/Pasteboard - 223 g
Package features > Plastic (No PET) - 39 g
Package features > Tare weight (kg) - 0.26 kg
Package features > Tare weight master carton - 0.569 kg
Package features > Volume (m3) - 0.0055385 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Manual - Yes
Packaging content - Quick installation guide - Yes
Packaging data - Package depth - 265 mm
Packaging data - Package height - 220 mm
Packaging data - Package weight - 765 g
Packaging data - Package width - 95 mm
Performance - DDC2B support - Yes
Performance - HD type - QXGA
Performance - Maximum resolution - 2048 x 1536 pixels
Performance - Scan interval - 1,5,99 s
Ports & interfaces - Audio connections - Yes
Ports & interfaces - Console ports - 3.5mm headphone, USB A, VGA (D-Sub)
Ports & interfaces - Console USB ports quantity - 2
Ports & interfaces - Keyboard port type - USB
Ports & interfaces - Mouse port type - USB
Ports & interfaces - Number of computers controlled - 4
Ports & interfaces - USB 2.0 Type-A hub ports quantity - 4
Ports & interfaces - VGA (D-Sub) ports quantity - 4
Ports & interfaces - Video port type - VGA
Power - Input voltage - 5 V
Power - Power consumption (typical) - 0.9 W
Power - Power source - DC
producer - ATEN
Producer product name - 4-Port USB VGA/Audio Cable KVM Switch (0.9m, 1.2m)
ProductName - 4-Port USB VGA KVM Switch with Audio
ShortSummaryDescription - ATEN 4-Port USB VGA KVM Switch with Audio, 2048 x 1536 pixels, QXGA, 0.9 W, Blue
Technical details > Net weight - 0.51 kg
Technical details > Other features - Superior video quality – up to 2048 x 1536; DDC2B Computer Selection via hotkey Multiplatform support - Windows, Linux, Mac, Sun Built-in 0.9/1.2 m cables and bus-powered design. Computer Connections - 4. Console Ports: 1 x HDB-15 Female (Blue); 2 x USB Type A Female; 1 x 3.5mm Audio Jack Female (Green); KVM Ports:4 x HDB-15 Male (Blue); 4 x USB Type A Male; 4 x 3.5mm Audio Jack Female (Green).
Technical details > Producer - Aten
Title - ATEN 4-Port USB VGA KVM Switch with Audio
Type - Cable
URL - https://www.aten.com/eu/en/products/kvm/cable-kvm-switches/cs64us/
Usage - KVM
vendpn - CS64US
Warranty - 24
Warranty - 24 month(s)
WarrantyInfo -
Weight - 0.77 kg
Weight & dimensions - Depth - 97.2 mm
Weight & dimensions - Height - 26 mm
Weight & dimensions - Weight - 580 g
Weight & dimensions - Width - 94.1 mm
